Logik L23IP11 Instruction Manual

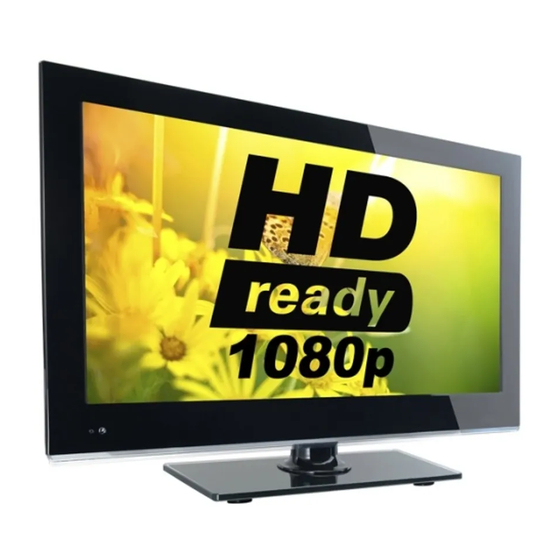

23" led smart tv
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

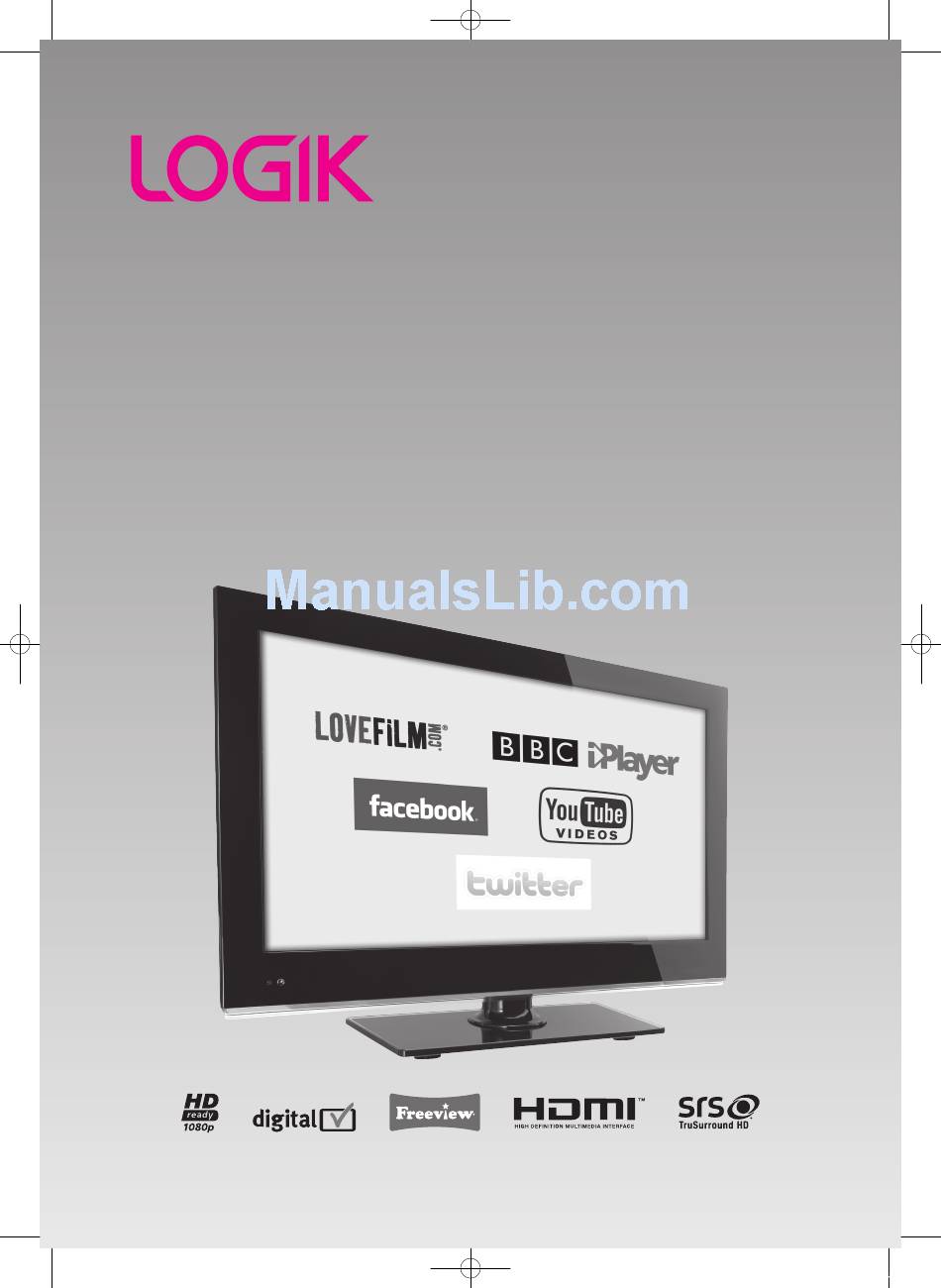

23" LED SMART TV
Instruction Manual
L23IP11
L23IP11_IB_Running Change110923_Annie.indd 1
11年10月13日 下午6:06

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the L23IP11 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Logik L23IP11

Summary of Contents for Logik L23IP11

  • Page 1 23” LED SMART TV Instruction Manual L23IP11 L23IP11_IB_Running Change110923_Annie.indd 1 11年10月13日 下午6:06...
  • Page 2 L23IP11_IB_Running Change110923_Annie.indd 2 11年10月13日 下午6:06...

  • Page 3: Table Of Contents

    Contents Preparation......................................5 Unpacking the TV ..........................................5 Installing / Removing the Base Stand ..................................6 Front / Top / Side View and Controls ...................................7 Rear View and Sockets ........................................8 Installing Batteries in the Remote Control ................................9 Remote Control Operation Range ....................................9 Remote Control ..........................................10 Connections.......................................12 Making Video and Audio Connections ..................................12 Connecting an AV Device with an HDMI Cable ..............................12 Connecting a Computer with a VGA Cable ................................13 Connecting an AV Device with a Component (YPbPr) Cable ...........................13 Connecting an AV Device with a SCART Cable ..............................14 Connecting an AV Device with Composite Cable ..............................14 Connecting a Digital (Coaxial) Audio Receiver ..............................15 Connecting Earphones ........................................15 Initial.Setup.......................................16 Turning the TV on for the First Time ..................................16 −...
  • Page 4 Lock Setting ............................................32 − Lock System ........................................... 32 − Set Password ......................................... 32 − Lock Channel ......................................... 33 − Parental Guidance ....................................... 34 Using.the.Features....................................35 EPG (Electronic Programme Guide) (DTV Mode) ..............................35 − Switch On / Off EPG ......................................35 − Select a Programme ......................................35 − Button Functions in a 7 Days Guide ................................35 Teletext (ATV Mode) ........................................36 − To Turn on Teletext Function................................... 36 Digital Teletext (DTV Mode) ......................................37 −...

  • Page 5: Preparation

    Thank.you .for purchasing your new Logik 23" LED Smart TV. Your new TV has many features and incorporates the latest technology to enhance your viewing experience. We recommend that you spend some time reading this instruction manual in order that you fully understand these features. You will also find some hints and tips to help you resolve any issues. Read all the safety instructions carefully before use and keep this instruction manual for future reference. Preparation .Unpacking.the.TV Remove all packaging from the TV. Retain the packaging. If you dispose of it please do so according to local regulations. The following items are included: Source TV/Radio I-Player Help Quick Menu Start Guide Search Exit Info Menu Picture Sound +Day -Day IP Setup pqrs wxyz Shuffle Text Delete User RCC005 Remote Control / AA Batteries x 2 Mains Adapter (P.N.:.118010045) (P.N.:.118020207.&.118030018) TV Base...

  • Page 6: Installing / Removing The Base Stand

    .Installing./.Removing.the.Base.Stand • Remove the base stand before mounting the TV onto the wall. • The LED display is very fragile, and must be protected at all times when installing and removing the base stand. Be sure that no hard or sharp object, or anything that could scratch or damage the LED display, comes into contact with it. DO NOT exert pressure on the front of the TV at any time because the screen could crack. 1.. Disconnect all cables connected to the TV. 2.. Lay the TV down on a flat surface with the back side facing up. Please make sure to place a soft cushioned material (such as a pillow or thick piece of foam) beneath the screen. 3.. To install the base stand, attach the base stand with the arrows facing down. Then use the 3 screws to fix the base stand to the TV. Screw A x 3 screw (P.N.:.0103020024) 4.. To remove the base stand, lay the TV down on a flat surface with the back side facing up. Please make sure unscrew to place a soft cushioned material (such as a pillow or thick piece of foam) beneath the screen. Untighten the 3 screws that hold the base stand to the rear of the TV. Slide the base stand out. Keep all the spare screws should you want to use the base stand option. Screw B x 4 (P.N.:.103010046) 5.. Mounting on the wall. This TV is designed to be wall- 100.mm mounted with a standard 100 mm x 100 mm mounting kit designed for flat-panel TVs (sold separately). Mount this TV according to the instructions included in the mounting kit. Due to space restrictions, we recommend that you make all connections (refer to pages 12-15 and page 46 for details) before mounting on to the wall.

  • Page 7: Front / Top / Side View And Controls

    .Front./.Top./.Side.View.and.Controls Item Description Illuminates green when the TV is turned on. Illuminates red when the TV is in standby POWER.LED mode. The LED will illuminate green when the timer programming has started in the standby mode. Receives IR signals from the remote control. IR.(Infrared.Receiver) Do not put anything near the sensor, as its function may be affected. MENU Displays the OSD (on screen display) menu. CH.+./.–. Press to select a channel or select a sub-menu from the OSD menu. Adjusts the volume. VOL.+./.– Press to select and adjust a setting in the OSD menu. Press to select among different input signal sources: TV/AV DTV / ATV / SCART / YPBPR / PC / HDMI / AV / USB. Confirmed the selection on OSD menu. Switches the TV on from standby mode. STANDBY Switches the TV back to standby mode. To connect to the Wireless LAN Adaptor. USB./.WIFI Allows the insertion of a USB storage device to play video, audio, photo and text files (Media mode) and record DTV programmes on to a USB storage device. NETWORK To connect the broadband router. L23IP11_IB_Running Change110923_Annie.indd 7 11年10月13日 下午6:06...

  • Page 8: Rear View And Sockets

    .Rear.View.and.Sockets Headphone out POWER HDMI PC-IN SCART Socket Description POWER Connects the mains adapter to the mains socket. Allows the insertion of a USB storage device to play video, audio, photo and text files (Media mode) and record DTV programmes on to a USB storage device. To connect to a High-Definition (HD) signal output device, such as a set-top box, blu-ray HDMI disc player or AV receiver. VGA./.PC﹣IN. To connect to a computer or other devices with a VGA interface. SCART To connect to a VCR, DVD Player, or other AV device with a SCART output socket. .Headphone.out To connect to the earphones. Common.Interface.Slot Allows the insertion of a Common Access Module. (Refer to page 21 for details) Aerial To connect to the aerial socket on the wall with the RF coaxial cable. To connect to the Composite VIDEO and AUDIO (L/R) output sockets on external video devices. To connect to a DVD player, Digital Set-Top-Box, or other AV devices with component 10. YPbPr./.AV (YPbPr) video and audio output sockets. 11. Digital.(Coaxial) To connect to the audio socket on the digital/standard 5.1 audio system. L23IP11_IB_Running Change110923_Annie.indd 8 11年10月13日 下午6:06...

  • Page 9: Installing Batteries In The Remote Control

    .Installing.Batteries.in.the.Remote.Control 1.. Press and lift the back cover to open the battery compartment of the remote control. 2.. Insert two AA size batteries. Make sure to match the (+) and ( - ) ends of the batteries with the (+) and ( - ) ends indicated in the battery compartment. 3.. Close the battery compartment cover. Handling.the.Batteries Handling.the.Remote.Control • Improper or incorrect use of batteries may cause • Take care of your fingernails when you press and corrosion or battery leakage, which could cause hold the battery release tab. fire, personal injury or damage to property. • Do not drop or cause impact to the remote control. • Only use the battery type indicated in this manual. • Do not spill water or any liquid on the remote • When the batteries are exhausted, the remote will control. not function. Replace both batteries at the same • Do not place the remote control on a wet object. time with new ones. • Do not place the remote control under direct • Do not install new batteries with used ones and do sunlight or near sources of excessive heat. not mix different types of batteries. • Remove the battery from the remote control • Do not dispose of used batteries as domestic when not in use for a long period of time, as it waste. Dispose of them in accordance with local...

  • Page 10: Remote Control

    .Remote.Control 1.. Source Select among the different input signal sources: DTV / ATV / SCART / YPBPR / PC / HDMI / AV / USB. Source Mutes and restores your TV sound. Switches the TV between on and standby mode. TV/Radio I-Player Quick Help Start 4.. TV./.Radio Menu Guide • A short-cut to switch input source to TV / Digital radio Search channels. Exit Info • Press to exit from i-Player and go to TV mode. (Internet Player mode) Press to set the multi-satellite mode. • No.Satellite.Receiver Press the button and then press the numeric 0. • Satellite.Receiver.with.Recorder (known as "Plus" type) Press the button and then press the numeric 1. • Satellite.Receiver.with.High.Definition (known as "HD" type) Press the button and then press the numeric 2. • Digital.Satellite.Receiver (known as "Digital" type) Menu Press the button and then press the numeric 3.
  • Page 11 18... Eject a disc. (DVD mode) 19.. Record the current programme. (DTV mode) 20... To reverse playback rapidly. (DVD / Media mode) Source 21... To advance playback rapidly. (DVD / Media mode) 22... D VD.Menu Display the DVD menu. (DVD mode) TV/Radio I-Player Quick Help Start Menu 23..P Guide • Press the P button once and then press the . .buttons to Search select picture mode: Standard / Dynamic / User / Mild. Exit Info • Press the P button twice and then press the . .buttons to allow you to watch the screen in various picture formats: 4:3 / 16:9 / Zoom1 / Zoom2 / Panorama. 24... • To start the timeshift playback. (DTV mode) • To start playback or pause. (Media / DVD mode) 25..S • Press the S button once and then press the buttons to select sound mode: Standard / Music / Movie / Sports / User.

  • Page 12: Connections

    Connections .Making.Video.and.Audio.Connections Not all AV devices have the ability to connect to a TV, please refer to the owner’s manual of your AV device for compatibility and connection procedures. When connecting any external AV device, do not connect the mains adapter cable to the mains socket until all other connections are complete. Separate.Audio. Best.Video. Signal.Type Performance Connection.Required HDMI (480i/480p/576i/576p/720p/1080i/1080p) HDMI PC-IN Component Video (480i/480p/576i/576p/720p/1080i/1080p) Y/Pb/Pr A/V IN SCART (RGB Input) Composite Video A/V IN A/V IN .Connecting.an.AV.Device.with.an.HDMI.Cable • This TV can accept High-Definition Multimedia Interface (HDMI) supports HDCP (High-Bandwidth Digital Content Protection) Protocol. • When you connect to the output of an HD ready player (blu-ray disc player, game console, set-top box or computer) switch to the HDMI function and the TV will automatically detect the resolution used by the HDMI source. • To get the best picture quality, adjust the blu-ray disc player, game console or set-top box output resolution up to 1920 x 1080p. 1.. Use an HDMI cable to connect the TV’s HDMI input socket Rear Bottom View of TV to the external AV device’s HDMI output socket. Headphone out 2..

  • Page 13: Connecting A Computer With A Vga Cable

    .Connecting.a.Computer.with.a.VGA.Cable 1.. Use a VGA cable to connect the TV’s VGA input socket to Rear Bottom View of TV a computer’s VGA output socket. Use an audio cable to connect the TV’s PC-IN input socket to the computer’s Headphone out audio output socket. POWER HDMI PC-IN SCART 2.. Plug the connected devices into the mains socket before switching on the TV. 3.. Press the.STANDBY button on the top panel of the TV or the. button on the remote control to turn on your TV. VGA Cable Audio Cable (not included) (not included) 4.. Press the.TV/AV button on the top panel of the TV or the Source button on the remote control to display the Source List. Use the buttons to select PC and then press the OK button to confirm. • The best resolution is 1920 x 1080. • If your computer is set to shut down after a few minutes of idle mode, the TV will also switch to standby due to no signal being received, this is to save energy. Press the. STANDBY button on the top panel of the TV Computer or the button on the remote control to restart the TV.

  • Page 14: Connecting An Av Device With A Scart Cable

    .Connecting.an.AV.Device.with.a.SCART.Cable Rear Bottom View of TV 1.. Use a SCART cable to connect the TV’s SCART input socket to an external AV device’s SCART output socket. Headphone out POWER HDMI PC-IN SCART 2.. Plug the connected devices into the mains socket before switching on the TV. 3.. Press the.STANDBY button on the top panel of the TV or the. button on the remote control to turn on your TV. 4.. The TV will change the input source to SCART SCART Cable automatically once the AV device is switched on. (not included) Set-top Box DVD Player / Recorder Satellite Receiver .Connecting.an.AV.Device.with.Composite.Cable Rear Right Side View of TV 1.. Connect the included A/V adapter cable and a AV cable to the TV’s AV input sockets to an external AV device’s composite audio/video sockets. (Video = yellow, Audio Common Interface Left = white, and Audio Right = red) Digital YPbPr Aerial 2.. Plug the connected devices into the mains socket before switching on the TV.

  • Page 15: Connecting A Digital (Coaxial) Audio Receiver

    .Connecting.a.Digital.(Coaxial).Audio.Receiver For better sound quality, you may want to play the audio through your multi-channel audio receiver. 1.. Use an audio cable to connect the TV's Digital (Coaxial) Rear Right Side View of TV audio output socket to an external audio receiver’s audio coaxial input socket. Common Interface Digital YPbPr Aerial 2.. Plug the connected devices into the mains socket before switching on the TV. 3.. Press the.STANDBY button on the top panel of the TV or the. button on the remote control to turn on your TV. 4.. Press the.TV/AV button on the top panel of the TV or Audio Cable (not included) the Source button on the remote control to display the Source List. Use the buttons to select any desired input source and then press the OK button to confirm. The TV’s volume control will have no effect. You may control the audio level via the Audio Receiver. Audio Receiver .Connecting.Earphones Rear Bottom View of TV Connect your earphones to the TV’s socket. Before putting on earphones, turn the volume down then put Headphone out the earphones on and slowly increase the volume until you POWER HDMI PC-IN SCART reach a comfortable listening level.

  • Page 16: Initial.setup

    Initial.Setup .Turning.the.TV.on.for.the.First.Time 1.. Connect one end of the AERIAL (RF) coaxial cable to the aerial socket on the wall and the other end of the cable to the AERIAL (RF 75Ω) socket at the rear right side of your TV. Do not connect the TV to the mains supply until you have completed all the connections. Aerial (RF) coaxial cable (not included) Common Interface Digital YPbPr Aerial 2.. Connect the mains adapter to the mains adapter socket after you have completed all the connections. At this stage, the TV switches to standby mode. The red LED indicator will illuminate on the front panel of the TV. 3.. In standby mode, press the.STANDBY button on the top panel of To the mains socket the TV or the. button on the remote control to turn the TV on. The red LED indicator will turn green. • Only use the included mains adapter. Do not use it with any other equipment. Headphone out POWER HDMI PC-IN SCART • Always disconnect the TV from the mains socket when not in use for a long period of time. • The.STANDBY button on the top panel of the TV or the. button on the remote control is only used for switching the TV into standby, it does not disconnect the TV from the mains power.

  • Page 17: Target Region Descriptor

    Target.Region.Descriptor During tuning your TV may have received signals from more than one Target Region Setting transmitter. If this has occurred the Target Region Descriptor screen will be Country Code displayed. This will enable you to select the correct regional transmission for Primary Region England the local news service that you require. Secondary Region London Press the . .buttons to adjust each option's setting and then press the OK button to confirm. Tertiary Region Select Country.Code This will be shown as GBR for the UK. This will show the regional country (England, Wales, Primary.Region Scotland, NI). This will allow you to set the region for your local Secondary.Region news service on BBC and ITV (London, Beds and Cambs etc). You may receive signals from more than one Tertiary.Region transmitter within the Secondary Region, (e.g Beds and Cambs may have Luton or Sandy Heath). Selecting.the.Input.Source 1.. Press the.TV/AV button on the top panel of the TV or the Source button Input Source on the remote control to display the Input source list.

  • Page 18: Using.the.features

    Using.the.Features .TV.Settings.(TV,.DTV.or.Radio.Mode) Auto.Scan.(ATV./.DTV.mode) Use this to automatically find and store all available channels. This is normally recommended if some channels have been added or removed by the broadcaster or if you have moved house. 1.. Press the Menu button and then press the . .buttons to select the TV. SETTINGS menu. 2.. Press the buttons to select Auto.Scan and then press the OK button. Auto Scan DTV Manual Tuning ATV Manual Tuning TV SETTINGS Programme Edit Signal Information CI Information Move Back Select Quit MENU EXIT 3.. Press the buttons to select Country and then press the . .buttons Auto Scan to select the country where you will operate the TV.

  • Page 19: Atv Manual Tuning (Atv Mode)

    3.. The DTV Manual Tuning screen will pop up. Press the . .buttons DTV Manual Tuning to select the desired UHF channel and then press the OK button to UHF CH5 commence the search of that channel. When the signal has been tuned, the picture and signal strength will be displayed on the screen. 4.. Press the Menu button to return back to the main menu. NO SIGNAL 5.. Press the .Exit button to exit the menu. Normal Good Back Quit MENU EXIT ATV.Manual.Tuning.(ATV.mode) Allows you to make manual fine tuning adjustments if the channel reception is poor under ATV mode. 1.. Press the Menu button and then press the . .buttons to select the TV. SETTINGS menu. Auto Scan DTV Manual Tuning 2.. Press the buttons to select ATV.Manual.Tuning and then press the ATV Manual Tuning OK button.

  • Page 20: Signal Information (Dtv Mode)

    3.. A Programme Edit screen will pop up. Press the buttons to select Programme Edit the programme you want to edit. CH. NAME SKIP LOCKED Type 1 BBC ONE 2 BBC TWO a.. Delete 3 BBC THREE 4 BBC NEWS 24 Press the RED button to delete the selected channel. 5 BBCI 6 CBBC Channel b.. Move 7 BBC World Newe Press the YELLOW button and then press the buttons to move to the selected channel. Press the YELLOW button or the Move Select...

  • Page 21: Ci (Common Interface) (Dtv Mode)

    CI.(Common.Interface).(DTV.Mode) The common interface allows the use of a Common Access Module to enable you to view scrambled (pay to view) services. These services are provided by TopUp TV (UK only) and others. The Common Access Module and viewing card can be obtained from the service provider. Rear Right Side View of TV Do not repeatedly insert or remove the Common Access Module as this may damage the interface and cause a Common Interface Digital YPbPr Aerial malfunction. This feature is not available in all countries. CI.(Common.Interface) Allows the Common Access Module To.insert.the.Common.Access.Module to be inserted and access the content that has been encrypted. 1.. Before you insert the Common Access Module, ensure that the TV is switched off and the viewing card is inserted in accordance with the Service Provider’s instructions. 2.. Insert the Common Access Module into the slot. If you feel resistance when inserting the Common Access Module, flip the Module over and try again from the other side. 3.. Switch the TV on. To.remove.the.Common.Access.Module 1.. Before you remove the Common Access Module, ensure that the TV is Common Access Module switched off.

  • Page 22: Picture Setting

    .Picture.Setting Allows you to set your preferred picture mode. 1.. Press the Menu button and then press the . .buttons to select the PICTURE menu. Picture Mode Standard Contrast Brightness PICTURE Color Sharpness Tint Move Back Select Quit MENU EXIT 2.. Press the buttons to select the following picture options and then press the OK button. Press the . .buttons to adjust the settings. Picture.Mode Cycles among picture mode: Dynamic / Standard / User / Mild. Alternative You may press the P button once and then press the . .buttons to select the picture mode directly. Contrast Adjusts the difference between light and dark levels in the picture. (for User mode) Brightness Increases or decreases the amount of white in the picture. (for User mode) Colour Controls the colour intensity. (for User mode) Sharpness Adjusts the level of crispness in the edges between light and dark areas of the...

  • Page 23: Customising The Sound Setting

    Zoom2 This selection will allow This selection will allow you to zoom in the you to zoom in the picture without any picture without any alteration, while filling the alteration, while the 4 entire screen. However, sides of the picture will the top and bottom be cropped. of the picture will be cropped. Panorama Use this mode for the wide aspect ratio of a panoramic picture. Just.Scan (HDMI Use the function to see the full image without any cutoff when HDMI (720p / 1080i / mode) 1080p) signals are input. Noise.Reduction Select to reduce the noise level of the connected device: Off./.Low./.Middle./.High. (ATV mode) 3.. Press the Menu button to return back to the main menu. 4.. Press the .Exit button to exit the menu. .Customising.the.Sound.Setting Allows you to select an audio-enhancement technique. 1.. Press the Menu button and then press the . .buttons to select the SOUND menu. Sound Mode Standard Treble Bass Balance Auto Volume SOUND...

  • Page 24: Mono / Nicam Stereo Sound Reception (Atv Mode)

    AD.Switch Audio Description is an auxiliary audio function that provides an additional audio track for visually (For DTV mode) challenged persons. This function handles the Audio Stream for the AD (Audio Description), when it is sent along with the main audio from the broadcaster. • Set to “Off” for normal broadcasting sound coming out from speakers. • Set to “On” to activate the description sound track if available. The availability of Audio Description sound track is indicated by the visually impaired icon "V.I." in the information banner. AD.Volume Once the AD Switch is set to ON the AD commentary volume can be adjusted using the AD Volume option. (for DTV mode) 3.. Press the Menu button to return back to the main menu. 4.. Press the .Exit button to exit the menu. Mono./.Nicam.Stereo.Sound.Reception.(ATV.Mode) When a programme is selected, press the S button twice and then press the . .buttons to select Mono / Nicam.Stereo for the selected station. Broadcast On.Screen.Display Mono MONO Stereo NICAM STEREO Mono.sound.selection If the stereo signal is weak in stereo reception, you can switch to mono by pressing the S button twice and then press the . . buttons to select Mono / Nicam.Stereo. In mono reception, the clarity of sound is improved. To switch back to stereo, press the S button twice and then press the . .buttons to select Mono / Nicam.Stereo again. Speaker.Sound.Output.Selection.(DTV.Mode) While watching a DTV programme, you can press the S button twice to Audio Language display the audio language list (only applicable when the TV programme has this feature).

  • Page 25: Extras Setting

    .Extras.Setting Sleep.Timer The sleep timer automatically switches the TV to standby after the preset time has elapsed. The clock will be set automatically when receiving a digital signal. Time must be set before using Sleep Timer function. 1.. Press the Menu button and then press the . .buttons to select the EXTRAS menu. 2.. Press the buttons to select Sleep.Timer and then press the OK Sleep Timer Start Recording button. Schedule List EXTRAS Recorded List 3.. Press the . .buttons to select a period of time after which the TV Timer Record automatically switches to standby mode: OFF / 10 / 20 / ... / 180 / 240 min PVR File System and then press the OK button to confirm. The timer begins to count down Move Back Select Quit MENU EXIT from the number of minutes selected. If you turn the TV off after setting the sleep timer, the sleep timer setting will be erased.

  • Page 26: Schedule List

    Schedule.List Allows you to select your schedule list in the PVR. For further details, please refer to page 50. 1.. Press the Menu button and then press the . .buttons to select the EXTRAS menu. Sleep Timer Start Recording 2.. Press the buttons to select Schedule.List and then press the OK Schedule List button to view the Schedule.List. Recorded List Timer Record EXTRAS PVR File System PC Setup Move Back Select Quit MENU EXIT 3.. Press the Menu button to return back to the main menu. Schedule List Mode Time Date Programme Title Channel Name Result...

  • Page 27: Timer Record

    Timer.Record Allows you to select your timer record in the PVR. For further details, please refer to page 50. 1.. Press the Menu button and then press the . .buttons to select the EXTRAS menu. Schedule List Recorded List 2.. Press the buttons to select Timer.Record and then press the OK Timer Record button to view the Timer.Record. PVR File System PC Setup EXTRAS Move Back Select Quit MENU EXIT 3.. Press the Menu button to return back to the main menu. Recorded Mode 655335 4.. Press the .Exit button to exit the menu. Mode once Start Time Minute Hour Date...

  • Page 28: Pc Setup (Pc Mode)

    Time.Shift.Size After formatting the Time Shift Size menu will appear if you have selected HiSpeed.FS in PVR.File. System.Type. Press the . .buttons to select your preferred file size. Press the OK button to confirm. This option cannot be chosen if you have selected FAT32 in PVR.File.System.Type. Speed This shows you the transfer rate of your USB storage device. 4.. Press the Menu button to return back to the main menu. 5.. Press the .Exit button to exit the menu. PC.Setup.(PC.Mode) Allows you to adjust the PC desktop content. (PC mode only) 1.. Press the Menu button and then press the . .buttons to select the EXTRAS menu. Timer Record PVR File System 2.. Press the buttons to select PC.Setup and then press the OK button. PC Setup EXTRAS Move Back Select Quit MENU EXIT 3.. Press the buttons to select the following PC Setup options and then PC Setup press the OK button.

  • Page 29: Options Setting

    .Options.Setting OSD.Language Allows you to select your desired on screen menu language. 1.. Press the Menu button and then press the . .buttons to select the OPTIONS menu. 2.. Press the buttons to select OSD.Language and then press the OK OSD Language English Audio Language English button. The default on-screen menu language is set as English. Subtitle Language English OPTIONS Menu Time Out Country Restore Setting Move Back Select Quit MENU EXIT 3.. Press the buttons to select your desired OSD language. Press the OK button to confirm and return to the previous menu. Deutsch 4.. Press the .Exit button to exit the menu.

  • Page 30: Subtitle Language (Dtv Mode)

    Subtitle.Language.(DTV.Mode) Allows you to select your desired subtitle language or turn off the subtitle. (Available for digital channels if multiple subtitle languages are broadcast.) 1.. Press the Menu button and then press the . .buttons to select the OPTIONS menu. OSD Language English Audio Language English 2.. Press the buttons to select Subtitle.Language and then press the Subtitle Language English Menu Time Out OK button. Country OPTIONS Restore Setting Auto Standby Move Back Select Quit MENU EXIT 3.. Press the buttons to select your desired subtitle language. Press the OK button to confirm and return to the previous menu. OSD Language Audio Language Deutsch...

  • Page 31: Restore Factory Default

    Restore.Factory.Default Restores all settings to the factory defaults. 1.. Press the Menu button and then press the . .buttons to select the OPTIONS menu. Menu Time Out Country 2.. Press the buttons to select Restore.Factory.Default and then press Restore Setting the OK button. Auto Standby OPTIONS Move Back Select Quit MENU EXIT 3.. Press the buttons to select YES and then press the OK button to confirm. All settings will be reset to factory defaults and the OPTIONS Menu Time Out menu will disappear. Country Restore Setting Auto Standby Are you sure? OPTIONS Move Back...

  • Page 32: Lock Setting

    .Lock.Setting To access the LOCK menu, you must enter the password. Enter the default password “0000” for first time use. To change the password, please refer to page 32 "Set.Password”. Lock.System The Lock System is designed to prevent accidental retuning of the TV / losing channels and prevent children watching unsuitable programmes. The Lock System must be set to On for this function to operate. If the Lock System is set to On, a valid password must be entered when you access Auto Scan / Manual Tuning / Programme Edit. 1.. Press the Menu button and then press the . .buttons to select the Lock menu. 2.. Press the buttons to select Lock.System and then press the OK Lock System button. Set Password Lock Channel LOCK Parental Guidance Move Back Select Quit MENU EXIT 3.. Use the 0﹣9 buttons to input a 4-digit password. The default password is “0000”. If you change the password, be sure to remember the new Lock System Please enter password Set Password password! If you forget the new password, use the master Lock Channel...

  • Page 33: Lock Channel

    4.. Press the buttons to select Set.Password and then press the OK button. Lock System Set Password Lock Channel Parental Guidance LOCK Move Back Select Quit MENU EXIT 5.. Use the 0﹣9 buttons to input the old password and then input the new 4-digit password. Re-enter new password for confirmation. Lock System Please enter old password The default password is “0000”. Set Password Please enter new password Lock Channel If you change the password, be sure to remember the new Parental Guidance Confirm new password LOCK password! If you forget the new password, use the master...

  • Page 34: Parental Guidance

    5.. A Programme.Edit screen will pop up. Press the buttons to select a Programme Edit channel. Press the GREEN button on the remote control to lock or unlock CH. NAME SKIP LOCKED Type the channel. Press the GREEN button again to unblock. 1 BBC ONE 2 BBC TWO 3 BBC THREE 6.. Press the Menu button to return back to the main menu. 4 BBC NEWS 24 5 BBCI 6 CBBC Channel 7 BBC World Newe 7.. Press the .Exit button to exit the menu. When a channel is locked, a valid password must be entered. Move Select Back...

  • Page 35: Using.the.features

    Using.the.Features .EPG.(Electronic.Programme.Guide).(DTV.Mode) This system has an Electronic Programme Guide (EPG) to help you navigate through all the possible viewing options. The EPG supplies information such as programme listings, start and end times for all available services. In addition, detailed information about the programme is often available in the EPG (the availability and amount of programme information will vary, depending on the particular broadcaster). This function can be used only when the EPG information is broadcast by broadcasting companies. The EPG displays the programme details for the next 7 days. Switch.On./.Off.EPG 1.. Press the .Guide button to switch on EPG. 2.. Press the buttons to move to the top line PROGRAMME.GUIDE and then press the buttons to select between TIME and CHANNEL. TIME format displays EPG of all channels at the same time. CHANNEL format displays EPG of one channel hour by hour. 3.. Press the .Guide button again or the .Exit button to switch off EPG and return to normal TV viewing. Programme Guide Programme Guide CHANNEL TIME 06 Nov 2007 09:00 - 09:55 CH 800 ANTENA 3 06 Nov 09:15 No Information 11:30 - 13:00 La ruieta de...

  • Page 36: Teletext (Atv Mode)

    Press the YELLOW button to view the preset Schedule List reminders or scheduled recordings in the Mode Time Date Programme Title Result Channel Name Schedule.List. YELLOW (Schedule) Move Delete Back Quit MENU EXIT Press the BLUE button and then press the buttons to select CHANNEL / TIME. The BLUE (To Top) Programme Guide will be sorted by channel or time. Press to select a channel. (for Programme Guide sorted by channel) . or Press to select the date. (for Programme Guide sorted by time) Press to view the channel. (for Programme Guide sorted by channel) or Press to view the schedule of the previous / next day. (for Programme Guide sorted by time) Press to confirm and view the selected channel. EXIT Press to switch off the EPG. .Teletext.(ATV.Mode) Teletext is a free service broadcast by some TV stations which gives up-to-the-minute information on news, weather, television programmes, share prices and many other topics. Using the Teletext control buttons you can view pages of information that are listed in the teletext index. To.Turn.on.Teletext.Function Make sure the TV channel you are watching transmits teletext.

  • Page 37: Digital Teletext (Dtv Mode)

    .Digital.Teletext.(DTV.Mode) Digital teletext can access special digital teletext services and specific services which broadcast digital teletext. You will need to turn off Subtitle.Function before using teletext (refer to page 30 for details). Teletext.within.Digital.Service 1.. In DTV mode, press the OK button to display the Channel.List. 2.. Press the TXT button to display the teletext page. 3.. Press the 0﹣9 buttons to select a page number. 4.. Follow the instructions on digital teletext and move onto the next step by pressing OK, . . , RED, GREEN, YELLOW, BLUE or 0﹣9 buttons etc. 5.. To change digital teletext service, select a different service by pressing the 0﹣9 buttons or the buttons. Alternative Press the TXT button while watching some programmes to reveal the teletext page (MHEG). 6.. Press the TXT button to exit. L23IP11_IB_Running Change110923_Annie.indd 37 11年10月13日 下午6:08...

  • Page 38: Entertainment

    Entertainment .Connecting.to.Network You can set up your TV through your local area network (LAN) using a wired or wireless connection. • If wired and wireless networks are both available, wired network is the preferred method. • Do not connect a modular phone cable to the NETWORK socket. • After making a physical connection, a small number of home networks may require the TV network settings to be adjusted. For most home networks, the TV will connect to automatically without any adjustments. • Since there are various connection configurations, please follow the specifications and instruction of your telecommunication carrier, internet service provider and router setting user manual. Connecting.to.a.Wired.Network Use a Local Area Network (LAN) cable or an Ethernet cable to connect the TV’s NETWORK socket to the corresponding port on your router socket. Rear Left Side View of TV Broadband Router / Wireless Router LAN1 LAN2 LAN3 LAN4 Internet Ethernet Cable (included) Wired.Network.Setup Use the Network Setup when connecting your TV to a wired network. 1.. Plug the connected devices into the mains socket before switching on the TV. 2.. Press the.STANDBY button on the top panel of the TV or the. button on the remote control to turn on your TV. 3.. Press the. .I﹣Player button on the remote control to enter i﹣Player. When you first enter i﹣Player there is a delay whilst the network card boots. Please be patient. 4.. The TV will automatically connect to the i-Player server and register with it. If there is an update available, the server will deliver it at this time.

  • Page 39: Connecting To A Wireless Network

    5.. If you have difficulty connecting or there is a "No Internet Connection" message on the screen. Press the IP button on the remote control. The Network.SETUP menu will be displayed. 6.. Press the buttons to select Connection.Type. Press the OK button and then press the buttons to select Wired. Press the OK button to confirm. 7.. Press the buttons to select IP.Address. Press the OK button and then press the buttons to select Automatic.IP or Fixed.IP. Press the OK button to confirm. Automatic.IP Select this if the network supports is a DHCP (Dynamic Host Configuration Protocol). The IP address will automatically be determined. Fixed.IP Select this if there is no DHCP server on the network or you want to set the IP address manually. Press the buttons to select Edit. Use the buttons to navigate IP.Address./.Network.Mask./.Gateway./.DNS.Server and then press the 0﹣9 buttons to enter your IP address details. 8.. Press the buttons to select Apply and then press the OK button to confirm. In Wired mode the TV will connected to the router automatically as soon as the connection is made. You will see a message "Not connected" change to "Connected" at the top of the screen. This means you are connected to your local network. Connecting.to.a.Wireless.Network Use the Wireless LAN adapter to connect the TV’s USB / WIFI socket. Rear Left Side View of TV Wireless LAN Adapter Wireless Router (not included) LAN1...

  • Page 40: Wps (Wifi Protected Setup)

    4.. The TV will automatically connect to the i-Player server and register with it. If there is an update available, the server will deliver it at this time. 5.. If you have difficulty connecting or there is a "No Internet Connection" message on the screen. Press the IP button on the remote control. The Network.SETUP menu will be displayed. 6.. Press the IP button on the remote control and then press the buttons to select Connection.Type. Press the OK button and then press the buttons to select Wireless and then press the OK button to confirm. 7.. Press the buttons to select Rescan.Wifi and then press the OK button. The new connection setting resets the current network settings. 8.. Press the buttons to select Network.Name.(SSID) and then press the OK button. Press the buttons to select your network from the list and then press the OK button. Alternative Press the SD1 button on the remote control to display the online keyboard and then use the buttons and the OK button to select the desired characters to enter the Network.Name.(SSID). Press the buttons to select the icon and then press the OK button to confirm. 9.. Press the buttons to select Encryption.Type and then press the SD1 button on the remote control to display the online keyboard. Press the buttons to select the characters to enter the Network.Name. (SSID) (the same key to enter on a laptop to connect). 10..Press the buttons to select Apply and then press the OK button to confirm.

  • Page 41: Personal Account Setup

    .Personal.Account.Setup Use the setup a personal account. 11..In iPTV mode, press the User button to display the LOGIN screen. Press LOGIN the buttons to select the Create.New.User and then press the OK button. Create New User Cancel 12..Press the buttons to select the User.Name and then press the SD1 button to display the online screen. Press the buttons and USER PROFILE the OK button to enter the desired character. Press the buttons User Name: to select the icon and then press the OK button to confirm. PIN: To keep your account secure a PIN length of at least 4 digits is recommended. Repeat PIN: 13..If you want to set the PIN, press the buttons to select the PIN YouTube User Name:...

  • Page 42: Using The I-Player

    .Using.the.i﹣Player 1.. Press the. .I﹣Player button on the remote control to enter i﹣Player. 2.. The i﹣Player.Main.Menu will be displayed. IPTV Services Widgets IPTV.Services Press the buttons and then press the OK button to select different IPTV services. Widgets Press the buttons to select different Widgets or Apps. Press the YELLOW or BLUE button to select different pages of each Widget. 3.. During watching IPTV Services, press the Menu button to return to the i﹣Player.Main.Menu. 4.. Press the TV button on the remote control to exit the i-Player and return to TV mode. L23IP11_IB_Running Change110923_Annie.indd 42 11年10月13日 下午6:08...

  • Page 43: I-Player Search

    i﹣Player.Search To search a subject on YouTube or your home media. Home media is on a USB storage devices or from a PC on your home network provided media server software on the PC. 1.. In the i﹣Player.Main.Menu, press the SEARCH button to enter the SEARCH.MEDIA. 2.. Press the buttons and then press the OK button to select the search place (YouTube / Home Media). A tick box will be display. 3.. Press the buttons to the SEARCH field and then press the SD1 button on the remote control to display the online keyboard. 4.. Press the buttons and the OK button to enter the desired characters. Press the buttons to select the icon and then press the OK button to enter the name of your search. You do not need to type the full name. It will search for files that contain the letters you type within the file name. 5.. Press the RED button to search. The search result will be displayed. 6.. Press the buttons to select the desired subject and then press the OK button to play. i﹣Player.Advanced.Setting 1.. Press the IP button on the remote control. The Network.SETUP menu will be displayed. 2.. Press the BLUE button on the remote control to select General.SETUP menu. Slideshow.Delay Press the buttons to select Slideshow.delay and then press the OK button. Press the buttons and then press the OK button to select the desired options.
  • Page 44 i﹣Player.Information Press the buttons to select OPEN in About field. Press the OK button to display the information. • P ress the RED button to display the License. • P ress the GREEN button to display the Copyrights. • P ress the BLUE button to display the IP and mac data in Network. Widget.Preferences a.. P ress the buttons to select Preferences in Widget field. Press the OK button to display the Widget.Preferences.SETUP menu. b.. Press the buttons to move to the page number field. Press the buttons to select more widget preferences pages. Press the OK button to confirm. c.. P ress the buttons and then press the OK button to select the desired widget. A tick box will be display. d.. Some Widgets can be edited either to alter their action or to enable / disable them. Press the buttons to select Edit and then press the OK button. Edit.the.weather.widget This will change the location that the weather is reported for. a.. In Widget.SETUP menu, press the buttons and then press the OK button to select Edit next to the Weather. The Weather.Widget.Settings will be displayed.

  • Page 45: I-Player Upgrade

    i﹣Player.Upgrade i-Player upgrades are delivered online. They can add application, fix a software bug or just keep you up-to-date. An upgrade is available message will be displayed when you switch on the There are updates available for download, do you i-Player. wish to upgrade? If you accept the upgrade, press the buttons and then press the OK button to select YES. Upgrade successful message will be displayed when finished. Do not turn off the TV or interupt the upgrade once you start the upgrade. It will cause to damage the TV. If do not want to upgrade, press the buttons and then press the OK button to select X. The upgrade is available message will be disappear. The message will display again when i-Player is turned on next time. L23IP11_IB_Running Change110923_Annie.indd 45 11年10月13日 下午6:09...

  • Page 46: Connecting A Usb Storage Device

    .Connecting.a.USB.Storage.Device 1.. Switch off the TV before connecting any USB storage Rear Bottom View of TV device. Headphone out 2.. Connect your USB storage device to the USB port of POWER HDMI PC-IN SCART your TV. 3.. Plug the connected devices into the mains socket Front Right Side View of TV before switching on the TV. 4.. Press the.STANDBY button on the top panel of the TV or the. button on the remote control to turn on USB Cable your TV. (not included) 5.. Press the.TV/AV button on the top panel of the TV or USB Cable the Source button on the remote control to display (not included) the Source List. Use the buttons to select USB and then press the OK button to confirm. USB Hub Adapter Portable hard Disk • If a hard disk is used, make sure its mains adapter is connected to the mains supply. • If a USB hub is used, make sure its mains adapter is connected to the mains supply as the total current consumption may exceed 500mA.

  • Page 47: Listening To Music

    4.. Press the OK button to display the function bar. Press the buttons and then press the OK button to select the function: Repeat (Repeat 1 / Repeat All / Repeat None) / Music / Playlist / Info. / Rotate clockwise / Rotate anti-clockwise / Zoom In / Zoom Out / Move View. If this folder also contains music file. You can select a music track to play at the same time while viewing your photo. 5.. Press the button to return back to the previous menu and to select .Exit button repeatedly to return to the another file to play. Press the root menu. .Listening.to.Music 1.. Press the.TV/AV button on the top panel of the TV or the Source button on the remote control then press the buttons to select the USB mode and then press the OK button to display the root menu. Disk C: 2.. Press the buttons to select MUSIC and then press the buttons - - - - - - to select your storage device and then press the OK button. - - - MUSIC Move Menu Select MENU...

  • Page 48: Watching Movies

    .Watching.Movies 1.. Press the.TV/AV button on the top panel of the TV or the Source button on the remote control then press the buttons to select the USB mode and then press the OK button to display the root menu. Disk C: 2.. Press the buttons to select MOVIE and then press the buttons - - - - - - to select your storage device and then press the OK button. - - - MOVIE Move Menu Select MENU 3.. Press the . . buttons to navigate in the movie folder and then press the OK button. Select the movie you want to view and then press the OK button to play. A tick box will be displayed. If you need to delete the file, Return Up Folder press the RED button. Press the button to start to playback. 1579 Resolution 720 x 576...
  • Page 49 4.. Press the OK button to display the function bar. Press the buttons and then press the OK button to select the function: Prev. page / Next page / Prev. / Next / Stop / Music / Playlist / Info. If this folder also contains music file. You can select a music track to play at the same time while viewing your text. 5.. Press the button to return back to the previous menu and to select another file to play. Press the .Exit button repeatedly to return to the root menu. L23IP11_IB_Running Change110923_Annie.indd 49 11年10月13日 下午6:09...

  • Page 50: Pvr.(Personal.video.recorder)

    PVR.(Personal.Video.Recorder) .Time.Shift.Function.(DTV.Mode) This function allows the TV to virtually record the live viewing broadcast programme. If the transfer rate of the USB storage device is too slow • Time Shift Mode and Recording functions for recording or time shift function, a warning statement may not work if the signal strength is weak. will be shown on the screen. If this happens, please • Stop the time-shift function before upgrade your USB storage device. switching to another input source. During normal TV viewing, you may press the button to virtually pause the live viewing broadcast programme if you want to go out for a while (e.g. going to the bathroom / kitchen). " " will show on the screen. Alternative Press the .Exit button to display the PVR Time Shift progress bar and then press the buttons to select " Play" on the bar. Press the OK button to confirm. When you have returned, press the button to play the missed broadcast programme. " " will show on the screen. There may be a few seconds delay in video and sound when the unit starts to playback the missed broadcast programme. It will return to normal. The.‘PVR.Time.Shift.Progress.Bar’ 1 Indicates the time lagging behind the live broadcast (DVR reviewing) 2 Indicates the available recording time on your USB storage device 3 Indicates the status of the currently displayed video ( / / 4 Indicates the current time Using.the.Remote.Control You can shift playback to any point of the virtually recorded programme. The PVR Time Shift progress bar will be displayed on the...

  • Page 51: Recording Dtv Programme Onto A Usb Storage Device

    .Recording.DTV.Programme.onto.a.USB.Storage.Device Use this function to record the DTV programme you are watching on the main screen and save them for future viewing. Make sure that your connected USB storage device has enough available memory space. 1.. Press the button to record the programme that you are currently watching. The recording progress bar will disappear after 15 seconds. To display the recording progress bar again, press the .Exit.button. button or the 2.. Press the button to stop recording. Recording will stop automatically when the disk is full. If you want to turn off your TV during recording, press the button. Record in Progress... A dialogue will display. Shut down the screen, and continue recording. Press the buttons to select your desired option and then press Stop recording, and power off. the OK button to confirm. Cancel If you select the middle option in the box, the screen will turn off but the recording will still in progress, the LED indicator will alternatively Select Back Move EXIT...

  • Page 52: Play Recorded Programme

    3.. After finishing all the recorder adjustments, press the OK button to confirm your settings. A Timer Save Success screen will display. Timer Save Success 800 TVE 1 11 Mar 2008 10:00 4.. The Schedule.List will then be displayed with your preset reminders shown. Schedule List 5.. Press the Menu button to return to the EPG. Mode Time Date Programme Title Channel Name Result 6.. Press the .Exit button to exit EPG. • When the preset time is reached, the TV will start recording automatically. • If a programme recording starts when the TV is in standby Move Delete Back Quit MENU EXIT mode, the LED indicator will alternatively flash red and green.

  • Page 53: Maintenance

    Maintenance .Maintenance Careful and regular cleaning can prolong the life of your TV. Be sure to switch off the.STANDBY button on the top panel of the TV or the. .button on the remote control to turn off the TV. Disconnect the mains adapter from the mains socket before any cleaning. 1.. Use a soft dry cloth to wipe away the dust from the screen and surfaces. 2.. If the surfaces are extremely dirty, clean the TV with a cloth which has been dipped in a weak soapy water. Wring the cloth until it is almost dry, then use it to wipe the TV. 3.. Ensure there is no excess water on the screen. Allow any water or dampness to evaporate before switching the TV on. Never use alcohol, benzine, paint-thinner, cleaning fluid or other chemicals. Do not use compressed air to remove dust. .Hints.and.Tips The following table contains various hints and tips to get the best performance from your TV. If you require additional assistance please call our UK Call Centre on 0844.561.1234. Our UK Customer Contact Centre is open Monday-Saturday 8am-8pm or Sunday 8am-6pm. The.TV.does.not.operate.properly. • The TV may freeze up during use. Disconnect the mains adapter from the mains The.TV.does.not.respond.when. socket for a few minutes. Reconnect the mains adapter and try to operate it again as pressing.any.buttons usual. • Check that the TV is connected to the mains supply. TV.cannot.be.switched.on • Make sure all connected AV devices are switched off before switching on your TV. • Check to see if there are any objects between the TV and the remote control causing an obstruction. Ensure that you are pointing the remote control directly at The.remote.control.does.not.work the TV. • Ensure that the batteries are installed with the correct polarity (+ to +, - to -). • Install new batteries.

  • Page 54: Hints.and.tips

    Hints.and.Tips The.audio.function.does.not.work. • Press the VOL + / – buttons. Picture.OK.but.no.sound • Sound muted? Press the button. • Try another channel. The problem may be caused by the broadcaster. No.output.from.one.of.the.speakers • Adjust the Balance settings in the SOUND menu. • A change in ambient humidity or temperature may result in an unusual noise when Unusual.sound.from.Inside.the.TV the TV is switched on or off and does not indicate a fault with the TV. No.sound.when.connecting.HDMI • Check if the input source is HDMI. Audio.noise • Keep the RF coaxial cable away from the other connected cables. Password • Select the Set.Password setting in the LOCK menu, then use the following master Lost.password password “8899”. The master password clears your previous password and allows you to enter a new password. There.is.a.problem.in.PC.mode. The.signal.is.out.of.range.(Invalid. • Adjust the resolution, horizontal frequency, or vertical frequency. format) Vertical.bar.or.stripe.on.background. • Use Auto configure or adjust clock, phase, or H/V position. &.Horizontal.Noise.&.Incorrect. position Screen.colour.is.unstable.or.single. • Check the signal cable.

  • Page 55: Display.modes

    Display.Modes .Display.Modes The screen resolution has been optimised during production for the display modes listed below. Whilst the TV is capable of accepting a 1080p input, it is not capable of displaying this screen resolution and therefore the display will be scaled to fit the native resolution of the screen automatically. YPbPr.Mode Resolution Vertical.Frequency.(Hz) Aspect.Ratio 480I: 720 x 480 480P: 720 x 480 576I: 720 x 576 576P: 720 x 576 Auto / 4:3 / 16:9 / Zoom1 / 720P: 1280 x 720 Zoom2 / Panorama 1080I: 1920 x 1080 1080P: 1920 x 1080 PC.Mode Please check the display settings of your computer before connecting to the TV. If the display setting of your computer does not match the TV, there may be no video. Resolution Vertical.Frequency.(Hz) Aspect.Ratio 640 x 480 800 x 600 4:3 / 16:9 1024 x 768 1360 x 768 1920 x 1080 HDMI.Mode. Resolution Vertical.Frequency.(Hz) Aspect.Ratio 480I: 1440 x 480 480P: 720 x 480 576I: 1440 x 576 576P: 720 x 576 Auto / 4:3 / 16:9 / Zoom1 / 720P: 1280 x 720 Zoom2 / Just Scan / Panorama 1080I: 1920 x 1080 1080P: 1920 x 1080...

  • Page 56: Specifications

    Specifications .Specifications Model L23IP11 Panel.System 23 inch LED Backlight Panel Display.Resolution 1920 pixels (horizontal) x 1080 pixels (vertical) Television.System PAL I / BG / DK / SECAM BG/DK Brightness 250 cd/m Contrast.Ratio 1000:1 Power.Source 100-240V~50/60Hz Energy.Efficiency.Class Screen.Size.(measured.diagonally) Approx. 58 cm (23 inch) Power.Consumption.(In.HOME./. STANDBY.mode) Average.Annual.Energy.Consumption. 44kWh Standby.Power.Consumption 0.45W Operating.Temperature 0°C – 40°C Operating.Humidity 10% – 50% RH Mercury.Content.(mg) Presence.of.Lead √ Reference.Period 2010/1062 – 2011 Speaker.Power 3 W + 3 W Dimension.(W.x.D.x.H).with.base 583 x 165 x 420 mm Weight.(Net) 4.5 kg Inputs./.Output...
  • Page 57 ENERG L23IP11 kWh/annum Watt 58.4 inch - 2011 2010/1062 L23IP11_IB_Running Change110923_Annie.indd 57 11年10月13日 下午6:09...

  • Page 58: Safety.warnings

    Safety.Warnings .Safety.Warnings • Read all the instructions carefully before using the unit Safety and keep them for future reference. • Always disconnect the unit from the mains supply before connecting / disconnecting other devices or • Retain the manual. If you pass the unit onto a third moving the unit. party make sure to include this manual. • Unplug the unit from the mains socket during a • Check that the voltage marked on the rating label lightning storm. matches your mains voltage. Mains.Adapter.Cable. Damage • Make sure the unit or unit stand is not resting on top of • Please inspect the unit for damage after unpacking. the mains adapter cable, as the weight of the unit may • Do not continue to operate the unit if you are in any damage the mains adapter cable and create a safety doubt about it working normally, or if it is damaged hazard. in any way - switch off, withdraw the mains plug and consult your dealer. Interference • Do not place the unit on or near appliances which may Location.of.Unit cause electromagnetic interference. If you do, it may • The unit must be placed on a flat stable surface and adversely affect the operating performance of the unit, should not be subjected to vibrations.
  • Page 59 Earphones CAUTION • Listening to loud sounds for prolonged periods of time may permanently damage your hearing. RISK OF ELECTRIC SHOCK DO NOT OPEN • Before putting on earphones, turn the volume down The lightning flash with arrowhead symbol, then put the earphones on and slowly increase the within an equilateral triangle, is intended to volume until you reach a comfortable listening level. alert the user to the presence of uninsulated “dangerous voltage” within the unit’s Standby. enclosure that may be of sufficient • The button on the remote control does not switch magnitude to constitute a risk of electric off the unit completely. The unit will continue to draw shock. electricity from the mains supply while in standby. In the interests of safety and to avoid unnecessary energy The exclamation point within an equilateral consumption, never leave the unit in standby while triangle is intended to alert the user to the unattended for long periods of time, e.g. overnight, presence of important operating and while on holiday or while out of the house. Disconnect maintenance (servicing) instructions in the the mains adapter from the mains socket. manual accompanying the unit. Batteries Service •...
  • Page 60 If you require a replacement for any of the items listed below, please quote their corresponding part numbers: Replacement.Part Part.Number TV Base (Glass Stand) 104130001 Remote Control 118020207 AA Batteries 118030018 Mains Adapter 118010045 Component Adapter Cable 117030014 A/V Adapter Cable 117030015 Ethernet Cable (3m) 0114090187 Glass Stand Screw A 0103020024 (2822/ST4*10F) Stand Neck Screw B 103010046 (M4*10) Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can deliver direct to your door the very next day. Visit www.partmaster.co.uk or call 0844 800 3456 (UK customers only) Calls charged at National Rate. This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU. For more information, please contact the local authority or your retailer where you purchased the product. Notes.for.battery.disposal The batteries used with this product contain chemicals that are harmful to the environment. To preserve our environment, dispose of used batteries according to your local laws or regulations. Do not dispose of batteries with normal household waste. For more information, please contact the local authority or your retailer where you purchased the product. HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC. The FREEVIEW word and logo are trademarks of DTV services Ltd and are used under licence. ©DTV Services Ltd 2002 The “HD Ready” logo is a trademark of DIGITALEUROPE.
