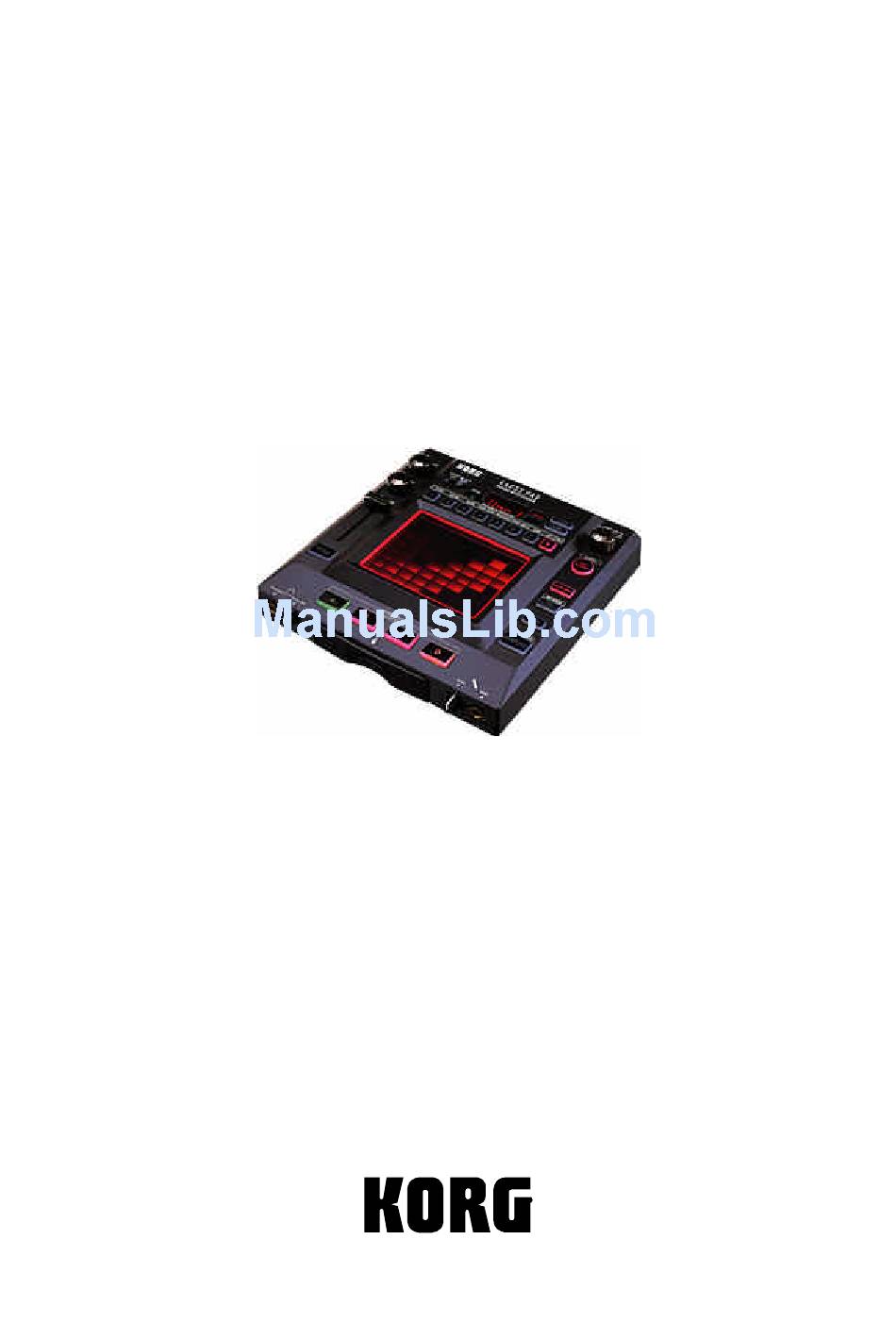

Page of 14
KORG KP3
SERVICE MANUAL
TABLE OF CONTENTS
ASSEMBLY SKETCH (HOOKUP): 2
BLOCK DIAGRAM: 3
SCHEMATIC DIAGRAM: 4-6
TEST MODE: 7-10
PAD CALIBRATION: 11-12
PARTS LIST: 13-14
Issued Nov.6, 2006
Ver.2 Changed P11
Added Pad Cal 3/13/08 - GA

Advertising

   Also See for Korg KP3

   Related Manuals for Korg KP3

   Summary of Contents for Korg KP3

  • Page 1

    KORG KP3 SERVICE MANUAL TABLE OF CONTENTS ASSEMBLY SKETCH (HOOKUP): 2 BLOCK DIAGRAM: 3 SCHEMATIC DIAGRAM: 4-6 TEST MODE: 7-10 PAD CALIBRATION: 11-12 PARTS LIST: 13-14 Issued Nov.6, 2006 Ver.2 Changed P11 Added Pad Cal 3/13/08 - GA...

  • Page 2

    X-5500 Hookup ③ ④          ② ① ⑤ ⑥ ⑦ ⑩ ⑧ ⑭ ⑨ ⑪ ⑫&⑬ ⑯ ⑮ ⑰ ⑳ ①:UPPER CASE ⑱ ②:SLIDER KNOB ③:VR KNOB ④:ENCODER KNOB ⑲ ⑤:BTB 3BBC 3×8 ⑥:PAD FRAME ⑦:SPONGE SEAL A ⑧:SPONGE SEAL B ⑨:TOUCH PANEL ⑩:VR KNOB(2Color) ⑪:SD FRAME...

  • Page 6

    R86 68Ω→33Ωに変更 2006.7.25 T.Kanai...

  • Page 7

    : When an error occurred in the internal inspection, skip the inspection Error Code KP3 displays the Error Code in the LED, when an error occurred in the internal inspection. 4 digits of the LED indicates the error code. [Er.**]...

  • Page 8

    After [C.Ins] is appeared in the LED display, insert a SD card. When a SD card is not inserted and KP3 could not detect that a card is not inserted, [Er.71] is displayed in the LED. After inserted a SD card and remove your hand from the card, then confirm that the card is rocked.

  • Page 9

    11. PAD LEDs, LEDs light one by one. LEDs light one by one, from upper left-upper right-next right-next left- like the right figure. Push [TAP/RANGE] to proceed to next inspection. (Caution) *7 You need one cycle of inspection to proceed to the next inspection. 12.

  • Page 10

    [PrLd] is displayed in the LED display, pushing [SAMPLE BANK A] sw and push [TAP/RANGE] to execute the preload. After finished preload, KP3 restarts in normal operation and [LOAd] in the LED display changes to [FLE.1]. [FLE.1] is not displayed in the LED display after few while the preload is failed.

  • Page 11

    Calibrating the Touch Pad Depending on the operating environment, the touch pad segments that light when the pad is pressed might be out of position. When this happens, the following steps should be taken to re-calibrate the touch pad. Please use a plastic pointing device such as a PDA stylus or a gaming device touch pen. using a sharp or metallic object will risk damaging the touch pad surface.

  • Page 12

    4. After completing the four steps, the touch pad lights will go out and "P.oFF" will be displayed. !NOTE! do not turn the power off until "P.oFF" is displayed. 5. The unit is now re-calibrated. Turn the power off and on as usual and confirm that the KP3 operates correctly.

  • Page 13

    1 / 2 KORG KP3 PARTS LIST Part Number Category Part Name 510306510001 POWER MOS FET CPH6316-TL-E (S) 510310510502 DOUBLE DIODES MC2840-T112-1 (S) 510310511507 DIODE RLS-73 TE-11 (S) 510310511506 SCHOTTKY DIODE RB051L-40TE25 (S) 510310511001 ZENER DIODE RD10M-T1B-A (B3) (S) 510300510503...

  • Page 14

    2 / 2 Part Number Category Part Name 500620040700 Mechanical Part KNOB P423-90F(X-9100) E40519-1 500620018201 Mechanical Part PSW KNOB (ユシュツ) E40224 510646502096 Mechanical Part X-5500 SD FRAME KOC-E20275 510646502099 Mechanical Part X-5500 LCD FRAME KOC-E20276 510646506504 Mechanical Part X-5500 SUPORT PLATE KOC-F30119 510646506505 Mechanical Part X-5500 WINDOW...
