Summary of Contents for Code Flame 384

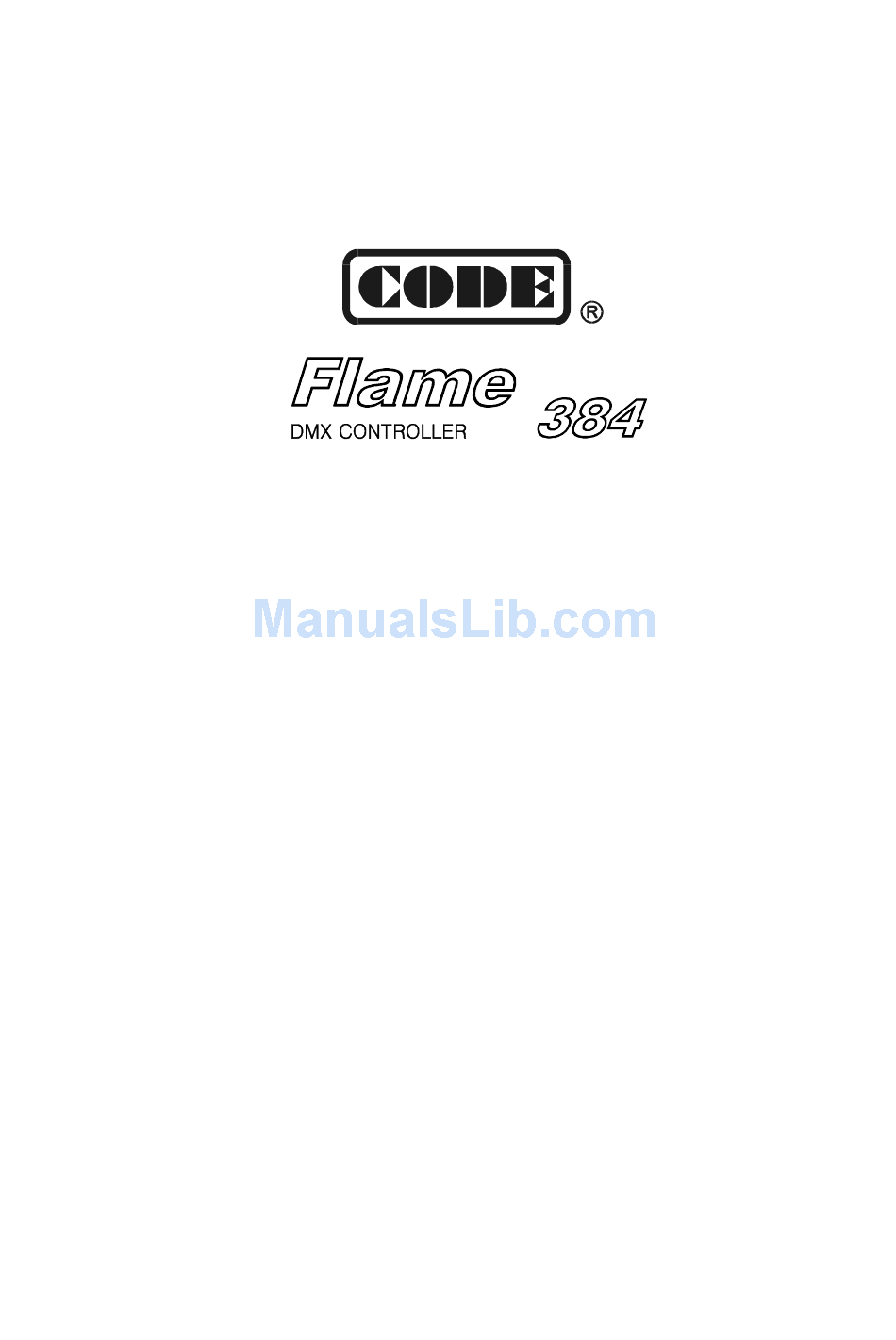

  • Page 1 User’s Manual Ver 1.04 CODE ELECTRONIC CO., LTD.
  • Page 3 DMX 512 signals and is adapted for wide range of power voltage. The edit mode and running mode of the console are convenient and flexible. So it is easy to edit and to handle. Flame 384 is the best suit for art show, theater, dancing and acting.
  • Page 4 QC card 1 Power supply line 1 Connect to scanner Flame 384 console has 2 optical isolated DMX512 signal independent drive device. So there are 2 DMX512 XLR-D3F. The connection of the output socket and the data cable as following: Foot No.
  • Page 5 CODE Flame 384 User’s Manual The set of the scanner address Flame 384 console distributes the DMX512 address of various scanners with the fixed space of 24 channels. The reference is as following: Binary Code Switch Binary Code Switch Binary Code Switch Since the first address set is different for various scanner manufacturer.
  • Page 6 CODE Flame 384 User’s Manual Introduction of the panel The panel is as following: SCANNER CLEAR Clear key Clear all states chosen by scanner keys and quit manual operation. 1-16 Section keys When the indicating light is on, 1-16 scanner can be chosen from number keyboard.
  • Page 7 In manual state, 24 channel slides can set the channel value of the chosen scanner. CHANNELS must cooperate with SCANNER. SCENE Flame 384 console can save 48 scenes in 3 saving section with 16 scenes each. Scene section keys When the key is pressed, the corresponding indicating light is on and indicates that the section is current section.
  • Page 8 CODE Flame 384 User’s Manual Chase number keys Cooperating with Chase section key, 16 Chase keys can operate A01-A16, B01-B16, C01-C16, 48 Chases. Using SINGLE key, single Chase or multi Chases can be operated. Edit SAVE TO SCENE Scene save key Save the current channel values of the scanners to a scene with some number.
  • Page 9 CODE Flame 384 User’s Manual Edit MUSIC Music trigger key When the indicating light is on, Chase follows the music rhythm. When the indicating light is off, Chase follows the set time multiplying the speed percentage set by SPEED slider.
  • Page 10 Flame 384 scanner console can control the scanners with 8Bit or 16Bit X/Y resolution. Before Flame 384 scanner console uses modulation wheel to control the X/Y position of any DMX512 standard scanner, the address of every scanner must be set and the set control channel number of each scanner must be written to the console one by one.
  • Page 11 X/Y orientation and the smoothness of the moving trace. Auto correction to the wrong setting: X-L=no, Y-L=no must be set at the same time. That just one is ‘no’ is a mistake. Flame 384 checks and corrects X-L, Y-L to be ‘no’ at the same time automatically.
  • Page 12 CODE Flame 384 User’s Manual The manual mode The scanner’s channel values, such as intensity, gobo, X/Y, pattern, and color, can be set manually. Usually, the control contents of each channel of various scanners are different. With the particular comprehension to the control contents of each channel of various scanners, the scanner connected to the control net can be controlled with facility.
  • Page 13 Each scene is an aggregate of the set channels of the various scanners. Flame 384 console can save 48 scanner scenes. The saved scenes can be run at any moment. Important tips For the simultaneous running of the multi scenes and multi Chases, the different values of the same channel which are produced at the same time are treated by HTP Technique.
  • Page 14 Chase Edit Flame 384 console can save 48 Chases. A Chase is a buildup of some Chase steps. The concept of Chase step is very similar to the scene. A Chase step is made up of the aggregation of each channel value of various scanners, the step time and the graduate change parameter Cross.
  • Page 15 CODE Flame 384 User’s Manual Process of Chase edit PROGRAM CHASE... Press EDIT CHASE Key; Please select a chase: Choose the Chase number which will be edited. For instance, if want to edit Chase PROGRAM CHASE... CHASE:C15 Step is empty...
  • Page 16 CODE Flame 384 User’s Manual Data Backup & Restore With USB Flash Drive Flame 384 can backup 48 files into a USB Flash Drive, and can upload one of the files from USB Flash Drive. Process: 1. Backup the files with USB: a) Insert the USB Flash Drive into the USB jack at the back of the console;...
  • Page 17 CODE Flame 384 User’s Manual Running Chase Running Chase, the screen will display: CHASE TRIGGER STEP SPEED% AUTO Current Chase number chase step Trigger mode Speed ratio Example 3: Running Chase A08. Press SINGLE key of CHASE to make SINGLE indicating light on. it is in the single Chase running mode.
  • Page 18 CODE Flame 384 User’s Manual The music trigger of a Chase Press MUSIC key to make MUSIC indicating light on. It indicates that the current Chase is in the music in-phase trigger state. In this state, the Chase step time and the gradual change ratio Cross don’t work.
  • Page 19 CODE Flame 384 User’s Manual Table 2: Control channel data of the ordinary scanner Scanner model Channel Control type IRIS Color Disc1 Color Disc2 Dimmer / Strobe CLAY PAKY GOLDEN SCAN HPE TILT (Golden scanner) Frost and Effect Prism Rotation...
  • Page 20: Technical Specification

    CODE Flame 384 User’s Manual Technical specification Digital control mode DMX512/1990 DMX control channel amount Control scanner amount Control channel distribution of a scanner control resolution of a scanner 16bit optical isolated independent digital output drive module Electrical isolation of optical isolated independent digital output...
  • Page 21 CODE Flame 384 User’s Manual M E M O CODE Electronic Co., Ltd. http://www.codelight.com...
