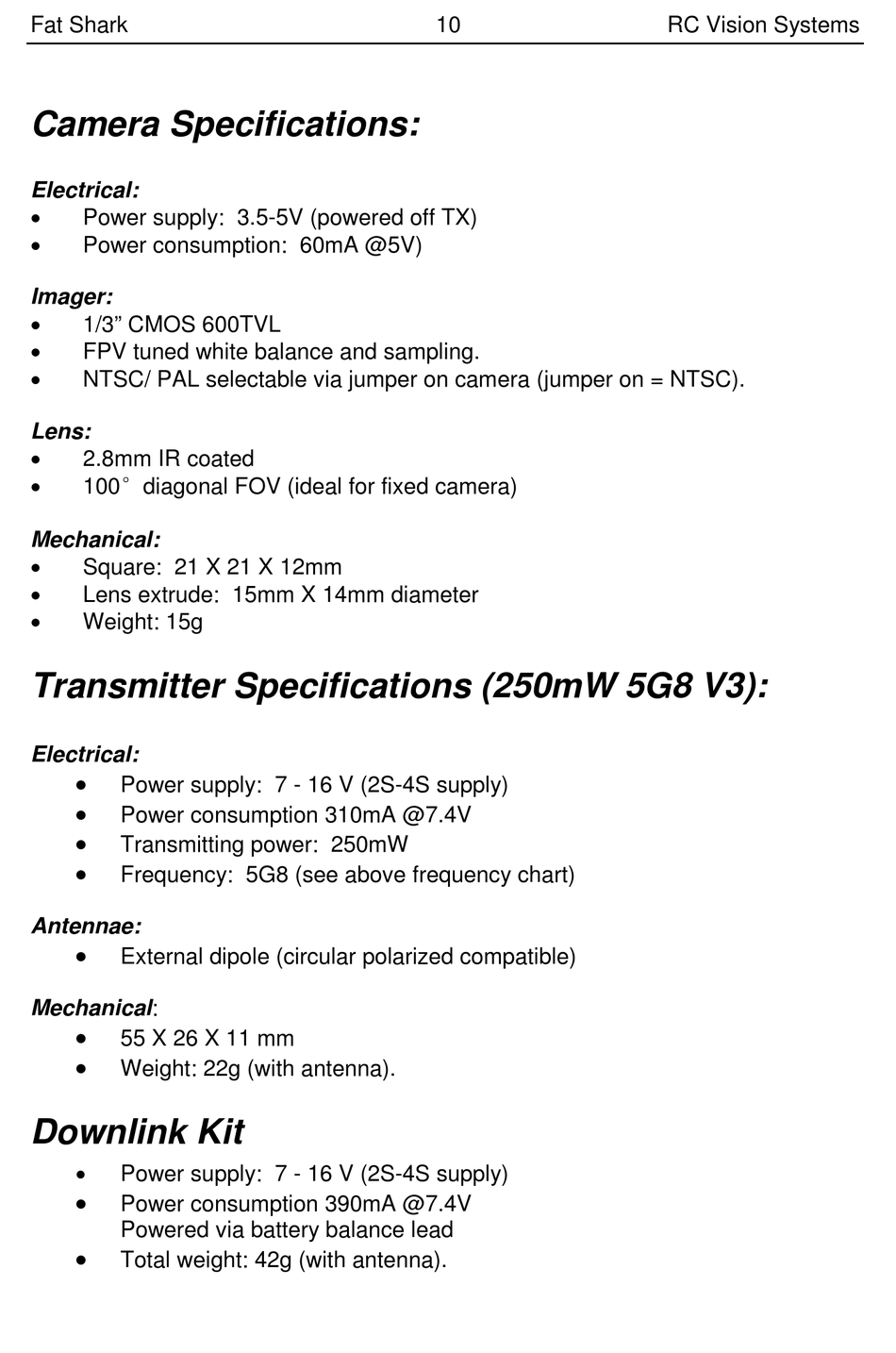

Camera Specifications:

Electrical:

Power supply: 3.5-5V (powered off TX)

Power consumption: 60mA @5V)
Imager:

1/3" CMOS 600TVL

FPV tuned white balance and sampling.

NTSC/ PAL selectable via jumper on camera (jumper on = NTSC).
Lens:

2.8mm IR coated

100°diagonal FOV (ideal for fixed camera)
Mechanical:

Square: 21 X 21 X 12mm

Lens extrude: 15mm X 14mm diameter

Weight: 15g

Transmitter Specifications (250mW 5G8 V3):

Electrical:

Power supply: 7 - 16 V (2S-4S supply)

Power consumption 310mA @7.4V

Transmitting power: 250mW

Frequency: 5G8 (see above frequency chart)
Antennae:

External dipole (circular polarized compatible)
Mechanical:

55 X 26 X 11 mm

Weight: 22g (with antenna).

Downlink Kit


Power supply: 7 - 16 V (2S-4S supply)

Power consumption 390mA @7.4V
Powered via battery balance lead

Total weight: 42g (with antenna).
