Summary of Contents for Fender Pro-Reverb
-

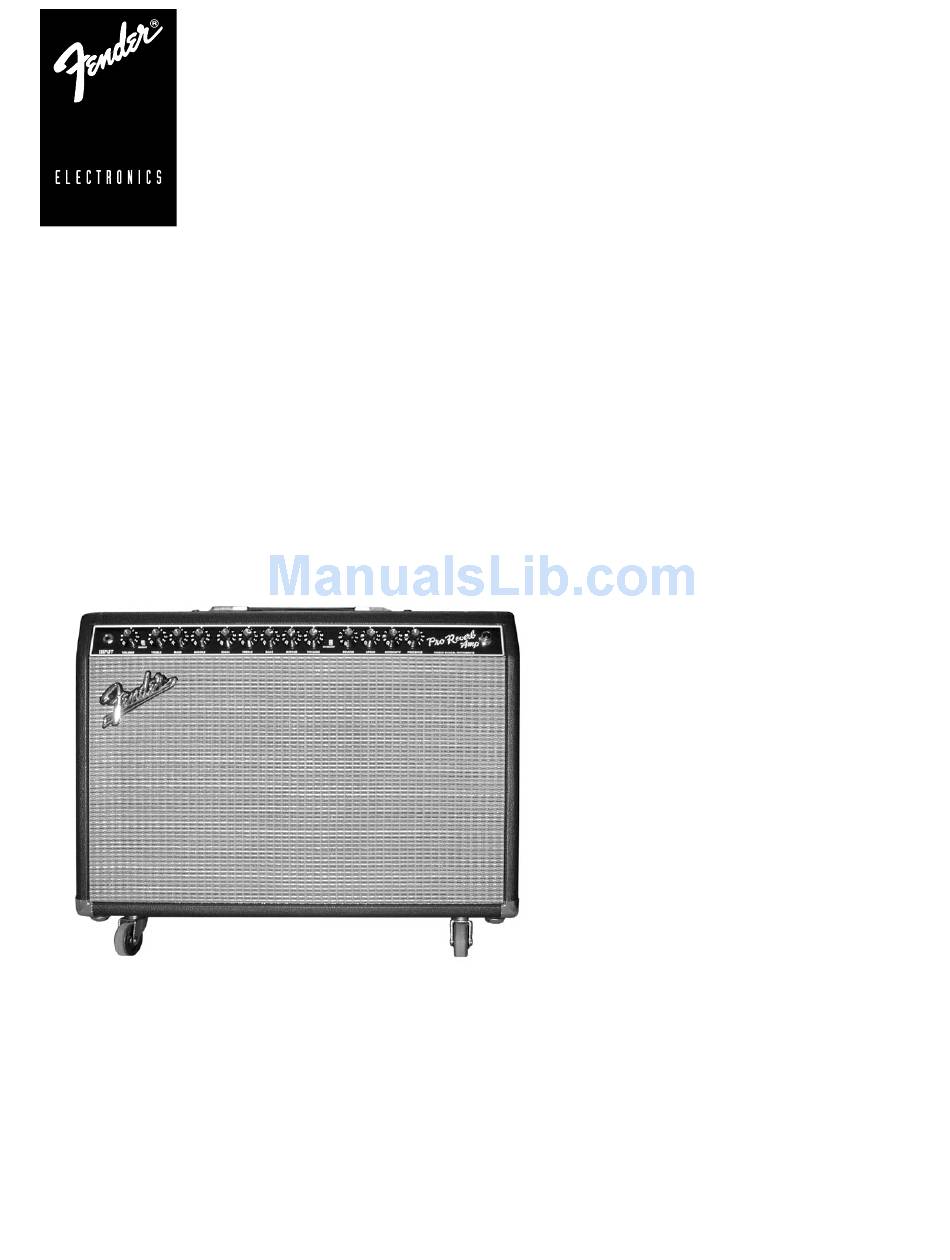

Page 1: Table Of Contents

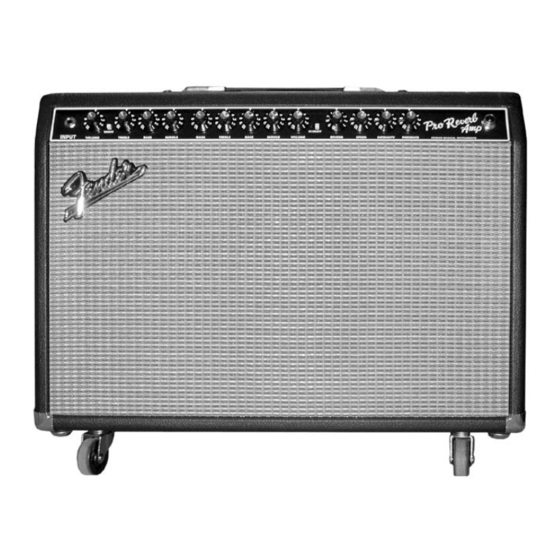

PRO-REVERB AMP p/n 021-5500-000 (120V) SERVICE MANUAL CONTENTS: Notices Specifications Service notes Parts lists: PCB assy-main PCB assy rear panel Chassis assy Cabinet assy End item Drawings Fender Musical Instruments Corp. 7975 North Hayden Road Scottsdale, AZ 85258... -
Page 2: Pro-Reverb Amp
Fender Musical Instruments Co. All specifications subject to change without notice. For warranty repair service, only Fender specified part numbers are to be used. It is recommended they also be used for post-warranty maintenance and repair. -
Page 3: Specifications
PRO-REVERB AMP SPECIFICATIONS Product Release No.: PR 448 (This is not a model number) Part Number: 120V Version : 21-5500 240V Aus 21-5530 230V UK 21-5540 230V Eur 21-5560 100V 21-5570 Power Requirements: 325W Power Amp Section: Power Output: 50 Watts RMS (High Output) 12.5 W RMS (Low Output) -
Page 4: Service Notes
PRO-REVERB AMP SERVICE NOTES CHASSIS REMOVAL is accomplished by first removing eight (8) screws from the top, and one (1) screw from each side of the cabinet;disconnect reverb and speaker wires, then slide the chassis toward the rear. TUBE CHART: OUTPUT TUBE BIAS &... -
Page 5: Parts List
PRO-REVERB AMP PARTS LIST NOTE: SHADED ITEMS ARE FOR REFERENCE ONLY PRINTED CIRCUIT BOARD ASSEMBLY – MAIN QTY PART # DESCRIPTION REFERENCE DESIGNATION 0057014000 SVC. DIA., COMB. PRO-TUBE AMPS 0057015000 PCB FAB MAIN, PRO-TUBE AMPS 0038690001 CAP AE AX 1.0uF 100V 20%... - Page 6 PRO-REVERB AMP PRINTED CIRCUIT BOARD ASSEMBLY – MAIN (cont) QTY PART # DESCRIPTION REFERENCE DESIGNATION D1 D4 D6-7 D114 D223 D226 D228-229 D231- 0006260001 DIODE 1N4448 SIGNAL 237 D239-240 0029690001 DIODE HV 3kV 200mA D102-103 0031017001 DIODE ZEN 1N5223B 2.7V 5% LL...
- Page 7 PRO-REVERB AMP PRINTED CIRCUIT BOARD ASSEMBLY – MAIN (cont) QTY PART # DESCRIPTION REFERENCE DESIGNATION 0027354001 RES FILM 1W 5% 220k LL R200-201 R203-204 0016979001 RES MF 1/4W 1% 215k LL R217 R240 0016971001 RES MF 1/4W 1% 33.2k LL...
-
Page 8: Chassis Assembly
PRO-REVERB AMP PRINTED CIRCUIT BOARD ASSEMBLY – REAR PANEL (cont) QTY PART # DESCRIPTION REFERENCE DESIGNATION P102-107 P110-111 P220-222 0025802000 FSTN TAB MALE .250x.032 PCB MT 0022546000 FUSE HOLDER PCB MTG UNIVERSAL 0022548000 FUSE CARRIER 5mm 0013004000 FUSE TD 20mm X 5mm 250V 100mA 0027413000 HDR .1 CTR 6 CKT SQ PIN... -
Page 9: Cabinet Assembly
PRO-REVERB AMP CHASSIS ASSEMBLY (cont) QTY PART # DESCRIPTION REFERENCE DESIGNATION 0014172000 SCREW M 4-40 x 1/4 PHP BLX @ IEC PWR JACK 0036702000 FUSE HOLDER 3AG FINGER GRIP @ LINE FUSE F1 (120V/100V UNITS) 0077982000 FUSE QA 1-1/4x1/4" 250V 3A... -
Page 10: Chassis Assy
PRO-REVERB AMP CABINET ASSEMBLY (cont) QTY PART # DESCRIPTION REFERENCE DESIGNATION 0027846000 HANDLE 9.25" NO LOGO 0032524000 INSERT HANDLE 0019279000 HANDLE CAP 2 HOLE NICKEL 0027199000 SCRW SMAB 10 X 3/4 PHP NI 0026571000 SCRW SMAB 8x5/8 THP NI 0021972000... - Page 11 PRO-REVERB AMP END ITEM ASSEMBLY (cont) QTY PART # DESCRIPTION REFERENCE DESIGNATION 0057105000 SCRW M 8-32x1-3/16 OHP NI CP 0029527000 WSHR FNSH 8-5/8 FLNGD BLX WX CHASSIS TO CAB 0036199000 SCRW M 8-32x1-3/16 OHP BLX CP CHASSIS TO CAB 0023192000...
