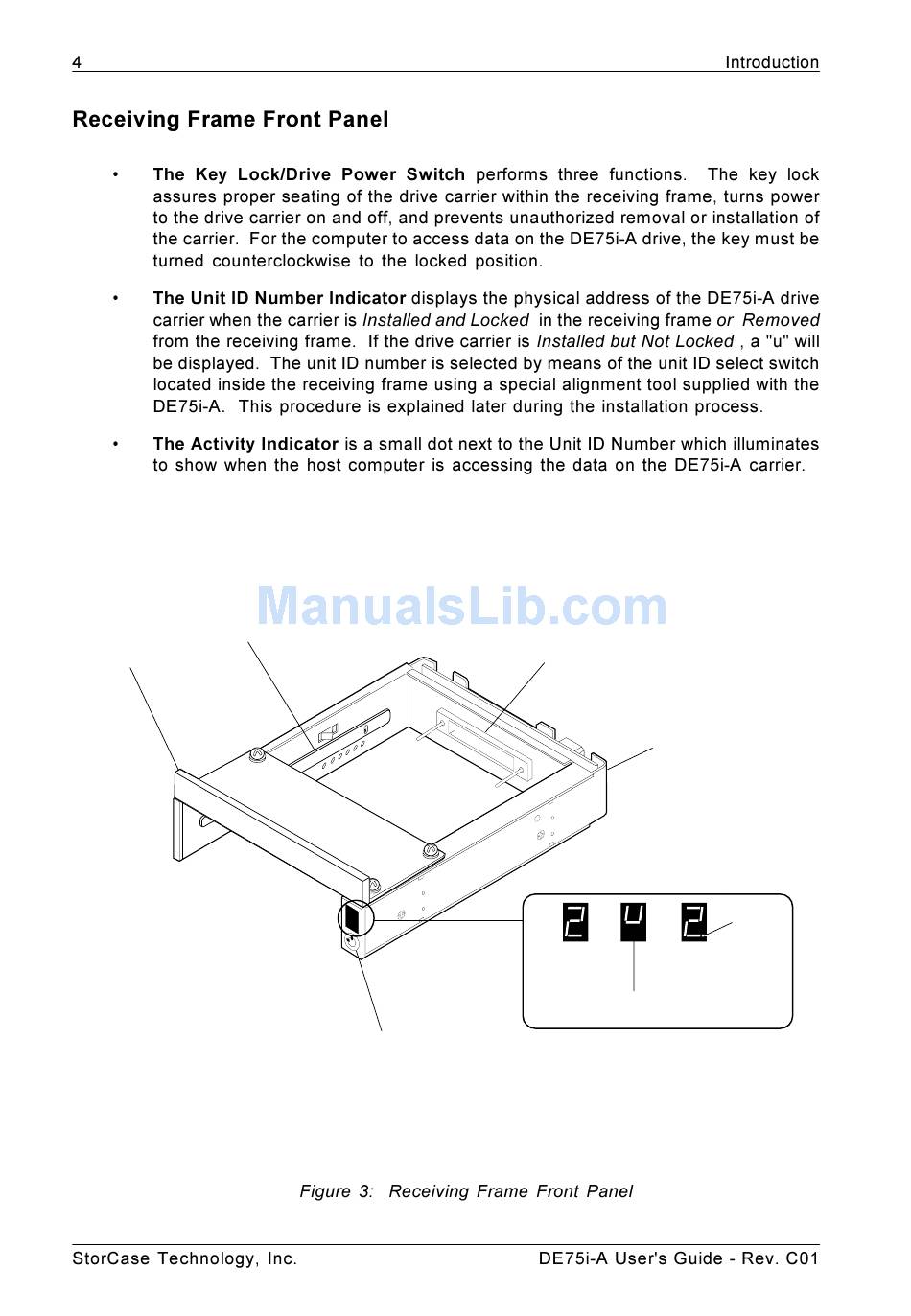

StorCase Technology Data Express DE75i-A User Manual page 12

Low Profile Carrier Guide
Filler Bracket
(Installed)
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
High Insertion
Count Mating
Connector
Carrier Removed
from Receiving
The number "2" shown above is for illustration
Key/Lock
purposes only. It can be any valid unit ID
and Power
number. However, the letter "u" (above
Switch
middle), will appear as illustrated.
All Steel
Receiving
Frame
Unit Number Display
Carrier Installed
(locked)
Frame
Carrier Installed
(unlocked)
Activity
Indicator
0600
