Using The Product - Condor 260 BAIT Installation And Operation Manual

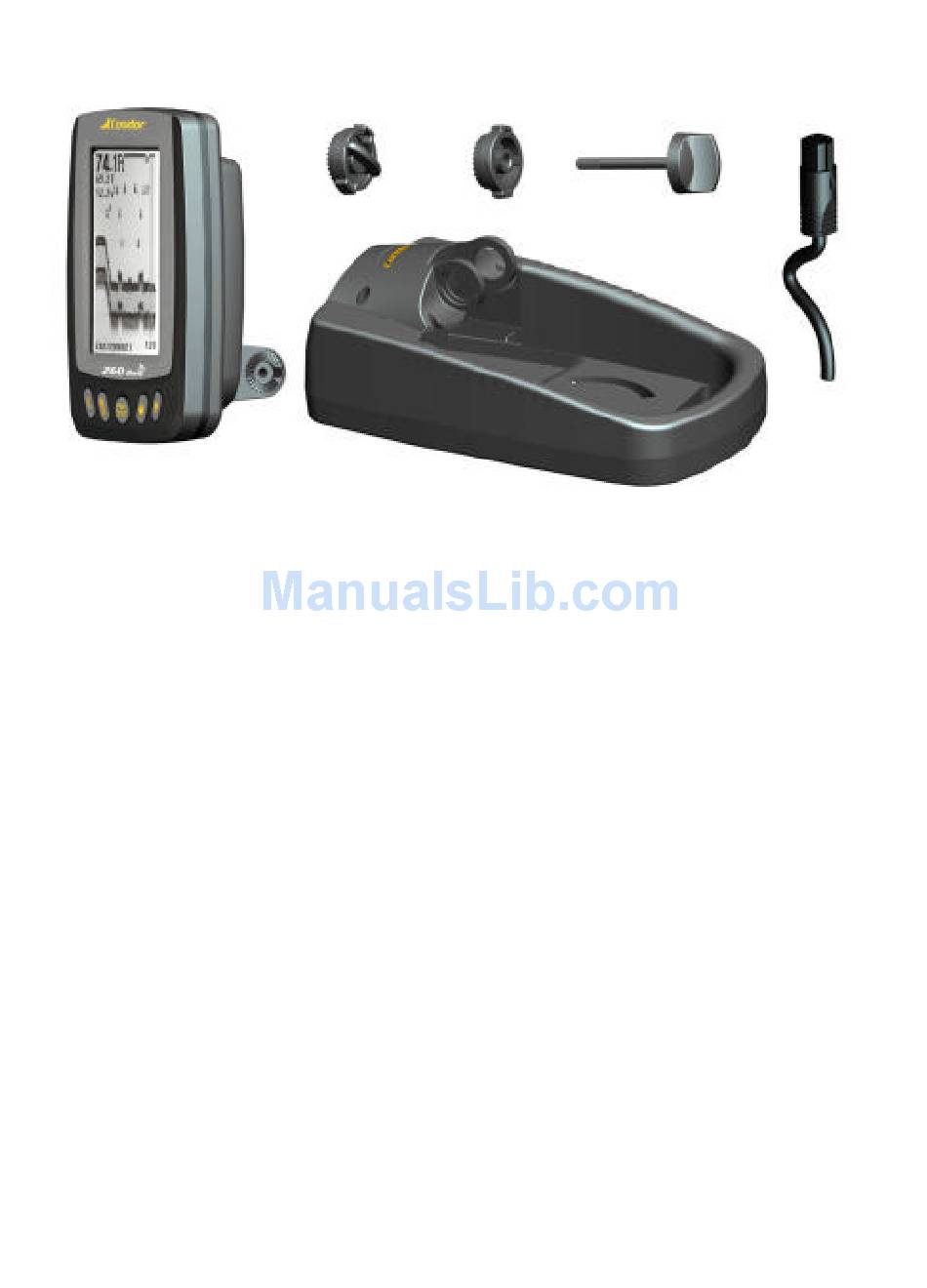

2. Sonar Unit
Sonar control head
Toothed connector-R
Toothed connector-L
Locking bolt
Power Cable
Plastic base
A copy of manual are also included:
Note: the above sonar units has been assembled in the gift box before shipment

Using the product

Condor 260 Bait is specially designed to be used with bait boat. Properly install
the RES sensor to your bait boat, powering the unit, and put the assembled bait
boat & RES sensor into the water, and then you are ready to know the bottom
condition in 300m water area.
Following is an instruction picture of 2 ways to install the RES sensor to your bait
boat:
5
