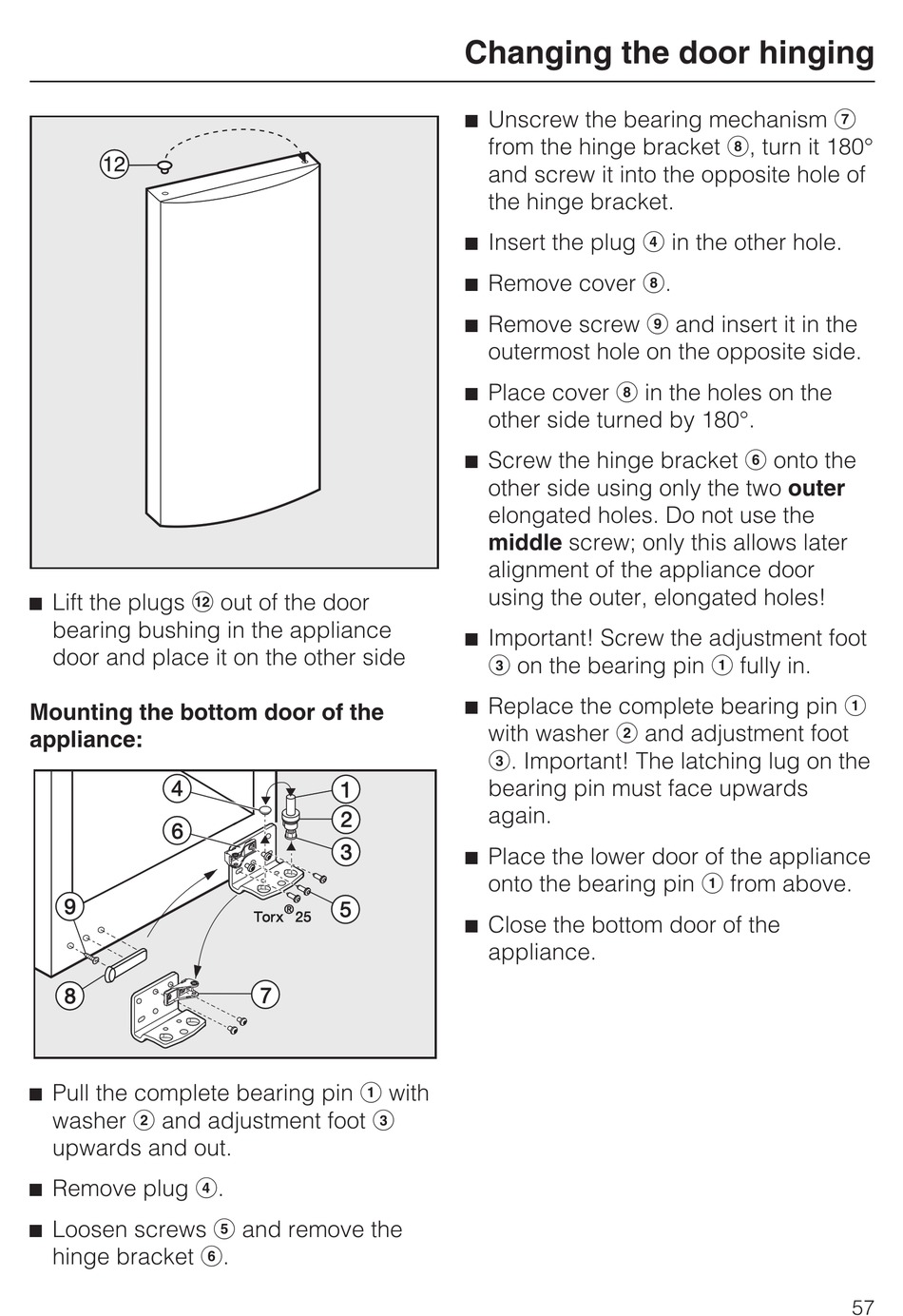

Miele KFN 14943 SD ed/cs Operating And Installation Instructions page 57

^ Lift the plugs l out of the door
bearing bushing in the appliance
door and place it on the other side
Mounting the bottom door of the
appliance:
^ Pull the complete bearing pin a with
washer b and adjustment foot c
upwards and out.
^ Remove plug d.
^ Loosen screws e and remove the
hinge bracket f.
Changing the door hinging
^ Unscrew the bearing mechanism g
from the hinge bracket h, turn it 180°
and screw it into the opposite hole of
the hinge bracket.
^ Insert the plug d in the other hole.
^ Remove cover h.
^ Remove screw i and insert it in the
outermost hole on the opposite side.
^ Place cover h in the holes on the
other side turned by 180°.
^ Screw the hinge bracket f onto the
other side using only the two outer
elongated holes. Do not use the
middle screw; only this allows later
alignment of the appliance door
using the outer, elongated holes!
^ Important! Screw the adjustment foot
c on the bearing pin a fully in.
^ Replace the complete bearing pin a
with washer b and adjustment foot
c. Important! The latching lug on the
bearing pin must face upwards
again.
^ Place the lower door of the appliance
onto the bearing pin a from above.
^ Close the bottom door of the
appliance.
