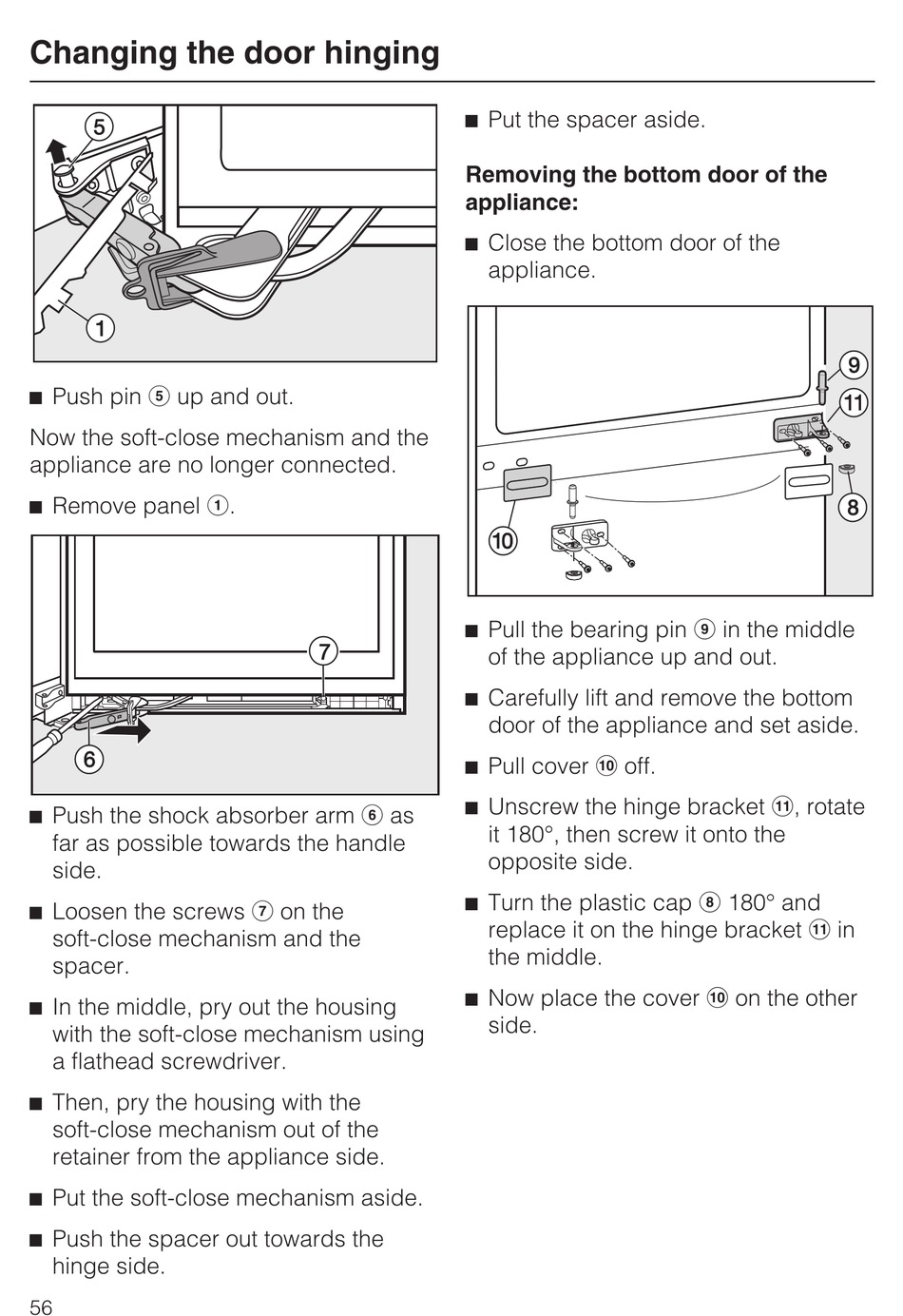

Changing the door hinging
^ Push pin e up and out.
Now the soft-close mechanism and the
appliance are no longer connected.
^ Remove panel a.
^ Push the shock absorber arm f as
far as possible towards the handle
side.
^ Loosen the screws g on the
soft-close mechanism and the
spacer.
^ In the middle, pry out the housing
with the soft-close mechanism using
a flathead screwdriver.
^ Then, pry the housing with the
soft-close mechanism out of the
retainer from the appliance side.
^ Put the soft-close mechanism aside.
^ Push the spacer out towards the
hinge side.
56
^ Put the spacer aside.
Removing the bottom door of the
appliance:
^ Close the bottom door of the
appliance.
^ Pull the bearing pin i in the middle
of the appliance up and out.
^ Carefully lift and remove the bottom
door of the appliance and set aside.
^ Pull cover j off.
^ Unscrew the hinge bracket k, rotate
it 180°, then screw it onto the
opposite side.
^ Turn the plastic cap h 180° and
replace it on the hinge bracket k in
the middle.
^ Now place the cover j on the other
side.
