Summary of Contents for Elliott Studio Arts 66-001b
-
Page 2: Table Of Contents

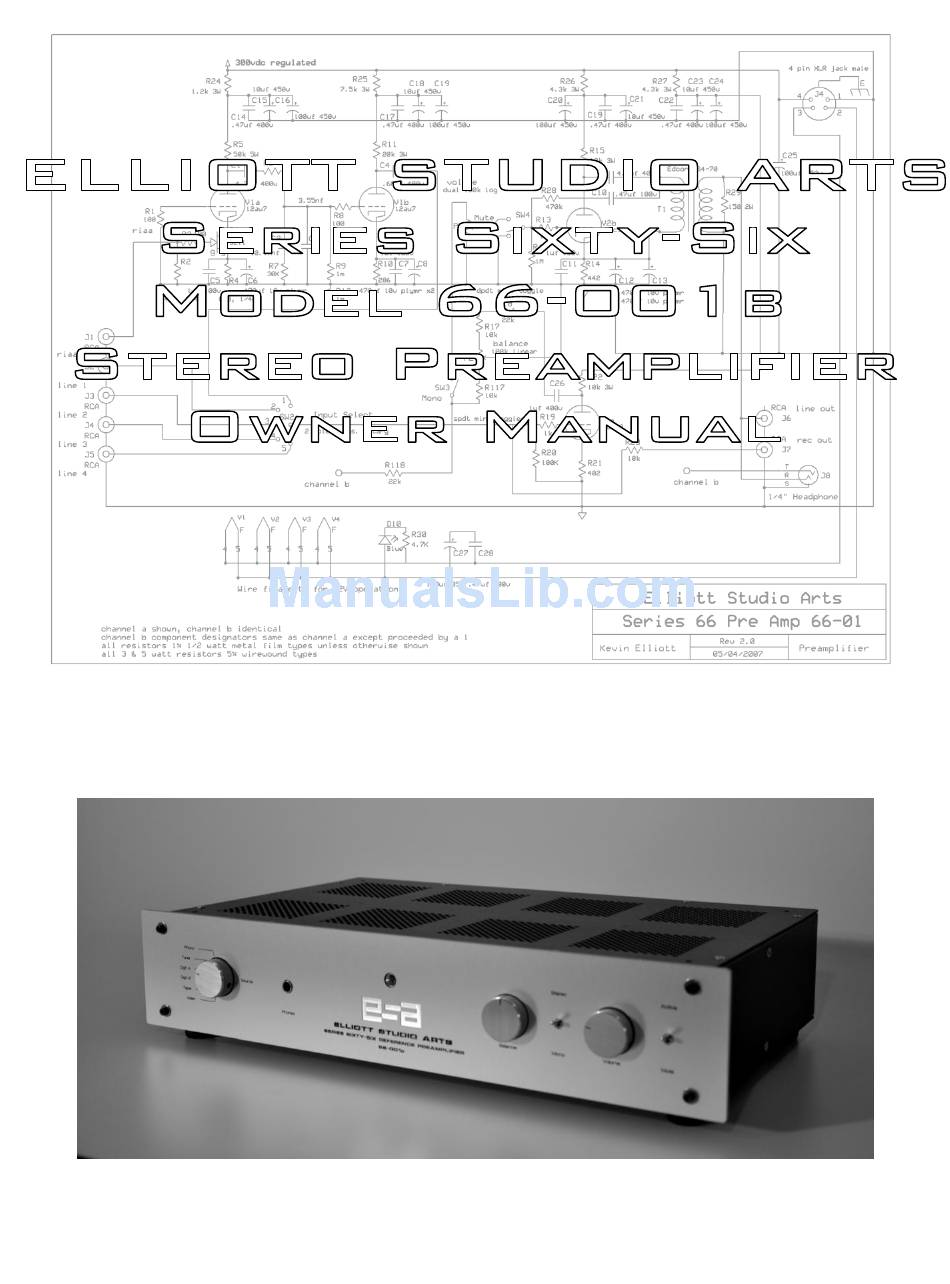

Elliott Studio Arts Series Sixty-Six Model 66-001b Vacuum Tube Reference Stereo Preamplifier Table of contents: Introduction………………………………………………………………………….3 Placement and hookup……………………………………………………………..3 Things to consider…………………………………………………………….…….4 Maintenance…………………………………………………………………………6 Vacuum tube replacement………………………………………………………….6 Pictorial diagram……………………………………………………………………7 Specifications………………………………………………………………………..7 Warranty……………………………………………………………………………..8 Contact information and Registration form……………………………………..9... -
Page 3: Introduction
The Elliott Studio Arts 66-001p stereo preamplifier was designed to give many years of musical satisfaction and add fun to your listening experience. Although not inexpensive the 66-001b was designed for the ‘real-world’ music lover and is a high value in performance and no- nonsense design. -
Page 4: Things To Consider
Using the provided power umbilical, connect the preamp to the power supply. The cable has a male 4-pin XLR on one end and a female on the other. The male plugs into the power supply and the female plugs into the preamp. The AC cable is a shielded IEC type;... - Page 5 Don’t handle the tubes too much- keep them clean and free from fingerprints; they’ll stay cooler and last longer. It is good to swap tubes once a year (V1 to V2). This insures that the DC filament current is reversed periodically which is good for tube life.
-
Page 6: Maintenance
Do not float the AC ground on the 66-001p or any other grounded component in your system in an attempt to isolate the hum! This is a safety ground and is there to protect you if there is a fault that could energize the chassis of the component and cause electrocution. -
Page 7: Pictorial Diagram
Figure 2 – Vacuum tube layout Specifications: *Non-inverting design *2 Balanced and 4 unbalanced inputs / balanced outputs *Input transformer configured in true 'balanced to ground' mode *Input impedance = 50K balanced, 20K unbalanced *Fully point to point construction with high temp wiring and silver solder *Hand-matched high quality parts used throughout *Line stage gain = 14dB (can be wired for 20dB on request) -S/N ratio: 100dB, reference 1V p-p out, no weighting... -
Page 8: Warranty
The customer must pay shipping fees to Elliott Studio Arts for warranty service. Elliott Studio Arts will not cover under warranty any repairs of our products due to neglect, abuse, accident or misapplication. Elliott Studio Arts reserves the right to determine what constitutes neglect, abuse, accident or misapplication. -
Page 9: Contact Information And Registration Form
Feel free to contact us for questions regarding repairs, service information, set up instructions or praise.. -Specifications, parts and design subject to change without notice- ……………………………………………………………………… Elliott Studio Arts Product Registration Form Model # Serial # Purchase Date Dealer / Direct...
