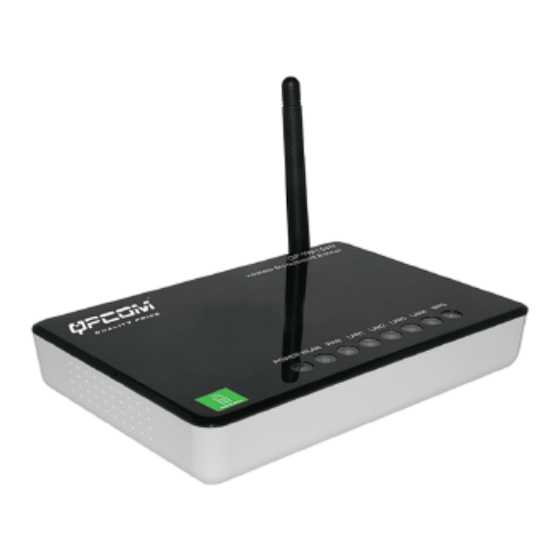

Summary of Contents for qpcom QP-WR154N

  • Page 2: Package Contents

    Introduction The Wireless LAN Broadband Router is an affordable IEEE 802.11b/g with 802.11n specifica- tions of wireless LAN broadband router solution; setting SOHO and enterprise standard for high performance, secure, manageable and reliable WLAN. This document describes the steps required for the initial IP address assign and other WLAN router configuration. The description includes the implementation of the above steps.

  • Page 3: Product Features

    Product Features Generic Router • Compatible with IEEE 802.11n Draft 2.0 Specifications provides wireless speed up to 150Mbps data rate. • Compatible with IEEE 802.11g high rate standard to provide wireless Ethernet speeds of 54Mbps data rate. • Maximizes the performance and ideal for media-centric applications like streaming video, gaming and Voice over IP technology.

  • Page 4: Front Panel Description

    Front Panel description LED Indicator State Description PWR LED The WLAN Broadband Router is powered on. The WLAN Broadband Router is powered off. WLAN LED Flashing Data is transmitting or receiving on the antenna. No data is transmitting or receiving on the antenna.

  • Page 5: Software Installation

    Installation Hardware Installation Step 1: Place the Wireless LAN Broadband Router to the best optimum transmission location. The best transmission location for your WLAN Broadband Router is usually at the geographic center of your wireless network, with line of sign to all of your mobile stations. Step 2: Connect the WLAN Broadband Router to your wired network.

  • Page 6: For Os Of Microsoft Windows 2000/ Xp

    4. Move mouse and click General tab, Select Specify an IP address and type in values as following example. • IP Address: 192.168.1.1, any IP address within 192.168.1.1 to 192.168.1.253 is good to connect the Wireless LAN Access Point. www.qpcom.com/www.qpcom.com.co...

  • Page 7: For Os Of Microsoft Windows 95/ 98/ Me

    6. Select TCP/IP and click the properties button on the Network dialog box. 7. Select Specify an IP address and type in values as following example. • IP Address: 192.168.1.1, any IP address within 192.168.1.1 to 192.168.1.253 is good to connect the Wireless LAN Access Point. www.qpcom.com/www.qpcom.com.co...

  • Page 8: Setup Wizard

    IP to ISP through wireless LAN. You must set the wireless to client mode first and connect to the ISP AP in Site-Survey page. The connection type can be setup in WAN page by using PPPOE, DHCP client, PPTP client, L2TP client or static IP: Next >> Cancel << Back www.qpcom.com/www.qpcom.com.co...

  • Page 9: Time Zone Setting

    This page is used to configure the parameters for local area network whitch connects to the LAN port of your Access Point. Here you may change the setting for IP address, subnet mask, DHCP, etc,. 192.168.1.254 IP Address: Subnet Mask: 255.255.255.0 Cancel << Back Next >> www.qpcom.com/www.qpcom.com.co...

  • Page 10: Wan Interface Setup

    This page is used to configure the parameters for wireless LAN clients witch may connect to your Access Point. Band: 2.4 Ghz (B+G+N) Mode: Infraestructure Network Type: SSID: Channel Width: 40MHZ Upper ControlSideband: Channel Number: Cancel << Back Next >> Enable Mac Clone (Single Ethernet Client) www.qpcom.com/www.qpcom.com.co...

  • Page 11: Wireless Security Setup

    IP to ISP through wireless LAN. You must set the wireless to client mode first and connect to the ISP AP in Site-Survey page. The connection type can be setup in WAN page by using PPPOE, DHCP client, PPTP client, L2TP client or static IP: Apply Changes Reset www.qpcom.com/www.qpcom.com.co...

  • Page 12: Network Parameters

    Upper Channel Number: Enabled Broadcast SSID: WMM: Enabled Date Rate: Auto Associated Clients: Show Active Client Enable Mac Clone (Single Ethernet Client) Enable Universal Repeater Mode (Acting as AP and client simultaneonly) SSID of Extended Interface: Apply Changes Reset www.qpcom.com/www.qpcom.com.co...

  • Page 13: Wireless - Advance Settings

    Set the RTS Threshold, value can be written between 0 and 2347 bytes. Beacon Interval Set the Beacon Interval, value can be written between 20 and 1024 ms. Preamble Type Click to select the Long Preamble or Short Preamble support on the wireless data packet transmission. www.qpcom.com/www.qpcom.com.co...

  • Page 14: Wireless Advanced Settings

    This page allows you setup the wireless security. Turn on WEP or WPA by using Encryption. Keys could prevent unauthorized access to your wireless network Select SSID: Root AP-AP Apply Change Reset Encryption: 802.1x Authentcation: Authentication: Open System Shared Key Auto 64-bit Key Length: Hex (10characters) Key Formal: ********** Key Setting: www.qpcom.com/www.qpcom.com.co...
  • Page 15 Click the Apply Changes button to complete the new configuration setting. Reset Click the Reset button to abort change and recover the previous configuration setting. WEP encryption key (secret key) length Format Length 64-bit 128-bit ASCII 5 characters 13 characters 10 hexadecimal codes 26 hexadecimal codes www.qpcom.com/www.qpcom.com.co...

  • Page 16: Wireless Access Control

    Click to delete the selected clients that will be access right removed from this WLAN Broadband Router. Delete All Click to delete all the registered clients from the access allowed list. Click the Reset button to abort change and recover the Reset previous configuration setting. www.qpcom.com/www.qpcom.com.co...

  • Page 17: Wds Settings

    This page allows you setup for WDS. When enabled, you must make sure each WDS device has adopted the same encryption algorithm and key. Encryption: None Web Key Format: ASCII (5 characters) Web Key: Pre-Shared Key Format: Passpharse Pre-Shared Key: Reset Apply Changes Close www.qpcom.com/www.qpcom.com.co...

  • Page 18: Site Survey

    It shows the power level of current AP. Adam G-S 00:1a:ef:01:d1:20 11(B+G) Click the Refresh button to re-scan site Refresh 2F Ap 00:1a:ef:00:00:b7 1(B+G) survey on the screen. TEDT1 - AP 00:e0:4c:81:86:21 1(B+G) Connect Click the Connect button to establish connection. Refresh Connect www.qpcom.com/www.qpcom.com.co...
  • Page 19 Fill in the MAC address that is the MAC address to be Address cloned Apply Click the Apply Changes button to complete the new Changes configuration setting. Reset Click the Reset button to abort change and recover the previous configuration setting. www.qpcom.com/www.qpcom.com.co...

  • Page 20: Static Dhcp Setup

    Click the checkbox to enable L2TP packet pass through. through on VPN connection Apply Changes Click the Apply Changes button to complete the new configuration setting. Reset Click the Reset button to abort change and recover the previous configuration setting. www.qpcom.com/www.qpcom.com.co...

  • Page 21: Dhcp Client

    Click the checkbox to enable L2TP on VPN connection packet pass through. Click the Apply Changes button to Apply Changes complete the new configuration setting. Reset Click the Reset button to abort change and recover the previous configuration setting. www.qpcom.com/www.qpcom.com.co...
  • Page 22 Click the checkbox to enable web configuration from Access on WAN WAN side. Enable IPsec pass Click the checkbox to enable IPSec packet pass through on VPN through. connection Enable PPTP pass Click the checkbox to enable PPTP packet pass through on VPN through. www.qpcom.com/www.qpcom.com.co...
  • Page 23 Click the checkbox to enable IPSec packet pass on VPN connection through. Enable PPTP pass Click the checkbox to enable PPTP packet pass through on VPN through. connection Enable L2TP pass through Click the checkbox to enable L2TP packet pass on VPN connection through. www.qpcom.com/www.qpcom.com.co...

  • Page 24: Firewall - Port Filtering

    IP-filtering list. 192.168.1.10 TCP+UDP Delete All Click to delete all the registered entries from the IP- filtering list. Delete Selected Delete All Reset Reset Click the Reset button to abort change and recover the previous configuration setting. www.qpcom.com/www.qpcom.com.co...

  • Page 25: Firewall - Mac Filtering

    Delete Selected Delete All Reset list. Delete All Click to delete all the registered entries from the port- forwarding list. Reset Click the Reset button to abort change and recover the previous configuration setting. www.qpcom.com/www.qpcom.com.co...

  • Page 26: Firewall - Url Filtering

    Click the Apply Changes button to register the IP Apply Changes address of DMZ host. Reset Click the Reset button to abort change and recover Enable DMZ the previous configuration setting. DMZ Host IP Address: 192.168.1.100 Apply Changes Reset www.qpcom.com/www.qpcom.com.co...

  • Page 27: Management - Statistics

    Click the Reset button to abort change and Password/Key: recover the previous configuration setting. Note: For TZO you can have 30 days free trial here or manege your TZO account in control panel. For DynDNS, you can create your DynDNS account here. Apply Changes Reset www.qpcom.com/www.qpcom.com.co...

  • Page 28: Management - Time Zone Setting

    Packets/Second Per-Source IP Flood: ICMP Sensitivity TCP/UDP Port Scan IMCP Smurf IP Land IP Spoof IP TearDrop PingOfDeath TCP Scan TCP SynWithData UDP Bomb UDP EchoChargen Select ALL Clear ALL Enable Source IP Blocking Block Time (sec) Apply Changes www.qpcom.com/www.qpcom.com.co...

  • Page 29: Management - Log

    WLAN Broadband Router. Reset Click the Reset button to abort change and recover the previous configuration setting. Select File: Upload Reset www.qpcom.com/www.qpcom.com.co...

  • Page 30: Management - Save/ Reload Settings

    IP address of the destination. The format of an IP address is a 32-bit numeric address written as four numbers separated by periods. Each number can be zero to 255. For example, 191.168.1.254 could be an IP address. www.qpcom.com/www.qpcom.com.co...
  • Page 31 Since most corporate WLANs require access to the wired LAN for services (file servers, printers, Internet links) they will operate in infrastructure mode. Distribution System (DS) Access Point Access Point Basic Service Set (BSS) Extended Service Set (ESS) www.qpcom.com/www.qpcom.com.co...
  • Page 32 Minimizing the number of walls and ceilings. • Position the WLAN antenna for best reception. • Keep WLAN devices away from other electrical devices, eg: microwaves, monitors, electric motors, … etc. • Add additional WLAN Access Points if necessary. www.qpcom.com/www.qpcom.com.co...
  • Page 33 You may want to try lowering your fragmentation threshold. This will cause packets to be broken into smaller fragments. These small fragments, if corrupted, can be resent faster than a larger fragment. Fragmentation increases overhead, so you'll want to keep this value as close to the maximum value as possible. www.qpcom.com/www.qpcom.com.co...
  • Page 34 120 USB 802.11b adapter). Generally if your client hardware supports operation with SSID disa- bled, it's not a bad idea to run that way to enhance network security. However it's no replacement for WEP, MAC filtering or other protections. www.qpcom.com/www.qpcom.com.co...
  • Page 35 WEP. What is Advanced Encryption Standard (AES)? Security issues are a major concern for wireless LANs, AES is the U.S. government’s next- generation cryptography algorithm, which will replace DES and 3DES. www.qpcom.com/www.qpcom.com.co...
  • Page 36 WLAN Broadband Router, so have the cloned MAC address set on the WLAN Broadband Router will solve the issue. What is DDNS? DDNS is the abbreviation of Dynamic Domain Name Server. It is designed for user own the DNS server with dynamic WAN IP address. www.qpcom.com/www.qpcom.com.co...
  • Page 37 Radios establishing and maintaining a link must automatically negotiate the optimum MCS based on channel conditions and then conti- nuously adjust the selection of MCS as conditions change due to interference, motion, fading, and other events. www.qpcom.com/www.qpcom.com.co...
  • Page 38 1. Configure the WAN interface: Open WAN Interface Setup page, select PPPoE then enter the User Name “84549386” and Password “2uprlamv”, the password is encrypted to display on the screen. Press Apply Changes button to confirm the configuration setting. www.qpcom.com/www.qpcom.com.co...
  • Page 39 Static DHCP: Domain Name: Diseabled 802.1Spanning Tree: Clone MAC Address: 00000000000 Reset Apply Changes 3. Configure the WLAN interface: Open WLAN Interface Setup page, enter the SSID “AP”, Channel Number “11”. Apply Changes Press button to confirm the configuration setting. www.qpcom.com/www.qpcom.com.co...

  • Page 40: Lan Configuration

    192.168.1.100 – 192.168.1.200 WLAN configuration: SSID Channel Number 1. Configure the WAN interface: Open WAN Interface Setup page, select Fixed IP then enter IP Address “192.168.2.254”, subnet mask “255.255.255.0”, Default gateway “192.168.2.10”. Apply Changes Press button to confirm the configuration setting. www.qpcom.com/www.qpcom.com.co...
  • Page 41 DHCP Server, DHCP client range “192.168.1.100” to “192.168.1.200”. Press Apply Changes button to confirm the configuration setting. 3. Configure the WLAN interface: Open WLAN Interface Setup page, enter the SSID “AP”, Channel Number “11”. Apply Changes Press button to confirm the configuration setting. www.qpcom.com/www.qpcom.com.co...
  • Page 42 Upper Channel Number: Enabled Broadcast SSID: WMM: Enabled Date Rate: Auto Associated Clients: Show Active Client Enable Mac Clone (Single Ethernet Client) Enable Universal Repeater Mode (Acting as AP and client simultaneonly) SSID of Extended Interface: Apply Changes Reset www.qpcom.com/www.qpcom.com.co...
