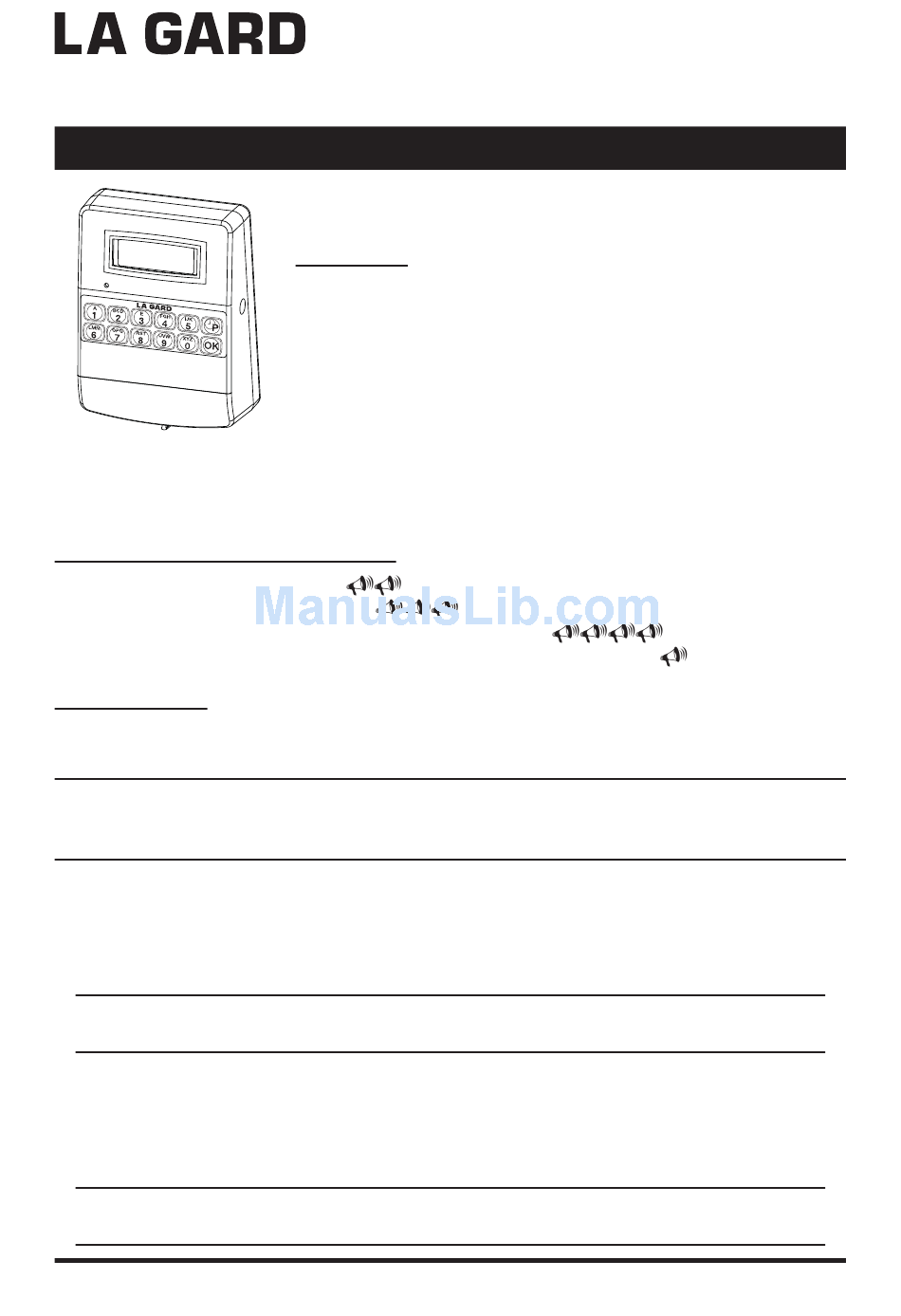

USER OPERATING INSTRUCTIONS
8130

8130 ENTRY DEVICE RESPONSES

• Valid Code Entry - Two beeps
• Invalid Code Entry - Three beeps
• Input Disabled (AuditGard or TimeGard) - Four beeps
• Timelock Denied Access (TimeGard) - One long beep (2 seconds)

DEVICE SETUP

At fi rst power up with a programmed lock (or after battery replacement), the entry device
must "learn" the settings of the lock to which it is attached.
Note: If the entry device has already been attached to the lock, powered up (fi rst time or
with replacement battery), and cycled through a time delay/open window cycle, you do
not need to complete the device setup at this time.
1. Connect the cable from the 8130 Entry Device into the connector port marked ENT on
the programmed lock.
2. If the battery has not yet been installed, remove the battery cover and connect a new
9-Volt Alkaline battery to the battery connector. Use of a high quality, name brand
battery (Energizer® or Duracell®) is recommended.
Note: Once the battery is connected, the system will run a self check of the display
and buzzer.
3. Place the battery back in the battery compartment and put the cover back in place.
4. Initiate a time delay opening of the lock by entering a valid combination. The time delay
period will start and you must let the full delay and opening period complete for
the entry device to "learn" the lock settings. DO NOT interrupt the time delay/
open window cycle.
Note: Regardless of the current jumper switch settings, the time delay cycle will
count up the fi rst time.
(P/N) 737.098 Rev A • 04/09
ELECTRONIC ENTRY DEVICE
The following instructions cover the user operations of the
8130 Electronic Entry Device.
FEATURES
• Keypad Entry for Electronic Lock
• LCD Display Area for Time Delay/Open Window and
Penalty Display
• Jumper Switches to Change Time Delay Counting Direction
• Compatible with the following lock code:
ComboGard (33E V2.13)
ComboGard Pro (39E V1.01)
AuditGard (66E LGA V1.20)
TimeGard (TL11 V1.30 and V2.22)
© copyright 2009
8130
...
Kaba Mas LLC
Page 1 of 4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 8130 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for La Gard 8130

Summary of Contents for La Gard 8130

  • Page 1 1. Connect the cable from the 8130 Entry Device into the connector port marked ENT on the programmed lock.
  • Page 2 OPEN LOCK 1. Enter valid combination. 2. For Dual User access, enter the second valid combination. 3. Open the container within 4 seconds. TIME DELAY DISPLAY The time display will operate during a time delay period and opening window. The time display format is mm:ss (minutes and seconds.) The default device operation is set to count down for the time delay period and count up for the opening window.
  • Page 3 INITIATE SILENT DURESS ALARM This operation is intended to work in conjunction with an alarm box. The feature must be programmed when the lock is set up. For ComboGard, AuditGard or TimeGard: The silent duress combination is created by taking your existing combination and adding or subtracting 1 from the last digit of the combination.
  • Page 4 WRONG TRY PENALTY DISPLAY A time penalty of 5 minutes will start after the 4th consecutive wrong combination has been entered. During a wrong try penalty period, PEN is displayed in the LCD display area. Two more consecutive wrong combinations entered after the penalty has expired will start another 5 minute penalty.
