Summary of Contents for CYP DCT-24

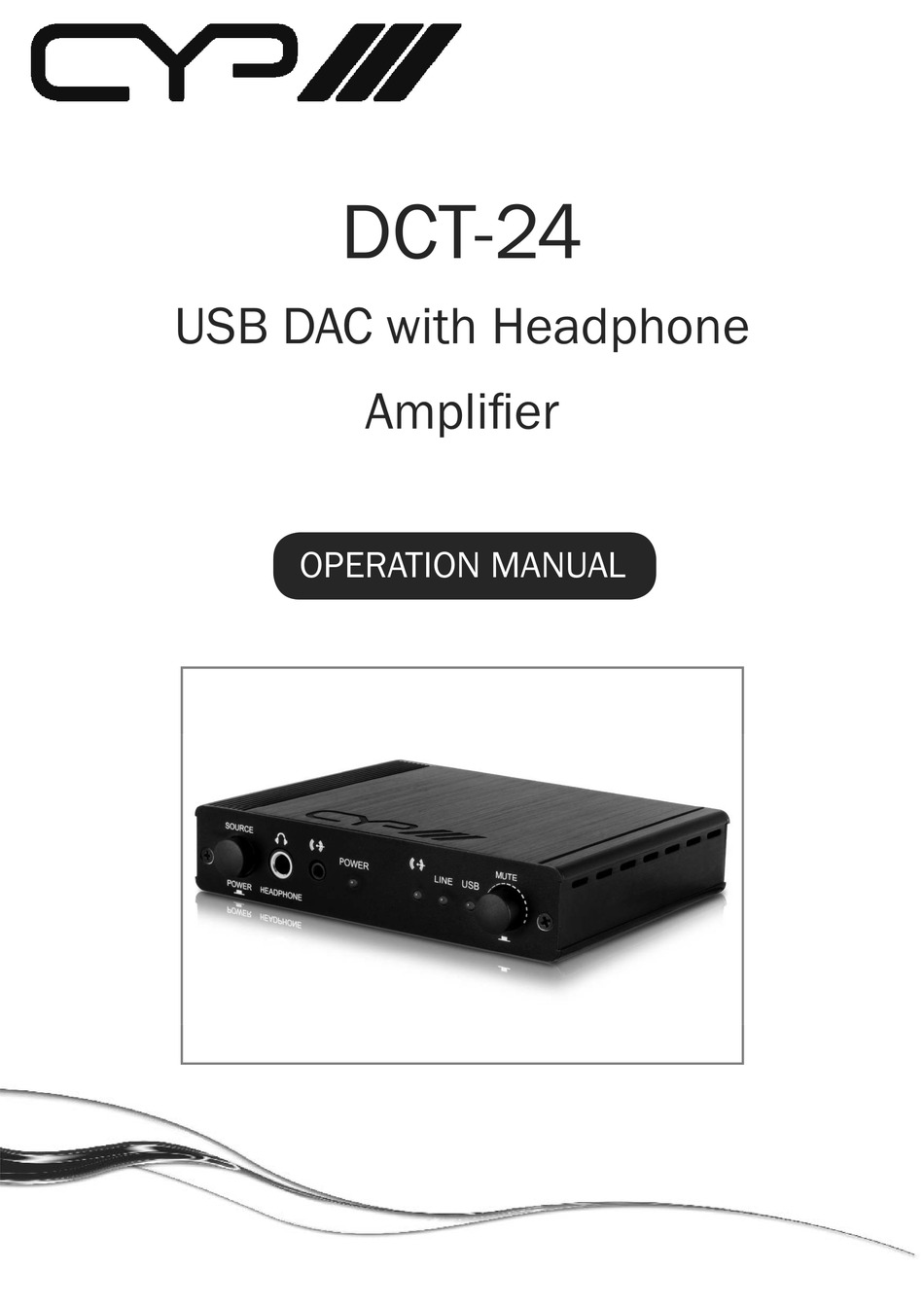

- Page 1 '&7 86% '$& ZLWK +HDGSKRQH $PSOLÀHU 23(5$7,21 0$18$/...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: ‡ $OZD\V IROORZ EDVLF VDIHW\ SUHFDXWLRQV WR UHGXFH WKH ULVN RI ÀUH electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel ........3 6.2 Rear Panel .........4 7. RS-232 control ........5 7.1 RS-232 Protocol .........5 7.2 RS-232 Command ......6 8. -
Page 6: Introduction
1. INTRODUCTION The Audio Center is designed to allow multiple audio sources to be controlled, switched and output to a variety of audio equipment. With its 3 audio inputs and 2 audio outputs(including a 6.3mm headphone output) you can integrate and convert USB/Line in audio source to LPCM 2CH output synchronously to Line out and 6.3mm headphone. -
Page 7: Features
5. FEATURES ‡ Supports Digital to Analog audio Conversion (DAC) ‡ 6XSSRUWV 86% VDPSOLQJ UDWH XS WR N+] ‡ Synchronous output sound on both Line out and 6.3mm headphone ‡ Supports RS-232 controls ‡ Elegant design and easy to install/using ‡... -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel SOURCE MUTE POWER LINE USB POWER HEADPHONE POWER/SOURCE Select: Press the wheel to turn on the device or to set it to standby mode. Turn the wheel Left/Right to select input audio source (3.5mm Line- level/ Line in/ USB), the LED will illuminate accordingly with selected input audio source. -
Page 9: Rear Panel
6.2 Rear Panel DC 5V LINE IN LINE OUT SERVICE DC 5V: Plug the 5V DC power supply into the unit and connect the adaptor to an AC outlet. RS-232: &RQQHFW PP '6XE SLQ DGDSWRU FDEOH WR 3&1RWHERRN IRU RS-232 control. -
Page 10: Rs-232 Control
7. RS-232 CONTROL 7.1 RS-232 Protocol DCT-24 Remote Control Assignment Assignment %DXG 5DWH ESV Data bit: 8-bits Parity: None Stop Bit: 1... -
Page 11: Rs-232 Command
7.2 RS-232 Command Command Description PORT 00 Switch Front In PORT 01 Switch Line In PORT 02 Switch USB In VOL 00 Volume controller VOL -(01---160) Volume controller POWER 00 Power off POWER 01 Power on MUTE 00 Mute off MUTE 01 Mute on FIX 00... - Page 12 Display all available commands ([W Support UART commands as list commands : Description PORT 00: Front In PORT 01: Line In PORT 02: USB In POWER 00: POWER OFF POWER 01: POWER ON MUTE 00: MUTE OFF MUTE 01: MUTE ON FIX 00: FIX OFF FIX 01: FIX ON HPR 00: 16_OHM...
-
Page 13: Connection Diagram
8. CONNECTION DIAGRAM Stereo Analog Output Active Speakers DC 5V LINE IN LINE OUT SERVICE CD Player Stereo Analog Input Headphone Output SOURCE MUTE POWER LINE USB POWER HEADPHONE Line-level Input Smartphone or MP3 Player... -
Page 14: 6Shflàfdwlrqv
9. SPECIFICATIONS Input port [ ‘ /LQH LQ [ 5/ 5&$ [ 86% 7\SH % [ PP SLQ 56 Output port [ /5 $QDORJ 6WHUHR 5&$ [ PP Headphone Audio Input/Output LPCM 2CH Stereo Input/Output Level 2 Vrms ±... - Page 16 ZZZF\SHXURSHFRP...
