Tecnolec TFP300W-U Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

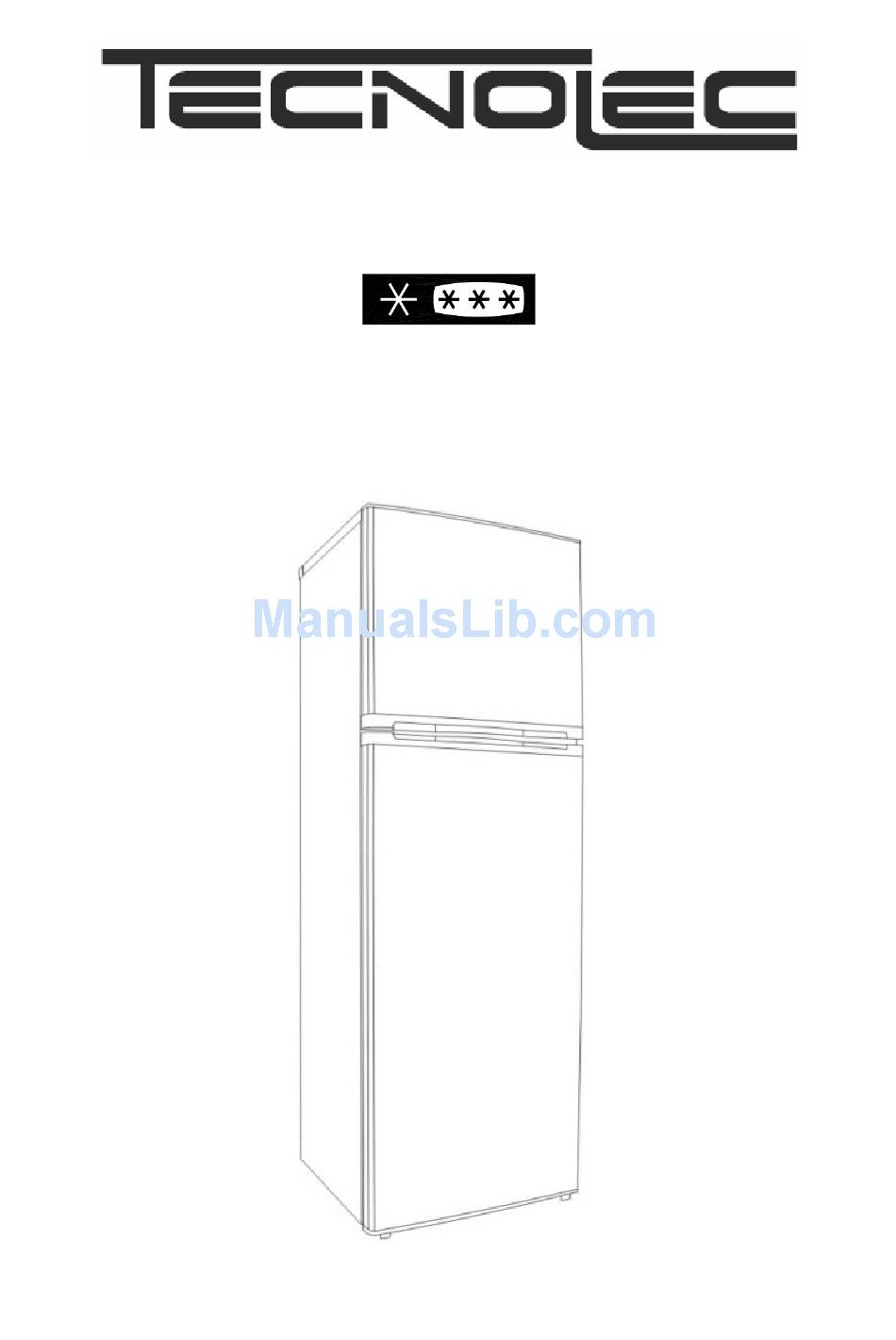

F ridge-Freezer
MODEL: TFP300W-U
TFP300BK-U
INSTRUCTION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TFP300W-U and is the answer not in the manual?

Questions and answers

Related Manuals for Tecnolec TFP300W-U

Summary of Contents for Tecnolec TFP300W-U

  • Page 1 F ridge-Freezer MODEL: TFP300W-U TFP300BK-U INSTRUCTION MANUAL...

  • Page 2: Structure Illustration

    Structure Illustration 1. Glass Shelf(Freezer) 2. Thermostat and lamp assembly 3. Glass Shelf(Fridge) 4. Crisper Cover 5. Crisper 6. Leveling Foot 7. Lower Door Shelf 8. Middle Door Shelves 9. Upper Door Shelf 10. Freezer Door Gasket Note: Compartment design may change due to product improvement, NO prior notice will be given.

  • Page 3: Electrical Connection (Uk Only)

    THANK YOU FOR PURCHASING THIS TECNOLEC PRODUCT This booklet contains the information you will require to install and operate your new appliance. It is important and worthwhile spending time to fully read this booklet so you will understand how to operate the appliance safely and efficiently.
  • Page 4 REFRIGERATOR SAFETY INFORMATION Check that the voltage marked on the rating plate matches that of your local supply. Failure to use the correct voltage will render the guarantee VOID and may cause damage to the appliance. The manufacturer accepts NO responsibility for using any other voltage than that marked on the rating plate.

  • Page 5: Installation

    This appliance is for refrigerating food and making ice cubes. REFRIGERANT The refrigerating gas contained in the circuit of this appliance is Isobutane (R600a); it causes a low level of pollution but is inflammable. CAUTION: Extreme caution must be used when moving the appliance. WARNINGS: Do not damage the refrigerant circuit.
  • Page 6 Instructions for use Remove all packing materials and wash the interior of the appliance using lukewarm water containing a little bicarbonate of soda in the proportion of 1 teaspoon to 1.2 liters (2 pints) of water. Do not use detergents or soaps as they may taint the food.
  • Page 7 Storage of fresh food in the refrigerator Food should always be covered tightly with foil, plastic film, placed in bags or stored in airtight containers. This will prevent food from dehydrating and prevent the strong smell of some foods transferring to milder ones. To store raw meat wrap in polythene bags or airtight containers and place on the lowest shelf.
  • Page 8 Refrigerator defrost process The refrigerator defrosting process is carried out automatically every time the compressor stops. The defrost water drains from the cabinet into a tray placed on the top of the compressor to the rear of the unit where it evaporates. Freezer defrost process Small amounts of frost will accumulate inside the freezer depending upon the length of time during which the door is left open or the amount of moisture...

  • Page 9: Reversing The Doors

    Reversing The Doors Before you reverse the refrigerator doors, you should ensure the refrigerator is unplugged and empty. Certain sections of this process may require two people to complete it. Remove the top Lift the door cover(1) and the upwards to upper hinge (2).
  • Page 10 Check that doors are Place the freezer aligned horizontally door on the middle and vertically and hinge, making sure that all seals make that the hinge pin is good contact with inserted in the hole the cavity all the way at the bottom of the around the cavity freezer door.
  • Page 11 Cleaning and maintenance Before any cleaning or maintenance is carried out you must disconnect the appliance from the mains supply by removing the plug, never remove the plug by pulling on the mains cord. Remove the plug by pulling on the plug itself. It is recommended that when cleaning the appliance, both the inside and outside, can be cleaned using warm water and a little bicarbonate of soda.
  • Page 12 If the appliance is not operating correctly: Please check the following points. Is there a power failure? (Check by turning on a house light) Has the fuse blown or has the circuit breaker tripped? Has the door been closed correctly? Check the thermostat has been set correctly.
  • Page 13 Do's and Don'ts Do- keep raw meat and poultry below cooked food and dairy products. Do- Leave lettuce, cabbage, parsley and cauliflower on the stem. Do- Wrap cheese firstly in greaseproof paper and then in a polythene bag, excluding As much air as possible.

  • Page 14: Technical Data

    Technical data Brand Tecnolec Appliance type Fridge-Freezer Star rating Total gross volume 308L Total storage volume 298L Freezer storage volume Freezing capacity 3.5kg/24h Maximum rated wattage of lamp Rated power input 115W Rated current 0.89A Climate Class + Ambient Range N (+16℃...

  • Page 15: Important Disposal Instructions

    IMPORTANT DISPOSAL INSTRUCTIONS As a responsible retailer we care about the environment. As such we urge you to follow the correct disposal procedure for your product and packaging materials. This will help conserve natural recourses and ensure that it is recycled in a manner that protects health and the environment.

This manual is also suitable for:

Tfp300bk-u
