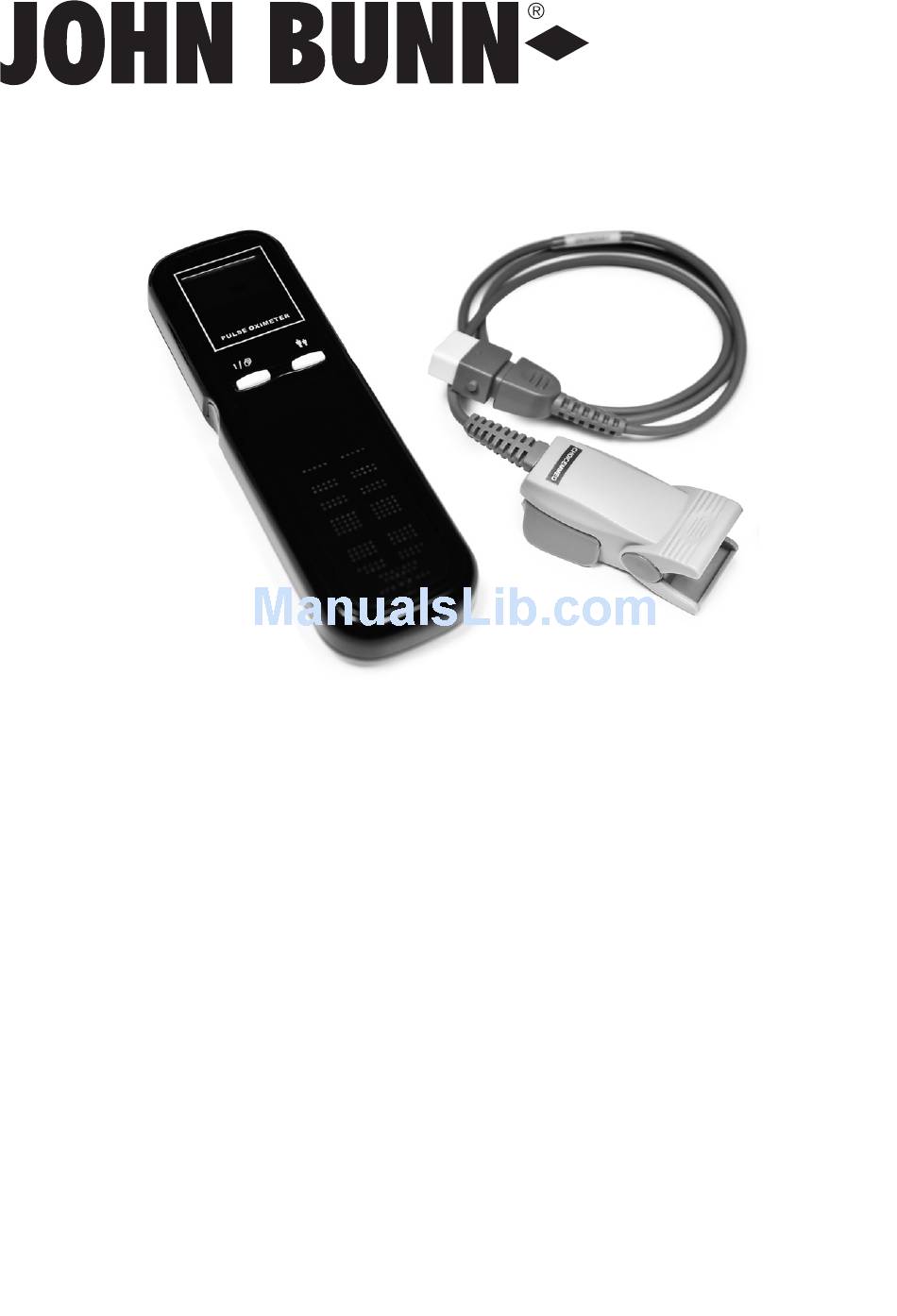

- Page 1 JB3000 HANDHELD PULSE OXIMETER Operation Manual Important: Do not operate the John Bunn JB3000 Handheld Pulse Oximeter without first reading and understanding this manual. Save this manual for future use. JB3000-INS-LAB-RevB14...
-
Page 2: Table Of Contents
The most current product information, including the most current version of this manual, can be found online at www.grahamfield.com. Graham-Field and John Bunn are registered trademarks of GF Health Products, Inc. © 2011, GF Health Products, Inc. JB3000-INS-LAB-RevB14... -
Page 3: Introduction
Please read this operation manual carefully before using this instrument. Intended Use: The intended use of the JB3000 Handheld Pulse Oximeter is to measure and display the functional oxygen saturation of arterial hemoglobin (SpO ) and pulse rate... -
Page 4: Principle Of Operation
As a result of electronic circuitry and microprocessor operation, the oximeter’s LCD will display a measured signal obtained by a photosensitive element. Principle of Operation See illustration and descriptions below. Red and Infrared Emitter Diode Red and Infrared Receptor Diode JB3000-INS-LAB-RevB14... -
Page 5: Unpacking
2. JB3000-AP: Adult finger USB cable sensor 3. JB3000-PP: Pediatric and infant finger sensor: Pediatric: 33.06 - 99.21 lb (15 - 45 kg) Infant: 6.61 - 33.06 lb (3 - 15 kg) 4. JB3000-USB: MedView software CD ™... -
Page 6: Safety Information
The safety statements presented in this chapter refer to the basic safety information that should be observed by those using the JB3000 Handheld Pulse Oximeter. There are additional safety statements in other chapters or sections, which may be the same as or similar to the following, or specific to the operations. - Page 7 WARNING WARNING: Please read this manual carefully before using this device. The operator must ensure that the equipment functions safely and is in proper working condition before being used. WARNING: The Pulse Oximeter contains no serviceable parts. Do not disassemble. Only authorized personnel may perform service or adjustments on this device. WARNING: When connecting this monitor to any instrument, verify proper operation before clinical use. Refer to the instrument’s operation manual for full instructions. The equipment connected to the Pulse Oximeter’s optional data interface must be certified according to the respective IEC standards, i.e., IEC 950 for data processing equipment or IEC 601-1 for medical electrical equipment. All combinations of equipment must be in compliance with IEC 601-1-1 systems requirements. WARNING: Sensor malfunction may cause inaccurate data, possibly resulting in patient injury or death — pay close attention to the sensor and inspect it often. WARNING: Optional worn-out data cables may cause inaccurate data, so if the data is used as a reference to treat a patient, pay special attention to data cable and check it more frequently. WARNING: Do not tangle the oximeter cable with ES (Electrosurgery) equipment wires. WARNING: Do not reuse single-use accessories. WARNING: Notice for California Customers- California Proposition 65 WARNING: This product contains a chemical known to the State of California to cause cancer and reproductive or developmental harm. JB3000-INS-LAB-RevB14...
- Page 8 CAUTION CAUTION: Prolonged use of the sensor or the patient’s condition may require changing the sensor site periodically. Change the sensor site and check skin integrity, circulatory status, and correct alignment at least every four hours. Prolonged use may cause blisters, skin deterioration, and discomfort. NOTICE s NOTICE: The operator must be thoroughly familiar with the information in this manual before using the device. s NOTICE: Autoclaving, ethylene oxide sterilizing, or immersing the oximeter or sensor in liquid may cause permanent damage as well as inaccurate readings. s NOTICE: Unplug the sensor from the monitor before cleaning or disinfecting it. s NOTICE: If liquid is accidentally spilled on the unit, clean and dry thoroughly before reuse. JB3000-INS-LAB-RevB14...
- Page 9 Method of sterilization or Non-sterilizable; use liquid surface disinfection disinfectants only Mode of operation Continuous operation WARNING: This equipment is not suitable for use in the presence of a flammable anesthetic mixture or with oxygen or nitrous oxide. JB3000-INS-LAB-RevB14...
-
Page 10: Setup
3 SETUP OUTER VIEW Front View sensor interface signal strength indicator pulse rate display pulse pleth bar setting key display function key Rear View JB3000-INS-LAB-RevB14... -
Page 11: Oximeter Setup
Ensure the batteries are inserted with the correct polarity, as indicated by polarity marking (+ and -) inside the battery compartment. Connect the Sensor Connect the oximeter sensor to the top of the oximeter as shown above. Ensure that the sensor is firmly plugged in. JB3000-INS-LAB-RevB14... -
Page 12: Operation
Adjust the brightness level one level at a time by pressing the setting key. There are 10 levels of brightness (1 - 10); the default is level four, as shown above. JB3000-INS-LAB-RevB14... -
Page 13: Factors That May Affect Measurement
Pulsatile Character of the Artery Instrument performance depends on the pulsatile character of the artery. The measurement would not be considered reliable and accurate if the following conditions are present during measurement. • Shock or cardiac arrest JB3000-INS-LAB-RevB14... - Page 14 Operation of this device in an electromagnetic field • Placement of a sensor on an extremity that currently has a blood pressure cuff, arterial catheter, or intravascular line installed • Installing SpO and NIBP measurement on the same arm at the same time JB3000-INS-LAB-RevB14...
- Page 15 • There is excessive illumination from light sources such as a surgical lamp, a bilirubin lamp, or sunlight • A blood pressure cuff is inflated on the same extremity as the one to which an SpO sensor is attached JB3000-INS-LAB-RevB14...
-
Page 16: Detailed Operation - Settings
• : Percent oxygen saturation value displayed above is 98%. • PR: Pulse rate value displayed above is 72 BPM. • PR tone modulation: Beeps in sync with patient’s pulse, even under most challenging patient motion conditions. JB3000-INS-LAB-RevB14... -
Page 17: Mode Introduction
There are two keys on the oximeter’s front face: Function Key (left) and Setting Key (right). 1. Function Key: This key acts as a Power On switch when the unit is off. When the unit is on, it acts as a function key. JB3000-INS-LAB-RevB14... -
Page 18: Key Functions
GRAPH MODE, the oximeter will display it until you select a different GRAPH MODE. Setting Mode Entering or exiting SETTING MODE can be done only while in INFORMATION DISPLAY MODE. You can set Brightness, Patient ID, Date and Time while in SETTING MODE. Current JB3000-INS-LAB-RevB14... - Page 19 Press the setting key to adjust the value. Each time you press the setting key, the current parameter value will increase by 1 unit. Double press the setting key to increase the current parameter by 10 units. All use circular logic. JB3000-INS-LAB-RevB14...
-
Page 20: Data Replay And Transmission (Optional)
You can transmit the history data to a PC using optional MedView software and a special data cable, available ™ from your Graham-Field authorized distributor. For detailed setup and operation, please refer to the MedView operation manual. ™ Info: transmission software and data cable are not standard accessories. Contact your GF distributor for purchase. JB3000-INS-LAB-RevB14... -
Page 21: Maintainance
Local disinfection protocols will apply. s NOTICE: Remove batteries before cleaning the oximeter. s NOTICE: Do not submerge the oximeter or sensor in any solution or liquid at any time. s NOTICE: Use only the following permitted solutions. The external surface of the oximeter can be cleaned by wiping with a clean, soft cloth dampened with: • Ammonia (diluted), or JB3000-INS-LAB-RevB14... - Page 22 • Glutaraldehyde, or • 10% Bleach solution, or • Mild soapy water (diluted). s NOTICE: Do not use the following cleaners: • Any kind of scrubbing or scouring solution • Acetone • Any alcohol-based cleaner JB3000-INS-LAB-RevB14...
-
Page 23: Troubleshooting
PR 1. Finger may not be 1. Reinsert finger display is inserted deeply unstable enough 2. Finger trembling or 2. Ask patient to remain patient moving still JB3000-INS-LAB-RevB14... - Page 24 2. Ensure sensor and between the sensor oximeter are connected and oximeter is loose correctly “Finger off” The sensor is plugged Plug the finger into the displays into the oximeter but sensor the finger is not in the sensor JB3000-INS-LAB-RevB14...
-
Page 25: Limited Warranty
DAMAGES FOR LOSS OF PROFITS OR INCOME, LOSS OF USE, DOWNTIME, COVER, OR EMPLOYEE OR INDEPENDENT CONTRACTOR WAGES, PAYMENTS AND BENEFITS. This warranty gives you specific legal rights. You may have additional rights which vary from state to state. JB3000-INS-LAB-RevB14... -
Page 26: Appendix A: Specifications
-4°F to +158°F (-20°C to +70°C) Humidity Operating 15% to 95% RH Storage 10% to 95% RH Dimensions 4.33 x 1.38 x 1.06 in (110 x 35 x 27 mm) Weight .24 lb / 3.88 oz (110g) with alkaline batteries JB3000-INS-LAB-RevB14... -
Page 27: Guide To Symbols
GUIDE TO SYMBOLS Symbol Definition Attention, consult accompanying documents Type BF applied part Prevent from exposure to rain Storage temperature and relative humidity Date of manufacture No Spo2 alarm Serial number Protected against dripping water IPX1 Low power indicator JB3000-INS-LAB-RevB14... -
Page 28: Appendix B: Electromagnetic Immunity
Field strengths from fixed RF transmitters, as determined by an electromagnetic site survey, should be less than the compliance level in each frequency range. Interference may occur in the vicinity of equipment marked with the following symbol. Electromagnetic Immunity continued JB3000-INS-LAB-RevB14... - Page 29 RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the JB3000 Handheld Pulse Oximeter is used exceeds the applicable RF compliance level above, the JB3000 Handheld Pulse Oximeter should be observed.
- Page 30 NOTE 1: At 80MHz and 800MHz, the separation distance for the higher frequency range applies. NOTE 2: These guidelines may not apply in all situations. Electromagnetic interference is affected by absorption and reflection from structures, objects and people. JB3000-INS-LAB-RevB14...
-
Page 31: Index
Info, significance 6 Unpacking 5 Intended use 3 Intended use contraindications 3 View, front 10 Introduction 3 View, outer 10 View, rear 10 Key definition 17 Key functions 18 WARNING, significance 6 Key press definition 18 Warranty, limited 25 JB3000-INS-LAB-RevB14... - Page 32 Manufactured for: GF Health Products, Inc. 2935 Northeast Parkway Atlanta, Georgia 30360 telephone: 770-368-4700 fax: 770-368-2386 www.grahamfield.com Made in China...
