LINC 2.0
2016 OWNER'S MANUAL
USER
SUPER AIR NAUTIQUE
210, 230

Advertisement

loading
Need help?

Need help?

Do you have a question about the 210 and is the answer not in the manual?

Questions and answers

Related Manuals for CORRECT CRAFT 210

Summary of Contents for CORRECT CRAFT 210

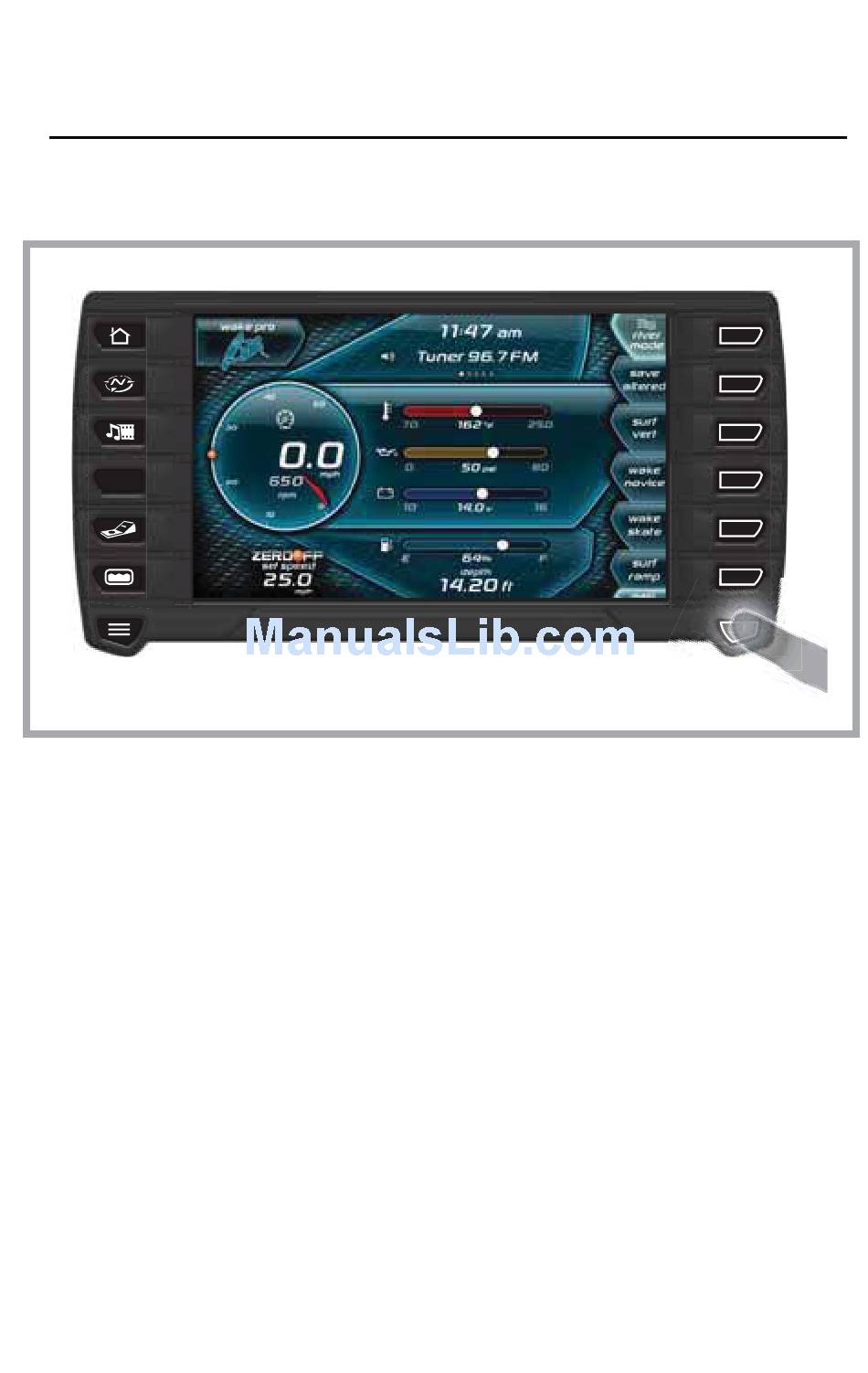

  • Page 1 LINC 2.0 2016 OWNER’S MANUAL USER SUPER AIR NAUTIQUE 210, 230...

  • Page 3: Product Information

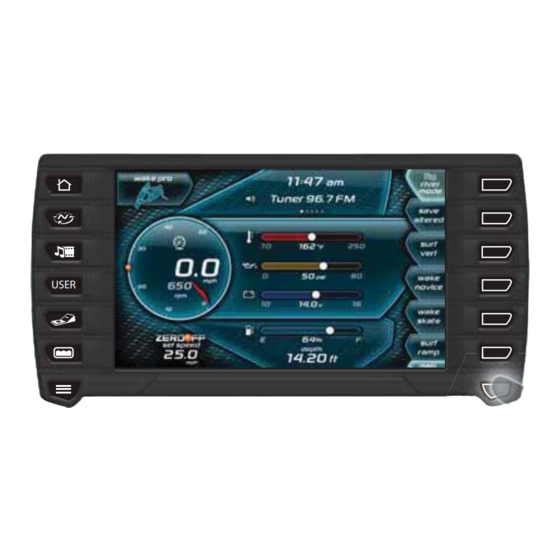

    LINC 2.0 Nautique LINC 2.0 Product Information The Nautique LINC 2.0 display is designed for instrumentation and control on electronically controlled engines communicating via SAE J1939 and NMEA 2000. The display is a multifunctional tool that provides GPS tracking, multimedia display, speed control, and enables equipment operators to view many different engine parameters and service codes.
  • Page 4 LINC 2.0 Care and Maintenance General maintenance is not required; however, a soft cloth can be used for cleaning the unit. Window cleaner or alcohol can also be used to clean the glass portion of the display. Do not use harsh or abrasive cleaners on the unit.

  • Page 5: Basic Navigation Features

    LINC 2.0 Basic Navigation Features All product features are easily accessed through Quick Access Keys, Menus, and Soft Key commands. Quick Access Keys The keys located to the left of the display provide one-button access to Home, Map, Media, Switching, Ballasts, User Profiles and Preferences.
  • Page 6 LINC 2.0 Quick Access Key Features This section describes the features accessed through the Quick Access Keys located to the left of the display. Home Display The Home Display screen for viewing engine statistics can be accessed by pressing the Quick Access Key Pressing or any other key launches the Soft Key Commands to overlay the right side of the display.
  • Page 7 LINC 2.0 Home Display – Soft Key Commands Soft Key Description VOLUME UP – press this soft key to increase the volume of the stereo. VOLUME DOWN – press this soft key to decrease the volume of the stereo. SPEED CONTROL – selecting SPEED CONTROL from the Home Display screen engages the cruise control.
  • Page 8 LINC 2.0 Soft Key Description The Change View soft key toggles through the different views available on the home screen. They are: • Engine Statistics • Engine Hours and Air and Water Temperatures • Map view • Ballast view • Video view...
  • Page 9 LINC 2.0 Map Display The Map Display screen can be accessed by pressing the key. The Map feature displays map data, latitude and longitude coordinates, depth and speed. Soft Key Description UP – facilitates navigating the map by moving the cross-hairs accordingly.
  • Page 10 LINC 2.0 Soft Key Description CENTER – returns the crosshairs to the center of the cursor. WAYPOINTS – displays a list of waypoints. CREATE WAYPOINT – displays a keyboard. Enter a name for the waypoint. The waypoint will be set where the cursor has been placed.
  • Page 11 LINC 2.0 Soft Key Description CLEAR TRACK – clears the currently displayed track. SAVE TRACK – displays a keyboard. Enter a track name. The Track can be edited in Map Utilities. LEFT – RIGHT – UP – DOWN ARROWS – navigate the keyboard.
  • Page 12 LINC 2.0 Media Display The Media Display can be accessed by pressing the Quick Access This feature provides universal control to the Polk stereo mimicking all the controls of a standard remote control. Nautiques with the LINC displays will support the following multi-media functions: •...
  • Page 13 AM/FM Radio, Auxiliary Input, Satellite Radio, USB, Weather Band and Bluetooth. Settings – brings up the Settings menu. Media Settings Menu (210, 230) The Media Settings menu can be accessed by pressing the soft key from the Media Display.
  • Page 14 LINC 2.0 Media Settings Menu – Soft Key Commands Soft Key Description AUDIO SETUP – brings up a menu to adjust the balance, fade, bass, treble, and equalizer preset. The “loudness” setting can be turned on or off here as well. AUTO VOLUME UP –...
  • Page 15 LINC 2.0 Bluetooth Menu The Bluetooth menu can be accessed by pressing the soft key from the Media Settings menu. Bluetooth Menu – Soft Key Commands Soft Key Description PAIR – Searches for nearby Bluetooth devices to pair with. Please ensure that the Bluetooth device you are trying to connect with is in “discoverable mode”...
  • Page 16 LINC 2.0 User Profiles The User Profile screen can be accessed by pressing the Quick Access Key. This feature displays rider/skier profiles containing speed and ballast settings. The unit comes preloaded with default user profiles and the ability to create additional users.
  • Page 17 LINC 2.0 User Profile Screen - Soft Key Commands Soft Key Description BACK TO DOCK – NOTE: The following screen might be displayed when the unit is turned on. It provides an opportunity to begin filling or emptying the ballasts depending upon the user setting present on the device when it was shut down.
  • Page 18 LINC 2.0 Soft Key Description Press the LEFT, RIGHT, UP or DOWN arrow soft keys to navigate the keyboard. Select BACK at the top of the keyboard to remove unwanted letters. Select MORE CHARACTERS to toggle capital/lowercase letters and numbers. Select SPACE to add a space between characters.
  • Page 19 LINC 2.0 New User Profile Soft Key Description Press the LEFT, RIGHT, UP or DOWN arrow soft keys to navigate the keyboard. Select BACK at the top of the keyboard to remove unwanted letters. Select MORE CHARACTERS to toggle capital/lowercase letters and numbers. Select SPACE to add a space between characters.
  • Page 20 LINC 2.0 Switching The switching button is used to control the lighting. The lights that are displayed and controlled with the device are dependent upon the boat model and dealer settings. The soft keys on the right of the display navigate the screen. In addition to controlling the lights on the boat, the other appliances that are not directly controlled by the display are shown.
  • Page 21 LINC 2.0 Soft Key Description UNDERWATER LIGHTS – (if equipped) turns on or off the underwater lights. HEATER – turns on or off the boat heater. FEATURES – displays the locations of key features on the boat. Press to toggle the highlighted feature. The features shown include: •...
  • Page 22 LINC 2.0 Ballast Settings The ballast feature allows a user to set up ballast settings for a particular skier or profile. When the skier profile is selected, the ballasts settings will be shown and the ballasts on the boat will be filled/emptied as indicated on the screen.
  • Page 23 LINC 2.0 Soft Key Description SET LEVEL – displays the set level screen. Set the Port, Belly and Starboard ballast levels. Select the ballast from the list of soft keys. Use the UP and DOWN arrow keys to set the desired ballast level. Press the GO TO SET LEVEL key to fill or drain that ballast.
  • Page 24 LINC 2.0 Preferences The Preferences screen is displayed when is pressed briefly. The following preferences can be set on this screen; use Next Setting to scroll to additional settings: • Home Button Slide (turn on or off) • Map Button Slide (turn on or off) •...

  • Page 25: System Settings

    LINC 2.0 Soft Key Description SYSTEM SETTINGS (See Main Menu section for more information.) PREV SETTING – backs up to the previous setting. NEXT SETTING – advances to the next setting. UP – toggles through the available settings. DOWN – toggles through the available settings. SAVE –...
  • Page 26 LINC 2.0 Soft Key Description RESET ALL – displays the reset all system settings warning. YES – resets all the preferences to the default settings (excluding any user profiles). NO – cancels the reset action and returns to the Preferences screen.

  • Page 27: Menu Options

    LINC 2.0 Menu Options The menu options are accessible by pressing the SYSTEM SETTINGS button on the PREFERENCES screen. The following features are available: • GPS Utilities – contains options to set up track and position, chart and time, and waypoint manager. Also displays satellite status.
  • Page 28 LINC 2.0 Waypoint Manager Soft Key Description LEFT – RIGHT – UP – DOWN soft keys are used to navigate the different areas in the Waypoint Manager. WAYPOINTS – provides a list of waypoints that have been set using the tracking soft keys on the GPS Navigator screens. Use the up and down arrows to select a waypoint to edit the name, select an icon, Delete or Go To on the GPS Map.
  • Page 29 LINC 2.0 Soft Key Description GO TO... – takes you to the selected waypoint on the GPS map. Waypoint Manager – Go to Waypoint YES – Go to waypoint on the GPS Navigator Maps. NO – Do not go to the waypoint on the GPS Navigator Maps. Track Manager Soft Key Description LEFT –...
  • Page 30 LINC 2.0 Chart and Time Setup Soft Key Description LEFT – RIGHT – UP – DOWN ARROW soft keys are used to navigate the different areas in the Chart and Time Setup. CHART SETUP PARAMETERS – turn on or off available settings: •...
  • Page 31 LINC 2.0 Depth and Position Settings Soft Key Description LEFT – RIGHT – UP – DOWN ARROW soft keys are used to navigate the different areas in the Depth and Position Settings. POSITION FORMAT SELECTION – select the position from available settings: •...
  • Page 32 LINC 2.0 Satellite Status Soft Key Description This view only screen gathers data on prevailing satellites and shows the proximity of each. It also displays the following information: • Longitude • Latitude • Number of Satellites • Strength BACK TO GPS UTILITIES – select to go back to the GPS Utilities screen.
  • Page 33 LINC 2.0 Engine Diagnostics The following is a list of field definitions contained on the ENGINE DIAGNOSTICS screen: • Diagnostic Message – displays the diagnostic message. • Description – Most common SPNs and FMIs have text for the description stored in the display. If there is no text, then this SPN and FMI must be defined by referring to the engine manufacturer, or the SAE J1939 standard.
  • Page 34 LINC 2.0 • Count – The number of times the event has been flagged. System Information Component Version Part No. Application The version number of the The part number for application installed on the the application. hardware. The version number of the The part number for operating system installed the operating system.
  • Page 35 LINC 2.0 Nautique LINC 2.0 – River Mode LINC’s River Mode is a feature that allows the driver to keep the boat’s speed-over-water constant at the push of a button when a current is present. To compensate for the current, the boat’s speed- over-ground or “GPS speed”...
  • Page 36 LINC 2.0 Press River Mode to toggle River Mode on. USER CORC555 Press “main” to return the first menu of soft keys to control the set speed and offset for River Mode. USER LINC Home Screen with River Mode on...
  • Page 37 LINC 2.0 This is the speed-over-water and equals the GPS speed (or speed-over-ground) increased by the USER LINC Home Screen with River Mode on equal the estimated current speed River Upstream/Downstream indicator (Depicted as downstream in the illustration) Set speed equals the desired “water speed” and is adjusted using speed up or down soft keys Soft Key Description OFFSET UP and OFFSET DOWN...
  • Page 38 LINC 2.0 Operating and Adjusting River Mode Settings First, ensure that River Mode is turned on and navigate to the Home screen. Determine whether the boat will be traveling upstream or downstream and switch River Mode Upstream/Downstream on LINC accordingly. Estimate the current speed and adjust the o set up or down accordingly.
  • Page 39 LINC 2.0 Nautique Surf System Basics/Activating NSS NSS is a great tool for shaping the wakesurf wave to a user’s personal preference by the press of a button in LINC. There are user settings within NSS that can be used to build the ultimate wakesurf wave for the user, but to get the most from NSS it is helpful to understand the basics of how it works first.
  • Page 40 LINC 2.0 Now that NSS is active, to change the NSS settings you must navigate to the “surf” page of the LINC display. This can be done by pressing the last button on the right side of the LINC display (see Figure 2).
  • Page 41 LINC 2.0 Adjusting NSS Settings NSS has 6 unique settings that change the shape of the wakesurf wave. The higher the number the steeper or more “vert” the wakesurf wave will become. 5 is associated with the most vert wakesurf wave, and is also the most likely to be “washy” due to how steep the wave is.
  • Page 42 LINC 2.0 NSS Soft Key and Icon Guide Allows the user to choose if the designated wave plate will NSS On/Off Key engage once the set speed is reached (on) or not (off) Allows the user to choose the Switch Surf Key side on which to develop a wakesurf wave Allows the user to select a surf...
  • Page 43 LINC 2.0 Figure 4: Profile with NSS settings inactive Once the set speed is moved below 13 mph, two new settings will become available in the user profile, an NSS setting and a Surf Side setting. The Surf Side setting refers to the side of the boat the user would like to start to surf on.
  • Page 44 LINC 2.0 Figure 6: Profile with NSS Settings Inactive Once the set speed is moved below 13 mph, two new settings will become available in the user profile, an NSS setting and a Surf Side setting. The Surf Side setting refers to the side of the boat the user would like to start to surf on.
  • Page 45 LINC 2.0 If at any time the user would like to surf on the side opposite the side loaded from the user settings, this can be done by pressing the “switch sides” button. Figure 11 displays a user profile with NSS settings available.
  • Page 46 LINC 2.0 LINC 2.0 General Troubleshooting Guide Display appears not to work or doesn’t come “ON.” 1. Display could be in sleep mode. Touch a key on the keypad to activate the display. 2. Check for loose connections at battery and display unit. 3.
