• SCSI Channel/SCSI ID/SCSI Lun

SCSI Channel: The RAID storage function is simulated as an
external SCSI RAID controller. The host bus is represented as a
SCSI channel. Choose the SCSI Channel.
SCSI ID: Each SCSI device attached to the SCSI card, as well
as the card itself, must be assigned a unique SCSI ID number.
A SCSI channel can connect up to 15 devices. The RAID storage
is a large SCSI device. Assign an ID from a list of SCSI IDs.
SCSI LUN: Each SCSI ID can support up to 8 LUNs. Most 6Gb/s
SAS controllers treat each LUN like a SAS disk.
4.6.2 Create Raid30/50/60 (Volume Set
30/50/60)
To create 30/50/60 volume set from RAID set group, move
the cursor bar to the main menu and click on the "Create
Raid30/50/60" link. The "Select The Raid Set To Create Volume
On It" screen will show all RAID set number. Tick on the RAID set
numbers (same disk numbers per RAID set) that you want to cre-
ate and then click on the "Submit" button.

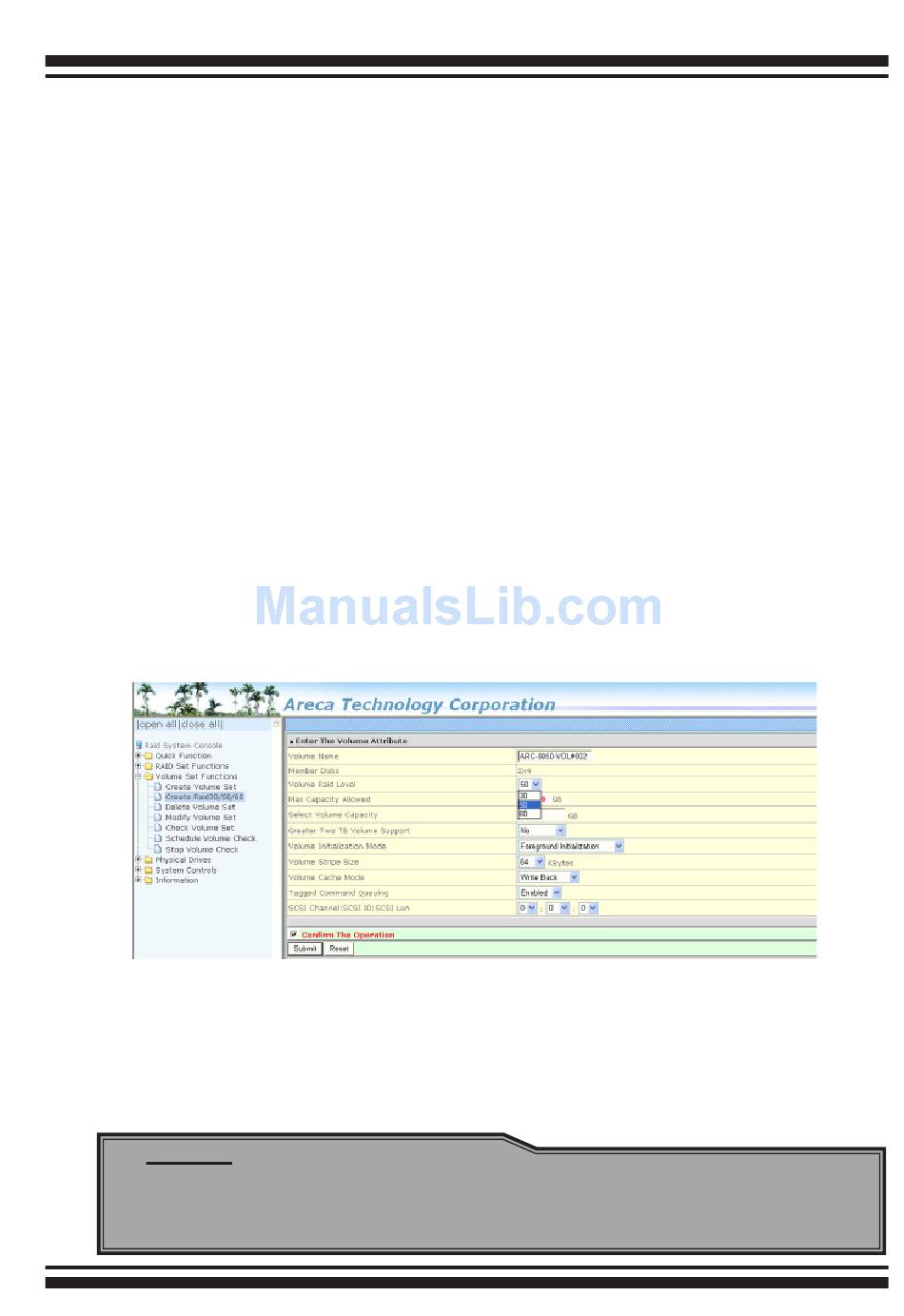

The new create volume set attribute allows user to select the Vol-
ume Name, Raid Level, Capacity, Greater Two TB Volume Support,
Initialization Mode, Stripe Size, Cache Mode, Tagged Command
Queuing, and SCSI Channel/SCSI ID/SCSI Lun. Please refer to
above section for details description of each item.
Note:
RAID level 30 50 and 60 can support up to two RAID set (two
pairs), but it can not support expansion and migration.
