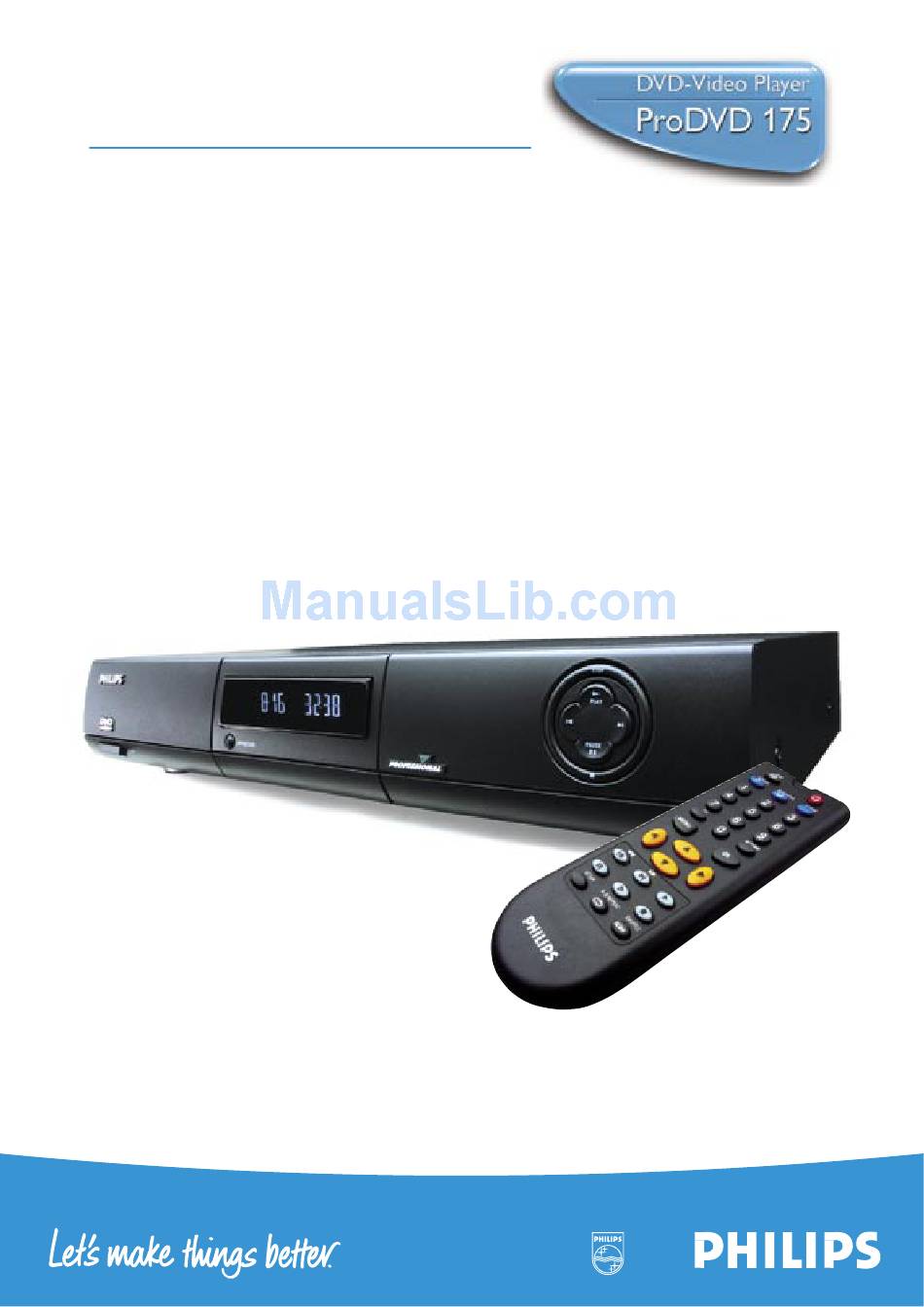

- Page 1 Professional DVD Video Player Professional DVD Video Player Technical Manual Document version v2.0 Applicable for players with firmware version: V3.50.08/V3.50.09/V3.50.11 For more information about the ProDVD 175, please contact the website: www.prodvd.philips.com...
- Page 2 Help Text field will change in (C)‘00-’01 x.y.z..where x.y.z. stands for the firmware release version. Example: (C) ‘00-’01 3.50.11 020708 P107 5.1.14 For more information about the ProDVD 175, please contact the website: www.prodvd.philips.com...
-
Page 3: Table Of Contents
Additional bytes pointing devices External control commands External control status Asynchronous responses Trade Mode Navigation and Handling Non Volatile Memory Error codes Rom Code Table Range Overview of commands For more information about the ProDVD 175, please contact the website: www.prodvd.philips.com... -
Page 4: I/O Port
This interface allows for pointing devices and accessories O = output signal from the Player which are powered from the player using logic circuits operating on 5V only. For more information about the ProDVD 175, please contact the website: www.prodvd.philips.com... - Page 5 − no parity bit Note: It is adviseable to send a complete data packet − speed of 9600 Baud. after the identification byte to establish the state of the buttons. For more information about the ProDVD 175, please contact the website: www.prodvd.philips.com...
- Page 6 [PR, StatusChange, 4]\r the received message (syntax), and the command − Player sends: [PR, SOC, 2]\r will be executed (It does not imply that the command is executed without errors). For more information about the ProDVD 175, please contact the website: www.prodvd.philips.com...
-
Page 7: Relative Coordinate And Maneuvering Devices
(with d6 =0) may be added to the data package. Systems specified to work with the specific device will react to this byte; other systems will ignore it. For more information about the ProDVD 175, please contact the website: www.prodvd.philips.com... -
Page 8: Additional Bytes Pointing Devices
10-bit absolute vertical Still reverse position. Outermost upper Slow forward position $000. Slow reverse Outermost Return Note: bt1 and bt2 are not supported in the DVD175 Open/close Zoom Angle For more information about the ProDVD 175, please contact the website: www.prodvd.philips.com... -
Page 9: External Control Commands
Note: The status of this feature remains unchanged command: PlayC after switching off and on the power of the player. parameter list: TitleNumber, (Stored in NVRAM). ChapterNumber For more information about the ProDVD 175, please contact the website: www.prodvd.philips.com... - Page 10 Note 2: The RC mode will always be switched ON after starting up the player by switching on the power of the player. For more information about the ProDVD 175, please contact the website: www.prodvd.philips.com...
- Page 11 Set play mode Note: The status of this feature remains unchanged group: after switching off and on the power of the player. command: SetPlayMode (Stored in NVRAM) parameter list: PlayMode, For more information about the ProDVD 175, please contact the website: www.prodvd.philips.com...
-
Page 12: Time Search
[PC, Time, 1,35,15] The player is supposed to start playing at 1:35:15 Further, Time Search (though EC) behavior would be same as handled through RC, i. e. whenever For more information about the ProDVD 175, please contact the website: www.prodvd.philips.com... -
Page 13: External Control Status
GetSPST DiscType can have one of the following values parameter list: ReturnValue, No disc SubPictureStreamNumber VCD or SVCD SubPictureStreamNumber: Number of the CD-DA current sub-picture stream. For more information about the ProDVD 175, please contact the website: www.prodvd.philips.com... - Page 14 NrChapters: Number of chapters (DVD) or entries (VCD) of the requested title or track. ChapterNr: Chapter (DVD) or entry (VCD) number of the current chapter or entry. For more information about the ProDVD 175, please contact the website: www.prodvd.philips.com...
-
Page 15: Asynchronous Responses
GetSector stop command is given immediately after the End of parameter list: ReturnValue, NumOfBytes title message is received and the disc mode is DISC. For more information about the ProDVD 175, please contact the website: www.prodvd.philips.com... - Page 16 Execution of a command error. Error code 4 identifies the occurred error. Notification of a status changes: Message from DVD to external controller group: command: StatusChange parameter list: ReturnValue, ReturnStatus For more information about the ProDVD 175, please contact the website: www.prodvd.philips.com...
-
Page 17: Trade Mode
NVRAM manual. VIRGIN Mode OPEN PLAY TRADE Mode OPEN PREV DIAGNOSTIC Mode OPEN PAUSE DLA Mode STOP PLAY Service Mode OPEN STOP Table 1 LK Special mode key Map For more information about the ProDVD 175, please contact the website: www.prodvd.philips.com... -
Page 18: Error Codes
Disc error due to dirty disc ecEXT_ERR_INVALID_COMMAND_STATE Command not allowed in this state of the player ecEXT_ERR_NO_GPRM_AVAILABLE Requested GPRMs not available ecEXT_ERR_CMD_NOT_ALLOWED Command to deliver binary data not For more information about the ProDVD 175, please contact the website: www.prodvd.philips.com... -
Page 19: Rom Code Table Range
Note: RC key codes for Display (Bit rate/CD Text), PBC On/Off, Display Dim will not be supported through EC. (RCC = Remote Control Command, EC = External Control). For more information about the ProDVD 175, please contact the website: www.prodvd.philips.com... -
Page 20: Overview Of Commands
Note: In case binary data is “Yes”, the Binary data will be send immediately after the ASCII parameter list response. It will only be send in case Return Value = 0. For more information about the ProDVD 175, please contact the website: www.prodvd.philips.com...
