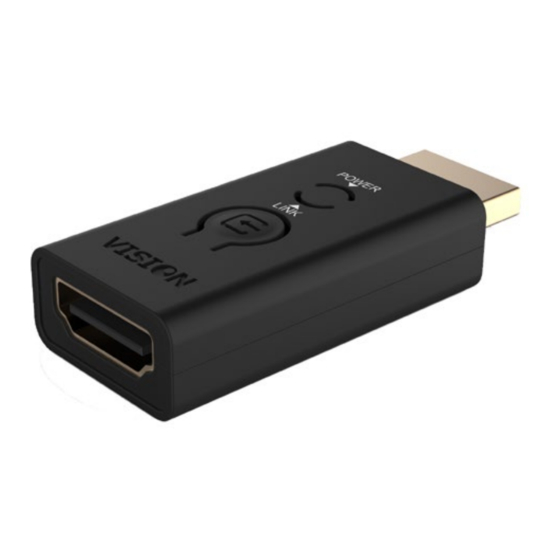

Summary of Contents for Vision techconnect select
- Page 1 TECHCONNECT SELECT OWNERS MANUAL www.visionaudiovisual.com/techconnect/tc2-select TC2-SELECT_manual_en_v1.doc...
-
Page 2: Declaration Of Conformity
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. All products are designed and imported into the EU by ‘Vision’ who is wholly owned by ‘Azlan Logistics Ltd.’, Registered in England Nr. 04625566 at Lion House, 4 Pioneer Business Park, Clifton Moor, York, YO30 4GH. -
Page 3: Application Diagram
Plugs into source devices Techconnect HDMI Switcher hidden under table The Techconnect Select fits to any HDMI cable and sends a control signal back to Vision’s HDMI switcher. NOTE: It only works with Vision’s HDMI switchers (version 2 or later) -
Page 4: Installation
INSTALLATION Follow the same process as installing a switcher: PLUG SELECT INTO SOURCE DEVICES Red LED will light to show Select is receiving power from source. CONNECT CABLE/S FROM SWITCHER INTO SELECT/S TURN ONE SOURCE DEVICE ON Keep other source devices off at this stage. CONNECT OUTPUT Connect HDMI output from switcher to display device TURN SWITCHER ON Plug in to mains power and turn on. -
Page 5: Troubleshooting
AV reseller immediately. Problem Correction Red LED not lighting Techconnect Select gets power from the display device. • Check that the source device is turned on. Blue LED not lighting The Select is not connected to the HDMI switcher, or •... -
Page 6: Specifications
SPECIFICATIONS PRODUCT DIMENSIONS: 49 x 21.5x 10.5 mm (length x width x height) PRODUCT WEIGHT: 13.5 g CONSTRUCTION MATERIAL: Plastic with rubberised finish COLOUR: Black TECHNICAL DETAILS: Bandwidth: 6.75Gbps (2.25Gbps/TDMS Channel) Input Video Signal: 0.5-1.0 volts p-p Input DDC Signal: 5 volts p-p (TTL) Maximum Video Format Supported: 1920×1200 / 1080P Output Video: HDMI 1.4 Operating Temperature Range: -15 to +55°C... -
Page 7: Warranty
WARRANTY This product comes with a 2-year return to base warranty, effective from the date of purchase. This warranty applies only to the original purchaser and is not transferable. For the avoidance of doubt, this will be taken from the information held by the appointed national distributor at the point of sale.
