Summary of Contents for Lami Corporation Rose-63CL

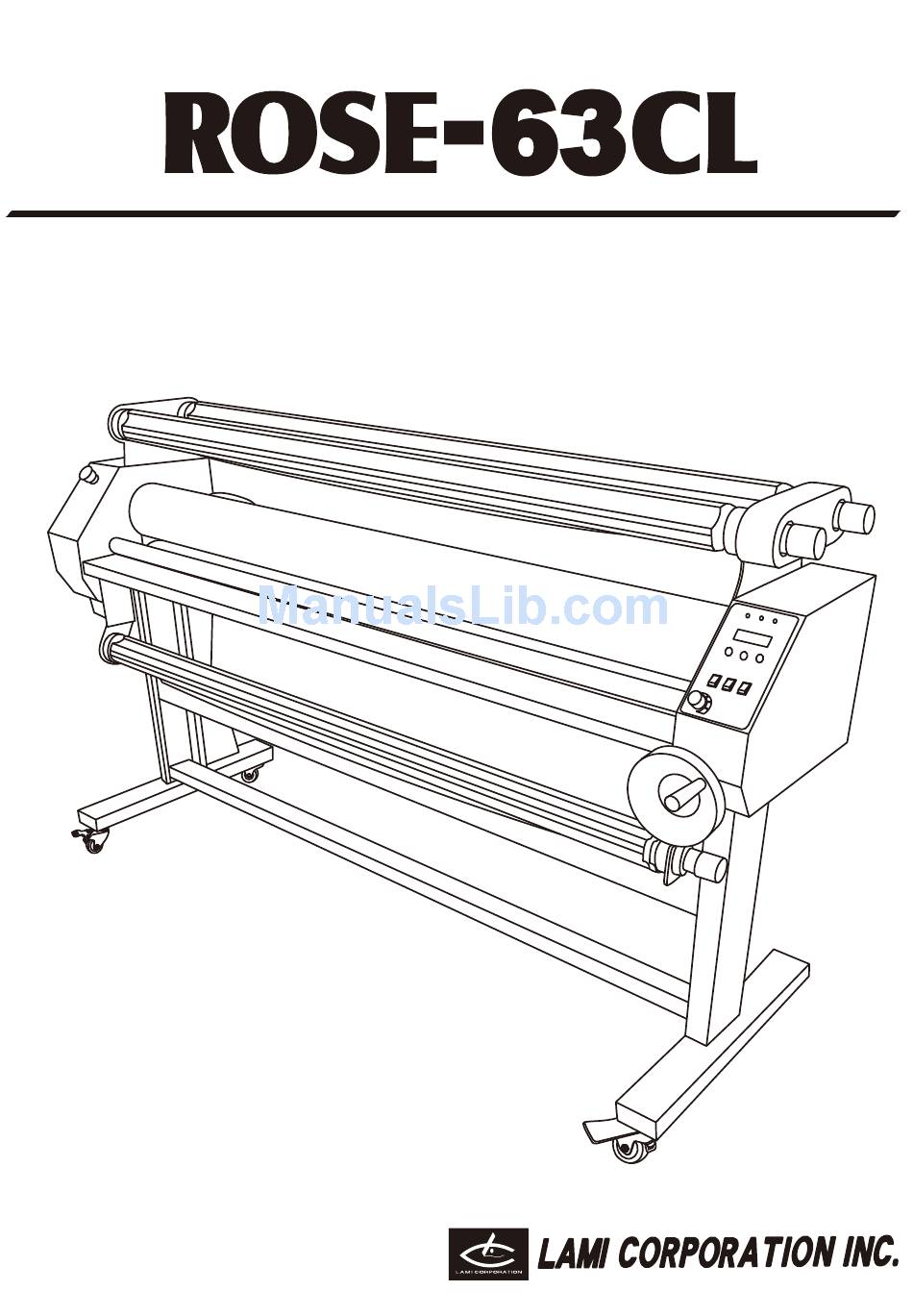

- Page 1 Instruction Manual 2014.05 Rev.1...
-
Page 2: Table Of Contents
┣ Stand Assembly Method........................P 6 ┣ Foot Switch Installation Method......................P 6 ..............┗ Underfilm Shaft Unit Installation Method ......■ Name of Each Part ┣ Main Body of Rose-63CL ......................P 7 ..Operation Panel............................. P 7 ┗... -
Page 3: Precautions Before Use P
Precautions Before Use Meaning of Symbols This document uses symbols to explain the degree of harm and damage caused by incorrect use of the product and to prevent harm on customers and others or damage on properties. If this symbol is neglected and the product is handled incorrectly, serious injury or death may Warning occur. -
Page 4: Precautions For Use
Precautions for Handling Warning Power cable included in the product must be used. Do not use power supply not indicated on the product. Do not place heavy objects on power cable, place cables nearby heating devices, or complex wiring. Do not process power cable or use damaged power cable. Accurately insert to the end of electrode. -
Page 5: Place For Installation
Place for Installation This device shall be installed in the following places. ●Horizontal and stable place Use as slanted or in unstable state may result in adverse effects such as paper return. Also, unexpected accidents can occur. ●Place where exclusive power outlet is available Do not use power types other than the rated voltage regulated on this Manual. -
Page 6: Characteristics And Confirmation Of Parts P
The following parts and documents are included in the main body. If there is a missing part, contact a nearby business office of our company or store from which the product was purchased. ROSE-63CL main body Stand（assembly type） Assembly type film shaft １prevents set... -
Page 7: Installation Of The Machine Stand Assembly Method
Installation of the Machine Stand Assembly Method ① ① ③ ② ③ ② Stand is assembly type. ①Be dented area of the stands forward inside,and attach the center pillar. ②Attach casters with brake to the front part of the stand. ③attach casters without brake to the rear part of the stand. -
Page 8: Name Of Each Part Main Body Of Rose-63Cl
Name of Each Part Main Body of ROSE-63CL ①Stand ②Film shaft for under-film ③Signboard ④Emergency stop button ⑤Laminate roll ⑥Film shaft for release paper ⑦Laminate film shaft ⑧Brake ⑨Operation panel ⑩Roller UP-DOWN lever Operation panel ①Cold LED LED is lit up during cold laminating ②Heater LED... -
Page 9: Before Processing Laminate P
Before Processing Laminating About Laminate Film There are two types of laminate film including 「roll type」 and 「pouch type」. This product uses 「cold roll film」 type. ※ 「Pouch type」 and 「hot roll film」 cannot be used. Thickness of the laminate film is selected according to the use. Thickness (μ) Thickness of the cold roll film used by this product ranges from 20 μ... -
Page 10: Cold Laminate Processing Installation And Processing Of Cold Laminate Film
Cold Laminate Processing Installation and Processing of Cold Laminate Film 【１】Install the underfilm Insert the underfilm to the underfilm shaft and set the shaft to the machine. Be sure to take care of convex part of the bracket and shaft. 【２】Install the laminate film and paper core of release paper Install the laminate film same as underfilm, and adjust center of it by referring to the scale of shaft. - Page 11 【３】Install the laminate film by referring to the figure below ①Underfilm is passed through, Signboard→Laminate roller→Winding device ②Laminate film is passed through Laminate roller and set release paper on the paper core. Figure seen from right side Release paper Laminate film Insert Direction Underfilm ③Turn the handle and pull down the laminate roller.
-
Page 12: Maintenance P
Maintenance This product is composed of many rollers, and they must be cleaned according to usage. The laminate can be maintained in desirable state by cleaning the rollers. Cleaning of Roller Clean each roller since rollers have paper scraps and dusts attached. Caution The roller must be stopped when cleaning. -
Page 13: Troubleshooting
Troubleshooting The following measures are taken for troubleshooting. Power does not turn on · machine does not function Insert outlet plug and check power switch This product is used at 240V . Make sure that the outlet plug is correctly connected. Check that the power switch on the back of the main body is turned on. -
Page 14: Others P
Others Product Specification Max.laminating width 1520 mm Max.substrate thickness 23 mm Paper tube size 3 inch Max.laminating speed 6.0 m/min Heating system Infrared inside heating system Processing temperature 0 ～ 60℃ Roller clearance Manual non step settings Power requirement/consumption AC220V 1400W Size （W×D×H）...
