JBL MRX518S Technical Manual

Technical Manual
JBL MRX518S

SPECIFICATIONS

ACOUSTIC & ELECTRICAL SPECIFICATIONS:
• Nominal Impedance: 4 ohms
• Power Capacity: 500 W / 1000 W / 2000 W, 2 hrs.
(Cont/ Prog/Peak): 400 W / 800 W / 1600 W, 100 hrs
• Frequency Range: 40 Hz - 200 Hz (-10 dB)
• Frequency Response: 45 Hz – 200 Hz (±3 dB)
• System Sensitivity: 94 dB SPL (1 watt @ 1 meter)
• Maximum SPL: 133 dB SPL continuous (139 dB SPL peak)
• Crossover Freq.: 80 Hz, 24 - 28 dB/octave
SYSTEM COMPONENTS:
• Low Frequency 1 JBL 2044G 457 mm (18 in) woofers
Transducer: 352938-005X
• DC Resistance: 2.5 ohms ±10%
• Input Cup Assembly: 362238-001
PACKAGE
JBL Incorporated, 8500 Balboa Boulevard, P.O. Box 2200, Northridge, California 91329 U.S.A.

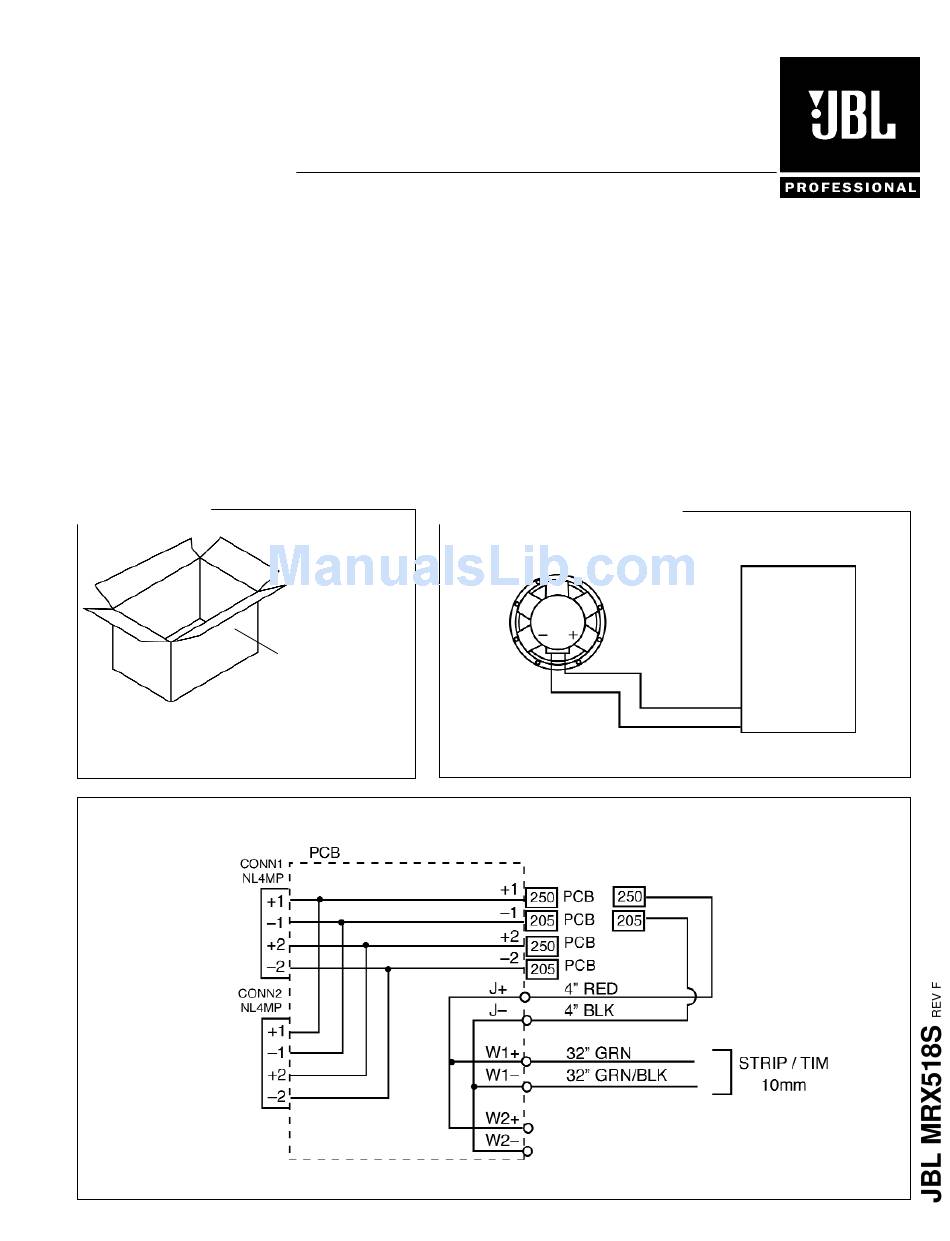

WIRING DIAGRAM

Warranty 59660
Manual
362053-001
Carton
362239-001
Fillers (2)
362297-001
Pkg, Microfoam (8)
49790P
Pop Sticker
362895-001
AURAL SWEEP TEST SPECIFICATIONS:
A. System Aural Sweep Test:
B. L.F. Aural Sweep Test:
PHYSICAL SPECIFICATIONS:
• Enclosure Dimensions:
(H x W x D)
• Net Weight (ea):
WARRANTY INFORMATION:
• Refer to Warranty Statement packed with each product.
Driver,
Low Freq
(352938-005X)
2044G
Cone Repl
C4R2044
SCHEMATIC (362238-001)
5.0V Input, 20 Hz to 1 kHz
5.0V Input, 20 Hz to 1 kHz
560 mm x 535 mm x 700 mm
(22 in x 21 in x 27.5 in)
32.5 kg (72 lbs)
Input Cup
Assembly
362238-001
GR
GR/BL
08-07
