Summary of Contents for Moffat MSS601B
- Page 1 Instruction Booklet Electric Oven MSS 601...
-
Page 2: Important Safety Information
Important Safety Information You MUST read these warnings carefully before installing or using the oven. If you need assistance, contact our Customer Care Department on 08705 950950 Installation • This oven must be installed by qualified roasting bags, to come into contact with oven personnel to the relevant British Standards. -
Page 3: Table Of Contents
Contents For the Installer For the User Important Safety Information Technical Data Description of the Oven Electrical Connection Before the First Use Building In Controls Using the Oven Cleaning the Oven Something not Working Service and Spare Parts Guarantee Conditions European Guarantee Environmental Information Guide to Use the instructions... -

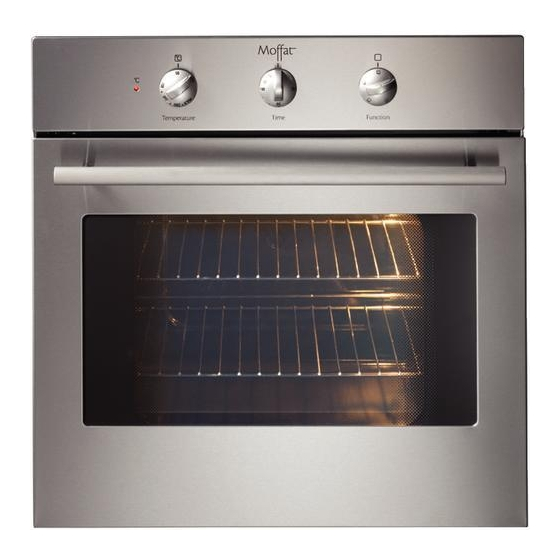

Page 4: Description Of The Oven
Description of the Oven Before the First Use 1. Control Panel Remove all packaging, both inside and 2. Oven Function Control Knob outside the oven, before using the appliance. 3. Minute Minder Before first use, the oven should be heated without 4. -
Page 5: Controls
Controls Oven Function Control Knob The oven is off. Conventional cooking - The heat comes from the top and bottom element of the oven, ensuring even heating inside the oven. Bottom heating element - The heat comes from the bottom of the oven only. Top heating element - The heat comes from the top of the oven only. -
Page 6: Using The Oven
Using the Oven Always cook with the oven door closed. Stand clear when opening the drop down oven door. Do not allow it to fall open - support the door using the door handle, until it is fully open. The oven has four shelf levels, and is supplied with two shelves. -
Page 7: Cooking Chart
Cooking Chart The oven temperatures are intended as a guide only. It may be necessary to increase or decrease the temperatures to suit individual preferences and requirements. Cooking times in the tables do not include pre-heating. A short oven pre-heating (about 10 minutes) will then be necessary before any cooking. -
Page 8: Grilling Chart
Grilling Chart Cooking time depends on the thickness of the meat and not on its weight. The oven temperatures are intended as a guide only. It may be necessary to increase or decrease the temperatures to suit individual preferences and requirements. Cooking times in the tables do not include pre-heating. -
Page 9: Cleaning The Oven
Cleaning the Oven Cleaning the Oven Door Before cleaning the oven door, we recommend Before any cleaning switch the oven you to remove it from the oven. Proceed as follows: off and let it cool down. 1.open the oven door completely; Never use steam or steam machines to clean 2.find the hinges linking the door to the oven (Fig. -
Page 10: Something Not Working
Replacing The Oven Light Disconnect the appliance. If the oven bulb needs replacing, it must comply with the following specifications: Electric power: 15 W/25 W; Electric rate: 230 V (50 Hz); Resistant to temperatures of 300°C; Connection type: E14. These bulbs are available from your local Service Force Centre. -
Page 11: Technical Data
Technical Data The oven must be installed Moffat according to the instructions MSS 601 supplied. This oven must be installed by qualified personnel. This appliance Heating element ratings complies with the following E.E.C. Top element 800 W 0,79 kW/h Directives:... -
Page 12: Electrical Connection
Electrical Connection It is necessary that you install a double pole The oven is designed to be connected to 230 V (50 Hz) electricity supply. switch between the oven and the electricity The oven has an easily accessible terminal supply (mains), with a minimum gap of 3mm block which is marked as follows: between the switch contacts and of a type Letter L... -
Page 13: Building In
Building In Please ensure that when the oven is installed it is easily accessible for the engineer in the event of a breakdown. The surround or cabinet into which the oven will be built must comply with these specifications: the dimensions must be as shown in the relevant diagrams;... -
Page 14: Service And Spare Parts
Service Force Centres are detailed on the following pages. CUSTOMER CARE For general enquiries concerning your Moffat appliance and for further information on Moffat products, contact our Customer Care Department by letter or telephone as follows: Customer Care Department... -
Page 15: European Guarantee
European Guarantee This appliance is guaranteed by Electrolux in each of the countries listed below for the period specified in the appliance guarantee or otherwise by law. If you move from one of these countries to another of the countries listed below the appliance guarantee will move with you subject to the following qualifications: ·... - Page 16 35692-6701 05/06 R. 0 Subject to change without notice...
