Summary of Contents for AT&T E5600

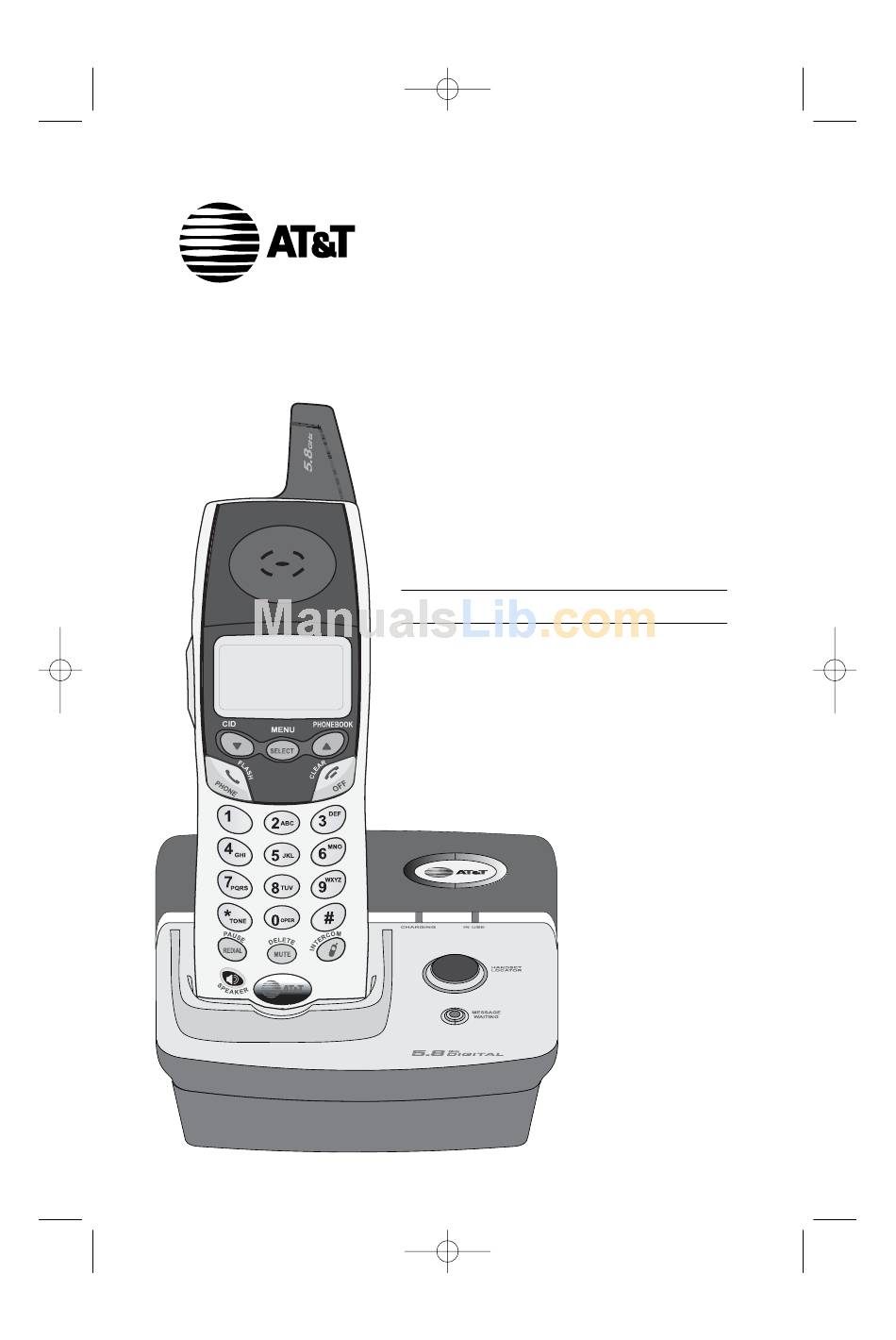

- Page 1 91-000461-010-000-E5603B manual July0105.qxd 2/13/1950 7:21 PM Page 1 User Manual (Part 2) 5.8 GHz Cordless Telephone E5600/E5603B with Caller ID & Call Waiting...
- Page 2 91-000461-010-000-E5603B manual July0105.qxd You must install and charge battery before using the telephone. For customer service or product information, visit our web site at www.telephones.att.com 1-800-222-3111. or call Add new handsets to make your phone more versatile (see page 24) Your telephone can accommodate up to four cordless handsets.
-
Page 3: Table Of Contents
91-000461-010-000-E5603B manual July0105.qxd User Manual (Part 2) 5.8 GHz Cordless Telephone E5600/E5603B with Caller ID & Call Waiting Table of contents Getting Started Quick reference guide ...2 Parts checklist ...4 Before you begin ...6 Telephone base installation...7 Battery installation & charging ...8 Wall mounting ...9... -
Page 4: Getting Started
91-000461-010-000-E5603B manual July0105.qxd Getting Started Quick reference guide Handset Press to scroll down in menus. Press when phone is not in use to display Caller ID information (see page 22). While entering names, press to move the cursor to the left. Phone/Flash Press to begin a call, then dial a number. -
Page 5: Telephone Base
91-000461-010-000-E5603B manual July0105.qxd Getting Started Quick reference guide Telephone Base Handset Locator Press to locate handset if lost (see page 11). Message Waiting Charging Flashes when you have new voice On when handset battery is mail (requires voice mail service from charging. -
Page 6: Parts Checklist
91-000461-010-000-E5603B manual July0105.qxd Getting Started Parts checklist for E5600 Remember to save your sales receipt and original packaging in case you ever need to ship your telephone for warranty service. Check to make sure the telephone package includes the following:... - Page 7 91-000461-010-000-E5603B manual July0105.qxd 2/13/1950 7:21 PM Page 5 Getting Started Parts checklist for E5603B Remember to save your sales receipt and original packaging in case you ever need to ship your telephone for warranty service. Check to make sure the telephone package includes the following: Telephone base Telephone handsets...
-
Page 8: Before You Begin
91-000461-010-000-E5603B manual July0105.qxd Getting Started Before you begin About Caller Identification Caller ID with Call Waiting features in this telephone let you see who’s calling before you answer the phone, even when you’re on another call. These features require services provided by your local telephone company. -
Page 9: Telephone Base Installation
91-000461-010-000-E5603B manual July0105.qxd Getting Started Telephone base installation Install the telephone base as shown below. Choose a base location away from electronic equipment, such as personal computers, television sets or microwave ovens. Avoid excessive heat, cold, dust or moisture. Plug power cord transformer into electrical outlet. -
Page 10: Battery Installation & Charging
91-000461-010-000-E5603B manual July0105.qxd Getting Started Battery installation & charging After battery installation, place the handset in the base unit and allow to charge for 15 hours before use. You can keep the batteries charged by returning the handsets to their base unit or charger after each use. -
Page 11: Wall Mounting
91-000461-010-000-E5603B manual July0105.qxd Appendix Wall mounting The base can be installed on any standard wall-phone outlet as shown below. Choose a location away from electronic equipment, such as personal computers, television sets or microwave ovens. Avoid excessive heat, cold, dust or moisture. Connect cords as shown on page 7, then press and slide down firmly so base is held securely on outlet mounting pegs. -
Page 12: Belt Clip & Optional Headset
91-000461-010-000-E5603B manual July0105.qxd Appendix Belt clip & optional headset Install belt clip as shown below if desired. For hands-free telephone conversations, you can use any industry standard 2.5 mm headset (purchased separately). For best results use an AT&T 2.5 mm headset. 2/13/1950 7:21 PM Page 10... -
Page 13: Telephone Operation
91-000461-010-000-E5603B manual July0105.qxd Elapsed time PHONE 00:00:12 SPEAKER 00:00:12 REDIAL 555-1234 2/13/1950 7:21 PM Telephone Operation Basic operation Making and answering calls To answer an incoming call, press or any dial pad key). To make a call, press , then dial a number. Press SPEAKER To preview numbers before dialing, enter numbers first, then press... -
Page 14: Options While On Calls
91-000461-010-000-E5603B manual July0105.qxd Volume Flash PHONE 00:00:12 MICROPHONE MUTED MUTE Tone Mute 2/13/1950 Telephone Operation Options while on calls Volume control Press the buttons on the side of the handset VOLUME to adjust listening volume. Each button press raises or lowers volume by one level. -
Page 15: Intercom Calls
91-000461-010-000-E5603B manual July0105.qxd 2/13/1950 7:21 PM Telephone Operation Intercom calls Intercom calls Use the intercom feature to have conversations between the handsets. If you have added additional handsets, see page 24 to register the handsets. Press the button on a handset to initiate an INTERCOM intercom call. -
Page 16: Call Transfer
91-000461-010-000-E5603B manual July0105.qxd 2/13/1950 7:21 PM Telephone Operation Call transfer Call transfer If you have added additional handsets (see page 24), you can transfer an external call from one handset to another handset. • The first handset (HS1) can forward an external call to another handset (HS2, HS3, or HS4) by pressing the key. -
Page 17: Handset Settings
91-000461-010-000-E5603B manual July0105.qxd Highlighted menu item > PHONE BOOK CALL LOG RINGER VOLUME OUTSIDE TONE INTERCOM TONE KEY TONE 2/13/1950 7:21 PM Telephone Operation Handset settings At the feature menu you can change settings to customize how the telephone works. Press , then use the MENU... -
Page 18: Dial Type
91-000461-010-000-E5603B manual July0105.qxd LANGUAGE ENGLISH >PHONEBOOK CALL LOG >CLEAR MSG WAIT DIAL TYPE TURN INDICATOR OFF? >CLEAR MSG WAIT DIAL TYPE DIAL TYPE TONE 2/13/1950 Telephone Operation Handset settings Language At this menu you can select the language used in all menus and screen displays. -
Page 19: Memory Capacity
91-000461-010-000-E5603B manual July0105.qxd 2/13/1950 7:21 PM Page 17 Phonebook Phone book Memory capacity The phone book directory can store up to 50 entries. Pat Williams Each entry can contain a number up to 32 digits, and a 555-1234 name up to 16 letters long. A convenient search feature can help you find and dial numbers quickly (see page 19). -
Page 20: New Phone Book Entries
91-000461-010-000-E5603B manual July0105.qxd AT&T > PHONE BOOK CALL LOG > STORE REVIEW ENTER NUMBER 555-1234_ ENTER NAME Pat Williams_ Pat Williams 555-1234 2/13/1950 Phonebook New phone book entries To create a new phone book entry Press twice to select MENU DIRECTORY highlight . -
Page 21: Phone Book Search
91-000461-010-000-E5603B manual July0105.qxd AT&T Andrew 555-6789 Barbara 555-9876 Jennifer 555-4321 555-1234 2/13/1950 7:21 PM Phonebook Phone book search Press to display the first listing in the PHONE BOOK phone book. You can then use the browse through the phone book, or search to find a specific entry. -
Page 22: To Dial, Delete Or Change Entries
91-000461-010-000-E5603B manual July0105.qxd AT&T Andrew 555-6789 EDIT NUMBER 555-6789_ EDIT NAME Andy_ Andy 555-6789 2/13/1950 Phonebook To dial, delete or change entries To dial a number When any phone book entry is displayed, press ) to dial the displayed number. SPEAKER To delete an entry When any phone book entry is displayed, press... -
Page 23: Caller Id Logs
91-000461-010-000-E5603B manual July0105.qxd Pat Williams 1-888-883-2445 11/23 10:01 2/13/1950 7:21 PM Caller ID Logs Caller ID Logs How Caller ID works If you subscribe to Caller ID service provided by your local phone company, information about each caller will be displayed after the first ring. Caller’s name Appears when Pat Williams... -
Page 24: To Review Your Call Log
91-000461-010-000-E5603B manual July0105.qxd AT&T 6 NEW CALLS Pat Williams 555-1234 11/23 10:31 Chris Thompson 908-555-0100 11/23 10:21 Jeffrey Adams 555-9876 11/23 10:11 2/13/1950 Caller ID Logs To review your call log To review your call log Press to review your call log. The most recent call is displayed first. -
Page 25: Appendix
91-000461-010-000-E5603B manual July0105.qxd Appendix Screen icons, indicator lights & tones Handset screen icons & alert tones HANDSET 1 MUTE 11/23 10:01 Indicator lights Charging On when handset battery is charging. 2/13/1950 Screen icons Speakerphone in use. Ringer off. Battery charging (animated display). Low battery (flashing);... -
Page 26: Adding New Handsets
Adding new handsets Your telephone can accommodate up to four cordless handsets. You can add new handsets (E560-1, sold separately) to the E5600/E5603B at any time, but each handset must be registered with the base before use. The handset provided with your E5600 is automatically registered as Handset 1. -
Page 27: Replacing A Handset
91-000461-010-000-E5603B manual July0105.qxd Appendix Replacing a handset I f you are replacing a handset on a system that has the maximum number of registered handsets (4) or wish to change the assigned handset number of your registered handsets, you must first de-register the handsets, then re-register all handsets. To de-register all handsets •... -
Page 28: Re-Registering A Handset
91-000461-010-000-E5603B manual July0105.qxd Appendix Re-Registering a handset You can re-register handsets after de-registering from the base. Or you can re-register handsets to a new base unit, if you have replaced your base unit for any reason. To re-register a handset: •... -
Page 29: In Case Of Difficulty
91-000461-010-000-E5603B manual July0105.qxd Appendix In case of difficulty If you have difficulty with your phone, please try the suggestions below. For Customer Service, visit our web site at www.telephones.att.com, or call 1-800-222–3111. Telephone does • Make sure battery is installed and charged correctly (see page 8). not work at all •... -
Page 30: Technical Specifications
91-000461-010-000-E5603B manual July0105.qxd Appendix Technical specifications 2/13/1950 RF Frequency Band 2400 MHz — 2483.5 MHz (Handset to base) RF Frequency Band 5740 MHz — 5830 MHz (Base to handset) Channels Channel Spacing 864 KHz Output Power Handset : 17~21 dBm Base Unit: 26~32 dBm Sensitivity -96 dBm... -
Page 31: Index
91-000461-010-000-E5603B manual July0105.qxd Appendix Index AC adapter, 7 Adding new handsets, 24 Alert tones, 23 Answering calls, 11 Battery charging, 8 Battery installation, 8 Belt clip, 10 Caller ID, 21 add entries to phone directory, 22 delete entries, 22 dial entries, 22 CID, 21 Delete Call Log entries, 22 Delete redial entries, 11... - Page 32 91-000461-010-000-E5603B manual July0105.qxd 2/13/1950 7:21 PM Page 30 www.telephones.att.com Copyright © 2005 Advanced American Telephones. All Rights Reserved. AT&T and the Globe Design are trademarks of AT&T Corp., licensed to Advanced American Telephones. Printed in China. Issue 1 AT&T 06/05. 91-000461-010-000...
