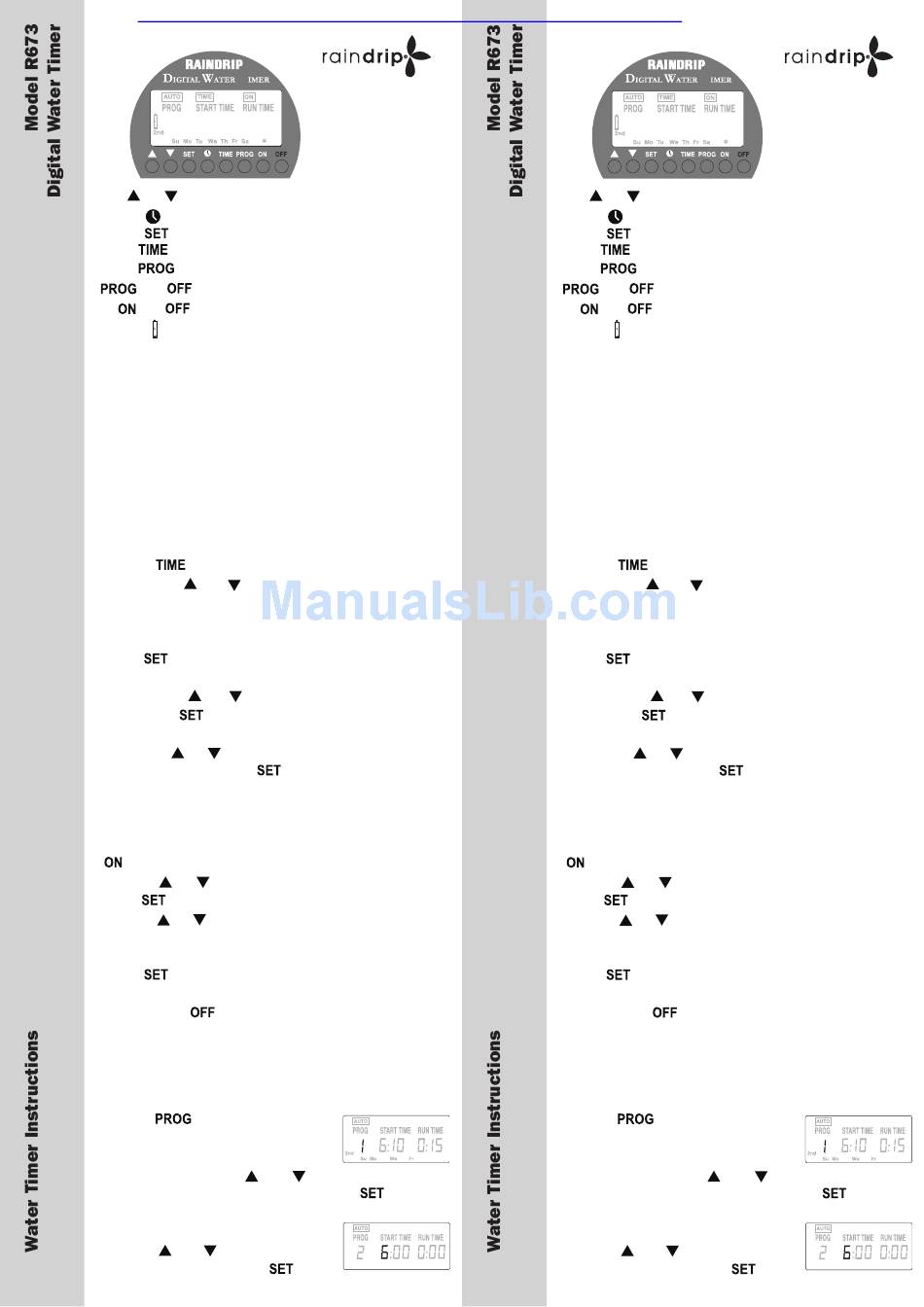

Raindrip R673 Instructions

http://waterheatertimer.org/Woods-timers-and-manuals.html#raindrip
®
T
Scroll through program parameters
or
display current time and day
Enter program selection
Program current time and day
Set watering programs (1-16)
Erase all program data
and
Operate timer manually
and

Low battery indicator

Low Battery Indicator
The Raindrip R673C Digital Timer is powered by 2
AAA batteries that are installed in the battery compart-
ment located just below the control buttons on the face
of the timer. Squeeze the two tabs, on the front of the
battery case, toward each other and pull the battery
+
case out of the body. The
pointed away from the spring. When the low battery
indicator is displayed the timer will no longer turn on.

Set Current Time and Day

1 Press and the hour digit will begin to flash.
2 Use the or buttons set the current hour
(please take note that the timer uses a 24 hour clock).
For example, 1:00PM will be 13:00 on the timer and
6:00PM will be 18:00. After selecting the current hour
press to enter the hour. The minute's digits will
begin to flash.
3 Using the or buttons set the current minute,
then press to enter the current minutes, and S
will begin to flash.
4 Use the or buttons to select the current day of
the week than press to

Manual Operation

The R673 Digital Timer can be operated manually at
any time. To enter manual operation press the button
button and the run time hour will begin flashing.
Use the or buttons to set the number of hours.
Press and the runtime minutes will begin to flash.
Use the or buttons to select the desired number
of minutes (the timer has a default of 15 minutes pre-
programmed). After the run time minutes is selected
press and the timer will open allowing water to
flow. The timer can be turned off at any time by
pressing the button.

Programming Watering schedule

The Raindrip R673 Digital Water Timer is capable of
16 separate watering schedules.
1 Press to enter program-
ming mode. The display will
appear with a 1 on the left side of
the display. Use the or
of the 16 watering programs. Press the
set the program desired (1-16).
2 The start time hour will flash.
Use the or buttons to select
the start hour then press
tip of the battery must be
U
enter the day of the week.
buttons to select any
button to
.
®
T
Scroll through program parameters
or
display current time and day
Enter program selection
Program current time and day
Set watering programs (1-16)
Erase all program data
and
Operate timer manually
and
Low battery indicator
Low Battery Indicator
The Raindrip R673C Digital Timer is powered by 2
AAA batteries that are installed in the battery compart-
ment located just below the control buttons on the face
of the timer. Squeeze the two tabs, on the front of the
battery case, toward each other and pull the battery
+
case out of the body. The
pointed away from the spring. When the low battery
indicator is displayed the timer will no longer turn on.
Set Current Time and Day
1 Press and the hour digit will begin to flash.
2 Use the or buttons set the current hour
(please take note that the timer uses a 24 hour clock).
For example, 1:00PM will be 13:00 on the timer and
6:00PM will be 18:00. After selecting the current hour
press to enter the hour. The minute's digits will
begin to flash.
3 Using the or buttons set the current minute,
then press to enter the current minutes, and S
will begin to flash.
4 Use the or buttons to select the current day of
the week than press to
Manual Operation
The R673 Digital Timer can be operated manually at
any time. To enter manual operation press the button
button and the run time hour will begin flashing.
Use the or buttons to set the number of hours.
Press and the runtime minutes will begin to flash.
Use the or buttons to select the desired number
of minutes (the timer has a default of 15 minutes pre-
programmed). After the run time minutes is selected
press and the timer will open allowing water to
flow. The timer can be turned off at any time by
pressing the button.
Programming Watering schedule
The Raindrip R673 Digital Water Timer is capable of
16 separate watering schedules.
1 Press to enter program-
ming mode. The display will
appear with a 1 on the left side of
the display. Use the or
of the 16 watering programs. Press the
set the program desired (1-16).
2 The start time hour will flash.
Use the or buttons to select
the start hour then press
tip of the battery must be
U
enter the day of the week.
buttons to select any
button to
.
