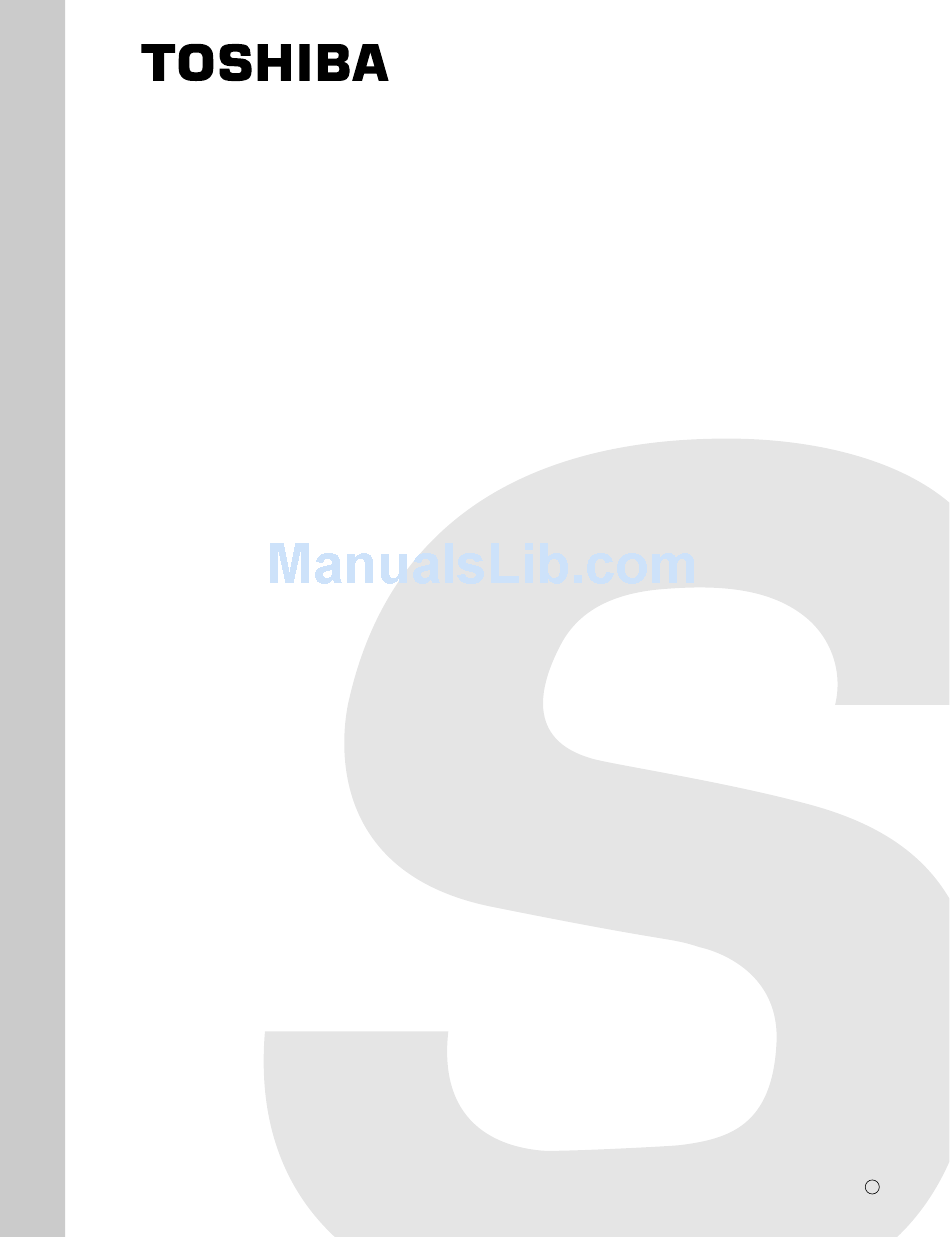

FILE NO. 050-200121
SERVICE MANUAL
PLASMA DISPLAY MONITOR
42WP16A, 42WP16H
42WP16C, 42WP16E
42WP16R, 42WP16B
2
PRINTED IN JAPAN Dec.,2001

Advertisement

Table of Contents
loading

Related Manuals for Toshiba 42WP16A

Summary of Contents for Toshiba 42WP16A

  • Page 1 FILE NO. 050-200121 SERVICE MANUAL PLASMA DISPLAY MONITOR 42WP16A, 42WP16H 42WP16C, 42WP16E 42WP16R, 42WP16B PRINTED IN JAPAN Dec.,2001...

  • Page 2: Table Of Contents

    CONTENTS Page Page 1 Safety Precautions 12 Block and Schematic Diagrams 1.1. General Guidelines 12.1. Schematic Diagram Notes 2 Prevention of Electro Static Discharge (ESD) to 12.2. Main Block Diagram Electrostatically Sensitive (ES) Devices 12.3. Power Block Diagram 3 PCB Structure sheet of GP4D chassis 12.4.
  • Page 3 14 Mechanical Replacement Parts List 15.2. Electrical Replacement Parts List 15 Replacement Parts List 16 Specifications 15.1. Relpacement Parts List Notes...

  • Page 4: Safety Precautions

    1 Safety Precautions 1.1. General Guidelines 1. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or damaged by the short circuit. 2. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly installed.

  • Page 5: Prevention Of Electro Static Discharge (Esd) To Electrostatically Sensitive (Es) Devices

    2 Prevention of Electro Static Discharge (ESD) to Electrostatically Sensitive (ES) Devices Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor "chip"...

  • Page 6: Pcb Structure Sheet Of Gp4D Chassis

    3 PCB Structure sheet of GP4D chassis Board Name Reference No. Function Except 42WP16C 42WP16C TZTNP02KNSR TZTNP01KNSC Digital process & control TXN/J10JAS Separator / Audio Out TNPA2262 Scan out TNPA2261 Scan out TNPA2259 Sustain connection (Upper) TNPA2260 Sustain connection (Lower) TNPA2253 Data Drive (Upper Left) TNPA2254...

  • Page 7: Service Hint

    4 Service Hint...

  • Page 8: Location Of Lead Wiring

    5 Location of Lead Wiring...

  • Page 9: Adjustment Procedure

    6 Adjustment Procedure 6.1. +B Set-up 6.2. Driver Set-up 6.1.1. Item / Preparation 6.2.1. Item / Preparation 1. Input a Grey scale signal. 1. Input an APL 100 % white signal. 2. Set the picture controls: - 2. Set the picture controls: - Picture mode: Normal Picture mode: Normal White balance: Normal...

  • Page 10: Initialization Pulse Adjust

    6.3. Initialization Pulse Adjust 1. Input a Cross hatch signal. 2. Set the picture controls: - Picture mode: Normal White balance: Cool Adjust the indicated test point for the specified wave form. Test point Volume Level TPSC1 (SC) R6523 (SC) 20 ±...

  • Page 11: Printed Circuit Board) Exchange

    6.4. P.C.B. (Printed Circuit Board) exchange 6.4.1. Caution 1. To remove P.C.B. , wait 1 minute after power was off for discharge from electrolysis capacitors. 6.4.2. Quick adjustment after P.C.B. exchange P.C.B. Item Volume Test point Level P board R426 (3) P4 connector pin 1 400V ±...

  • Page 12: Serviceman Mode

    7 Serviceman mode 7.1. CAT (computer Aided Test) mode To exit the CAT mode, access the ID mode and switch off the main power. 7.1.1. IIC mode Select the IIC mode by Up/Down button on the remote control at the front page of CAT mode then press the Action button on the remote control.
  • Page 13 7.1.2. CD mode Select the CD mode by Up/Down button on the remote control at the front page of CAT mode then press the Mute button on the remote control more than 5 sec. Micom software version ( IC9705 / TVRJ562), this version can be upgrade by replacing with new version IC. Memory data version D (IC9706 /TVRJ601) in the D board Version Model...

  • Page 14: Iic Mode Structure (Following Items Value Is Sample Data.)

    7.1.3. SD mode Select the SD mode by Up/Down button on the remote control at the front page of CAT mode then press the Action button on the remote control. To exit the SD mode, press the R button on the remote control. 7.2.

  • Page 15: Alignment

    8 Alignment 8.1. NTSC panel white balance INPUT Equipment Setting Alignment menu Procedure 1 NTSC Color Picture: 1) Find the nearest area to brightness of 10 cd/m as Low Gray Scale Analyzer Normal Sub Adjust light by color sensor. Pattern White balance: Sub Bright 2) Adjust Sub bright to set Low light level to 10 cd/m Cool...

  • Page 16: Pal/Secam Panel White Balance

    8.2. PAL/SECAM panel white balance INPUT Equipment Setting Alignment menu Procedure 1 PAL Color Picture: 1) Find the nearest area to brightness of 10 cd/m as Low Gray Scale Analyzer Normal Sub Adjust light by color sensor. Pattern White balance: Sub Bright 2) Adjust Sub bright to set Low light level to 10 cd/m Cool exactly.
  • Page 17 Equipment Setting Alignment menu Procedure Picture: 1) Write down each color temaparature of R,G,B drive and Normal Cut off data as follows. Aspect: 16:9 White White balance: Balance Cool Normal Warm Cool R Drive Normal G Drive B Drive Warm R Cut off G Cut off B Cut off...

  • Page 18: Pedestal Setting

    8.3. Pedestal setting INPUT Equipment Setting Alignment menu Procedure ** Adjust at the dark room. 1 Component Picture: PANEL W/B (525i, 525p, 625i, Normal R cut off 1) Set R,G and B cut off to " 80 ". 720i or 1080i) White balance: G cut off Cool...

  • Page 19: Pc/Rgb Panel White Balance

    8.4. PC/RGB panel white balance INPUT Equipment Setting Alignment menu Procedure 1 PC Color Picture: 1) Find the nearest area to brightness of 10 cd/m as Low Gray Scale Analyzer Normal Sub Adjust light by color sensor. Pattern White balance: Sub Bright 2) Adjust Sub bright to set Low light level to 10 cd/m Cool exactly.
  • Page 20 INPUT Equipment Setting Alignment menu Procedure Picture: 1) Write down each color temaparature of R,G,B drive and Normal Cut off data as follows. Aspect: 16:9 White White balance: Balance Cool Normal Warm R Drive Cool Gray Scale Normal G Drive Pattern B Drive Warm...

  • Page 21: Hd/ 525I /525P Panel White Balance

    8.5. HD/ 525i /525p panel white balance INPUT Equipment Setting Alignment menu Procedure (720i or 1080i) Color Picture: 1) Find the nearest area to brightness of 10 cd/m as Low Gray Scale Analyzer Normal Sub Adjust light by color sensor. Pattern White balance: Sub Bright 2) Adjust Sub bright to set Low light level to 10 cd/m...
  • Page 22 INPUT Equipment Setting Alignment menu Procedure Picture: 1) Write down each color temaparature of R,G,B drive and Normal Cut off data as follows. Aspect: 16:9 White White balance: Balance Cool Normal Warm R Drive Cool Gray Scale G Drive Normal Pattern Warm B Drive...

  • Page 23: 625I Panel Balance

    8.6. 625i panel balance INPUT Equipment Setting Alignment menu Procedure 1 625i Color Picture: 1) Find the nearest area to brightness of 10 cd/m as Low Gray Scale Analyzer Normal Sub Adjust light by color sensor. Pattern White balance: Sub Bright 2) Adjust Sub bright to set Low light level to 10 cd/m Cool exactly.

  • Page 24: Sub Brighness Setting

    8.7. Sub brighness setting INPUT Equipment Setting Alignment menu Procedure ** Adjust at the dark room. 1 NTSC Picture: PANEL W/B Gray Scale Normal All cut off 1) Set white balance to Cool . Pattern Aspect: 16:9 2) Adjust All cut off to start some pixels emission at black 2% area and no emission at black 0% area.
  • Page 25 INPUT Equipment Setting Alignment menu Procedure ** Adjust at the dark room. 4 525i Picture: PANEL W/B Gray Scale Normal All cut off 1) Set white balance to Cool . Pattern Aspect: 16:9 2) Adjust All cut off to start some pixels emission at black 2% area and no emission at black 0% area.

  • Page 26: Trouble Shooting Guide

    9 Trouble shooting guide 9.1. Self Check 9.1.1. Display Indication 1. Self-check is used to automatically check the bus line controlled circuit of the Plasma display. 2. To get into the Self-check mode press the volume down button on the customer controls at the front of the set, at the same time pressing the OFF-TIMER button on the remote control, and the screen will show :- If the CCU ports have been checked and found to be incorrect...

  • Page 27: No Power

    9.2. No Power First check point There are following 3 states of No Power indication by power LED. 1. No lit 2. Green is lit then turns red blinking a few seconds later. 3. Only red is lit. 1. No lit 2.

  • Page 28: No Picture

    9.3. No Picture 9.4. Local screen failure Plasma display may have local area failure on the screen. Fig - 1 is the possible defect P.C.B. for each local area. Fig - 1...

  • Page 29: D-Board

    9.5. D-Board 9.5.1. OUTLINE D board is consists of Analogue and Digital signal process, Discharge control and Micro control block. D-board is operated by supply voltages of 3.3V, 5V, 13,5V and Standby 5V , RGB analogue (0.7Vp-p) and Sync. Signal. D-board output parallel data video signal with control signal for the data driver circuit, Discharge control signal for Scan and Sustain drive circuits and Micro control signals.
  • Page 30 (2) First Check Point Confirm that follow signals are input to D board. Power Supply Connector Function Connector Function 13.5 V DC STB 5 V DC 5.0 V DC 3.3 V DC 3.3 V DC Input Signal Connector Function Function D8-12 Analogue Green signal HD (Horizontal Drive pulse)

  • Page 31: Ic Block Diagram

    10 IC Block Diagram...
  • Page 32 INPUTA...

  • Page 33: Conductor Views

    11 Conductor Views 11.1. F-Board F-BOARD TXN/F1JASE...

  • Page 34: P1-Board

    11.2. P1-Board P1-BOARD (FOIL SIDE) TXNP11JASE...
  • Page 35 Parts Location Parts Location P-BOARD (FOIL SIDE) P-BOARD (COMPONENT SIDE) TRANSISTOR TRANSISTOR Q418 IC401 Q401 Q417 IC401 Q401 Q419 IC402 Q402 Q418 IC402 Q402 IC403 Q404 IC403 Q404 Q420 Q419 Q421 IC406 Q405 Q420 IC406 Q405 Q422 IC407 Q406 Q421 IC407 Q406 Q423...
  • Page 36 P1-BOARD(COMPONENT SIDE) TXNP11JASE...

  • Page 37: P3, P5, P6, P7 And P8-Board

    11.3. P3, P5, P6, P7 and P8-Board P5-BOARD (FOIL SIDE) P6-BOARD (FOIL SIDE) TNPA1778 TNPA1779 P7-BOARD (FOIL SIDE) P8-BOARD (FOIL SIDE) TNPA1780 TNPA1781 P3-BOARD (FOIL SIDE) TNPA1777...
  • Page 38 P6-BOARD (COMPONENT SIDE) P5-BOARD (COMPONENT SIDE) TNPA1779 TNPA1778 P8-BOARD (COMPONENT SIDE) P7-BOARD (COMPONENT SIDE) TNPA1781 TNPA1780 P3-BOARD (COMPONENT SIDE) TNPA1777...

  • Page 39: Hx-Board

    11.4. HX-Board HX-BOARD(FOIL SIDE) HX-BOARD(COMPONENT SIDE) TZTNP01KNSR TZTNP01KNSR Parts Location HX-BOARD TRANSISTOR IC3502 Q3507 IC3515 Q3508 Q3509 Q3513 Q3514 Q3515 Q3516 Q3531 Q3532...

  • Page 40: Hz-Board (Option Rtb421)

    11.5. HZ-Board (Option RTB421) HZ-BOARD(FOIL SIDE) TXNHZ10JJS JS28 JS29 R535 C507 R536 R537 R550 R516 R522 R534 R521 R517 R533 R532 R868 R518 R879 R876 R519 R520 R869 R886 R885 C706 R875 C896 R878 JS22 R852 R873 JS32 C702 R883 JS24 IC699 JS20...
  • Page 41 HZ-BOARD(COMPONENT SIDE) TXNHZ10JJS C509 C510 TPHR1 R552 R538 TPHB1 R540 C512 C511 C711 R892 C713 C712 C710 IC501 JS17 R867 L829 Q815 L819 Q812 C887 R889 C872 R855 IC805 R884 C365 C870 IC804 R845 TPHH1 IC303 IC806 C857 R844 C856 L821 L820 C861...

  • Page 42: J-Board

    11.6. J-Board J-BOARD(FOIL SIDE) TXN/J10JAS C3028 C2314 C2312 C2431 C2429 Parts Location J-BOARD (FOIL SIDE) TRANSISTOR IC2301 Q951 IC2302 Q1001 IC2401 Q1002 IC8001 Q1003 Q1004 Q1005 Q2301 Q2302 Q2306 Q3001 Q3003 Q3005 TNPA2244 Q3007 Q3009 SEE REVERSE FOR ORDERNO. Q3011...
  • Page 43 J-BOARD(COMPONENT SIDE) TXN/J10JAS Parts Location J-BOARD (COMPONENT SIDE) TRANSISTOR IC951 Q2303 TP3085 IC1001 Q2304 TP3086 IC1002 Q2305 TP3087 IC1003 Q2406 TP3088 IC1004 Q2408 TP3089 IC2301 Q2410 TP3110 IC2302 Q3002 TP3111 IC2304 Q3004 TP3112 IC2401 Q3006 TP3113 IC3001 Q3008 IC3002 Q3010 IC3003 Q3012 IC3004...

  • Page 44: D-Board

    11.7. D-Board D-BOARD(FOIL SIDE) TZTNP02KNSR (42WP16A, B, E, H, R) TZTNP01KNSC (42WP16C) C936 TNPA2243 Q801 REVERSE O RDER CR NO.9 1 2 3 94V-0 C919 R011 C937 R009 R010 R809 R006 R286 IC213 D201 C255 R022 R015 R273 R261 C256...
  • Page 45 Parts Location Parts Location D-BOARD (FOIL SIDE) D-BOARD (COMPONENT SIDE) TRANSISTOR IC9706 IC9000 Q9001 IC9003 IC9707 IC9001 Q9002 IC9007 IC9801 IC9002 Q9003 IC9008 IC9802 IC9004 Q9005 IC9009 IC9803 IC9005 Q9006 IC9010 IC9804 IC9019 Q9007 IC9012 IC9812 IC9020 Q9009 IC9013 IC9900 IC9021 Q9010 IC9013...
  • Page 46 D-BOARD(COMPONENT SIDE) TZTNP02KNSR (42WP16A, B, E, H, R) TZTNP01KNSC (42WP16C) IC804 R175 C918 TP40 R174 R280 R803 R807 R245 C801 R806 C285 IC202 LC014 C208 C003 C006 R166 R237 C009 C010 C008 R805 R804 R227 R802 R131 TPD7 R173 R297...

  • Page 47: C1, C2, C3 And C4-Board

    11.8. C1, C2, C3 and C4-Board C1-BOARD(FOIL SIDE) TNPA2253 1 2 3 TNPA2253 SEE REVERSE FOR ORDERNO. C4-BOARD(FOIL SIDE) TNPA2256 1 2 3 TNPA2256 SEE REVERSE FOR ORDER NO. C3-BOARD(FOIL SIDE) TNPA2255 1 2 3 TNPA2255 SEE REVERSE FOR ORDERNO. C2-BOARD(FOIL SIDE) TNPA2254 TNPA2254...
  • Page 48 C1-BOARD(COMPONENT SIDE) TNPA2253 R7131 R7132 R7133 FAN1 R7101 L7102 L7103 L7104 C7117 IC7102 C7112 C7115 TNPA2253 FAN2 D7102 C4-BOARD(COMPONENT SIDE) TNPA2256 C4MM1 TNPA2256 R7423 R7403 L7402 L7403 L7404 C7414 C7411 C7415 C3-BOARD(COMPONENT SIDE) TNPA2255 R7315 TNPA2255 R7316 C3MM2 R7318 R7303 R7319 L7303 L7304...

  • Page 49: Sc-Board

    11.9. SC-Board SC-BOARD(FOIL SIDE) TNPA2261 TP57 TP55 TP63 TP61 TP59 D6573 R6513 TP62 TP60 TP48 TP43 SC42 SC43 SC44 SC41 R6550 R6557 L6472 1 SC TNPA2261 C6651 SEE REVERSE FOR ORDERNO. R6523 Q6671 C6604 C6603 C6602 C6601 C6522 C6526 C6476 C6550 D6469 C6655...
  • Page 50 Parts Location Parts Location SC-BOARD (FOIL SIDE) SC-BOARD (COMPONENT SIDE) TRANSISTOR Q6512 TP31 Q6605 Q6453 TP32 IC6451 Q6520 Q6606 Q6491 TP33 IC6452 Q6521 Q6607 Q6522 Q6492 TP34 IC6453 Q6608 Q6523 Q6550 TP35 IC6464 Q6611 Q6601 TP36 IC6471 Q6524 Q6612 Q6602 TP37 IC6472 Q6525...
  • Page 51 SC-BOARD(COMPONENT SIDE) TNPA2261 R605 R607 SC42 SC41 SC44 Q511 R513 SC43 R606 D511 R511 D512 D573 C512 R512 R553 R552 R551 Q550 D543 R550 R667 R519 D646 R520 Q512 C542 D541 R542 Q645 Q646 R543 R544 C581 IC454 Q552 IC542 Q553 R558 R560...

  • Page 52: Su And Sd-Board

    11.10. SU and SD-Board SU-BOARD(FOIL SIDE) TNPA2259 TNPA2259 SEE REVERSE FOR ORDER NO. SU41 SU42 SD-BOARD(FOIL SIDE) TNPA2260 TNPA2260 SD 1 SEE REVERSE FOR ORDER NO. SD44 SD43...
  • Page 53 SU-BOARD(COMPONENT SIDE) TNPA2259 C6418 TPSU1 C6419 D6408 TPSU2 R6414 IC6402 TNPA2259 IC6401 IC6404 IC6403 ORDER NO. SU 1 R6423 R6403 C6402 SU42 C6403 R6420 R6404 C6412 D6401 C6401 C6404 R6421 SU41 SD-BOARD(COMPONENT SIDE) TNPA2260 C6428 C6429 D6409 TPSD1 R6430 IC6406 IC6408 IC6405 TNPA2260...

  • Page 54: Ss, Ss2 And Ss3-Board

    11.11. SS, SS2 and SS3-Board SS-BOARD(FOIL SIDE) TNPA2262 SS41A SS41 SS42A SS42 SS44 SS44A SS43 SS43A C6705 C6708 Q6753 Q6752 Q6751 Q6702 Q6701 Q6708 Q6707 Q6706 Q6705 Q6704 Q6703 C6706 SS34 R6774 C6707 C6703 C6704 L6750 1 SS TNPA2262 1 2 3 D6721 D6720 4 5 6...
  • Page 55 Parts Location Parts Location SS-BOARD (FOIL SIDE) SS-BOARD (COMPONENT SIDE) TRANSISTOR TRANSISTOR TP18 Q6730 Q6701 TP19 IC6704 Q6701 Q6741 TP20 Q6742 Q6702 IC6705 Q6702 Q6703 TP22 IC6706 Q6703 Q6743 Q6704 TP23 IC6755 Q6704 Q6745 Q6705 TP24 Q6705 Q6746 Q6706 TP25 Q6706 Q6751 Q6707...
  • Page 56 SS-BOARD(COMPONENT SIDE) TNPA2262 SS41A SS44A SS43A SS43 SS42A SS42 SS44 SS41 SS49 C6708 C6705 R6761 Q6753 Q6752 R6775 C6706 Q6708 C6776 R6726 Q6703 C6775 C6715 C6716 C6717 C6718 C6778 L6750 Q6705 R6725 C6777 TPVE R6772 SS34 Q6741 L6718 R6770 IC6711 Q6712 Q6711 Q6714...

  • Page 57: H3, S1 And V1-Board

    11.12. H3, S1 and V1-Board H3-BOARD S1-BOARD(FOIL SIDE) S1-BOARD(COMPONENT SIDE) TNPA2249 TNPA2283 TNPA2283 V1 H3 V1-BOARD(FOIL SIDE) TNPA2282 V1-BOARD(COMPONENT SIDE) TNPA2282...
  • Page 59 13 Mechanical Parts Location...

  • Page 61: Mechanical Replacement Parts List

    TMMD006 P801 72000732 AC POWER CORD, K2CK3DH00007 42WP16C A012 72000672 POWER BUTTOM TMWC006-1 K2CK3DH00007 BRACKET, TMWC006-1 P801 72000734 AC POWER CORD, K2CK3DH00002 42WP16A A014 72001053 STAND BRACKET, TXFMZ010JAS K2CK3DH00002 TXFMZ010JAS P802 72000700 AC INLET, K2AH3H000018 A017 72001012 SCREW, XYF4+FL43FZ XYF4+FL43FZ...

  • Page 62: Replacement Parts List

    15 Replacement Parts List 15.1. Relpacement Parts List Notes...

  • Page 63: Electrical Replacement Parts List

    15.2. Electrical Replacement Parts List Loc. Part No Description Reference Remarks Loc. Part No Description Reference Remarks C081 72000190 CAPACITOR, C 10UF, ECJ3XB0J106M C2341 72000196 CAPACITOR, C 0.1UF, ECJ2VF1H104Z M,6.3V Z, 50V C1001 72000224 CAPACITOR, C 0.1UF, ECJ2VF1C104Z C2342 72000196 CAPACITOR, C 0.1UF, ECJ2VF1H104Z Z, 16V...
  • Page 64 Loc. Part No Description Reference Remarks Loc. Part No Description Reference Remarks C2466 72000211 CAPACITOR, C 1UF, TCUY1C105KBM C3042 72000907 CAPACITOR, E 47UF, EEVHB1C470 C2467 72000211 CAPACITOR, C 1UF, TCUY1C105KBM C3043 72000203 CAPACITOR, C 4.7UF, ECJ3XF1C475Z Z, 16V C2480 72000225 CAPACITOR, C 1UF, ECJ2VF1C105Z C3044 72000191...
  • Page 65 Loc. Part No Description Reference Remarks Loc. Part No Description Reference Remarks C3407 72000907 CAPACITOR, E 47UF, EEVHB1C470 C3703 72000907 CAPACITOR, E 47UF, EEVHB1C470 C3409 72000224 CAPACITOR, C 0.1UF, ECJ2VF1C104Z C3704 72000778 CAPACITOR, C 0.1UF, ECJ1VB1C104K Z, 16V K, 16V C3410 72000907 CAPACITOR, E 47UF, EEVHB1C470...
  • Page 66 Loc. Part No Description Reference Remarks Loc. Part No Description Reference Remarks C3828 72000225 CAPACITOR, C 1UF, ECJ2VF1C105Z C3871 72000225 CAPACITOR, C 1UF, ECJ2VF1C105Z Z, 16V Z, 16V C3829 72000225 CAPACITOR, C 1UF, ECJ2VF1C105Z C3872 72000300 CAPACITOR, C 3.3UF, TCUY0J335MBM Z, 16V 6.3V C3830 72000806...
  • Page 67 Loc. Part No Description Reference Remarks Loc. Part No Description Reference Remarks C414 72000795 CAPACITOR, E 470UF, ECA1HHG471 C463 72000252 CAPACITOR, P ECQB1H103JF 0.01UF, J, 50V C415 72000236 CAPACITOR, E 330UF, EETHC2W331L C464 72000252 CAPACITOR, P ECQB1H103JF 450V 0.01UF, J, 50V C416 72000231 CAPACITOR, P...
  • Page 68 Loc. Part No Description Reference Remarks Loc. Part No Description Reference Remarks C605 72000811 CAPACITOR, C 330PF, ECJ2XC1H331J C744 72000244 CAPACITOR, P 0.1UF, ECQV1H104JM J, 50V J, 50V C606 72000265 CAPACITOR, P 1UF, ECQV1H105JM C750 72000906 CAPACITOR, C ECKF1H103ZF J, 50V 0.01UF, Z, 50V C607 72000265...
  • Page 69 Loc. Part No Description Reference Remarks Loc. Part No Description Reference Remarks C8022 72000224 CAPACITOR, C 0.1UF, ECJ2VF1C104Z D415 72000339 DIODE, RK34 RK34 Z, 16V D416 72000342 DIODE, AK04 AK04 C8023 72000907 CAPACITOR, E 47UF, EEVHB1C470 D417 72000342 DIODE, AK04 AK04 D418 72000338...
  • Page 70 Loc. Part No Description Reference Remarks Loc. Part No Description Reference Remarks D655 72000619 DIODE, ZENER, MA3120M IC300 72000783 AHC2G66HDCTR MA3120M SN74AHC2G66HDCTR D656 72000327 DIODE, MA152K MA152K IC330 72000410 IC, CMOS S/LOGIC, TC4W53F TC4W53F D657 72000370 DIODE, D1FL40F4063 D1FL40F4063 IC330 72000409 IC, AD-8055ART- AD8055ART...
  • Page 71 Loc. Part No Description Reference Remarks Loc. Part No Description Reference Remarks L1001 72000435 COIL, CHIP ELJPA100KB L3508 72000436 COIL, EMI FILTER, TLK20LFA224M INDUCTOR, TLK20LFA224M ELJPA100KB L3509 72000436 COIL, EMI FILTER, TLK20LFA224M L1002 72000435 COIL, CHIP ELJPA100KB TLK20LFA224M INDUCTOR, L3510 72000437 COIL, EMI FILTER, TLK212T256AL ELJPA100KB...
  • Page 72 Loc. Part No Description Reference Remarks Loc. Part No Description Reference Remarks L403 72000439 COIL, PEAKING COIL, ELEXH100KA Q3308 72000452 TRANSISTOR, 2SD601A 2SD601A ELEXH100KA Q3309 72000452 TRANSISTOR, 2SD601A 2SD601A L404 72000994 COIL, COIL, G0ZZ00001922 Q3351 72000452 TRANSISTOR, 2SD601A 2SD601A G0ZZ00001922 Q3352 72000452 TRANSISTOR, 2SD601A 2SD601A L410...
  • Page 73 Loc. Part No Description Reference Remarks Loc. Part No Description Reference Remarks Q418 72000460 TRANSISTOR, 2SC3311A R1013 72000495 RESISTOR, M 100 ERJ6GEYJ101 2SC3311A OHM,J,1/10W Q419 72000455 TRANSISTOR, FET, 2SK1917 R1014 72000959 RESISTOR, M ERJ6GEYG103 2SK1917 10KOHM,J,1/10W Q420 72000780 TRANSISTOR, 2SC1473AH R1015 72000959 RESISTOR, M ERJ6GEYG103...
  • Page 74 Loc. Part No Description Reference Remarks Loc. Part No Description Reference Remarks R1053 72000959 RESISTOR, M ERJ6GEYG103 R2329 72000973 RESISTOR, M ERJ6GEYG332 10KOHM,J,1/10W 3.3KOHM,J,1/10W R1054 72000495 RESISTOR, M 100 ERJ6GEYJ101 R2330 72000973 RESISTOR, M ERJ6GEYG332 OHM,J,1/10W 3.3KOHM,J,1/10W R1055 72000959 RESISTOR, M ERJ6GEYG103 R2331 72000473 RESISTOR, M 0...
  • Page 75 Loc. Part No Description Reference Remarks Loc. Part No Description Reference Remarks R2470 72000955 RESISTOR, M ERJ6GEYF472 R3033 72000972 RESISTOR, M 330 ERJ6GEYG331 4.7KOHM,J,1/10W OHM,J,1/10W R2471 72000967 RESISTOR, M ERJ6GEYG182 R3034 72000959 RESISTOR, M ERJ6GEYG103 1.8KOHM,J,1/10W 10KOHM,J,1/10W R2472 72000955 RESISTOR, M ERJ6GEYF472 R3035 72000959 RESISTOR, M...
  • Page 76 Loc. Part No Description Reference Remarks Loc. Part No Description Reference Remarks R3104 72000982 RESISTOR, M ERJ6GEYJ334 R3336 72000873 RESISTOR, M 100 ERJ3GEYJ101 330KOHM,J,1/10W OHM,J,1/16W R3105 72000982 RESISTOR, M ERJ6GEYJ334 R3337 72000750 RESISTOR, M 1KOHM, ERJ6ENF1001 330KOHM,J,1/10W 1/10W R3106 72000982 RESISTOR, M ERJ6GEYJ334 R3338 72000874...
  • Page 77 Loc. Part No Description Reference Remarks Loc. Part No Description Reference Remarks R3376 72000873 RESISTOR, M 100 ERJ3GEYJ101 R3520 72000875 RESISTOR, M ERJ3GEYJ103 OHM,J,1/16W 10KOHM,J,1/16W R3377 72000873 RESISTOR, M 100 ERJ3GEYJ101 R3521 72000875 RESISTOR, M ERJ3GEYJ103 OHM,J,1/16W 10KOHM,J,1/16W R3378 72000891 RESISTOR, M 3.3 ERJ3GEYJ3R3 R3522 72000875...
  • Page 78 Loc. Part No Description Reference Remarks Loc. Part No Description Reference Remarks R3604 72000495 RESISTOR, M 100 ERJ6GEYJ101 R3817 72000895 RESISTOR, M 560 ERJ3GEYJ561 OHM,J,1/10W OHM,J,1/16W R3611 72000955 RESISTOR, M ERJ6GEYF472 R3818 72000872 RESISTOR, M 0 OHM, ERJ3GEY0R00 4.7KOHM,J,1/10W 1/16W R3612 72000955 RESISTOR, M ERJ6GEYF472...
  • Page 79 Loc. Part No Description Reference Remarks Loc. Part No Description Reference Remarks R3859 72000878 RESISTOR, M 150 ERJ3GEYJ151 R410 72000510 RESISTOR, M 33KOHM, ERG3FJS333D OHM,J,1/16W J, 3W R3860 72000889 RESISTOR, M 390 ERJ3GEYJ391 R411 72000515 RESISTOR, C 220 ERDS1FJ221 OHM,J,1/16W OHM, J,1/2W R3861 72000885 RESISTOR, M...
  • Page 80 Loc. Part No Description Reference Remarks Loc. Part No Description Reference Remarks R453 72000857 RESISTOR, C 560 ERDS2FJ561 R502 72000855 RESISTOR, C ERDS2FJ472 OHM, J,1/4W 4.7KOHM, J,1/4W R454 72000859 RESISTOR, C 6.8 ERDS2FJ6R8 R503 72000847 RESISTOR, C 10KOHM, ERDS2FJ103 OHM, J,1/4W J,1/4W R455 72000846...
  • Page 81 Loc. Part No Description Reference Remarks Loc. Part No Description Reference Remarks R617 72000846 RESISTOR, C 1KOHM, ERDS2FJ102 R703 72000970 RESISTOR, M 270 ERJ6GEYG271 J,1/4W OHM,J,1/10W R619 72000969 RESISTOR, M ERJ6GEYG222 R704 72000478 RESISTOR, M ERJ6GEYJ223 2.2KOHM,J,1/10W 22KOHM,J,1/10W R621 72000956 RESISTOR, M ERJ6GEYF473 R705...
  • Page 82 ERJ6GEYJ101 72701231 PC BOARD ASSY, C4, TNPA2256AB OHM,J,1/10W TNPA2256AB R8019 72000495 RESISTOR, M 100 ERJ6GEYJ101 72701240 PC BOARD ASSY, D, TZTNP02KNSR 42WP16A,B OHM,J,1/10W TZTNP02KNSR ,E,H,R R8021 72000972 RESISTOR, M 330 ERJ6GEYG331 72701241 PC BOARD ASSY, D, TZTNP01KNSC 42WP16C OHM,J,1/10W TZTNP01KNSC...
  • Page 83 Loc. Part No Description Reference Remarks 72701224 PC BOARD ASSY, P8, TNPA1781 TNPA1781 72701239 PC BOARD ASSY, S1, TNPA2283 TNPA2283 72701234 PC BOARD ASSY, SC, TNPA2261 TNPA2261 72701233 PC BOARD ASSY, SD, TNPA2260 TNPA2260 72701235 PC BOARD ASSY, SS, TNPA2262 TNPA2262 USS2 72701236...

  • Page 84: Block And Schematic Diagrams

    12 Block and Schematic Diagrams 12.1. Schematic Diagram Notes Remarks: Important Safety Notice 1. The Power Circuit contains a circuit area which uses a separate power supply to isolate the earth connection. Components identified by mark have special characteristics important for safety. The circuit is defined by HOT and COLD indications in the schematic diagram.

  • Page 85: Main Block Diagram

    12.2. Main Block Diagram OUT LINE SS.R. SS.R. SS.R. SS.R. SS.R. SS.R. SS.R. SC23 VSUS SS48 13.5V DISCHARGE SUB-FIELD PLASMA AI SUSTAIN CONTROL PROCESSOR SUSTAIN VOLTAGE VSUS VOLTAGE PROTECTOR ADDRESS RECTIFIER VOLTAGE (VE) I/P CONV. FORMAT STV 5V MAIN MPU RGB PROCESSOR CONV.

  • Page 86: Power Block Diagram

    12.3. Power Block Diagram DRIVE VOLTAGE PROTECTOR PROCESS VOLTAGE PROTECTOR Q775 IC750 D751 IC775 SOS IN Q750 Q776 COMPARATOR COMPARATOR D604 Q601 5 4 3 2 1 4 3 2 1 IC603 13.5V VSUS VSUS D606 Q600 15Vs IC601 -15Vs P2 To SC2 IC600 AC IN...

  • Page 87: P1-Board Schematic Diagrams

    12.4. P1-Board Schematic Diagrams...

  • Page 88: F And P3-Board Schematic Diagram

    12.5. F and P3-Board Schematic Diagram...

  • Page 89: P5, P6, P7 And P8-Board Schematic Diagram

    12.6. P5, P6, P7 and P8-Board Schematic diagram...

  • Page 90: Hx Block Diagram

    12.7. HX Block Diagram PC Terminal Board PC AUDIO IN R IN Q3531 R OUT L IN Q3532 L OUT PC IN R IN R OUT Q3507 G IN Q3508 G OUT B I N Q3509 B OUT Q3513 / Q3514 HD OUT Q3515 / Q3516 VD OUT...

  • Page 91: Hx-Board Schematic Diagrams

    12.8. HX-Board Schematic Diagrams TZTNP01KNSR...

  • Page 92: Hz Block Diagrams

    12.9. HZ Block Diagrams TO J1 IC3803 for NTSC 3D COMB FILTER 16M SDRAM 3.3V 2 ~ 12, 39 ~ 49 15 ~ 32 STB5V IC3804 120 ~ 138 100 ~ 119 TO J2 S-DET. Memory Controllor DIGITAL Q3301 S-VIDEO Q3801/Q3803/Q3805 Q3812 Q3501/Q3507...

  • Page 93: Hz-Board (1/2) (Option Rtb421) Schematic Diagram

    12.10. HZ-Board (1/2) (Option RTB421) Schematic Diagram TXNHZ10JJS...

  • Page 94: Hz-Board (2/2) (Option Rtb421) Schematic Diagram

    12.11. HZ-Board (2/2) (Option RTB421) Schematic Diagram TXNHZ10JJS...

  • Page 95: J-Board Block Diagrams

    12.12. J-Board Block Diagrams IC2302 FROM H1 IC3003 AUDIO SELECT TO SPEAKER Q2301 DVI IN IC2401 AUDIO AMP RGB/COMP. IC3001 IC2301 FROM H2 INPUT SELECT TO D8 TO SPEAKER Q2302 Q2406 MUTE Q2303 Q2304 G / Y Q3007/Q3008 G / Y G / Y Q3001/Q3002 RGB/COMP.

  • Page 96: J-Board (1/5) Schematic Diagrams

    12.13. J-Board (1/5) Schematic Diagrams TXN/J10JAS...

  • Page 97: J-Board (2/5) Schematic Diagrams

    12.14. J-Board (2/5) Schematic Diagrams TXN/J10JAS...

  • Page 98: J-Board (3/5) And H3-Board Schematic Diagrams

    12.15. J-Board (3/5) and H3-Board Schematic Diagrams TXN/J10JAS...

  • Page 99: J-Board (4/5) Schematic Diagrams

    12.16. J-Board (4/5) Schematic Diagrams TXN/J10JAS...

  • Page 100: J-Board (5/5) Schematic Diagrams

    12.17. J-Board (5/5) Schematic Diagrams TXN/J10JAS...

  • Page 101: D-Block Diagrams

    12.18. D-Block Diagrams LATCH To C13 To C23 IC9803 IC9801 IC9510 DVI G CLOCK S/CONVERTER S/CONVERTER FROM J8 BUFFER UPPER LEFT UPPER RIGHT IC9802 DVI B IC9508 IC9512 IC9514 IC9502 FIELD MEMORY DVI R CLOCK BUFFER 16M SDRAM IC9402 PLASMA AI CONTROL IC9503 FIELD MEMORY IC980 IC9302...

  • Page 102: D-Board (1/14) Schematic Diagrams

    12.19. D-Board (1/14) Schematic Diagrams TZTNP02KNSR (others) TZTNP01KNSC (42WP16C)

  • Page 103: D-Board (2/14) Schematic Diagrams

    12.20. D-Board (2/14) Schematic Diagrams TZTNP02KNSR (others) TZTNP01KNSC (42WP16C)

  • Page 104: D-Board (3/14) Schematic Diagrams

    12.21. D-Board (3/14) Schematic Diagrams TZTNP02KNSR (others) TZTNP01KNSC (42WP16C)

  • Page 105: D-Board (4/14) Schematic Diagrams

    12.22. D-Board (4/14) Schematic Diagrams TZTNP02KNSR (others) TZTNP01KNSC (42WP16C)

  • Page 106: D-Board (5/14) Schematic Diagrams

    12.23. D-Board (5/14) Schematic Diagrams TZTNP02KNSR (others) TZTNP01KNSC (42WP16C)

  • Page 107: D-Board (6/14) Schematic Diagrams

    12.24. D-Board (6/14) Schematic Diagrams TZTNP02KNSR (others) TZTNP01KNSC (42WP16C)

  • Page 108: D-Board (7/14) Schematic Diagrams

    12.25. D-Board (7/14) Schematic Diagrams TZTNP02KNSR (others) TZTNP01KNSC (42WP16C)

  • Page 109: D-Board (8/14) Schematic Diagrams

    12.26. D-Board (8/14) Schematic Diagrams TZTNP02KNSR (others) TZTNP01KNSC (42WP16C)

  • Page 110: D-Board (9/14) Schematic Diagrams

    12.27. D-Board (9/14) Schematic Diagrams TZTNP02KNSR (others) TZTNP01KNSC (42WP16C)

  • Page 111: D-Board (10/14) Schematic Diagrams

    12.28. D-Board (10/14) Schematic Diagrams TZTNP02KNSR (others) TZTNP01KNSC (42WP16C)

  • Page 112: D-Board (11/14) Schematic Diagrams

    12.29. D-Board (11/14) Schematic Diagrams TZTNP02KNSR (others) TZTNP01KNSC (42WP16C)

  • Page 113: D-Board (12/14) Schematic Diagrams

    12.30. D-Board (12/14) Schematic Diagrams TZTNP02KNSR (others) TZTNP01KNSC (42WP16C)

  • Page 114: D-Board (13/14) Schematic Diagrams

    12.31. D-Board (13/14) Schematic Diagrams TZTNP02KNSR (others) TZTNP01KNSC (42WP16C)

  • Page 115: D-Board (14/14) Schematic Diagrams

    12.32. D-Board (14/14) Schematic Diagrams TZTNP02KNSR (others) TZTNP01KNSC (42WP16C)

  • Page 116: C1-Board Schematic Diagrams

    12.33. C1-Board Schematic Diagrams...

  • Page 117: C2-Board Schematic Diagrams

    12.34. C2-Board Schematic Diagrams...

  • Page 118: C3-Board And V1-Board Schematic Diagrams

    12.35. C3-Board and V1-Board Schematic Diagrams...

  • Page 119: C4-Board Schematic Diagrams

    12.36. C4-Board Schematic Diagrams...

  • Page 120: Sc-Board Block Diagrams

    12.37. SC-Board Block Diagrams SC41 COLD CHASSIS GROUND FROATING GROUND from IC6501 D6505 FSIU SC22 PHOTO Vsus COUPLER FCLU To SC44 D6506 PIN 9, 39 FCLKU PHOTO IC6453 IC6454 PROU COUPLER To SC44 PIN 8, 38 15V 1 D6508 IC6502 from PHOTO COUPLER...

  • Page 121: Sc-Board (1/2) Schematic Diagrams

    12.38. SC-Board (1/2) Schematic Diagrams...

  • Page 122: Sc-Board (2/2) Schematic Diagrams

    12.39. SC-Board (2/2) Schematic Diagrams...

  • Page 123: Su/Sd Block Diagram

    12.40. SU/SD Block Diagram SU / SD Note: IC6401/IC6405 81,83 SU1/SD1 B40 A40 B39 A39 FCLK SCAN OUT PUT PULSE 48 PIN OUTPUT SC41/SC43 To 1st 80 pins of SCAN ELECTRODES B18 A18 B17 A17 FSI 31 11 78,79 FCL 32 12 FSO1 Q6401 Vf5V...

  • Page 124: Su-Board Schematic Diagrams

    12.41. SU-Board Schematic Diagrams...

  • Page 125: Sd-Board Schematic Diagrams

    12.42. SD-Board Schematic Diagrams...

  • Page 126: Ss-Board Block Diagrams

    12.43. SS-Board Block Diagrams SS11 SS45 SS49 SS47 VSUS P12 SS12 SS22 C22 SS41 IC6701 SS33 IC6706 Q6701 Q6711 Q6702 Q6712 Q6703 S2,S3 Q6704 CONTROL Q6705 Q6713 Q6706 SS42 Q6714 Q6707 Q6708 IC6702 Q6721 Q6727 Q6722 Q6728 Q6723 SS43 TPSS1 1/2V0 CONTROL Q6724...

  • Page 127: Ss, Ss2, Ss3 And S1-Board Schematic Diagrams

    12.44. SS, SS2, SS3 and S1-Board Schematic Diagrams...

  • Page 128: Specifications

    16 Specifications Power Source: AC220-240V 50/60Hz Power Consumption: 295W 1.8W (stand-by condition) 1.6W (Power off condition) Plasma Display Drive method AC type panel: 42-inch, 16:9 aspect ratio Contrast Ratio 3000:1 Brightness Capability (Panel only) 780 cd / m (As a set) 400 cd / m Screen size: 920 mm (W)×518 mm (H)×1056 mm (diagonal)

This manual is also suitable for:

42wp16c42wp16b42wp16h42wp16e42wp16r

Table of Contents
