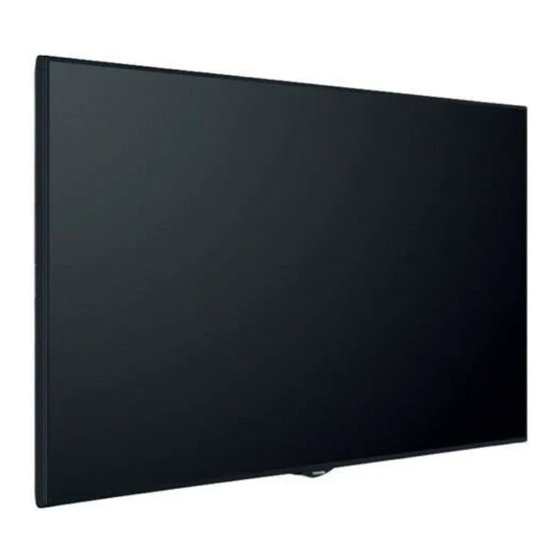

- Page 1 OWNERS MANUAL LCD DISPLAY TD-Q493 - TD-Q493E For information on warranties and service please visit www.toshiba.eu/services...
-
Page 2: Table Of Contents
Contents Important Safety Informat�on ........2 Vesa Wall Mount Measurements ......7 When Us�ng a Wall Bracket ........7 Connect�ng to external equ�pment ......7 Da�sy Cha�n Connect�on v�a HDMI Output .....9 Da�sy Cha�n Connect�on v�a D�splayPort Output ..9 Control Buttons on the D�splay ......10 Turn�ng the D�splay On/Off ........ -
Page 3: Important Safety Informat�On
• Please place the product in a position that electric Important Safety cables cannot be affected by the operations on the product. Information • Follow all warnings and instructions marked on the product. CAUTION • Follow the on screen instructions for operating the related features. - Page 4 • Do not interfere on your products screen or any other Safety checks surface with a sharp object. Upon completion of service or repair work, request the service technician to perform safety checks to ensure • Do not keep your product in a humid environment. that the product is in proper operating condition.
- Page 5 monitor where it cannot be pushed, pulled over, or other than mentioned in user manual additional knocked down. requirements may be necessary. • Care should be taken to route all cords and cables connected to the monitor so that they cannot be pulled or grabbed by curious children.
- Page 6 Leaked battery Exclusion Clause fluid that gets into your eye or your clothing may Toshiba shall under no circumstances be liable for loss cause a skin irritation or damage your eye. and/or damage to the product caused by: CAUTION i) fire;...
- Page 7 but not limited to the following, loss of profit, interruption of business, the loss of recorded data whether caused during normal operation or misuse of the product. UK Power Cord Warning In UK, use BS-approved power cord with molded plug having a black (10A) fuse installed for use with this monitor.
-
Page 8: Vesa Wall Mount Measurements
Vesa Wall Mount Measurements Hole Pattern Sizes (mm) Screw Sizes min. (mm) Length (X) 16.5 max. (mm) Thread (Y) When Using a Wall Bracket Please use a wall bracket appropriate for the size and weight of the LCD display and two people are required for the installation. - Page 9 Rear Side (2) 1. Audio Out 2. Audio In 3. Ethernet 4. RJ12 (service use only) 5. Video In 6. YPbPr 7. SPDIF Coaxial Out English - 8 -...
-
Page 10: Da�Sy Cha�N Connect�On V�A Hdmi Output
Daisy Chain Connection via HDMI Output HDMI In HDMI Out HDMI Cable • Maximum Connection w/HDCP: 7 • Maximum Connection wo/HDCP: No limit Daisy Chain Connection via DisplayPort Output DisplayPort In DisplayPort Out DisplayPort Cable • MST (Multi Stream Transport) can support 4xFHD native VideoWall maximum •... -
Page 11: Control Buttons On The D�Splay
Control Buttons on the Display To turn on the Display: Press the centre of the joystick in, the Display will turn on. To turn the Display off: Press the centre of the joystick in and hold it down for a few seconds, the Display will turn into standby mode. -
Page 12: Turn�Ng The D�Splay On/Off
Turning the Display On/Off Press the Standby button on the remote or press the centre of the joystick in located on rear left side of the Display to switch it on from standby . Press the centre of the joystick in and hold it down for a few seconds or press the Standby button on the remote to switch display into standby mode. -
Page 13: Remote Control
Standby: Switches On / Off the Display Remote Control Numeric buttons: Enters a number or a letter in the text box on the screen. Signage: Displays Signage Settings menu Volume +/-: Increases or decreases the volume CMS: Opens the predefined Start url (in Signage Settings>Link options menu). -
Page 14: F�Rst T�Me Installat�On
USB device. not selectable. Please note this information as it Media Browser Menu will be required if contacting Toshiba regarding You can play photo, music and movie files stored on your monitor refer to the Signage Settings Menu a USB disk by connecting it to your Display. Connect... -
Page 15: Cec And Cec Rc Passthrough
This feature will only work if all of the following cir- case volume control keys are directed to connected cumstances occur: audio device. • The USB device is plugged in. Note: ARC is supported only via the HDMI1 input. System Audio Control •... -
Page 16: D�Splay Menu Contents
Display Menu Contents System - Picture Menu Contents You can change the picture mode to suit your preference or requirements. Picture mode can Mode be set to one of these options: Text, Game, Sports, Signage and Natural. Signage mode has been developed to enhance Dynamic contrast, colors and sharpness levels. Contrast Adjusts the light and dark values on the screen. - Page 17 System - Sound Menu Contents Volume Adjusts the volume level. Equalizer Selects the equalizer mode. Custom settings can be made only when in User mode. Balance Adjusts whether the sound comes from the left or right speaker. Sets headphone volume. Please ensure before using headphones that the headphone volume is set to a low Headphone level, to prevent damage to your hearing.
- Page 18 Save model Copies the model information data of the unit to a connected USB device. This information information will be required is you contact Toshiba about your monitor Display Life Time Displays the duration of life of the unit. Controls Sets the OSD (On Screen Display) rotation of your Display.
- Page 19 Select ASCII/HEX protocol for UART 0. Default value is ASCII. There is no need to restart the Display after selection in order to work with the protocols correctly. If the selection is changed, the latest selected protocol will be preserved and started when UART 0 the Display is booted up.
- Page 20 You will need to enter the correct PIN to carry out this operation. installation Note: Enter the PIN you have defined during the First Time Installation process. If you have forgotten the pin used, please contact Toshiba service center. English - 19 -...
-
Page 21: Connect�V�Ty
modem’s SSID visible, you should change your SSID Connectivity settings via the modem’s software. Broadband To configure wired or wireless settings please refer to the Network/Internet Settings section in the connection System>Settings menu. Wired Connectivity To Connect to a Wired Network •... - Page 22 Using with mobile devices If the selected network is protected with a password, please enter the correct key by using the virtual There are different standards which enable sharing of keyboard. You can use this keyboard via the directional screens including graphical, video and audio content buttons and the OK button on the remote control.
-
Page 23: Internet Browser
internet. This is a precaution against unauthorized To play other media types from this screen, you can go back to main Media Browser screen and select the access. Since your Display has its own MAC address, your internet service provider cannot validate the MAC media type as desired and then perform the network address of your Display. -
Page 24: Internal Usb Operat�Ons
You can also use the Opera menu options to manage each time Delete and Format Disk operations are the browser. Highlight the Opera- button and press performed. the OK button to see available page specific and OSD Rotation Support (*) general options. -
Page 25: Real T�Me Clock (Rtc)
tent received from the HDMI1 input port located also Controlling With An External PC on the rear left side of the Display (lower HDMI port) can be outputted from this port. The contents received from other inputs, such as VGA, DVI or Display Port, OPS, browser and USB to this list of inputs can not be outputted. - Page 26 Display to a network and displaying the IP address of the Display. Use the commands in the RS232 Command Table which can be found on Toshiba website.For example, if “GETVOLUME” command is entered, current volume level should be displayed on the putty window as shown in the pictures below.
-
Page 27: Rs232 Hex Commands
RS232 HEX COMMANDS Protocol Test Steps RJ12 and DSUB9 both are connected to UART 0. UART 1 is connected to the OPS module for sending OPS to monitor commands. UART 1 is not reachable via the external RS232 or LAN port. a. -
Page 28: System Features
System Features Panel Panel type 49” (124cm) DLED Resolution 1920x1080 Active Area 1073.78(H) x 604.0(V) Horizontal 178° Visual angle Perpendicular 178° Max. brightness Typ : 700 cd/m² Max. Contrast Typ : 1000 Response time 15ms H-Frequency 60 Khz V-Frequency 67.5 Khz Audio 2 x 8 W Audio Output Power Network Connection... - Page 29 Using Your LCD display Product More Effectively Paying attention to the following points with respect to your product will provide a stable performance and also prolong its life. Daily Care • Environmental Factors Do not directly expose your product to humidity, high temperature, fire, direct sun light and dust while using it. The vent holes of your product will allow it perform safer without system overheating.
- Page 30 Notification TRADEMARK ACKNOWLEDGMENT The terms HDMI and High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. Manufactured under license from Dolby Laboratories. Dolby Audio and the double-D symbol are trademarks of Dolby laboratories.
-
Page 31: Trouble Shoot�Ng & T�Ps
Trouble Shooting & Tips Display does not turn on Make sure the power cord is plugged in securely to the mains socket. Check if batteries are of the remote exhausted. Press the Standby button on the Display. No picture This means your Display is not receiving any signal. Check if the correct source is selected. - Page 32 Dimensions Unit (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) 1079,8 609,2 49” 104,2 80,8 48,5 17,5 1101,7 634,6 1073,8 10,4 Bezel Bezel Weight : 14 Kg English - 31 -...
- Page 33 Disposal... The following information is only for EU-member states: Disposal of products The crossed out wheeIed dust bin symbol indicates that products must be collected and disposed of separately from household waste. Integrated batteries and accumulators can be disposed of with the product. They will be separated at the recycling centres.
- Page 34 Wireless LAN Transmitter Specifications Max Output Frequency Ranges Power 2400 - 2483,5 MHz (CH1-CH13) < 100 mW 5150 - 5250 MHz (CH36 - CH48) < 200 mW 5250 - 5350 MHz (CH52 - CH64) < 200 mW 5470 - 5725 MHz (CH100 - CH140) <...
-
Page 35: Reach Informat�On
Hereby, Tosh�ba, declares that the rad�o equ�pment type Mon�tor �s �n compl�ance w�th D�rect�ve 2014/53/EU. The full text of the EU declarat�on of conform�ty �s ava�lable from TOSHIBA. 23 Davy Road, Plymouth, Devon. UK. PL6 8BY. * Dependant on model.
