Page 3: Table Of Contents

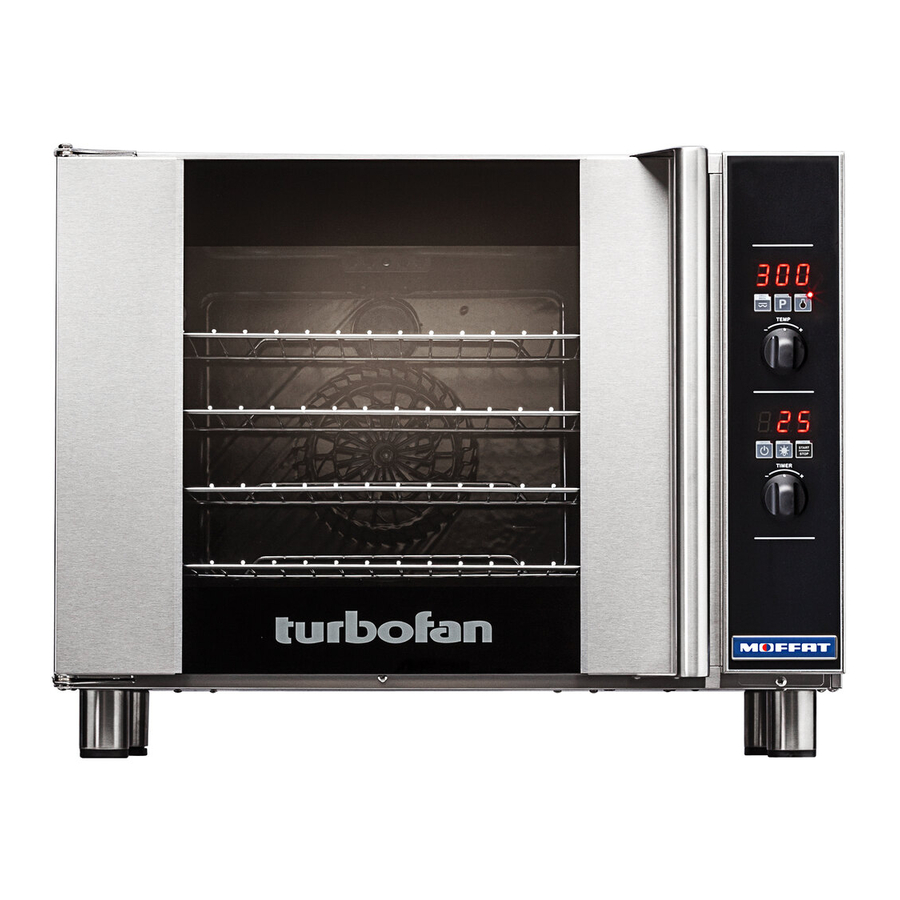

E31 Turbofan Convection Oven. Model Numbers Covered in this Manual E31D4 - Turbofan Oven - 4 Tray Convection Oven. Introduction ... 2 Safety Information Specifications ... 3 Installation... 4 Installation Requirements Unpacking Location Clearances Stand Mounted Ovens Electrical Connection Positioning and Levelling of Oven Initial Start-Up Operation ... -
Page 4: Safety Information
Before using your new oven, please read this instruction manual carefully, pay particular attention to any information labelled ‘WARNING’, ‘CAUTION’, ‘IMPORTANT’ or ‘NOTE’ in this manual. Indicates a hazardous situation Warning which, if not avoided, will result in death or serious injury. Indicates a hazardous situation which, if not avoided, will result in Caution... -
Page 5: Specifications
E31D4 Oven Power Ratings 208V, 1P+N+E, 50/60HZ, 2.9 kW 220V, 1P+N+E, 50/60HZ, 3.1 kW 230-240V, 1P+N+E, 50/60HZ, 3.1 kW Specifications Oven Tray Details Tray Capacity Tray Spacing 4 x GN 1/1 Pan 85 mm / 3 4 x US ½ Pan ”... -
Page 6: Installation
For ovens that are to be mounted to a stand, the oven feet are used to level the oven on the stand. Refer to the instructions supplied with separately ordered stands for mounting details. Oven Serial Number Oven Current Draw Model Number MOFFAT LIMITED E22M3 ***** MODEL USE22M3 ******* CODE xxxxxx SERIAL... -
Page 7: Electrical Connection
Electrical Connection Warning This oven must be earthed / grounded. If the supply cord is damaged, it must be replaced by a suitably qualified person in order to avoid a hazard. Each oven should be connected to an adequately protected power supply and an isolation switch mounted adjacent to, but not behind the oven and must be readily accessible to the operator. - Page 8 11. Remove the inner glass latching studs and fit to opposite side of door using Loctite 243 to secure. 12. Turn the door handle over and fit to the other end of the door where the hinges were removed from. Ensure Flat of handle is to the outside.
-
Page 9: Operation
Operation Guide Warning Some parts of this oven will become VERY HOT during use and could cause burns if touched. • Turbofan Ovens have been designed to provide simple operation. • This oven is intended for use in a commercial kitchen and must only be put to the use for which it was intended, i.e. cooking food product. -
Page 10: Using The Oven - Manual Mode
Using the Oven - Manual Mode TURN ‘ON’. Press ‘On-Off’ button. Temperature Dislay. Temperature Display will show actual temperature. SET TEMPERATURE. + to increase the temperature. - to decrease the temperature. Time Display. Time Display will show actual time set. SET TIME. -
Page 11: Setting The Oven Programs
Cooking in Program Mode TURN ‘ON’. Press ‘On-Off’ button. Press ‘Programs’ button. Temperature Dislay. Temperature Display will show program selected. SELECT A PROGRAM + to scroll forward through programs. - to scroll backward through programs. Time Display. Time Display will show ‘Pre-Heating’. Program cannot be started until pre-heating is completed. -
Page 12: Setting The Oven Programs
Setting the Oven Programs Oven can be pre-programmed with up to 20 Program’s. When you receive your oven, the controller is not programmed. To set programs, carry out the following for each program required:- ENTER PROGRAMMING MODE. Press ‘Programs’ button to enter ‘Programming’... -
Page 13: Operator Accessible Parameters
Operator Accessible Parameters Setting the Operator Accessible Parameters ENTER THE OPERATOR PARAMETER MODE. Press 'Grill / Broil' and 'Start / Stop' buttons together. ‘Temperature’ Display will show ‘PAS’. The ‘Time’ Display will flash. SET PASSWORD Rotate ‘Timer Control’ to set password; (123) (Operator Password). -
Page 14: Cleaning
Cleaning Guidelines Caution Always turn electrical mains supply before commencing cleaning. This oven is not water proof. water jet spray to clean interior or exterior of the appliance. To achieve the best results, cleaning must be regular and thorough. If any small faults occur, have them looked at promptly. -
Page 15: Oven Interior
Door Seal a. To remove door seal, pull the 1 piece seal forward until it pulls out of the location groove around the oven. Note the way the seal is fitted to the oven, with the lip facing inwards. b. Check for wear and damage to the door seal and replace as required. -
Page 16: Fault Finding
This section provides a reference to the more common problems that may occur during the operation of your oven. This fault finding guide is intended to help you correct and accurately diagnose problems with your oven. When fault finding a problem, always use a process of elimination starting with the simplest solution and working through to the most complex. -
Page 17: Electrical Schematics
Electrical Schematics Electrical Schematic E31D4 Turbofan Oven... -
Page 18: Replacement Parts List
Replacement Parts List Only genuine authorized replacement parts should be used for the servicing and repair of this oven. The instructions supplied with the parts should be followed when replacing components. For further information and servicing instructions, contact your nearest authorized service provider or Turbofan Dealer. When ordering replacement parts, please quote the part number and the description as listed below.
