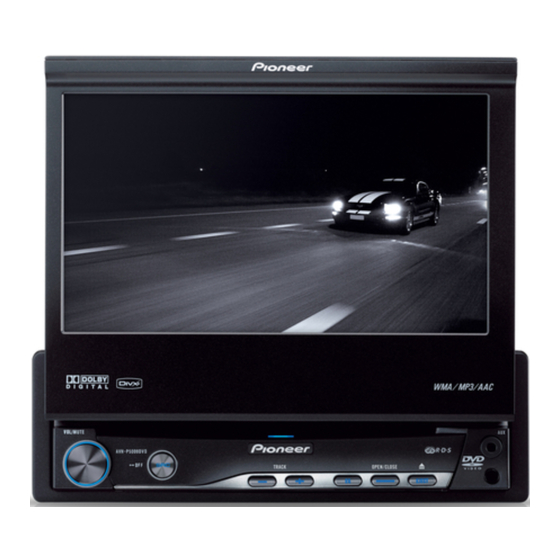

Pioneer AVH-P5000DVD Installation Manual

AVH-P5000DVD
Printed in Thailand
ç‡Ô˜‡Ú‡ÌÓ ‚ í‡Ë·̉Â
<CRD4274-A/N> RE <KMINX> <07K00000>
Connecting the Units
WARNING
CAUTION • To avoid the risk of accident and the potential vio-
lation of applicable laws, the front DVD or TV
• PIONEER does not recommend that you
(sold separately) feature should never be used
install or service your display yourself.
while the vehicle is being driven. Also, Rear
Installing or servicing the product may
Displays should not be in a location where it is a
expose you to risk of electric shock or visible distraction to the driver.
other hazards. Refer all installation and • In some countries or states the viewing of
images on a display inside a vehicle even by
servicing of your display to authorized
persons other than the driver may be illegal.
Pioneer service personnel.
Where such regulations apply, they must be
• Secure all wiring with cable clamps or obeyed and this unit's DVD features should
not be used.
electrical tape. Do not allow any bare
wiring to remain exposed.
• Do not drill a hole into the engine com-
partment to connect the yellow lead of
the unit to the vehicle battery. Engine
vibration may eventually cause the insu-
lation to fail at the point where the wire
passes from the passenger compartment
into the engine compartment. Take extra
care in securing the wire at this point.
• It is extremely dangerous to allow the
display lead to become wound around
the steering column or gearshift. Be sure
to install the display in such a way that it
will not obstruct driving.
• Make sure that wires will not interfere
with moving parts of the vehicle, such as
the gearshift, parking brake or seat slid-
ing mechanism.
• Do not shorten any leads. If you do, the
protection circuit may fail to work prop-
erly.
WARNING
LIGHT GREEN LEAD AT POWER CONNEC-
TOR IS DESIGNED TO DETECT PARKED
STATUS AND MUST BE CONNECTED TO
THE POWER SUPPLY SIDE OF THE PARK-
ING BRAKE SWITCH. IMPROPER CONNEC-
TION OR USE OF THIS LEAD MAY VIOLATE
APPLICABLE LAW AND MAY RESULT IN
SERIOUS INJURY OR DAMAGE.
Note: • Control signal is output through blue/white cable
• This unit cannot be installed in a vehicle with- when this unit is powered on. Connect it to an
out ACC (accessory) position on the ignition external power amp's system remote control or
switch. the vehicle's auto-antenna relay control terminal
(max. 300 mA, 12 V DC). If the vehicle is
equipped with a glass antenna, connect it to the
antenna booster power supply terminal.
• Never connect blue/white cable to external power
amp's power terminal. Also, never connect it to
the power terminal of the auto antenna.
Otherwise, battery drain or malfunction may
result.
• IP-BUS connectors are color-coded. Be sure to
ACC position No ACC position
connect connectors of the same color.
• Use this unit in other than the following condi-
• Black cable is ground. This cable and other prod-
tions could result in fire or malfunction.
uct's ground cable (especially, high-current prod-
— Vehicles with a 12-volt battery and negative
ucts such as power amp) must be wired separate-
grounding.
ly. Otherwise, fire or malfunction may result if
— Speakers with 50 W (output value) and 4 ohm they are accidentally detached.
to 8 ohm (impedance value).
• To prevent short-circuit, overheating or malfunc-
tion, be sure to follow the directions below.
— Disconnect the negative terminal of the battery
before installation.
— Secure the wiring with cable clamps or adhe-
sive tape. To protect the wiring, wrap adhesive
tape around them where they lie against metal
parts.
— Place all cables away from moving parts, such
as gear shift and seat rails.
— Place all cables away from hot places, such as
near the heater outlet.
— Do not pass the yellow cable through a hole
into the engine compartment to connect to a
battery.
— Cover any disconnected cable connectors with
insulating tape.
— Do not remove RCA caps if RCA cables are
not used.
— Do not shorten any cables.
— Never cut the insulation of the power cable of
this unit in order to share the power to other
equipment. Current capacity of the cable is
limited.
— Use a fuse of the rating prescribed.
— Never wire the speaker negative cable directly
to ground.
— Never band together multiple speaker's nega-
tive cables.
ENGLISH
Parts supplied
This product Tuner box Power cord Antenna cable
Mounting sleeve Trim ring Side bracket (small)
USB cable
(pre-installed) (pre-installed) (2 pcs.) (pre-installed)
Flush surface screw Binding screw Binding screw
Screw (2 mm × 3 mm)
(5 mm × 6 mm) (6 pcs.) (5 mm × 6 mm) (4 mm × 3 mm)
(4 pcs.) (pre-installed)
(2 are pre-installed.) (4 pcs.) (4 pcs.)
Side bracket (large)
Concealing tape Rubber bush Double-ended screw
(2 pcs.)
Screw (2 mm × 5 mm)
Touch panel pen Holder
(2 pcs.)
