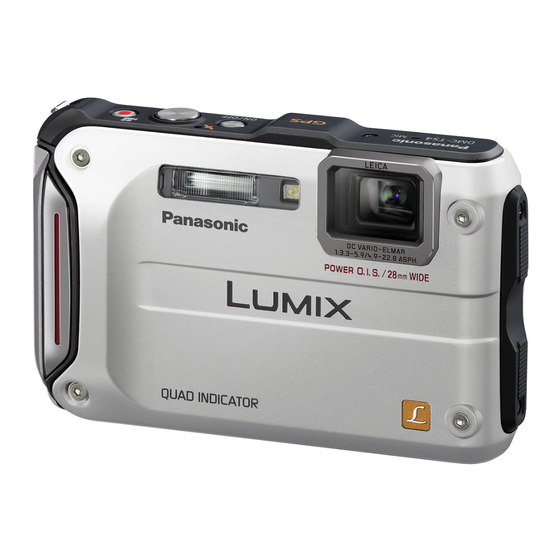

Panasonic DMC-FT4 Basic Operating Instructions Manual

Hide thumbs Also See for DMC-FT4:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual , Basic Operating Instructions Manual

Basic Operating Instructions

Digital Camera

DMC-FT4
Model No.
Before use, please read these instructions completely.
More detailed instructions on
the operation of this camera are
contained in "Operating
Instructions for advanced features
(PDF format)" in the supplied CD-ROM. Install
it on your PC to read it.
VQT4E06
GN
F0212HY0

Advertisement

Table of Contents
loading

Related Manuals for Panasonic DMC-FT4

Summary of Contents for Panasonic DMC-FT4

  • Page 1: Basic Operating Instructions

    Basic Operating Instructions Digital Camera DMC-FT4 Model No. Before use, please read these instructions completely. More detailed instructions on the operation of this camera are contained in “Operating Instructions for advanced features (PDF format)” in the supplied CD-ROM. Install it on your PC to read it.

  • Page 2: Information For Your Safety

    Dear Customer, We would like to take this opportunity to thank you for purchasing this Panasonic Digital Camera. Please read these Operating Instructions carefully and keep them handy for future reference. Please note that the actual controls and components, menu items, etc.

  • Page 3: About The Battery Pack

    ∫ About the battery pack CAUTION • Danger of explosion if battery is incorrectly replaced. Replace only with the type recommended by the manufacturer. • When disposing the batteries, please contact your local authorities or dealer and ask for the correct method of disposal. •...

  • Page 4: Cautions For Use

    Part number: RP-CHEU15 (1.5 m) In the event of abnormal operation (e.g. if the unit emits smoke or an unusual smell), immediately stop operating the unit and consult the Panasonic Customer Care Centre on 132600. Keep this unit as far away as possible from electromagnetic equipment (such as microwave ovens, TVs, video games etc.).

  • Page 5: Table Of Contents

    Contents Information for Your Safety..................2 Before Use ........................6 Standard Accessories ....................7 (Important) About the Waterproof/Dustproof and Anti-shock Performance of the Camera ....................... 9 Names and Functions of Main Parts ................ 14 Charging the Battery....................15 Inserting and Removing the Card (optional)/the Battery ........16 Sequence of operations ....................

  • Page 6: Before Use

    • Contact Panasonic’s Service Centre if the fogging does not disappear. Conditions in which inner side of the lens may be fogged Condensation may occur and the inner side of the lens may be fogged when the...

  • Page 7: Standard Accessories

    Standard Accessories Check that all the accessories are supplied before using the camera. Product numbers correct as of January 2012. These may be subject to change. Battery Pack (Indicated as battery pack or battery in the text) Charge the battery before use. Battery Charger (Indicated as battery charger or DMW-BCF10E...

  • Page 8: Attaching The Silicone Jacket

    Attaching the Silicone Jacket Attach is recommended to prevent unintentional opening of the side door when used in the mountains or near water. • Check that this unit is turned off. • Attach the Silicone Jacket where there is no sand or dust. Securely attach the Silicone Jacket to the camera.

  • Page 9: (Important) About The Waterproof/Dustproof And Anti-Shock Performance Of The Camera

    5 devices) Panasonic’s test method is based on the above “MIL-STD 810F Method 516.5-Shock”. However, the drop height was changed from 122 cm to 200 cm dropping onto 3 cm thick plyboard.
  • Page 10 Waterproofing is not guaranteed if the unit is subject to an impact as a result of being hit or dropped etc. If an impact to the camera occurs, it should be inspected (subject to a fee) by a Panasonic’s Service Centre to verify that the waterproofing is still effective. •...

  • Page 11: Check Before Using Underwater

    The integrity of the rubber seals may decrease after about 1 year, with use and age. To avoid permanently damaging the camera the seals should be replaced once each year. Please contact Panasonic’s Service Centre for related costs and other information. Close the side door securely.

  • Page 12: Using The Camera Underwater

    Using the camera underwater • Use the camera underwater to 12 m with the water temperature between 0 oC and 40 oC. • Do not use for scuba diving (Aqualung). • Do not use the camera at a depth of over 12 m. •...
  • Page 13 Drain water by holding the camera upside down and shaking it lightly a few times. • After using the camera at the seaside or under water, or after washing it, water will remain at the speaker site of the camera for a while and it may cause lower sound or sound distortion.

  • Page 14: Names And Functions Of Main Parts

    Strap eyelet used. • Be sure to attach the strap when • Always use a genuine Panasonic AC using the camera to ensure that you adaptor (DMW-AC5G: optional). will not drop it. • When using an AC adaptor, use the...

  • Page 15: Charging The Battery

    Charging the Battery Use the dedicated charger and battery. • The battery is not charged when the camera is shipped. Charge the battery before use. • Charge the battery with the charger indoors (10 oC to 30 oC). Attach the battery paying attention to the direction of the battery.

  • Page 16: Inserting And Removing The Card (Optional)/The Battery

    Check that this unit is turned off. • Confirm that there is no foreign object. • We recommend using a Panasonic card. 1:Slide the [LOCK] switch A, and release the lock. 2:Slide the release lever B and open the side door.

  • Page 17: Sequence Of Operations

    Sequence of operations Press camera [ON/OFF] button. • The clock is not set when the camera is shipped. Set the date and time before using the camera. Press the shutter button halfway to focus and then press it fully to take the picture.

  • Page 18: Recording Motion Pictures

    ∫ Recording Motion Pictures Start recording by pressing the motion picture button. • Stop the recording by pressing the motion picture button again. • Maximum time to record motion pictures continuously with [GFS]/[FSH] in [AVCHD] is 29 minutes 59 seconds. •...

  • Page 19: Recording Using The Gps Function

    Recording using the GPS function ∫ About the “GPS” GPS is an abbreviation of [Global Positioning System], which is a system that allows you to check your position utilising GPS satellites. Calculating the current position by receiving radio waves including orbit information and clock information from multiple GPS satellites is called positioning.

  • Page 20: Update The Gps Information

    ∫ About the Icon indicating positioning status Positioning is performed by this unit when radio waves from 3 or more GPS satellites are received. • The bar moves up the scale according to the number of GPS satellites from which signals are being received.

  • Page 21: Sensors (Compass/Altimeter/Barometer) Are Operated

    Sensors (compass/altimeter/barometer) are operated The direction, altitude, and atmospheric pressure can be measured and recorded in the recorded images. • Information measured on this unit is only a rough indication. Do not use it for technical purposes. • When using this unit for full-scale mountain climbing, trekking, or underwater, use the measured information (direction, altitude, depth, atmospheric pressure) only as a rough indication, and always carry a map and purpose-built measurement tools.

  • Page 22: Restricting The Gps/Sensor Functions

    Restricting the GPS/sensor functions When [GPS Setting] or [Sensor Settings] is set to [ON], the GPS and sensor continue working when the power is turned off. Set [Airplane Mode] to [ON] to prevent GPS positioning and acquisition of direction/altitude/atmospheric pressure information when the power is turned off.

  • Page 23: Reading The Operating Instructions (Pdf Format)

    Reading the Operating Instructions (PDF format) More detailed instructions on the operation of this camera are contained in “Operating Instructions for advanced features (PDF format)” in the supplied CD-ROM. Install it on your PC to read it. ∫ For Windows Turn the PC on and insert the CD-ROM containing the Operating Instructions (supplied).

  • Page 24: Installing Supplied Software

    Installing supplied software • The supplied CD-ROM includes the following software. – PHOTOfunSTUDIO 8.1 AE (Windows XP/Vista/7) – LoiLoScope 30 day full trial version (Windows XP/Vista/7) (This will only install a shortcut to the trial version download site.) • Before inserting the CD-ROM, close all running applications. Check the environment of your PC.

  • Page 25: Specifications

    Specifications Digital Camera: Information for your safety Power Source: DC 5.1 V Power Consumption: 1.4 W (When recording) 0.7 W (When playing back) Camera effective 12,100,000 pixels pixels Image sensor 1/2.33q CCD, total pixel number 12,500,000 pixels, Primary colour filter Lens Optical 4.6kzoom, fl4.9 mm to 22.8 mm (35 mm film camera equivalent: 28 mm to 128 mm)/F3.3 (Wide) to F5.9...
  • Page 26 Recording file format Still Picture JPEG (based on “Design rule for Camera File system”, based on “Exif 2.3” standard, DPOF corresponding)/MPO Motion pictures AVCHD/MP4 Audio compression AVCHD: Dolby Digital format MP4: AAC Interface Digital “USB 2.0” (High Speed) Analogue video NTSC/PAL Composite (Switched by menu) Audio Audio line output (monaural)
  • Page 27 5 devices) • Panasonic’s test method is based on the above “MIL-STD 810F Method 516.5-Shock”. However, the drop height was changed from 122 cm to 200 cm dropping onto 3 cm thick plyboard. This drop test was passed.
  • Page 28 • SDXC Logo is a trademark of SD-3C, LLC. • “AVCHD” and the “AVCHD” logo are trademarks of Panasonic Corporation and Sony Corporation. • Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.
