Installing the Avaya P550R™/P880/P882
80 Series 48-Port 10/100 Ethernet Module
Ethernet Module
Overview
Software Requirements
610-0200-093
C H A P T E R 1
This document describes the installation and configuration of the
Cajun P550R/P880/P882 80 series 48-port 10/100 Ethernet
Module with Telco connectors.

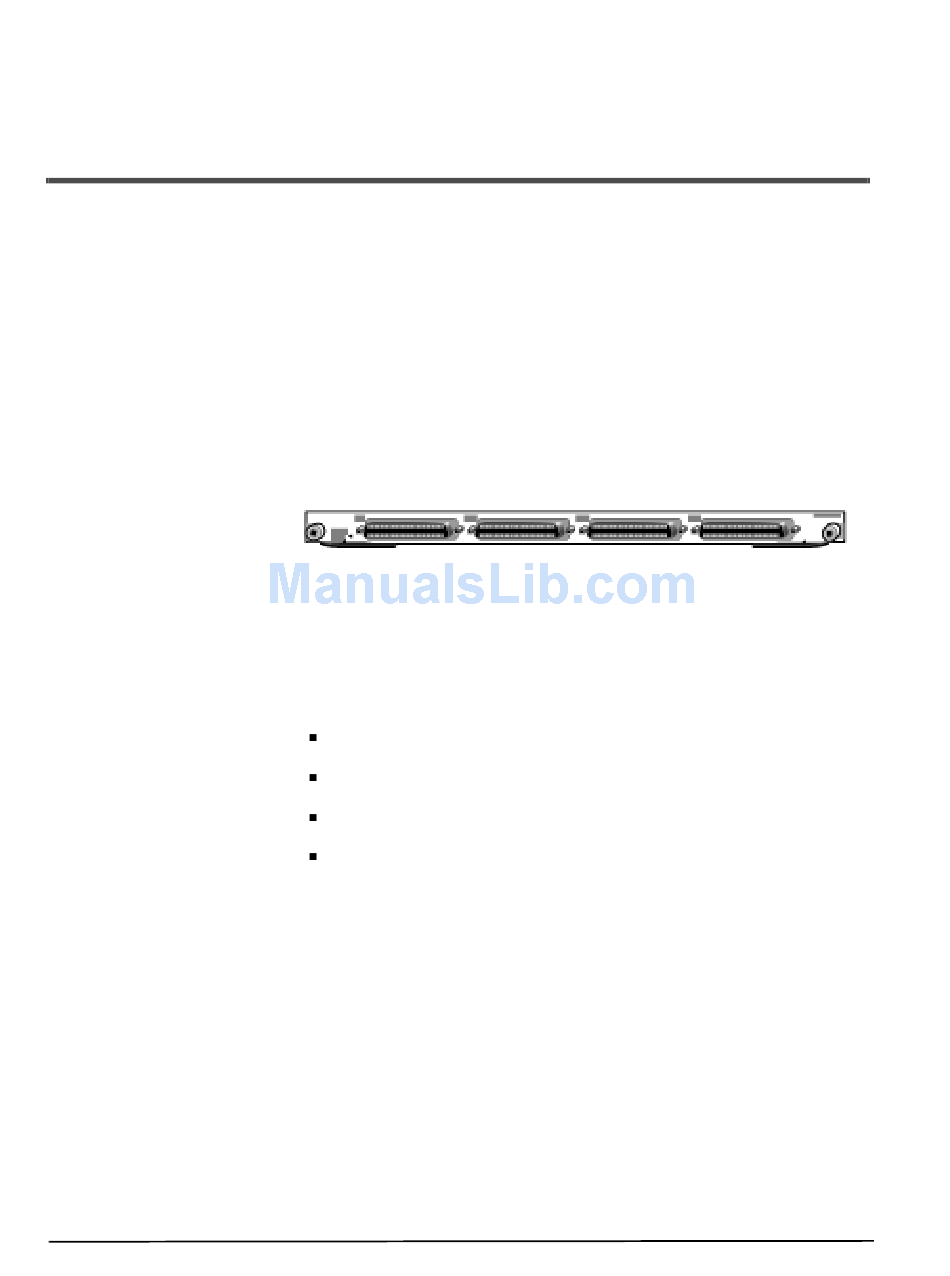

Figure 1. 80 Series 48-Port 10/100 Ethernet Module
This document describes the following:
Software Requirements
Power Requirements
Installing the Modules
Installing the Cables
The Cajun P550R/P880/P882 80 Series module requires software
of Version 5.2 or higher.
May 31, 2001
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Avaya P550R
Summary of Contents for Avaya P550R
-
Page 1: Software Requirements
Figure 1. 80 Series 48-Port 10/100 Ethernet Module Overview This document describes the following: Software Requirements Power Requirements Installing the Modules Installing the Cables Software Requirements The Cajun P550R/P880/P882 80 Series module requires software of Version 5.2 or higher. 610-0200-093 May 31, 2001... -
Page 2: Power Requirements
Power Requirements In the P550R chassis, each power supply powers approximately four media modules. In the P880/P882 chassis, each power supply powers approximately seven media modules. It takes two power supplies to power a full chassis. Using three power supplies ensures that the system has redundant power sharing capabilities. - Page 3 3. Open the Ejector Tabs until the stops make contact with the face plate (Figure 2). Figure 2. Installing the Module 4. Insert the module into the chassis (Figure 2). 5. Press on the center of the module as you push it into the chassis.
- Page 4 7. Tighten the captive screws. As the modules power on, the LEDs should function as described in the module descriptions provided in the Avaya Cajun Switch Installation Guide. In general, you will observe the following on a properly-functioning module (Table 2): * Note: The yellow power-up LED light is not currently active.
-
Page 5: Installing The Cables
Install appropriate cables for your network configuration and patch panel. Table 3 lists the Avaya 525 cable assemblies and patch panel product numbers and codes. Table 3. Recommended Cable Assemblies and Patch Panel... - Page 6 Graybar and Anixter. For more information about these distributors, refer to the following Websites: http://www.westcon.com http://www.graybar.com http://www.anixter.com For More Information Refer to the Avaya Cajun Switch Installation Guide for more information on advanced module configuration options, specifications, general product safety and regulatory compliance information. May 31, 2001 610-0200-093...
