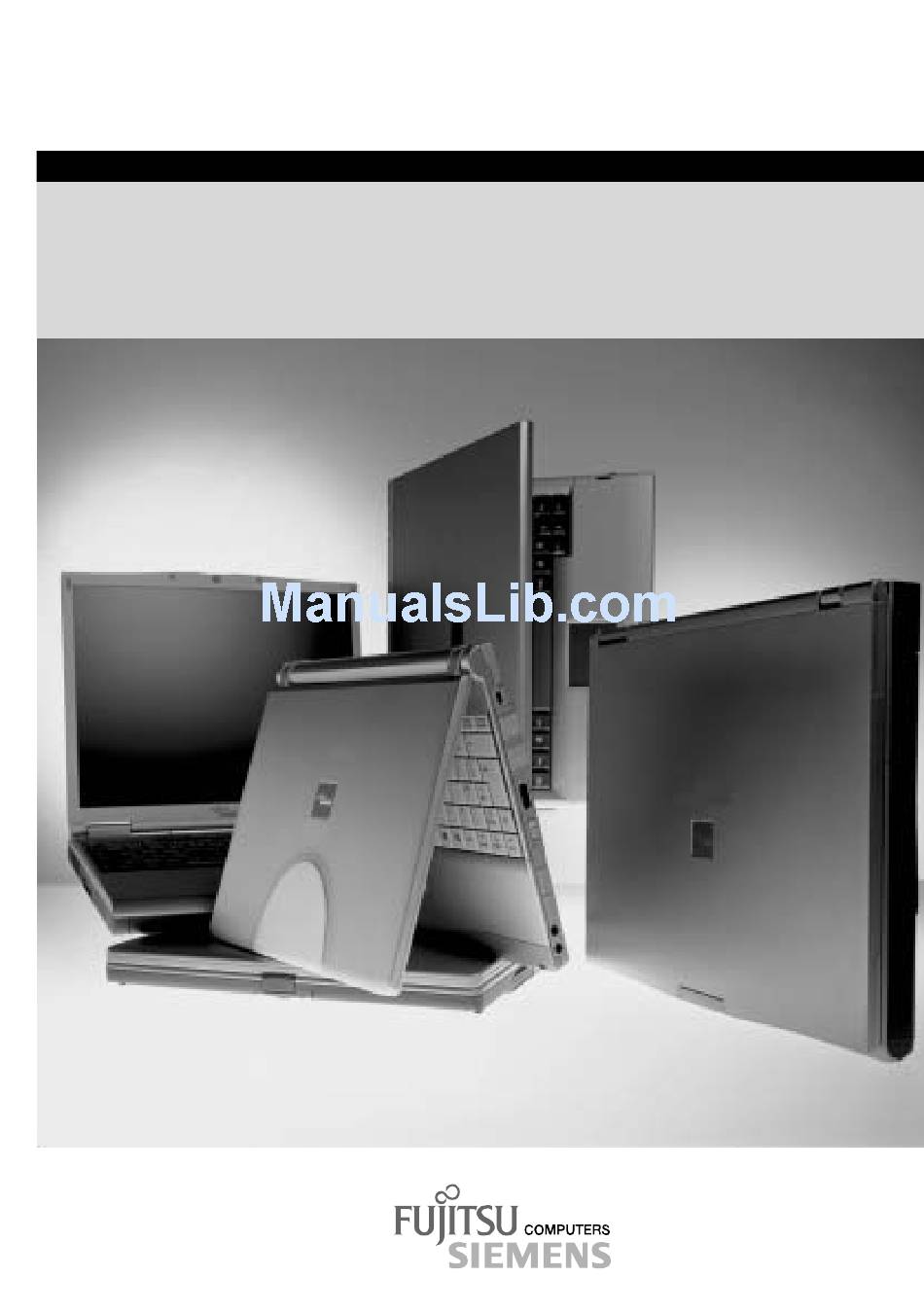

  • Page 1 LIFEBOOK EasyGuide S Series English...
  • Page 2 Are there ..any technical problems or other questions which you would like to be clarified? Please contact: • your sales partner • your sales outlet Further information can be found in the "Safety" and "Warranty" manuals. The latest information on our products, tips, updates, etc., can be found on the internet under: http://www.fujitsu-siemens.com...
  • Page 4 Herausgegeben von/Published by Fujitsu Siemens Computers GmbH A26391-K119-Z120-1-7619 Bestell-Nr./Order No.: Printed in the Federal Republic of Germany AG 0103 01/03 A26391-K119-Z120-1-7619...

  • Page 5: Lifebook S Series

    Introduction Technical data Important notes Index S Series Preparing the notebook LIFEBOOK for use Working with the notebook Operating manual Security functions Connecting external devices Memory expansion Energy saving functions Settings in BIOS Setup Troubleshooting and tips January 2003 edition...
  • Page 6 All other trademarks referenced are trademarks or registered trademarks of their respective owners, whose protected rights are acknowledged. Copyright  Fujitsu Siemens Computers GmbH 2003 All rights, including rights of translation, reproduction by printing, copying or similar methods, in part or in whole, are reserved.

  • Page 7: Table Of Contents

    Contents Introduction .............................1 Notational conventions ........................2 Important notes ..........................3 Safety ..............................3 Additional safety precautions for devices with wireless LAN/BLUETOOTH........5 Notes on installing and removing boards and modules ..............6 Manufacturer’s notes .........................7 Energy saving..........................7 Disposal and recycling.......................8 CE marking............................8 Radio frequencies for devices with wireless LAN / BLUETOOTH ............9 Storing the battery ...........................10 Transporting the notebook .......................10 Before you travel ........................10...
  • Page 8 Contents Wireless LAN / BLUETOOTH......................45 Wireless network as per IEEE 802.11 standard ..............46 Operating system requirements ....................47 Port Replicator ..........................47 Connecting the notebook to the Port Replicator ..............48 Disconnecting the notebook from the Port Replicator.............. 49 External floppy disk drive ........................
  • Page 9 Contents Settings in BIOS Setup........................83 Start BIOS Setup ..........................83 Operating BIOS setup........................84 Exiting BIOS Setup..........................84 Troubleshooting and tips......................85 Restoring the hard disk contents under Windows ..............85 The notebook's date or time is incorrect ..................86 Battery indicator does not illuminate ..................86 The LCD screen of the notebook remains blank ..............86 The LCD display panel is difficult to read .................86 The external monitor stays blank .....................86...

  • Page 11: Introduction

    Introduction Your S Series is a versatile and ergonomic notebook. Innovative technology and LIFEBOOK ergonomic design make this notebook the ideal user-friendly and reliable travel companion. To simplify the initial start-up of your notebook, one or two (dual-installation) operating systems are preinstalled on the hard disk.

  • Page 12: Notational Conventions

    Introduction Notational conventions The following symbols are used in this manual: Indicates information which is important for your health or for preventing physical damage. Failure to follow the instructions may lead to loss of data, invalidate your warranty, destroy the notebook, or endanger your life. Indicates important information which is required to use the system properly.

  • Page 13: Important Notes

    Important notes Here you will find essential safety information regarding your notebook. In addition, the manufacturer's notes contain helpful information about your notebook. Safety Pay attention to the information provided in the "Safety" and "Warranty" manuals and in the following security notes. Observe the sections in the manual marked with the symbol on the left.
  • Page 14 Important notes • All batteries containing pollutants are marked with one of the two symbols below (crossed-out garbage can). In addition, the marking is provided with the chemical symbol of the heavy metal decisive for the classification as a pollutant. Cadmium Mercury Lead...

  • Page 15: Additional Safety Precautions For Devices With Wireless Lan/Bluetooth

    With data traffic via a wireless connection, it is also possible for unauthorised third parties to receive data. The company Fujitsu Siemens Computers GmbH cannot be held responsible for radio or television faults arising from unauthorised changes made to this device. Fujitsu Siemens is, furthermore, not responsible for replacing and / or exchanging connector cables and devices which have not been specified by Fujitsu Siemens Computers GmbH.

  • Page 16: Notes On Installing And Removing Boards And Modules

    Important notes Notes on installing and removing boards and modules Only qualified technicians should repair the device. Unauthorised opening or incorrect repair may greatly endanger the user (electric shock, fire risk). Boards with electrostatic sensitive devices (ESD) are identifiable by the label shown. When you handle boards fitted with ESDs, you must, under all circumstances, observe the following points: •...

  • Page 17: Manufacturer's Notes

    20 million tons of carbon dioxide into the atmosphere - the equivalent of 5 million automobiles. As an Energy Star Partner, Fujitsu Siemens Computers GmbH has determined that this product meets the Energy Star guidelines for energy efficiency.

  • Page 18: Disposal And Recycling

    Any components not reclaimed will be disposed of in an environmentally acceptable manner. Do not throw batteries or accumulators into the household waste. If you have any questions on disposal, please contact your local office, our hotline/help desk, or: Fujitsu Siemens Computers GmbH Recyclingcenter D-33106 Paderborn...

  • Page 19: Radio Frequencies For Devices With Wireless Lan / Bluetooth

    Important notes Radio frequencies for devices with wireless LAN / BLUETOOTH The following information represents the status of January 2002. Current information is available from the corresponding government office of your country (e.g. www.regtp.de). Frequencies Wireless network cards and adapters are intended for operation in the ISM (Industrial, Scientific, Medical) frequency range between 2.4 and 2.4835 GHz in accordance with the IEEE standard 802.11b.

  • Page 20: Storing The Battery

    Important notes Storing the battery Store the battery in a fully charged state. The battery should be stored in a dry area at a temperature between 0°C and +30°C. The lower the temperature at which the batteries are stored, the lower is the rate of self-discharge. If storing for a long period of time (longer than two months) batteries should be fully charged before storage.

  • Page 21: Transporting The Notebook

    To protect against damaging jolts and bumps, use a notebook carrying case to transport your notebook. Fujitsu Siemens Computers offers a number of solutions for transporting your notebook. The current offering can be viewed on the Internet at http://www.e-shop2.de. •...

  • Page 23: Preparing The Notebook For Use

    Preparing the notebook for use Observe the relevant notes in the "Important notes" chapter and in the manual about your radio component. You must charge the battery and install the application programmes before you can work with the notebook. The operating system and drivers required are preinstalled. When not plugged into a mains outlet, the notebook runs on its built-in battery.

  • Page 24: Connecting The Power Adapter

    Preparing the notebook for use Connecting the power adapter Please take note of the information in the section "Selecting a location". The power cable supplied conforms to the requirements of the country in which you purchased your notebook. Make sure that the power cable is approved for use in the country in which you intend to use it.
  • Page 25 Preparing the notebook for use Ê Press the release button (1), and unfold the LCD screen upwards (2). The power indicator of the notebook appears in the status indicator panel. The battery will charge. The charging indicator and the battery indicator appear in the status indicator panel.

  • Page 26: Switching On The Notebook For The First Time

    Preparing the notebook for use Switching on the notebook for the first time When you switch on your notebook for the first time, the supplied software is installed and configured. Due to the fact that this installation must not be interrupted, you should set aside enough time for it to be fully completed and connect the notebook to the mains outlet using the power adapter.

  • Page 27: Working With The Notebook

    Working with the notebook This chapter describes the basics for operating your notebook. Please see the "Connecting external devices" chapter for instructions on how to connect devices such as a mouse and a printer to the notebook. Please take note of the information in the "Important notes" chapter. Switching on the notebook Ê...

  • Page 28: Switching The Notebook Off

    Working with the notebook Ê Slide the ON/OFF switch in direction of the arrow. The power-on indicator of the notebook appears in the status indicator panel (a). After switch-on a self-test (POST, Power On Self Test) is automatically carried out. Never switch the notebook off during the self-test.
  • Page 29 Working with the notebook Ê Slide the ON/OFF switch in direction of the arrow. Ê Close the LCD screen so that it locks into place. A26391-K119-Z120-2-7619...

  • Page 30: Indicators

    Working with the notebook Indicators The status indicator panel is a small LCD panel on which various symbols appear. These symbols provide information about the status of the power supply, the drives, and the keyboard functions. Power-on indicator Floppy disk indicator PC card indicators Power indicator Battery being charged...
  • Page 31 Working with the notebook The meaning of the symbols are as follows: Power-on indicator • The indicator lights up: The notebook is on. • The indicator flashes (1 second on / 1 second off): The notebook is in energy-saving mode. •...
  • Page 32 Working with the notebook Caps Lock indicator The Ï key has been pressed. All the characters you type appear in uppercase. In the case of overlay keys, the character printed on the upper left of the key appears when that key is pressed.

  • Page 33: Keyboard

    Working with the notebook Keyboard The keyboard of your notebook is subject to continuous wear due to normal use. The keyboard markings are subjected to particularly high loads. The keyboard markings can wear off in the course of using the notebook. The keyboard has been designed to provide all the functions of an enhanced keyboard.
  • Page 34 Working with the notebook Fn key The [Fn] key enables the special functions indicated on overlay keys (see "Key combinations"). Cursor keys The cursor keys move the cursor in the direction of the arrow, i.e. up, down, left, or right. Pause key Pause Break...

  • Page 35: Key Combinations

    Working with the notebook Key combinations The following description of key combinations refers to functions when using Microsoft Windows. Some of the following key combinations may not function in other operating systems and with some device drivers. Key combinations are performed as follows: Ê...

  • Page 36: Touchpad And Touchpad Buttons

    Working with the notebook Touchpad and touchpad buttons Keep the touchpad clean, protect it from dirt, liquids, and grease. Do not use the touchpad if your fingers are dirty. Do not rest heavy objects (e.g. books) on the touchpad or the touchpad buttons. The touchpad enables you to move the mouse pointer on the screen.

  • Page 37: Lcd Display Panel

    LCD display panel Information on LCD monitor High-quality TFT monitors are installed in notebooks from Fujitsu Siemens Computers GmbH. The specification of the monitor resolution indicates how many pixels can be displayed. For example, "XGA" stands for 1024 x 768 pixels. Each pixel consists of three so-called subpixels of the colours red, green and blue.

  • Page 38: Battery

    Working with the notebook Adjusting the speed of the mouse pointer Under Windows you can change the speed of the mouse pointer under Start - Settings - Control Panel - Mouse and clicking on the Motion tab. Under Linux you are able to change the speed of the mouse pointer with Start Application - KDE Control center - Peripherals - Mouse.

  • Page 39: Monitoring The Battery Charging Level

    Working with the notebook Storing the battery Store the battery in a fully charged state. Keep the battery pack between 0°C and +30°C (32 and 122 degrees Fahrenheit). The lower the temperature at which the batteries are stored, the lower is the rate of self-discharge.

  • Page 40: Removing The Battery

    Working with the notebook Removing the battery Ê Unlock the battery lock by pushing the lever (1) in the direction of the arrow and holding it there. Ê Push the battery lock in the direction of the arrow up to the stop (2). Ê...

  • Page 41: Hard Disk

    Working with the notebook Installing the battery Ê Position the battery at the edge of the casing (1). Ê Tilt and put the battery into the battery compartment (2). Ê Push the battery lock in the direction of the arrow up to the stop. Hard disk The hard disk is the most important storage medium of your notebook.

  • Page 42: Module

    Working with the notebook Module The design of your notebook enables the flexible use of notebook batteries and drives. The following modules can be operated in the module slot of your notebook: • CD-ROM drive • DVD-ROM drive • CD-RW drive •...

  • Page 43: Removing Module

    Working with the notebook Removing module Ê Place the notebook on a flat surface. Ê Pull the eject lever (1) in the direction of the arrow up to the stop. The module now extends somewhat beyond the casing. Ê Pull the module (2) out of the module bay. A26391-K119-Z120-2-7619...

  • Page 44: Installing Module

    Working with the notebook Installing module Ê Place the module into the module bay so that the contacts enter first. Ê Push the module into the module bay until you feel it locking into place. A26391-K119-Z120-2-7619...

  • Page 45: Optical Drive

    Working with the notebook Optical drive Your notebook is delivered with an optical drive. Depending on the model, your notebook is equipped with a CR-ROM drive, a CD-RW drive, a DVD-ROM drive or a combo drive (CD- RW/DVD). You can replace your optical drive with another drive, a battery or a "Weight Saver" (see "Module" section).

  • Page 46: Cd/Dvd Indicator

    Working with the notebook CD/DVD indicator The CD/DVD indicator flashes when a CD/DVD is inserted. The indicator goes out when the drive is ready for reading. The indicator lights up when the drive is being accessed. You may only remove the CD/DVD when the indicator is dark. If the CD/DVD indicator does not go out after inserting a CD/DVD, but instead continues to flash, the drive cannot access the data carrier.
  • Page 47 Working with the notebook Ê Pull the drive tray all the way out (1). Ê Place the CD/DVD in the drive tray (2) with the label facing upwards or remove an inserted CD/DVD. Ê Push in the drive tray until you feel it lock into place. A26391-K119-Z120-2-7619...

  • Page 48: Manual Removal (Emergency Removal)

    Working with the notebook Manual removal (emergency removal) In the event of a power failure or damage to the drive it may be necessary to manually remove the CD/DVD. Ê Switch the notebook off. Ê Press a pen or a piece of wire (e.g. a paper clip) firmly into the opening. The drive tray is unlocked.

  • Page 49: Pc Cards

    Working with the notebook PC cards A PC card slot (CardBus or PCMIA) enables the notebook to operate one type I or type II PC card. To use another PC card slot, a module with a PC card slot for a Type I, II or III PC card is available as an accessory (see "Module"...
  • Page 50 Working with the notebook Ê Insert the PC card, contacts first, into the lower slot guide. Ê Gently push the PC card into the slot until you feel it click into place (1). As soon as the PC card is inserted, the eject button pops out. Ê...

  • Page 51: Removing A Pc Card

    Working with the notebook Removing a PC card Ê Fold the eject button (1) out of the notebook in the direction of the arrow. Ê Press the eject button (2). The PC card will project further out of the notebook's case. Ê...
  • Page 52 Working with the notebook Ê Insert the placeholder for the PC card into the lower slot guide. Ê Gently slide the placeholder for the PC card into the slot until you feel it click into place (1). As soon as the placeholder for the PC card is inserted, the eject button pops out. Ê...

  • Page 53: Microphone And Loudspeakers

    Working with the notebook Microphone and loudspeakers 1 = built-in microphone 2 = built-in loudspeakers Your notebook contains a built-in microphone (1) and two loudspeakers (2). If you attach an external microphone, the built-in microphone is disabled. The internal loudspeakers switch off when you attach headphones or external loudspeakers to the audio jack.

  • Page 54: Connecting Notebook Modem To Telephone Connection

    Working with the notebook Connecting notebook modem to telephone connection Ê Connect the modem cable supplied to the country-specific telephone adapter (1) if necessary. Ê Connect the modem cable to the modem port of the notebook (2). Ê Connect the modem cable to your telephone wall socket (3). If you attach your modem on a TAE-N-connector the phone respectively data cable is busy.

  • Page 55: Wireless Lan / Bluetooth

    Working with the notebook Wireless LAN / BLUETOOTH Depending on the device variant, wireless LAN/ BLUETOOTH may be integrated in your notebook. Establishing wireless network connection Ê Push the ON/OFF switch in the direction of the arrow to establish the wireless network connection.

  • Page 56: Wireless Network As Per Ieee 802.11 Standard

    Working with the notebook Ending wireless network connection Ê Push the ON/OFF switch in the direction of the arrow to end the wireless network connection. Detailed information is contained in the online help and in the PDF file on your wireless LAN/BLUETOOTH software.

  • Page 57: Operating System Requirements

    Working with the notebook Adhoc mode A wireless LAN in the adhoc mode, also called peer-to-peer mode, consists of a single closed cell. Adhoc wireless networks result when a workgroup comes together with its systems and would like to interconnect these for data exchange. Any number of systems can be added to this type of network and can leave it again.

  • Page 58: Connecting The Notebook To The Port Replicator

    Working with the notebook Connecting the notebook to the Port Replicator It is not permissible to connect the notebook to the Port Replicator during operation. Ê Switch the notebook off. Ê Unplug the power adapter from the mains outlet. Ê Pull the power adapter cable out of the DC socket (DC IN) of the notebook.

  • Page 59: Disconnecting The Notebook From The Port Replicator

    Working with the notebook Disconnecting the notebook from the Port Replicator It is not permissible to disconnect the notebook from the Port Replicator during operation. Ê Switch the notebook off. Ê Unplug the power adapter from the mains outlet. Ê Slide the locking slide in the direction of the arrow (1).

  • Page 60: Working With Floppy Disks

    Working with the notebook Working with floppy disks Follow the instructions supplied by the vendor of the floppy disks. Floppy disks can be damaged by electromagnetic radiation. Therefore, you should not subject floppy disks to X-rays or airport metal detectors. Check them in as carry-on luggage instead.

  • Page 61: Security Functions

    Security functions Your notebook enables you to protect your system and personal data in a number of ways against unauthorised access. By combining these options, you can achieve maximum protection for your system. In this chapter you will learn which security functions your notebook is equipped with, which advantages these functions offer you and how to configure and use them.

  • Page 62: Smartcard Reader (Only Under Windows)

    Security functions Password protection for the BIOS setup With the Supervisor password you prevent unauthorised opening of the BIOS Setup, and with it access to important system settings. In the BIOS Setup you can also activate protection for the operating system and your hard disk. Password protection for the operating system With corresponding settings in the BIOS Setup you can block starting of the operating system.

  • Page 63: Brief Overview Of The Security Functions

    Security functions Brief overview of the security functions Security function Type of protection Preparation Kensington Lock Mechanical Mount and lock Kensington MicroSaver (accessory) Security Panel (only under Hardware password protection Install the programs provided Windows) with Supervisor and User and specify the numeric password.

  • Page 64: Using Kensington Lock

    Security functions Using Kensington Lock With the Kensington MicroSaver, a sturdy steel cable, you can protect your notebook from theft. For this reason your notebook is equipped with a device for the Kensington MicroSaver. The Kensington MicroSaver is available as an accessory. Ê...

  • Page 65: Configuring And Using Security Panel (Only Under Windows)

    Security functions Configuring and using Security Panel (only under Windows) 1 = Security panel Configuring Security Panel When you put your notebook into operation for the first time, the Security Panel is not activated yet. Assign the necessary passwords with the programs FJSECS.EXE (Supervisor password) and FJSECU.EXE (User password).
  • Page 66 Security functions Assigning the supervisor password The setup programme can be found under Start - AddOn. Ê Double-click on the symbol to start the setup programme for FJSECS.EXE. The programme starts. Ê Enter the programme name FJSECS.EXE under Start - Run. Ê...

  • Page 67: Using Security Panel

    Security functions Assigning the user password The setup programme can be found under Start - AddOn. Ê Double-click on the symbol to start the setup programme for FJSECU.EXE. The programme starts. Ê Enter the programme name FJSECU.EXE under Start - Run. Ê...

  • Page 68: Configuring Password Protection In Bios Setup

    Security functions Configuring password protection in BIOS Setup Before using the various options of password protection for your data security in the BIOS Setup, please note the following hints: • Please keep in mind your passwords in any case, as you will not be able to access your BIOS Setup and/or your system any longer, if you forget both the user password and the supervisor password.

  • Page 69: Password Protection Of Operating System

    Security functions Change supervisor or user password Ê Open the BIOS Setup again and there the Security menu. When changing the password, proceed exactly as for password assignment. You can only change the supervisor password when you have logged into the BIOS Setup with the supervisor password.

  • Page 70: Password Protection For Hard Disk

    Security functions Deactivating system protection Ê Call BIOS Setup and select the Security menu. Ê Mark the Password on Boot field and press the Enter key. Ê Select Disabled and press the Enter key. If you do not want to make any other settings, you can exit BIOS Setup. Ê...

  • Page 71: Configuring And Using Smartcard Reader (Only Under Windows)

    Security functions Configuring and using SmartCard reader (only under Windows) a + b = SmartCard reader a = PC card slot with SmartCard Interface b = SmartCard holder c = SmartCard Installing and removing SmartCard holder To use the SmartCard reader, you must install a SmartCard holder in your notebook. The SmartCard holder is contained in the "Mobile Secure IT Suite", which is available as an accessory.

  • Page 72: Driver Installation

    Security functions Driver installation The inserted SmartCard holder is detected by Windows as new hardware and the driver for the chip is searched for. The driver is provided on the "Security Drivers & Tools" CD, which is also included with the "Mobile Secure IT Suite". Ê...

  • Page 73: Application Examples

    Security functions Change SmartCard PIN To change your PIN you must have already booted your system (with the SmartCard and the current PIN). Ê Pull the SmartCard out of the SmartCard holder and reinsert the SmartCard when requested to do so. The window with the request for the PIN entry opens.
  • Page 74 Security functions SmartCard for creating user profiles With the Smarty software you can assign individual rights for different users within a network with the same basic installation under Windows 2000 and Windows NT. You save these individual user profiles on the SmartCards of the individual users with Smarty. As a result, each user finds his/her individual configuration at any workstation within the network simply by inserting his/her SmartCard.

  • Page 75: Troubleshooting

    Security functions Troubleshooting Security panel You have forgotten your password or passwords. If you have forgotten the user password, you can reset the forgotten user password and specify a new user password with the supervisor password. If the Security panel is active and you have forgotten both the user password and the supervisor password, then contact our help desk.

  • Page 77: Connecting External Devices

    Connecting external devices Under all circumstances, please observe the safety notes provided in the "Important notes" chapter. Read the documentation on the external device before connecting it. Do not connect or disconnect cables during a thunderstorm. Do not pull on the cable when disconnecting a cable. Always take hold of the actual plug. Adhere to the order described in the following when you connect external devices to the notebook or separate them from the notebook: Connecting devices to notebook...

  • Page 78: Connectors On The Right Side Of The Notebook

    Connecting external devices Connectors on the right side of the notebook 1 = Microphone jack 5 = LAN connector 2 = Line In 6 = Modem port 3 = Headphones port 7 = IEEE1394 FireWire connection 4 = USB port Ports at the rear side of the notebook 1 = Infrared interface 3 = Monitor port (with port cover)

  • Page 79: Port Replicator Connectors

    Connecting external devices Port Replicator connectors The ports of the Port Replicator are marked with the following symbols (or with similar symbols): LAN connector Parallel port PS/2 keyboard port Serial port Connection for external floppy disk PS/2 mouse port drive USB port DC jack (DC IN) Monitor port...

  • Page 80: Connecting An External Floppy Disk Drive

    Connecting external devices Connecting an external floppy disk drive Depending on the variant, you can connect an external floppy disk drive to the USB port of the notebook or of the Port Replicator, or to the connection for the external floppy disk drive of the Port Replicator.

  • Page 81: Connecting An External Monitor To The Notebook

    Connecting external devices Connecting an external monitor to the notebook You cannot set monitor settings for the external monitor under Linux. The settings of the notebook LCD monitor are valid. An external monitor can be connected to the notebook. The notebook graphics card supports extended XGA resolutions up to 1280x1024 and 16.7 million colours at 85 Hz.

  • Page 82: Connecting An External Monitor To The Port Replicator

    Connecting external devices Connecting an external monitor to the Port Replicator You cannot set monitor settings for the external monitor under Linux. The settings of the notebook LCD monitor are valid. An external monitor can be connected to the notebook. The notebook graphics card supports extended XGA resolutions up to 1280x1024 and 16.7 million colours at 85 Hz.

  • Page 83: Using The Parallel Port

    Connecting external devices Using the parallel port Ê Switch the notebook off. Ê Connect the data cable of the printer to the parallel interface on the Port Replicator. Ê Plug the printer power cable into the mains outlet. Ê First switch the printer on, then the notebook. Connecting USB devices On the USB ports you can connect external devices that also have a USB port (e.g.

  • Page 84: Ieee1394 Firewire Connection

    Connecting external devices IEEE1394 FireWire connection You can connect external devices such as digital audio/video devices or other high-speed devices to the IEEE1394 FireWire connection. The IEEE1394 FireWire connection operates with 400 Mbit per second. Ê Switch the notebook off. Ê...

  • Page 85: Memory Expansion

    Memory expansion Your notebook has 128 -1024 Mbyte of main memory installed, depending on the upgrade level. The notebook will not start without memory modules, as no fixed main memory is installed. Installing and removing the memory extension Please note the information provided in the "Notes on installing and removing boards and modules"...
  • Page 86 Memory expansion Removing a memory module Ê Carefully push the two mounting clips outwards (1). The memory module will flap upward (2). Ê Pull the memory module out of its slot in the direction of the arrow (3). Installing a memory module Ê...

  • Page 87: Testing Memory Modules After The Installation

    Memory expansion Mounting the cover Ê Place the cover on its mounting location (1). Ê Fasten the cover with the screws (2). Ê Refit the battery. Ê Turn the notebook over and place it on a flat surface. Ê Reconnect the cables. Testing memory modules after the installation Ê...

  • Page 89: Energy Saving Functions

    Energy saving functions The notebook uses less power when the power management features are enabled. You will then be able to work for longer before having to recharge the battery. Never switch off the notebook with the ON/OFF switch while the notebook is in one of the energy-saving modes.

  • Page 90: Windows Operating System With Acpi

    Energy saving functions In the Standby/Suspend-to-DRAM mode the content of your main memory is saved by continuing to supply the main memory with power, while the processor, monitor, hard disk and other internal components are switched off. This mode is activated whenever you press the Suspend/Resume button.
  • Page 91 Energy saving functions Windows Me and Windows 2000 You can set the power-management features for your notebook under Start - Settings - Control Panel - Power Options. Additional information on this service programme is contained in your operating system help files. Windows XP You can set the power-management features for your notebook under Start - Control Panel - Power Options.

  • Page 93: Settings In Bios Setup

    Settings in BIOS Setup In BIOS Setup you can set the system functions and the hardware configuration of the notebook. The settings can only be changed via the keyboard. When it is delivered, the notebook is set to factory default settings. You can change these settings in BIOS Setup.

  • Page 94: Operating Bios Setup

    Settings in BIOS Setup Operating BIOS setup Press the [F1] key to display help on the operation of BIOS Setup. The description of the individual settings is shown in the right-hand window of the BIOS Setup. You can revert to the default settings for the BIOS Setup menu you are currently in, by using the [F9] function key.

  • Page 95: Troubleshooting And Tips

    Troubleshooting and tips Take note of the safety hints in the "Important notes" chapter, when you connect or disconnect cables. If a fault occurs, try to correct it as described. If you fail to correct the problem, proceed as follows: Ê...

  • Page 96: The Notebook's Date Or Time Is Incorrect

    Troubleshooting and tips The notebook's date or time is incorrect Ê Double-click on the clock in the task bar and adjust the time. Ê Set the time and/or date in the BIOS Setup menu Main. If the date and time are repeatedly incorrect when you switch on the notebook, the buffer battery that supplies the internal clock is dead.

  • Page 97: The External Monitor Is Blank Or The Image Is Unstable (Only Under Windows)

    Troubleshooting and tips Monitor is switched off Ê Switch the external monitor on. Power saving has been activated (screen is blank) Ê Press any key to continue. Brightness control is set to dark Ê Adjust the brightness control. Screen output is set to the notebook’s LCD screen Ê...

  • Page 98: The Notebook Cannot Be Started

    Troubleshooting and tips The notebook cannot be started If the notebook does not start after switch on, this may be due to one of the following: The battery is not installed correctly Ê Switch the notebook off. Ê Check whether the battery is installed correctly in its compartment. Ê...

  • Page 99: The Mouse Does Not Work

    Troubleshooting and tips The mouse does not work If the connected mouse does not work, the following can cause it: Touchpad driver is not installed properly Ê Deinstall the touchpad driver. Ê Install under Windows the actual driver from the "Drivers & Utilities" CD. Mouse driver is not loaded Ê...

  • Page 100: Error Messages On The Screen

    Troubleshooting and tips Error messages on the screen This section describes the error messages generated by the BIOS-Setup. Error messages displayed by the operating system or programmes are described in the relevant documentation. CMOS Battery Bad If the error message occurs repeatedly, then the buffer battery in the notebook is flat. Ê...
  • Page 101 Troubleshooting and tips Failure Fixed Disk n The settings of the hard disk drive are incorrect. Ê Start the BIOS Setup (IDE Adapter 0 Master submenu) and select the correct settings. Fixed Disk address conflict Diskette Drive address conflict There is an I/O address conflict. Ê...
  • Page 102 Troubleshooting and tips nnnnK Shadow RAM failed at offset: xxxx Failing Bits: zzzz Ê Contact your dealer. System battery is dead - Replace and run SETUP Ê Contact your dealer. System cache error - Cache disabled Ê Contact your dealer. System timer error Ê...

  • Page 103: Technical Data

    Technical data Notebook Processor: Intel Pentium III-M with 1 GHz Main memory (SO DIMM 3.3 V): 128 -1024 Mbyte SD RAM 2 slots for 128, 256 or 512 Mbyte modules JEDEC 144 pin • Possible modules: CD-ROM drive • DVD-ROM drive •...

  • Page 104: Battery

    Technical data Slots PC Card slots (CardBus/PCMCIA): PCMCIA 1 x type I or 1 x type II, PC card controller OZ 711E1 Connections on notebook • Monitor port: 15-pin female connector • Modem port: connector, RJ11 • LAN connector: connector, RJ45 •...

  • Page 105: Power Adapter

    Technical data Power adapter Primary • Rated voltage: 100 V to 240 V (automatic) • Frequency: 50 Hz to 60 Hz (automatic) • Max. rated current: 0.7 - 1.2 A Secondary • Rated voltage: 16 V • Max. rated current: 3.75 A A26391-K119-Z120-2-7619...

  • Page 107: Index

    Index 56k modem 43 CD-ROM drive 35 indicator 21 installing 34 removing 33 Acoustic warnings 89 CD-RW drive 35 ACPI 80 indicator 21 Alt Gr key 23 installing 34 Anti-theft protection 54 removing 33 Audio devices, connecting 43, 73, 74 CE marking 8 Audio ports 43, 73 Charging indicator, battery 21...
  • Page 108 Index Enter key 23 Indicators 20 Error correction 85 Infrared interface 68 Error message Inventory 13 acoustic 89 on the screen 90 ESD 6 Kensington Lock, applying 54 External devices, connecting 67 Kensington MicroSaver 54 External floppy disk drive 49 External keyboard, connecting 72 Backspace 23 External monitor...
  • Page 109 Index Memory expansion 75 PC card 39 installing 76 installing 39 removing 76 removing 41 testing 77 PC card indicators 21 Memory module PCMCIA, see PC card important notes 75 Peripherals, see devices installing 76 Pointer, changing the speed 28 removing 76 Port Replicator 47 testing 77...
  • Page 110 Index Signs and symbols 2 Transport 10, 11 SmartCard 62 Trouble, correction 85 SmartCard holder, installing and removing 61 Troubleshooting 85 SmartCard reader Handling problems 65 PC 61 USB devices using 61 connecting 73 Standby mode 79 software 70, 73 Start key 24 USB port 68, 70, 73 Status indicator panel 20...
