• UTIL%
Color
Function
This indicator is designed for network traffic monitoring and the degree
Of traffic is divided into 5 grades--5% ... 75+% are denoting the
Percentage of bandwidth of the network is used and how the network
Loading is.
The denotation of 75+% means the network bandwidth is used more
than 75%.Simply speaking,if we treat the network bandwidth of
100Mbps to be 100%,then75+% does mean the network traffic occupy
more than 75% network bandwidth for data transmitting or receiving.
2.1.2 100BASE-TX Twisted-Pair Port
The RJ-45 phone jacks are located in the front panel. They are designed for
10BASE-T/100BASE-TX Twister-Pair cable connection with UTP CAT 5
cables.

2.2 Rear panel

The rear panel includes one power connector, which accepts 100-240V AC,
50-60Hz power input.
7
: Green for 5,15,25,50% and Yellow for 75+ %
: Network utilization indicator

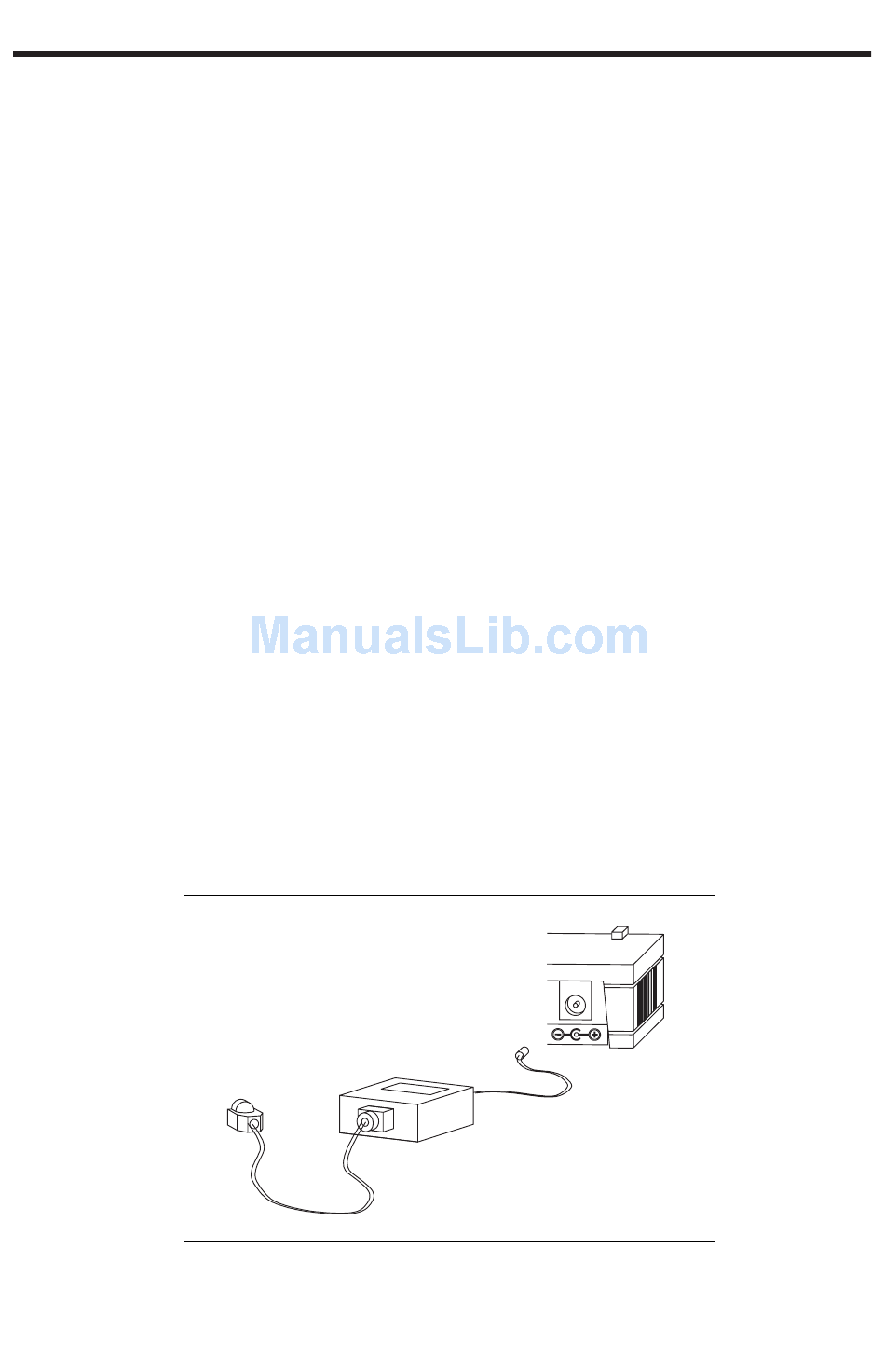

Figure 2 . 2 . 1 t h e rear panel
User's Manual
