E-1. Connections For Auxiliary Alert Device - AT&T Door Phone Controller Installation And Operation Manual

AT&T AUXILIARY
ALERT DEVICE
48VDC
EXTERNAL
ALERT
SIGNAL

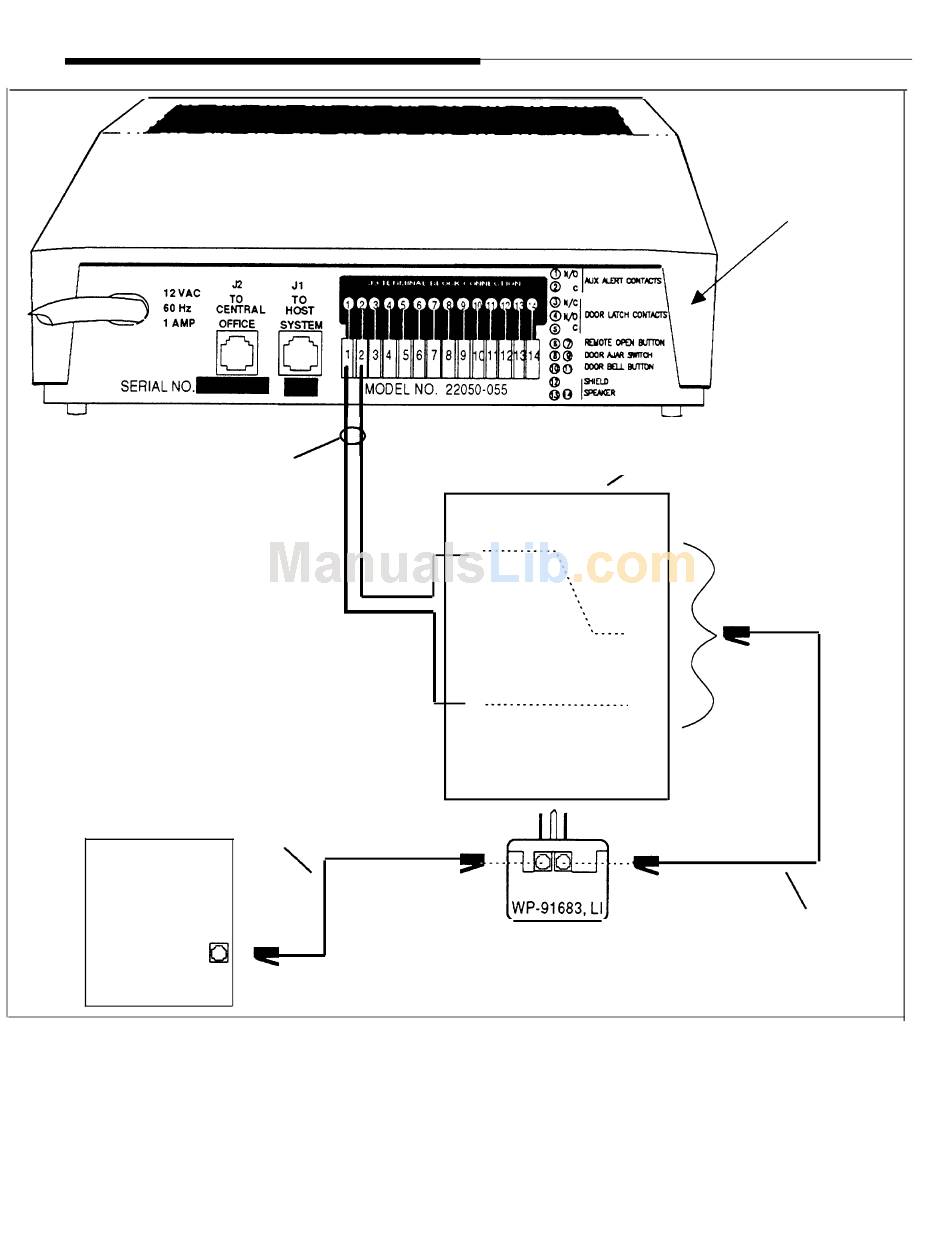

Figure E-1. Connections For Auxiliary Alert Device
2 PAIR DIW
OR EQUIVALENT
22-26 AWG.
YELLOW
DW4A CORD
(OR EQUIVALENT)
CONNECTOR
1
2
BLACK
3
4
5
6
7
8
POWER CONTROL
PEC 60314
COMCODE 405712928
Auxiliary Alert Device Connections
AT&T DOOR
PHONE CONTROLLER
BACK PANEL
103A
CONECTOR BLOCK
JACK
1
2
3
4
5
6
7
8
DW4A CORD
(OR EQUIVALENT)
E-3
