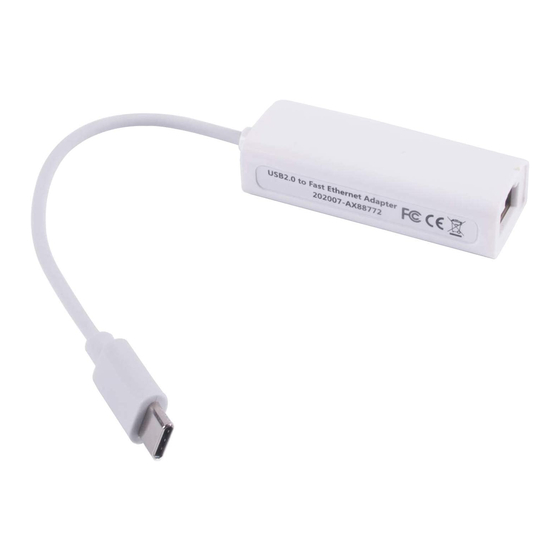

ASIX AX88772 User Manual

Usb 2.0 ethernet adapter
Hide thumbs Also See for AX88772:
Table of Contents

Advertisement

Quick Links

See also: User Manual , Installation Manual
USB 2.0 Ethernet Adapter
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AX88772 and is the answer not in the manual?

Questions and answers

Related Manuals for ASIX AX88772

Summary of Contents for ASIX AX88772

  • Page 1 USB 2.0 Ethernet Adapter User’s Manual...

  • Page 2: Safety Instructions

    Safety Instructions Always read the safety instructions carefully Keep this User’s Manual for future reference Keep this equipment away from humidity If any of the following situation arises, get the equipment checked by a service technician: • The equipment has been exposed to moisture. •...

  • Page 3: Table Of Contents

    Table of Contents 1. Introduction .......................1 Features ..........................1 Package Contents ......................1 System Requirements......................2 LED Status ........................2 2. Installation ......................3 On Windows 2000/XP/Vista ..................... 3 Verifying the Driver Installation on Windows ..............5 On MAC OS X 10.x......................6 Verifying the Driver Installation on Mac ................

  • Page 4: Introduction

    1. Introduction 1. Introduction The USB 2.0 Ethernet Adapter allows your computer instantly connect to a 10/100Mbps network through simply a USB port; no hassle to open up your computer case as is required for an internal card now! It’s also an ideal USB-to-LAN alternative for gaming console that needs network access in an environment lacking wireless capability.

  • Page 5: System Requirements

    USB 2.0 Ethernet Adapter User’s Manual System Requirements IBM compatible Pentium-233MHz or faster PC or Mac 64 MB RAM or more One available USB port Windows ® 2000, XP, Vista ; Mac OS X 10.x LED Status Color Description Power Green On for connection to a 100Mbps network.

  • Page 6: Installation

    2. Installation 2. Installation On Windows 2000/XP/Vista Caution: DO NOT connect the Ethernet adapter to your computer before you install the provided driver. You will be instructed to do so later. 1. Insert the provided CD into your disc drive. Please locate and double-click the setup.exe file under x:\Driver\Windows where x is your disc drive letter.
  • Page 7 USB 2.0 Ethernet Adapter User’s Manual 4. When the installation is done, click Finish. (On Windows 2000, you will need to restart your computer as prompted.) 5. Connect the Ethernet adapter’s USB end to a free USB port of your computer. Then a pop-up message will appear in the notification area indicating the installation is complete.

  • Page 8: Verifying The Driver Installation On Windows

    On Windows XP/2000: Right-click My Computer on the desktop and click Properties > (Hardware) > Device Manager. In the Network adapters group, an item named ASIX AX88772 USB2.0 to Fast Ethernet Adapter should be displayed. If there is a question or exclamation mark next to that item, then the driver is not properly installed.

  • Page 9: On Mac Os X 10.X

    USB 2.0 Ethernet Adapter User’s Manual On MAC OS X 10.x Insert the provided driver CD into your CD-ROM drive. Double-click the CD and navigate to the directory of \Driver\Mac10.x. In the directory of Mac10.x, please double-click AX88772_10.4 to execute the installer program.
  • Page 10 2. Installation Please select a destination volume to install driver software and click on Continue. Click on Upgrade or Install to continue this installation. Make sure that you want to install this driver now and the computer will be restarted once the installation is done. Please click on Continue Installation to continue this installation.
  • Page 11 USB 2.0 Ethernet Adapter User’s Manual Click on Restart to take the new settings effect. Now the installation is complete. You can connect the adapter to a network device by an Ethernet cable: 1. Connect an Ethernet cable to the Ethernet port on the adapter. 2.

  • Page 12: Verifying The Driver Installation On Mac

    Verifying the Driver Installation on Mac Once you finish the installation of Ethernet Adapter, please navigate to System Profiler>Hardware>USB, then you will find the driver of AX88772. Also navigate to System Preference>Network, please click on Renew DHCP Lease and Apply Now as following to verify the installation of driver and Ethernet...

  • Page 13: Specifications

    USB 2.0 Ethernet Adapter User’s Manual 3. Specifications Items Descriptions Network Standards IEEE 802.3: 10Base-T IEEE 802.3u: 100Base-T Data Transfer Rates Ethernet: 10Mbps/20Mbps (Half/Full Duplex) Fast Ethernet: 100Mbps/200Mbps (Half/Full Duplex) Data Bus USB 2.0 (1.1 compliant) LED Indicators Power, Link Power Consumption 850mW Power Management...

  • Page 14: Regulatory Compliance

    4. Regulatory Compliance 4. Regulatory Compliance FCC Conditions This equipment has been tested and found to comply with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference (2) This device must accept any interference received.
