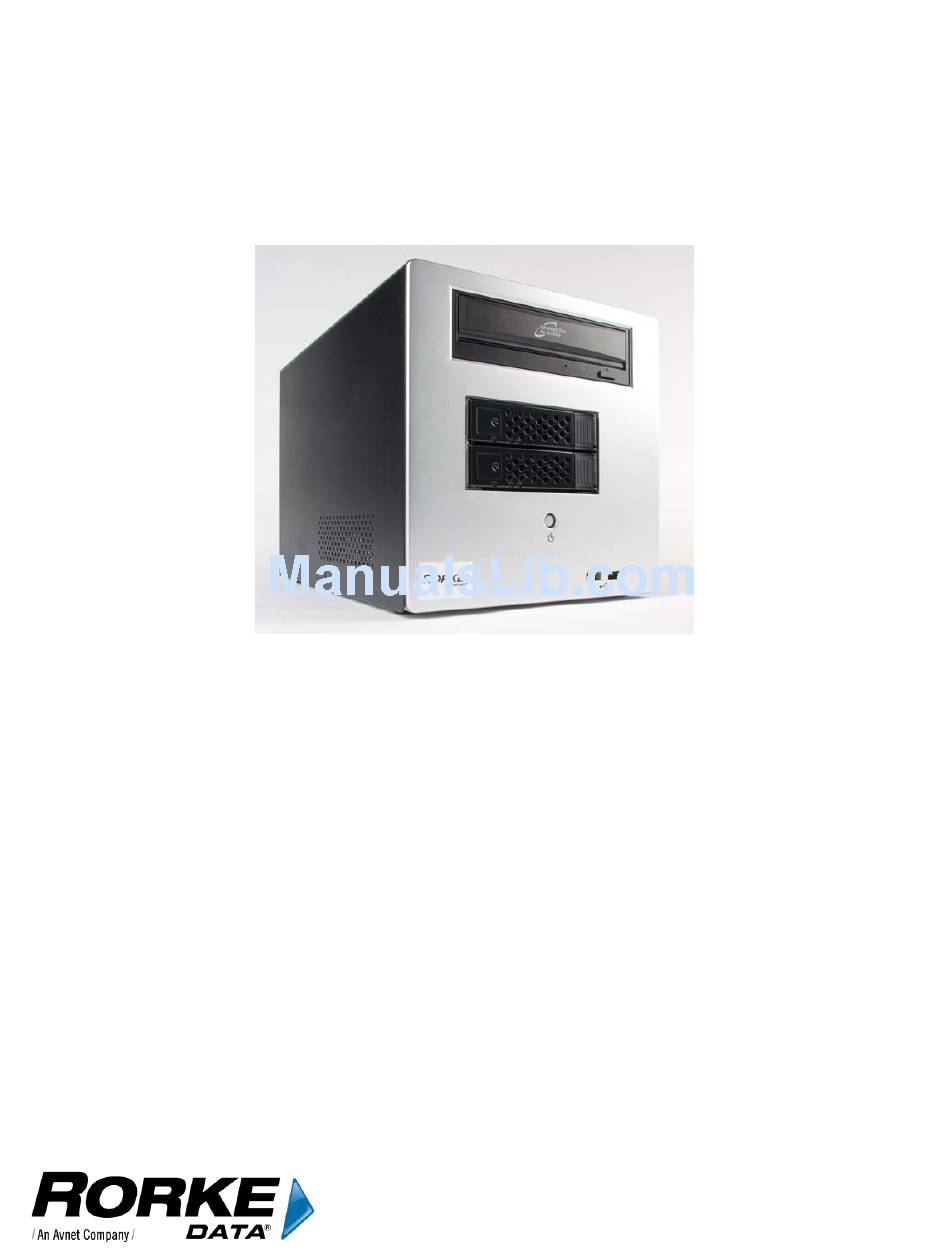

Galaxy GHDX2 ADA
DICOM Storage and Archive Appliance
Technical, Administrator,
and User's Guide
This guide provides step-by-step instructions for installation, setup, configuration,
and maintenance of the Rorke Data Galaxy ADA DICOM Appliance
Featuring the Panasonic ADA optical drive.
GADA-B45P6
January 15,2012

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Galaxy GHDX2 ADA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rorke Data Galaxy GHDX2 ADA

Summary of Contents for Rorke Data Galaxy GHDX2 ADA

  • Page 1 Galaxy GHDX2 ADA DICOM Storage and Archive Appliance Technical, Administrator, and User’s Guide This guide provides step-by-step instructions for installation, setup, configuration, and maintenance of the Rorke Data Galaxy ADA DICOM Appliance Featuring the Panasonic ADA optical drive. GADA-B45P6 January 15,2012...
  • Page 2 Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® This page left blank intentionally...

  • Page 3: Copyright 2011

    Furthermore, Rorke Data reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation to notify any person of such revisions or changes. Product specifications are also subject to change without prior notice.

  • Page 4: Safety

    Rorke product. • Do not block or cover the openings of the Rorke Data product. Never place a Rorke Data product near a radiator or heat register. Failure to follow these guidelines can cause overheating and affect the reliability of the Rorke Data product.
  • Page 5 Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® (applies in the U.S. and Canada) FCC Class A Radio Frequency Interference Statement This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device may accept any interference received, including interference that may cause undesired operation.
  • Page 6 Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® components to ensure that products sold on or after 1 July 2006, in such territory, are in compliance with the above regulations. This device is in conformity with WEEE standards. Rorke is committed after 1 July 2006, in such territory, are in compliance with the above regulations.

  • Page 7: Address

    Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® IF YOU NEED ASSISTANCE Contact Rorke Data Technical Support: • Worldwide Support, Dial Toll Free 1-800-328-8147 or Toll 1-952-829-0300 • Or E-mail support in North America is available through rorkesupport@avnet.com...
  • Page 8 This License Agreement is your proof of License. Please treat it as valuable property. Overview The software included on the Rorke Data Galaxy DICOM Appliance has been specifically created by QStar Technologies Inc for use only on this device. QStar LICENSE AGREEMENT This is a legal Agreement between you (either an individual or an entity) and QStar Technologies, Inc.
  • Page 9 Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® DISCLAIMER AND LIMITED WARRANTY. QStar Technologies warrants that the SOFTWARE will perform substantially in accordance with the accompanying product manuals for a period of ninety (90) days from the date of receipt. Any implied warranties on the SOFTWARE are limited to ninety (90) days.
  • Page 10 Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® Commercial Computer Software-Restricted Rights at 48 CFR 52.227-19, as applicable. Manufacturer is QStar Technologies, 2175 West Highway 98, Mary Esther, FL 32569-1450 Unpublished – All rights reserved under the copyright laws of the United States and of other countries.

  • Page 11: Table Of Contents

    Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® TABLE OF CONTENTS: COPYRIGHT 2011 ....................2 LIMITED WARRANTY ................... 2 CHANGES ......................2 SAFETY ......................3 Address: ......................6 ABOUT THE DICOM APPLIANCE ................14 Overview ..................... 14 Key Features ....................15 Benefits .......................
  • Page 12 Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® MEDIA-MEDIA MANAGEMENT ................38 Media-Online Media ..................38 Media-Offline Media ..................38 Media-Copy Media (Creating a Second Copy) ............ 39 INTEGRAL VOLUMES-VOLUME MANAGEMENT-INTEGRAL VOLUME SET ....41 INTEGRAL VOLUMES-MIGRATION VIEW - VIEWING THE STATUS OF THE CACHE ..42 Migration View ....................
  • Page 13 Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® APPENDIX C: RECOVERY FROM A MULTIPLE HARD DRIVE FAILURE......71 APPENDIX D: RECOVERY FROM A CATASTROPHIC FAILURE ........78 APPENDIX E: INITIAL PRODUCTION INSTALLATION FROM USB ......79 APPENDIX F: INITIAL PRODUCTION INSTALLATION FROM SATADOM IMAGE ... 89...
  • Page 14 Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® This page left blank intentionally...

  • Page 15: About The Dicom Appliance

    Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® Congratulations on the purchase of a DICOM Appliance. This guide discusses how to unpack, setup and use the DICOM Appliance and its management tools. About the DICOM Appliance The DICOM Appliance provides a mirrored hard disk architecture and an integrated Panasonic ADA (Advanced Disc for Archive) Drive, bringing a high level of reliability for your DICOM archives.

  • Page 16: Key Features

    Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® Key Features • Central storage server with complete DICOM protocol support to handle all different types of DICOM images and reports. • Web-based user interface for system administration. • Fast transfer and access time (limited by the network bandwidth) for store and retrieval requests.

  • Page 17: Specification

    Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® Specification Application Services: • Password protected web-based administration (HIPAA). • Server network configuration. • Peer registration services. • License management. • Patient data management services. • Event log management. • Server running status indicators with restart services.

  • Page 18: Phase One - Preparing The Hardware For Use

    Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® Phase One - Preparing the Hardware for Use Unpacking Instructions Inspect the box for shipping damage: If the shipping container is damaged, notify the shipper immediately. Any delay in notification could result in claim loss. Prior to opening the box, move the box as close to the unit’s installation site as possible.

  • Page 19: Before Beginning The Installation

    Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® Before Beginning the Installation • Unpack the system and verify the contents • Remove any clear plastic coating from the front or rear top covers of the appliance • Verify that all the components and hardware shown in “Accessory box contents” are present Connecting the Appliance This section explains how to attach all the cords and cables needed to get the appliance up...

  • Page 20: Connecting The Power Cord

    Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® Connecting the Power Cord • Connect the AC power cord to the power inlet at the back of the appliance • Connect the other end of the AC power cord to an AC outlet Connecting a Keyboard and Monitor To access the appliance directly, a locally attached monitor and a PS/2 or USB keyboard will be needed.

  • Page 21: Determining The Ip Address Of The Appliance From The Cli

    Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® Determining the IP Address of the Appliance from the CLI If the IP address cannot be determined from other means, do the following to get the DHCP address that was assigned to the Appliance during the boot process: •...

  • Page 22: Maintaining The Dicom Appliance

    Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® Maintaining the DICOM Appliance • The DICOM Appliance can be monitored and maintained remotely through the Web Administration interface. • Remove dust from the DICOM Appliance periodically using a slightly damp cleaning cloth with water or mild detergents.

  • Page 23: Understanding The Indicators

    Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® Understanding the Indicators The system, without hardware faults, will show a large power light on the power switch located on the front panel. There will also be two smaller green lights on each hard disk drive.

  • Page 24: Phase Two - Preconfigured Settings For The Dicom Appliance

    Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® Phase Two – Preconfigured settings for the DICOM Appliance Using the Web Graphical User Interface (GUI) This section provides overview instructions for configuring the Appliance using the Web GUI. This guide explains some of what will need to be done, and points to the appropriate software manuals for the rest of the information.

  • Page 25: Understanding The Gui Menu

    Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® Understanding the GUI Menu Once the login is complete Welcome screen will appear. To maneuver within the GUI use the menu on the left side of the screen. Note: The items available from the menu may vary depending on the products configured and licensed on...
  • Page 26 Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® The menu is segregated into main sections with their appropriate sub sections. For example, System Administration is a main section and the sub sections are System Setup, License Manager, Software Upgrade, Shutdown and Logout (see left side).

  • Page 27: System Administration - Performing System Administration

    Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® System Administration - Performing System Administration Confirming the System Setup Setting the Date and Time To begin select System Setup and the list will expand, then select the Date/Time option. If the Date and Time are incorrect, make...

  • Page 28: Configuring Email Notification

    Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® Configuring Email Notification System Administrators can receive email notification about abnormal events in the GalaxyDICOM Appliance. Abnormal events for example are; drive/jukebox failures, unrecoverable write errors, RAID failures, requests for additional medium (no more space in the Integral Volume set), requests for media that are currently offline, etc.

  • Page 29: Access Management

    Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® Access Management Configuring Users and Groups The functionality allowed for a particular user is defined when the user logs into the system. Once the user is logged in, the GUI assigns that user a certain set of rights to perform some defined set of operations.
  • Page 30 Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® Enter the Role Name. Expand desired Available Privileges section by clicking on the + sign. Select individual privileges that will assigned to the Role being created. When finished push the Update button to save the new settings.

  • Page 31: Users

    Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® Users By Default three Users are configured. The “root” user has all rights to the system, even if no rights are specified. It should be used mostly for configuring the Galaxy Appliance and Galaxy User Management.
  • Page 32 Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® User displayed list configured Users.

  • Page 33: Managing The Licenses

    Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® Managing the Licenses Licensing the GalaxyDICOM Appliance in the Archive Manager The GalaxyDICOM Appliance will be delivered with a license installed. Should a new license be required select, License Manager, then select Archive Manager from the menu to begin licensing the Storage Archive.

  • Page 34: Shutdown

    Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® Shutdown Select Shutdown from the menu to Halt or Reboot the DICOM Appliance. Reboot DICOM Appliance select the Reboot button confirm selection. To Halt the DICOM Appliance select the Halt button and confirm selection.

  • Page 35: Monitoring The Server And Attached Hardware

    Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® Monitoring the Server and attached Hardware Appliance Monitoring From Monitoring select Server to monitor the Integral Volumes and jukeboxes that have been configured. The information in each section will update automatically as the status changes providing...

  • Page 36: Scheduling

    Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® Note: In case of a hard drive failure see the appropriate Appendix for detailed instruction on RAID recovery operations. Scheduling Scheduling lists all the information for the delayed jobs present in the queue controlled by the Scheduler process.

  • Page 37: Archive Administration - Administering The Archive

    Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® Archive Administration – Administering the Archive The DICOM appliance is shipped with the Archive Administration pre-configured. The following is provided for information and diagnostic purposes and can be skipped if desired. See Phase 3 to continue the setup process.

  • Page 38: Devices-Defaults-Configuring The Defaults For Delayed Jobs

    Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® A Simulated Jukebox named jbsd has already been created on the hard disk. Four simulated drives each with media equivalent to the size of the physical ADA media being used (normally 50GB rewritable) ready receive studies.

  • Page 39: Media-Media Management

    Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® Media-Media Management Media-Online Media The Simulated Jukebox with four pieces of Media and a standalone ADA Bluray drive can be seen using the drop down in Device Name to select which Jukebox view.

  • Page 40: Media-Copy Media (Creating A Second Copy)

    Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® Media-Copy Media (Creating a Second Copy) From the Copy Media page the System Administrator can execute a duplication process of the media that has been selected. The Copy Media procedure creates a duplicate of the original media in the Integral Volume set, if an original media is damaged, the duplicate media can be used to replace the damaged media.
  • Page 41 Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® To create a duplicate copy of the media in shelf 1 of the source (jbsd) to the media in the ada drive, select Copy radio button. Highlight shelf 1 in the Source Media window and select the ada drive in the Destination Media window and select the Copy...

  • Page 42: Integral Volumes-Volume Management-Integral Volume Set

    Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® Integral Volumes-Volume Management-Integral Volume Set The DICOM Appliance has already been pre-configured to include an Integral Volume named pacs_nearline, with Incremental Copy configured, an online_cache, used as DICOM primary storage (majority of the disk available within Appliance)

  • Page 43: Integral Volumes-Migration View - Viewing The Status Of The Cache

    Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® Integral Volumes-Migration View - Viewing the Status of the Cache Migration View Select Migration View to monitor the migration of the data in the cache. Archiving is automatic based on pre- selected policies.

  • Page 44: Integral Volumes-Explorer-Viewing The File System Attributes

    Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® Integral Volumes-Explorer-Viewing the File System Attributes Using the Explorer Select the Explorer section to view the attributes of the files in the file system. The Integral Volume set name will appear Explorer window.

  • Page 45: Phase Three - Preparing The Dicom Appliance For Use

    Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® Phase Three - Preparing the DICOM Appliance for Use Now that phase one and two are complete it is time to prepare the GalaxyDICOM Appliance for use. Note: By setting up this product you are accepting all terms & conditions of the QStar License Agreement.

  • Page 46: Galaxydicom Appliance Administration

    Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® GalaxyDICOM Appliance Administration The DICOM Appliance Administration section is a collection of user configuration pages provided for administrating the DICOM Appliance application. Server Configuration The Server Configuration provides a user interface to configure the archive and query the application and communication parameters.

  • Page 47: Adding An Entity By Ae Title

    Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® 1. TLS_RSA_WITH_AES_128_CBC_SHA 2. SSL_RSA_WITH_3DES_EDE_CBC_SHA 3. – For authentication using TLS connections the X509 certificates are used and the X509 certificate of the remote applications must be signed to be accepted by the GalaxyDICOM archive. Adding an entity by AE title Any entities that must communicate with the GalaxyDICOM Appliance...

  • Page 48: Deleting An Entity By Ae Title

    Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® 4. To test whether the connection is working, click Echo. 5. If the test passes, click Apply Changes. If the test fails, repeat step 3 until the Echo test passes. Deleting an entity by AE title To modify entities, you must have the Web Admin access level.

  • Page 49: Understanding The Study Management Page

    Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® Study Management Page Understanding the The page view includes the following components: 1. Menu page: Click on this menu item to open the page. 2. Search entry fields: Defines the criteria you can search on. 3.
  • Page 50 Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® 9. Study: Indicates the study information including; Date/Time, Study ID, Modalities, Study Description, Accession Number, Referring Physician, Number of Series, Number of Instances/Images. 10. Series: Indicates the series information including; Date/Time, Series Number, Modality, Series Description/Body Part /IUID (Series Instance Unique Identifier), Vendor/Model, Number of Images.

  • Page 51: Managing Patients, Study, Series Image Information

    Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® Managing Patients, Study, Series Image Information Finding patients or studies Find patients and studies using the search fields in the Folder tab of the Administration Tools. To find patients or studies 1.

  • Page 52: Showing The Series Instance Uid Or Series Description/Body Part Column

    Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® Showing the series instance UID or series description/body part column In the Folder tab of the Administration Tools, choose whether to show the Series Description/Body Part column or the Series IUID column. To show the series instance UID or series description/body part column 1.

  • Page 53: Viewing Dicom Attributes

    Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® Viewing DICOM attributes Using the Administration Tools, you can view the DICOM attributes for a series instance stored by the DICOM Appliance. Note: DICOM attributes can only be viewed if the study is stored in the cache, or in the cache and on the Archive Server.

  • Page 54: Restoring Deleted Objects

    Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® The objects you selected are deleted from the database and the image cache volume, but not the Archive Server. Deleted objects are placed in the Trash. You can switch to the Trash tab to: •...

  • Page 55: Status

    Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® 6. From the drop-down list next to Send , select the AE title to send the objects 7. Click Send. The objects are sent to the selected destination. If the send fails, ensure you have added the objects used to the Data Center AE Title used to the Administration Tools.

  • Page 56: System Logs-Monitoring System Events

    Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® System Logs-Monitoring System Events The System Logs section contains the Syslog, and the Console Log that can be used as tools to monitor the system’s events. These tools provide a quick look at the activity of the Software and can help to identify and solve potential problems that occur during the runtime of the system.

  • Page 57: Viewing The Console Log

    Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® Viewing the Console Log Warning messages are emailed to the System Administrator but, to ensure operations are carried out correctly they are also recorded in the Console Log. A suggestion is to leave a monitor connected to the server to ensure the correct operation is carried out.

  • Page 58: Help Menu

    Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® Help menu The Help section of the menu contains the About, Manual and the License Agreement pages that can be used for information about the system. These tools provide a quick look at the current version of the Software and the Manual and which can help to identify and solve potential problems while working with support personnel.

  • Page 59: Phase Four - Managing The Ada Media

    Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® Phase Four – Managing the ADA Media By default the ADA drive is configured to do an automatic Incremental Copy of the simulated media in the jukebox named jbsd. This procedure ensures that the data written to the GalaxyDICOM is copied to a physical media which can be stored in a safe place.

  • Page 60: Understanding The Incremental Copy Status Window

    Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® Understanding the Incremental Copy Status Window Incremental Copy status window displays current status of the Source and the Replica media. The Vol column displays the sequence number of the source media within the Integral Volume set.

  • Page 61: Clearing An Error Or Replacing A Replica Media

    Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® Clearing an Error or Replacing a Replica Media Incremental Copy status window for the Integral Volume set pac_nearline is displaying an error. From this window there several options available: Refresh, Replace, Reset Close.

  • Page 62: Changing A Replica Media When The Current Copy Is Complete

    Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® Changing a Replica Media when the Current Copy is Complete When the Incremental copy completes the Yellow Warning triangles will appear on the GalaxyDICOM menu bar and the Status page indicating User intervention is required.
  • Page 63 Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® Once the Go button has been pushed Operation box will reflect a status of Working. The Tray of the ADA drive will open, remove media, label it with the information typed in on the Status page and place a new media in the tray.

  • Page 64: Importing Or Exporting The Ada Media

    Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® Importing or Exporting the ADA media Importing and exporting the ADA media can be done in two places depending on the situation. If the media is to be imported/exported with no pending request the Media/Online Media page is the correct method.
  • Page 65 Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® Importing or Exporting media from the Status page To Change the Replica media select the Status page from the GalaxyDICOM menu. The Operator Action Requested section will describe the action required.

  • Page 66: Importing Legacy Dvd Media

    Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® Importing Legacy DVD Media To Import DICOM images, studies or PET raw images to the GalaxyDICOM the import script must be run from the console or using ssh, Command Line (CLI) on the GalaxyDICOM. To work directly on the console a monitor and key board will need to be attached to the GalaxyDICOM.

  • Page 67: Appendix A: Glossary

    Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® Appendix A: Glossary Accession number A unique ID or job number that is generated by the hospital RIS and used for tracking each exam and its corresponding patient name, date, and exam type. AE title Application Entity title of a DICOM station.

  • Page 68: Port Number

    Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® An algorithm that is used to verify data integrity through the creation of a 128-bit message digest from data input (which may be a message of any length). Modality Any of the various types of diagnostic or treatment equipment or probes used to acquire images of the body such as CT, MR, Ultrasound, X-Ray, etc.

  • Page 69: Appendix B: Recovery From A Single Hard Drive Failure

    Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® Appendix B: Recovery from a Single Hard Drive Failure Failure Discovery A RAID-1 failure (failure of one physical disk) shall be discovered by the GalaxyDICOM software. It will be indicated in the Web Interface menu as a yellow warning triangle, where it can be seen no matter what page is being viewed.
  • Page 70 Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® DICOM Appliance supports swappable hard drives. Begin the repair process by removing the hard drive from the unit; this is done by pushing the lock to the right to unlock the hard drive and then sliding the drive out of the unit.
  • Page 71 Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® After a moment the GUI will refresh warning Triangles will be gone from the menu, the light on the hard drive will turn Green and the Highlighted button will no longer be available. The RAID Units will display progress Rebuilding process in %.

  • Page 72: Appendix C: Recovery From A Multiple Hard Drive Failure

    Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® Appendix C: Recovery from a Multiple Hard Drive Failure Failure Discovery A complete data disk failure will be discovered by several subsystems, for example PostgressDB, QStar HSM, JBOSS functionality and warning symbols in the Web Interface. The complete failure of the data disks may be the result of the RAID controller failure.
  • Page 73 Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® Because this procedure requires the use of command line and there is a possibility that there will be a loss of network connectivity a Monitor and USB keyboard will need to be attached to the GalaxyDICOM Appliance.
  • Page 74 Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® NOTE: You must contact your hardware support organization personnel for replacement disk drives. With the GalaxyDICOM Appliance powered off, remove both hard drives. Begin the repair process by removing the hard drives from the unit;...
  • Page 75 Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® Step 2 GalaxyDICOM Hardware Configuration 1. Configuring the RAID controller: a. During the boot the RAID controller screen will appear, use CRTL-H to enter the RAID controller utility. b. In the menu select Create, and using the up and down arrows, select RAID 1 from the list configurations.
  • Page 76 Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® ---------------------------------------------------- 12:56:54 -- INFO -- Checking all DICOM components... 12:56:54 -- INFO -- NO - partition /dev/sdb1 on /media/v1 12:56:54 -- INFO -- NO - partition /dev/sdb2 on /mnt/pacs_online 12:56:54 -- INFO -- NO - partition /dev/sdb3 on /mnt/postgresql 12:56:54 -- INFO -- OK - QStar servers...
  • Page 77 Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® ---------------------------------------------------- 12:57:24 -- WARNING -- The recovery process needs to be perfromed. 12:57:24 -- WARNING -- The script will erase all data in database. Are you sure? [y/n] 08:53:58 -- WARNING -- The data base will be recovered from the BD-RE disk.
  • Page 78 Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® 13:00:31 INFO Restoring from file [/mnt/pacs_nearline/postgresqlBackups/pacsdb_2010_11_03_05.dmp]. 13:00:31 -- INFO -- Droping data base table 'pacsdb'. 13:00:32 -- INFO -- Creating data base table 'pacsdb'. 13:00:32 -- INFO -- Restoring data to data base table 'pacsdb'. 13:00:33 -- INFO -- Data base table 'pacsdb' restored.

  • Page 79: Appendix D: Recovery From A Catastrophic Failure

    Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® Appendix D: Recovery from a Catastrophic Failure In the event of a catastrophic failure follow the procedures below. Should any of the following items fail it will be considered a catastrophic failure: memory, CPU, PSU, ADA drive, SATADOM or RAID Controller.

  • Page 80: Appendix E: Initial Production Installation From Usb

    Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® Appendix E: Initial Production Installation from USB Installation Overview of the Galaxy HDX2-ADA DICOM Appliance from USB This procedure is designed to be used by the production entities only. The GalaxyDICOM distribution USB is the only medium needed to install GalaxyDICOM in a production environment.
  • Page 81 Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® Step-by-Step GalaxyDICOM Hardware Configuration 1. Setting up the BIOS: a. Insert the USB thumb drive into one of the USB ports in the rear of the GalaxyDICOM and push the power button. b.
  • Page 82 Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® Searching for existings SntrySTR installations ... SntrySTR installations found at [ ]. ------------------------------------------------------------ Determine disk for OS installation Get list of disks available for OS installation [ sda sdb sdc ] done Several disks available for installation.
  • Page 83 Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® done ------------------------------------------------------ Making Data filesystems on disk /dev/sdb ... Data disk size = 953792 Creating v1 partition: start=10 end=310010 ... meta-data=/dev/sdb1 isize=256 agcount=4, agsize=18920899 blks sectsz=512 attr=2 data bsize=4096 blocks=75683593, imaxpct=25 sunit=0 swidth=0 blks naming...
  • Page 84 Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® ---------------------------------------------------------------- Installing boot loader ... grub-setup: warn: This msdos-style partition label has no post-MBR gap; embedding won't be possible! grub-setup: warn: Embedding is not possible. GRUB can only be installed in this setup by using blocklists.
  • Page 85 Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® Select License Manager, then select Archive Manager and browse to the location the file was copied to and select the Upload License button. While logged into the Web Interface go to the Archive Management section on the menu, then select Devices, then Device Configuration and ensure the ADA drive is available before proceeding.
  • Page 86 Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® ...done. Creating password file for postgres Please enter postgress password [Default: postgres]: Press Enter type postgres Using [postgres] as password Stopping Sntrypacs... Creating databases... Data bases created! Create password for DB user postgres Password: postgres JBOSS_CMD_START = cd /opt/sntrypacs/bin;...
  • Page 87 Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® Step-by-Step Installation Verification The script queries requiring an answer are shown in blue. The user input is shown in red. The example below is for information only and the output may differ. This output is an example of an empty data base.
  • Page 88 Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® Server Status: Started ServerInfo: Title: GALAXYDICOM, port 11112 OnLine Filesystem: /mnt/pacs_online Near line file system: tar:/mnt/pacs_nearline The GalaxyDICOM installation and Verification is now complete, refer to the Getting Started Guide to complete the setup of the GalaxyDICOM Appliance.
  • Page 89 Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® Example 1 output: ls -R /mnt/pacs_online /mnt/pacs_nearline /mnt/pacs_nearline: root:~# postgresqlBackups /mnt/pacs_nearline/postgresqlBackups: /mnt/pacs_online: 2010 /mnt/pacs_online/2010: 3 /mnt/pacs_online/2010/3: 25 /mnt/pacs_online/2010/3/25: 8 /mnt/pacs_online/2010/3/25/8: 89A2305A /mnt/pacs_online/2010/3/25/8/89A2305A: 98452AA5 /mnt/pacs_online/2010/3/25/8/89A2305A/98452AA5: CE1288EF D. Check directory after 1-2 min: ls -R /mnt/pacs_online /mnt/pacs_nearline root:~# /mnt/pacs_nearline:...

  • Page 90: Appendix F: Initial Production Installation From Satadom Image

    Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® Appendix F: Initial Production Installation from SATADOM Image Installation Overview of the Galaxy HDX2-ADA DICOM Appliance from SATADOM Image This procedure is designed to be used by the production entities. The GalaxyDICOM distribution SATADOM is the only medium needed to install GalaxyDICOM in a production environment.
  • Page 91 Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® Step-by-Step GalaxyDICOM Hardware Configuration 2. Setting up the BIOS: a. Insert the SATADOM drive into one of the SATA port on the motherboard of the GalaxyDICOM and push the power button. b.
  • Page 92 Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® Licensing the GalaxyDICOM From the console run the “ifconfig” command and take note of the IP Address. From a browser access the Web Management Interface using “https”, ( https://xxx.xxx.xxx.xxx/ ) replace ‘x’s’ with the IP Address listed in “ifconfig” output. Login to the GUI with the user name “root”...
  • Page 93 Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® Please enter RAID disk name [/dev/sdb] press enter 13:33:48 -- INFO -- Checking all DICOM components... 13:33:49 -- INFO -- NO - partition /dev/sdb1 on /media/v1 13:33:49 -- INFO -- NO - partition /dev/sdb2 on /mnt/pacs_online 13:33:49 -- INFO -- NO - partition /dev/sdb3 on /mnt/postgresql...
  • Page 94 Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® VL: started Starting _fsi_server ... Mounts all sets with mount_on_server_restart option enabled... mountiv: host Galaxy: set pacs_nearline: /media/v1/cache/pacs_nearline: No such file or directory INFO: Not all sets mounts. 13:34:18 -- INFO -- ---------------------------------------------------- 13:34:18 -- WARNING -- The RAID rebuild process needs to be perfromed.
  • Page 95 Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® MinimumFreeDiskSpace=10.0GB DeleteStudyOnlyIfCopyArchived=true ***** FileSystemMgt mbean configuration NEARLINE_STORAGE Setting Nearline Storage to tar:/mnt/pacs_nearline ***** FileCopy mbean configuration Setting File Copy destination path to tar:/mnt/pacs_nearline DestinationFileSystem=tar:/mnt/pacs_nearline ***** TarRetriever mbean configuration ***** SyncFileStatus mbean configuration MonitoredFileSystem=tar:/mnt/pacs_nearline MinimumFileAge=1h Command=/opt/QStar/bin/mmlspacs /mnt/pacs_nearline/%f...
  • Page 96 Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® Step-by-Step Installation Verification The script queries requiring an answer are shown in blue. The user input is shown in red. The example below is for information only and the output may differ. This output is an example of an empty data base.
  • Page 97 Galaxy GHDX2-ADA DICOM Storage and Archive Appliance Admin Guide ® Rorke Data Inc Corporate Headquarters 7626 Golden Triangle Drive Eden Prarie, MN 55344 Tel: +1-800-328-8147 E-mail: rorkesupport@rorke.com Web URL: http://rorke.com...
