Input Connections (continued)
Contact is 'Normally Closed'. Input is normally at +12 volts.
When contact opens the input becomes 0 volts.
Contact is 'Normally Open'. Input is normally at +12 volts.
When contact closes the input becomes 0 volts.
Power
Supply
Contact is 'Normally Closed'. Input is normally at +12 volts.
When contact opens the input becomes 0 volts.
Control Panel Switched Output is a positive voltage changing to 0 volts
APPENDIX 2

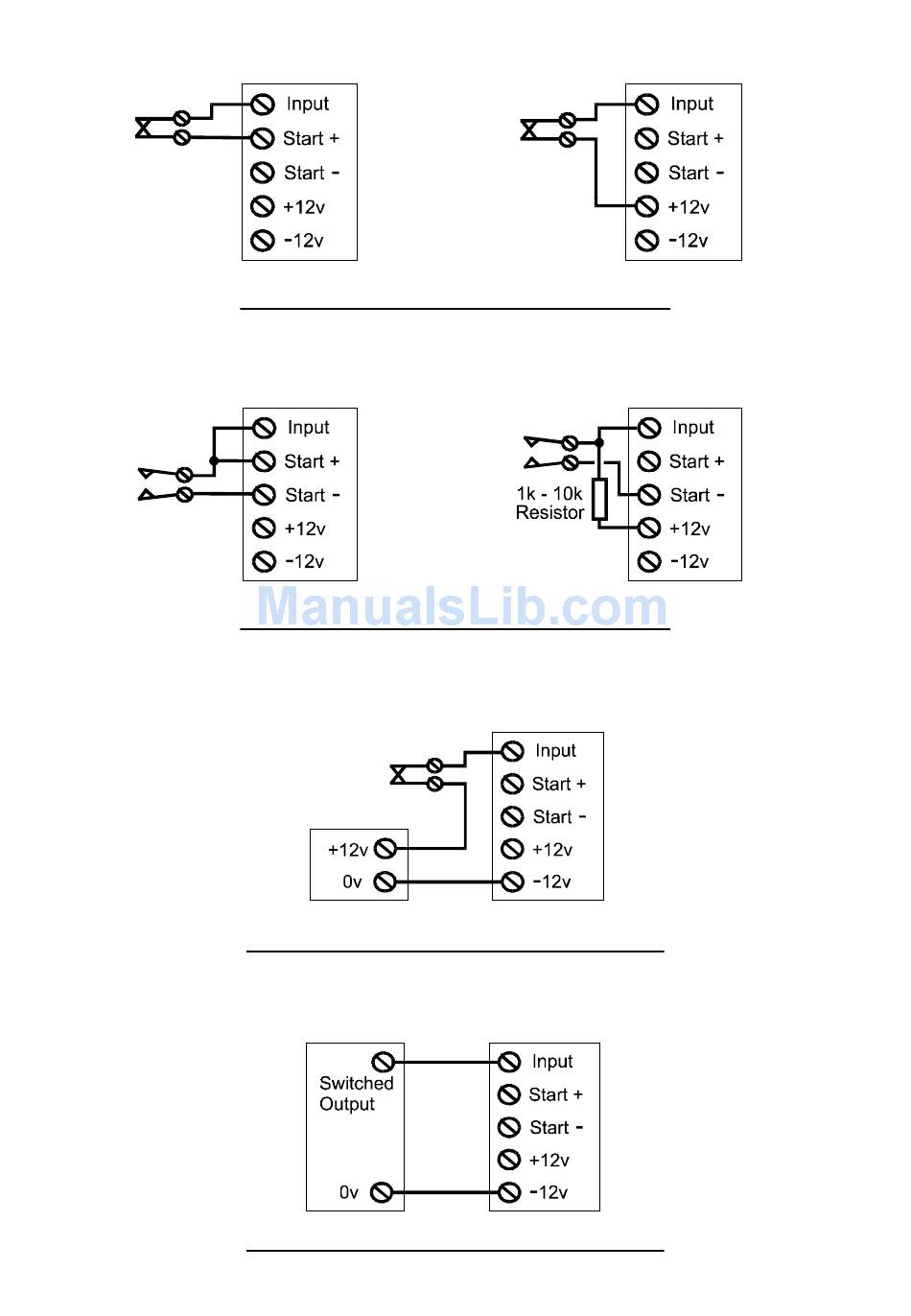

Examples of 'Positive Removed' triggering
Examples of 'Positive Removed' triggering
Example of 'Positive Removed' triggering
Example of 'Positive Removed' triggering
41
