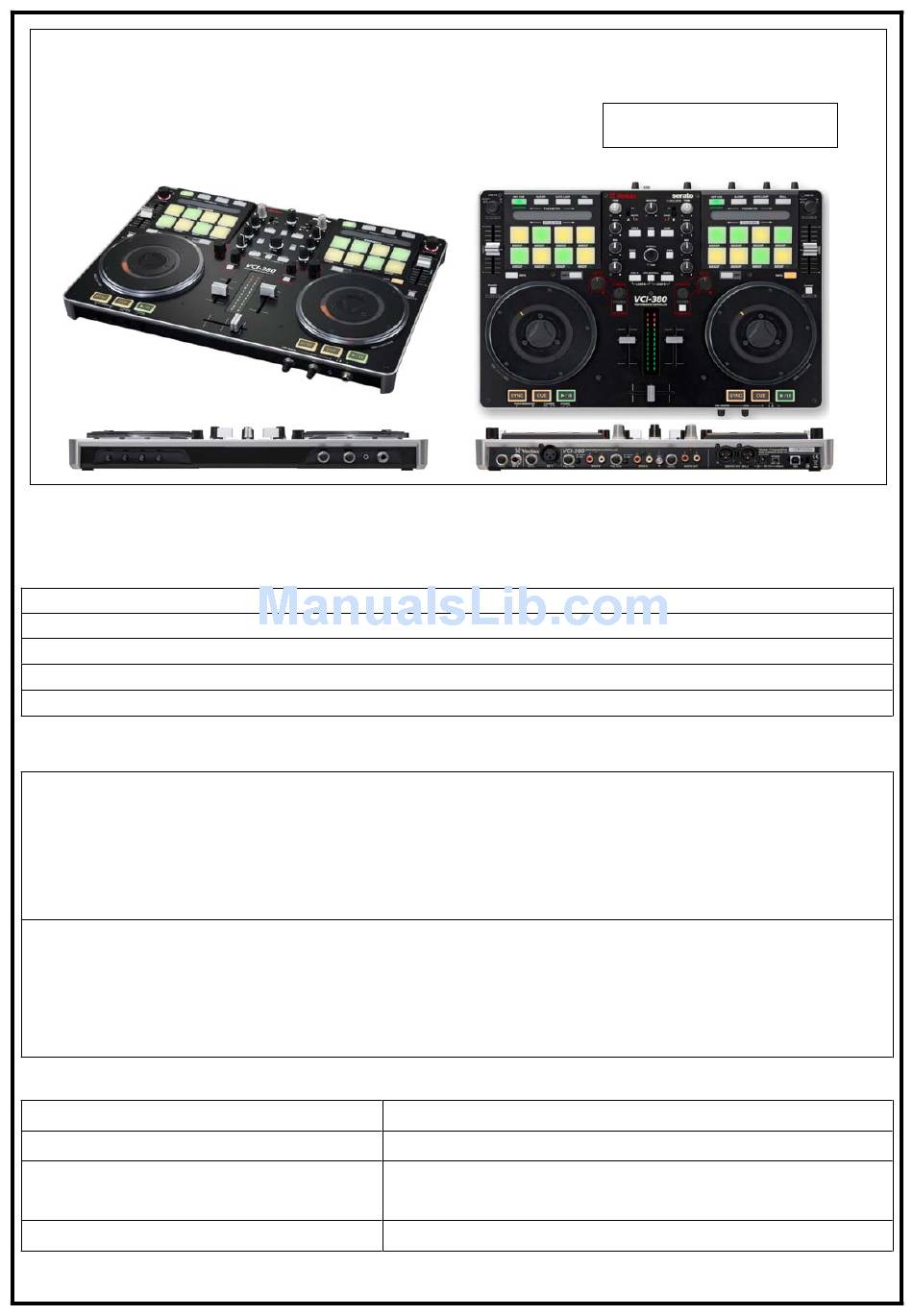

Vestax VCI-380 Service Manual

Hide thumbs Also See for VCI-380:

Advertisement

Quick Links

Download this manual See also: Owner's Manual
Features:
> 5 Performance Modes – Slicer, Roll, Auto Loop, Hot Cue, Sampler
> PAD Fx – World's first FX controlled by Aftertouch
> Stand-alone Mixer – 2 Phono / Line Inputs + 2 Mics inputs
> Scratch Jogwheels – High resolution and torque adjustable jogwheels with LED needle position display
> Amazing sound – 24Bit/48Khz audio interface with Balanced XLR output and RCA booth output
SYSTEM REQUIREMENTS
WINDOWS
• • OS: 7 (32bit / 64bit)
• • CPU: Core DUO 1.8GHz(SSE1) or higher
• •
RAM : 2.0GB or higher
• •
CD-ROM (or DVD-ROM) drive, USB port, Hard disk space for music data.
* VCI-380 does not support Intel Celeron, Atom and AMD CPU.
MAC OS
• • OS: 10.6 or higher
• • CPU: Core DUO 1.66GHz(SSE1) or higher
• • RAM: 1.0GB or higher
• • CD-ROM (or DVD-ROM) drive, USB port, Hard disk space for music data.
* VCI-380 does not support PowerPC and Mac OS 10.5
POWER SUPPLY • OTHERS
POWER ADAPTOR :
POWER CONSUMPTION
DIMENSIONS :
WEIGHT :
SERVICE MANUAL
SPECIFICATION
DC 7.5V
6W (100V – 230VAC)
427(W) x 290(D) x 40(H)mm (without knobs)
427(W) x 304(D) x 60(H)mm (including knobs)
3.5 Kg
MODEL:VCI-380

Advertisement

loading
Need help?

Need help?

Do you have a question about the VCI-380 and is the answer not in the manual?

Questions and answers

Related Manuals for Vestax VCI-380

Summary of Contents for Vestax VCI-380

  • Page 1 RAM : 2.0GB or higher • • CD-ROM (or DVD-ROM) drive, USB port, Hard disk space for music data. * VCI-380 does not support Intel Celeron, Atom and AMD CPU. MAC OS • • OS: 10.6 or higher • • CPU: Core DUO 1.66GHz(SSE1) or higher •...
  • Page 4 VCI-380 TEST PROCEDURE Description Example MIDI Testing Connect VCI-380 to PC and turn on Power. 7.5V 1.0A Double click the Labview Midi Icon. The Testing Browser will prompt out. Press or slide the button or VR on the hardware. The virtual panel button will turn green after press.
  • Page 5 Connect VCI-380 to adaptor. Connect VCI-380 to Power. Press and Press both hold up the 2 button, power on. VCI-380 will turn to LED testing mode. The Pad Module will ON. i . Left corner of Pad module Amber LED will ON.
  • Page 6 VCI-380 TEST PROCEDURE Description Example ii. Press the pad hard. the White LED will turn on permanently. iii. Press the highlighted button. the LED on pad will turn red color. iV. Press the highlighted button. the LED on pad will turn green color.
  • Page 7 VCI-380 TEST PROCEDURE Description Example By prssing the hightlighted area button. the LED will On Please slide the I/P cross fader from Min to Max. and the level LED will turn on one by one. Slide down the 2 swtiches the LED will On.
  • Page 11 DOWNLOAD TICKET - SERATO ITCH GESNL11 DOWNLOAD TICKET - LOOPMASTERS GESNL12 CAUTION SHEET LAC22SNL169 FOR EC VERSION ONLY SERIAL NUMBER LABEL(EC)(VCI-380) (A=2PCS, B=1PC) LAC22SNL190 FOR US VERSION ONLY SERIAL NUMBER LABEL(US)(VCI-380) (A=2PCS, B=1PC) LAC22SNL192 FOR DM VERSION ONLY SERIAL NUMBER LABEL(DM)(VCI-380) (A=2PCS, B=1PC)
  • Page 12 Materials SPECS Part Location PMBE1682U 0.055 MASTER BATCH AS PN127 (TRANSPARENT BLUE) ...3 RS-PN127 RESIN PN127 CHI MEI NATURAL PT5110628 KNOB (VR) PT511063501 KNOB VR W/SPRAYING PT5110635 KNOB VR PT511063601 ROTARY KNOB (BLACK & WHITE LINE) PT5110639 BUTTON (SMALL) PT5110642 BUTTON PT5110647 ROTARY KNOB...
  • Page 13 Materials SPECS Part Location RS010K10F03 CHIP RES. 10K Ω 1% SMD 0603 R10, 13, 24~26, 147 RS012010F03 CHIP RES. 120 Ω 1% SMD 0603 R810, 811 RS01K510F03 CHIP RES. 1.5K Ω 1% SMD 0603 RS02M210J03 CHIP RES. 2.2M Ω 5% SMD 0603 RS02R210F03 CHIP RES.
  • Page 14 Materials SPECS Part Location RS000010J03 CHIP RES. 0 Ω 5% SMD 0603 R325~328 RS001K10F03 CHIP RES. 1K Ω 1% SMD 0603 R80~85, 180~185, 301, 302, 311, 312 RS001M10F03 CHIP RES. 1M OHM,1/8W,+/-1%,0603 R110~113 RS010010F03 CHIP RES. 100 Ω 1% SMD 0603 R159~174, 201~204 R7, 22, 35, 37~39, 54, 64, 72, 78, RS010K10F03...
  • Page 15 Materials SPECS Part Location ICTC74VHCT14AFT IC TC74VHCT14AFT TSSOP 14 IC3, 6 ICYH2K11S02 IC13 IC H8S/HD64F3687FPV + PROGRAME LQFP64 ...3 ICHD64F3687FPV IC CPU HD64F3687FPV BLANK LQFP64 LDKPHM1608QWF-D LED WHITE SMD 0603 120DEG LD19, 20, 34 LDLTST-C190KRKT LED RED (3-20-0011) LD21~25, 32 46, 48 LDPTV1608SYEC LD26, 28, 29, 33, 35~45, 47 LED SUPER BRIGHT YELLOW, WATER CLEAR, 0603SMD...
  • Page 16 Materials SPECS Part Location ...3 UHMMZ1608S601A BEAD 600Ω 0.5A 25% SMD TDK L700~702 ...3 VRR10301520 VR700 V.RESISTOR VOLUME :10K 15A DUAL-UNIT NICKEL ...3 VRR10301522 ROTARY VR 10K 1B 15MM SINGLE (NICKEL) VR15 TWPC11S012B01 PCB ASS'Y LEFT I/P FADER ...3 NM1106115 VELVET CARPET (VR1) ...3...
  • Page 17 Materials SPECS Part Location ..4 LDKPTD-1608CGCK LED YELLOW GREEN 0603 SMD 60DEG LD51 ..4 LDPTV1608SYEC LD49 LED SUPER BRIGHT YELLOW, WATER CLEAR, 0603SMD ..4 RS006810F03 CHIP RES. 68 Ω 1% SMD 0603 R152 ..4 RS015010F03 CHIP RES. 150 Ω 1% SMD 0603 R150, 151 ..4 TE362001001...
