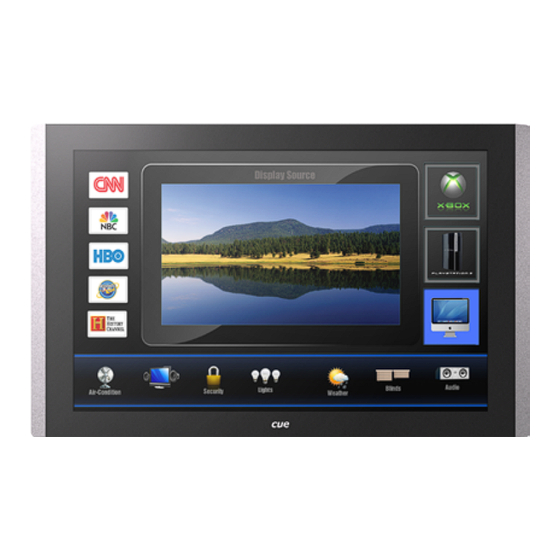

CUE touchCUE-5 User Manual

Wired touch panels
Hide thumbs Also See for touchCUE-5:
Table of Contents

Advertisement

Quick Links

Wired Touch Panels
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the touchCUE-5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CUE touchCUE-5

Summary of Contents for CUE touchCUE-5

  • Page 1 Wired Touch Panels User Manual...

  • Page 2: Table Of Contents

    Direct PC Connection 29 Software and Firmware License 14 Windows Local Network Settings 30 Notes 15 Download User Application Overview Using Cue Visual Composer Using Admin Web UM052_01_Wired_Touch_Panels 04.03.2016 Copyright © CUE, a.s., Praha, Czech Republic 1990 - 2016 All rights reserved. Specifications are subject to change without prior notice.

  • Page 3: Introduction

    Colors 32-bit (True Color), transparency 8-bit Alpha blending • Wired Ethernet communication • Power over Ethernet power supply • Built-in microphone and speakers • Built-in light and proximity sensors • Real time clock (RTC) for scheduling applications • Aluminium enclosure, aluminium front panel for built-in models • Bi-directional control of any IP enabled products through Ethernet port • Web server and Admin Web for setup through a standard web browser Programming All touch panels have to be programmed using Cue Visual Composer. These models are not compatible with Cue System Director. © CUE, a.s. | All Rights Reserved.

  • Page 4: Box Contents

    Built-In Models touchCUE-5-B touchCUE-7-B touchCUE-12-B Touch panel touchCUE-5-B Touch panel touchCUE-7-B Touch panel touchCUE-12-B Wall Mount Adapter PoE Adapter PoE+ Adapter Ethernet cable Power cable Cleaning tissue Declaration of Conformity Data Sheet Cue System Connector Wiring © CUE, a.s. | All Rights Reserved.

  • Page 5: Specifications

    199 x 120 x 39 mm 320 x 200 x 47 mm Weight 0.3 kg 0.6 kg 2.0 kg Included accessories PoE power supply, PoE power supply, PoE+ power supply, Ethernet cable, Ethernet cable, Ethernet cable, Wall mounting adapter Wall mounting adapter Wall mounting adapter © CUE, a.s. | All Rights Reserved.

  • Page 6: Physical Description

    Network connector Integrated tabletop stand Speakers Button System Default touchCUE-12 320 mm 153 mm Microphone Proximity sensors Light sensor LCD display with touch sensor Network connector Integrated tabletop stand Speakers Button System Default © CUE, a.s. | All Rights Reserved.

  • Page 7: Built-In Models

    Speakers Bottom View Fixing screw Front View Rear View Proximity sensor Light sensor LCD display with touch sensor Button System Default 199 mm Network connector Top View Microphone Wall adapter 160 mm © CUE, a.s. | All Rights Reserved.
  • Page 8 Speakers Bottom View Fixing screw Front View Rear View Proximity sensors Light sensors LCD display with touch sensor Button System Default 320 mm Network connector Top View Microphone Wall adapter 180 mm © CUE, a.s. | All Rights Reserved.

  • Page 9: Part Description

    Wired Touch Panels Part Description Microphone The microphone is prepared for future use. The functionality depends on a firmware version. Proximity sensor The Motion sensor resumes touch panel from Backlight Saver mode. This functionality can be enabled / disabled using On Screen Display or Admin Web. Light Sensor The Light Sensor automatically adjusts display backlight according ambient light level. This function has to be enabled using On Screen Display or Admin Web. Touch-screen display Touch-screen display with active matrix color LCD and resistive membrane touch overlay. Speakers The built-in stereo speakers allows to play sounds stored in the touch panels. System Default Button When pressed the factory default function is performed. For factory default values see chapter Factory Default and System Default. A thin screwdriver is needed for press of this button. Network Connector The 10/100 BaseT LAN is a standard network connection equipped with Power over Ethernet using RJ-45 connector. For more details see chapter Connection. © CUE, a.s. | All Rights Reserved.

  • Page 10: Mounting

    Four screws for additional fixing (touchCUE-12-B only) Touch panel Step 2 Step 3 Fixing screw Installation steps are as follows 1. Install wall adapter on the electrical wall box and provide additional fixing by four delivered screws and fasteners. Additional fixing is strictly recommended for touchCUE-12-B. Use delivered screws or keep maximum screw dimensions as described below. max. 1.7 mm Max. Ø 5.5 mm 2. Connect network cable and put the touch panel on the wall adapter. 3. Carefully tighten the fixing screw to fix touch panel on the wall. © CUE, a.s. | All Rights Reserved.

  • Page 11: Cleaning The Touch Panel

    Wired Touch Panels Cleaning the Touch Panel You should clean the touch panel screen overlay after each day’s use. Materials required are 1. Two clean, soft texture cloths (cotton). 2. Spray bottle of cleaning solution without alcohol (window cleaner). 3. Aluminium parts should be cleaned using a special cleaning solution. Steps are 1. Turn the touch panel off. 2. Spray a small amount of the cleaning solution onto one of the cloths. 3. Clean the touch panel overlay with the damp cloth. 4. Wipe the touch panel overlay with the dry cloth. © CUE, a.s. | All Rights Reserved.

  • Page 12: Connection

    Cat5 Cable Color TX_D1+ and PoE White / Orange TX_D1- and PoE Orange RX_D2+ and PoE White / Green Blue PoE +/- 48 V White / Blue RX-D2- and PoE Green White / Brown PoE Common Brown © CUE, a.s. | All Rights Reserved.

  • Page 13: Direct Pc Connection

    Wired Touch Panels Direct PC Connection All touch panel models are equipped with PoE power supply (4.3” and 7” models) or PoE+ power supply (12” models). That means one Cat cable is used for power supply and for data. Make sure you use • PoE Adapter for 4.3” and 7” models • PoE+ Adapter for 12” models. Connection steps are as follows 1. Attach one end of a RJ-45 Ethernet straight-through cable to the CUEnet (LAN) port on touch panel and attach the other end of this cable to OUT port of PoE (PoE+) Adapter. 2. Attach one end of a RJ-45 Ethernet straight-through cable to the IN port of PoE (PoE+) Adapter and attach the other end of this cable to LAN port of your computer. 3. Attach power supply to the PoE (PoE+) adapter. Power supply PoE Adapter for 7” models PoE+ Adapter for 12” models Ethernet cable straight-through Ethernet cable crossed-over © CUE, a.s. | All Rights Reserved.
  • Page 14 3. Enter ncpa.cpl to the Search Box and press Enter. Following window is displayed. 3. Double-click Network Connections. Following steps are 1. Right-click on network adapter used for 3. Select Use the following IP address option. connection with touch panel and then right- Set IP address to 192.168.1.1 (or other click and select Properties. address different from 192.168.1.127 and from 192.168.1.128) and Subnet mask 2. Select Internet Protocol (TCP/IP) and click to 255.255.255.0. Leave other options Properties button. unchanged and click OK. © CUE, a.s. | All Rights Reserved.

  • Page 15: Download User Application

    Wired Touch Panels Download User Application Overview User control application is dedicated to control and it is programmed by Cue Visual Composer programming tools. Using Cue Visual Composer Steps are 1. Connect touch panel to your computer as described in chapter PC Connection. 2. Run Cue Visual Composer on your PC. 3. Open appropriate project in Cue Visual Composer. It’s necessary to have appropriated touch panel properly inserted and configured. 4. Use tool bar button Final to open Upload and Export Application dialog box. 5. Be sure your touch panel is checked. 6. Use button Upload to start application upload.

  • Page 16: Using Admin Web

    4. Use tool bar button Final to open Upload and Export Application dialog box. 5. Be sure your touch panel is checked. 6. Use button Export All... to export application and store it in file *.cvca. 7. Run the Internet browser on your PC and type in the same touch panel IP address as you see in Cue Visual Composer project, window Properties / IP address. 8. Go to page System and check current firmware version. In case there is no actual firmware version in touch panel, upload firmware version that corresponds to firmware version in the Cue Visual Composer project..
  • Page 17 Use Internet clock Not changed Primary NTP server Empty Not changed Secondary NTP server Empty Not changed Applications Empty Not changed File storage Empty Not changed System Firmware Current version Not changed Password Empty Empty © CUE, a.s. | All Rights Reserved.

  • Page 18: On Screen Display

    Startup Menu The Startup Menu is activated if no application is running. Application button starts downloaded application. On Screen Display button launches menu described below. Settings The Backlight Saver will switch off automatically display backlight. Time in minutes can be set by buttons - and +. Time set to 0 means that 1 min Backlight Saver is disabled. LCD Backlight sets display backlight level. If Adaptive Brightness is switched to Yes, the light sensor automatically adjusts display backlight according ambient light level. If Motion Sensor is switched to Yes the Motion Sensor resumes touch panel from Backlight Saver mode automatically. Status This page shows current status of the touch panel. © CUE, a.s. | All Rights Reserved.

  • Page 19: Ip Settings

    Wired Touch Panels IP Settings This page is used for setting the communication parameters for your touch panel. The touch panel uses standard internet protocol (IP) 192.168.1.128 communication parameters. Certain parameters 255.255.255.0 can be reset by the user. On start up, this page will display current IP address. Carefully note this 192.168.1.1 addressing information (and any changes you elect to make to the IP address, subnet mask, or default gateway). This information must be entered into the Cue Visual Composer program written for your specific application. For control systems with more than one unit, a unique IP address must be given to each CUEunit. For setting please select appropriate field using Edit button and then use numeric keypad. Be sure to click the Apply button for any changes to become effective. Date/Time This page is used for setting Date/Time parameters. 19/04/2011 The current date and time can be set. For setting please select appropriate field using Edit button 17:01:25 and then use numeric keypad. GMT+01:00 CET/CEST The time zone box can be selected to enter from the list activated by button Edit.

  • Page 20: Applications

    Wired Touch Panels Applications This screen is used for selection, start and stop of uploaded applications. All uploaded applications are listed on this page. TestApp_TouchPanel1.cvca Select application and press button Start. A DemoApp_TouchPanel1.cvca “running flag” denotes the active application. Active application starts automatically after switch on the unit. The running application can be stopped via the Stop button. Files are uploaded from a personal computer to the touch panel using Cue Visual Composer software or using Admin Web. Exit Closes the On Screen Display. On this page the product name, product code and touchCUE-7 CS0451.R01.000001 current firmware version are displayed. 6.10h (Jul 30, 2015) © CUE, a.s. | All Rights Reserved.

  • Page 21: Admin Web

    Enter your password into the Password box and click the Login button to enter the CUEunit web pages. Remember that the password is case sensitive. For changing your password use the Password menu after you are logged in. Configuration Identification Each CUEunit can be identified by a unique identification name. Unique names are most useful in applications requiring more than one CUEunit. This enables programmers and installers to reference CUEunits with logical, user friendly names, like “boardroom,” “lobby,” etc. To set the CUEunit identity, enter the unique name you wish to use in the Name box. Be sure to click the Apply button for any changes to become effective! © CUE, a.s. | All Rights Reserved.
  • Page 22 This page is used for establishing the communication parameters for your CUEunit. The CUEunit uses standard internet protocol (IP) communication parameters. Certain parameters can be reset by the user. On start up, this page will display the CUEunit’s given Physical address (MAC), Current IP address. Carefully note this addressing information (and any changes you elect to make to the IP address, subnet mask, or default gateway). This information must be entered into the Cue Visual Composer program written for your specific application. For control systems with more than one CUEunits, a unique IP address must be given to each CUEunit. Some control systems are “stand alone” and not part of a larger network. For such “stand alone” systems, the Host name is optional. However, for control systems that are connected to a larger network, please obtain the Host name from the network administrator, and enter it into the corresponding box. DHCP is not supported in this release.

  • Page 23: Date And Time

    The applicable boxes can be selected to enter changes to the • date: day/month/year, • time: hour/minute/second. Be sure to click the Apply button for any changes to become effective! Time zone This page is used for setting the time zone on your CUEunit. The current date, time, and time zone, are shown on the Current time line. The time zone box can be selected to enter changes to the Time zone. Be sure to click the Apply button for any changes to become effective! Internet clock This page is used for synchronization of the CUEunit’s date and time with an internet clock. Begin by selecting the check box for Use Internet clock. Next, enter the IP addresses (or complete address name) of the primary and secondary NTP servers. Use the Primary NTP server and Secondary NTP server boxes for this purpose. Be sure to click the Apply button for any changes to the internet clock to become effective! © CUE, a.s. | All Rights Reserved.

  • Page 24: Applications

    Total stop stops a running application. This application will not be automatically started after reset. File Storage The CUEunit’s generous memory can be used as an auxiliary file storage device. This is helpful for storing presets, in archiving electronic manuals, pdf files, and other support documentation. File storage is managed via the file storage page. A list of existing files, folders, and their properties is shown. To delete a file or a folder, click the Delete button on the corresponding line. To delete all files and folders from the current folder, click the Delete All button. To create a new folder, enter a name for the new folder, and click the Create button. To upload a file, select the desired file, and click the Upload button. Note: Files are automatically compressed for the CUEunit’s internal file system. Accordingly, the size of your uncompressed file before storing may not match the decrease of free space shown on the CUEunit. © CUE, a.s. | All Rights Reserved.

  • Page 25: E-Mail

    Time set to 0 means that Backlight Saver is disabled. LCD Backlight sets display backlight level. If Adaptive Brightness is switched to Yes, the light sensor automatically adjusts display backlight according ambient light level. If Motion Sensor is switched to Yes the Motion Sensor resumes touch panel from Backlight Saver mode automatically. On Screen Display This page serves for setting of On Screen Display functionality. Type of activation is defined here as well as mode of the On Screen Display. In Advanced mode all functions are available, Basic mode is more safety (for example network settings can’t be changed). In addition some settings done by On Screen Display can be enabled or disabled. © CUE, a.s. | All Rights Reserved.

  • Page 26: Calibration

    Wired Touch Panels System Firmware This page is used for updating the CUEunit firmware. The Current version of firmware is shown. To upload new firmware, select the desired version, and click the Upload button. Information The page shows basic information about your CUEunit’s hardware. The CPU type, CPU frequency, and the flash and RAM memory sizes are shown. Format data area To completely clear all data and restore factory default settings, click the Format data area button. This will remove all data, including Applications and File storage files. Configuration will be cleared, including IP address, password, and touch-screen calibration values. IP address will be restored to the default 192.168.1.128. © CUE, a.s. | All Rights Reserved.

  • Page 27: Password

    Important note: When restoring files, the running application will be stopped and all applications, READ ALL IMPORTANT NOTES THAT FOLLOW files, and folders currently stored in the CUEunit BEFORE USING THIS OPERATION! will be deleted! If you want to retain them, The page is used for the restoring of all use the Backup command before the Restore applications, files and folders. Restore copies of command. all applications, files, and folders from a backup Note: To see the backed-up/restored applications, archive on the PC to their corresponding locations click the Applications menu. To see backed-up/ on the CUEunit. restored files and folders, click the File Storage To start the restore process, select the desired menu. backup archive, then click the Restore button. © CUE, a.s. | All Rights Reserved.

  • Page 28: Reset

    Wired Touch Panels Reset To restart your CUEunit, click the Reset button. License This page describes software license. © CUE, a.s. | All Rights Reserved.

  • Page 29: Software And Firmware License

    Prohibited Uses: Without obtaining prior written permission from CUE, You may not (a.) use, copy, modify, alter, or transfer the Software or documentation except as expressly provided in this License; (b.) translate, disassemble, decompile, reverse program or otherwise reverse engineer the Software and Firmware; (c.) sublicense or lease the Software or its documentation (d.) use this Software with any hardware other than products produced by CUE or in connection with applications being developed for CUE hardware; or (e.) use the Software in a multi-user, network, or multiple computer environment or in a rental, time sharing or computer service business. Without prejudice to any other rights, CUE may terminate this License if You fail to comply with its terms and conditions. In such event, You must immediately destroy all copies of the Software. AVC Video Restrictions: THIS PRODUCT IS LICENSED UNDER THE AVC PATENT PORTFOLIO LICENSE FOR THE PERSONAL USE OF A CONSUMER OR OTHER USES IN WHICH IT DOES NOT RECEIVE REMUNERATION TO (i) ENCODE VIDEO IN COMPLIANCE WITH THE AVC STANDARD (“AVC VIDEO”) AND/...

  • Page 30: Notes

    Wired Touch Panels Notes ........................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................© CUE, a.s. | All Rights Reserved.
  • Page 31 Wired Touch Panels ...................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................... © CUE, a.s. | All Rights Reserved.
  • Page 32 CUE, a.s. K Nouzovu 6, 143 00 Praha 4, Czech Republic www.cuesystem.com support@cuesystem.com...
