Summary of Contents for Gin Boomerang 10

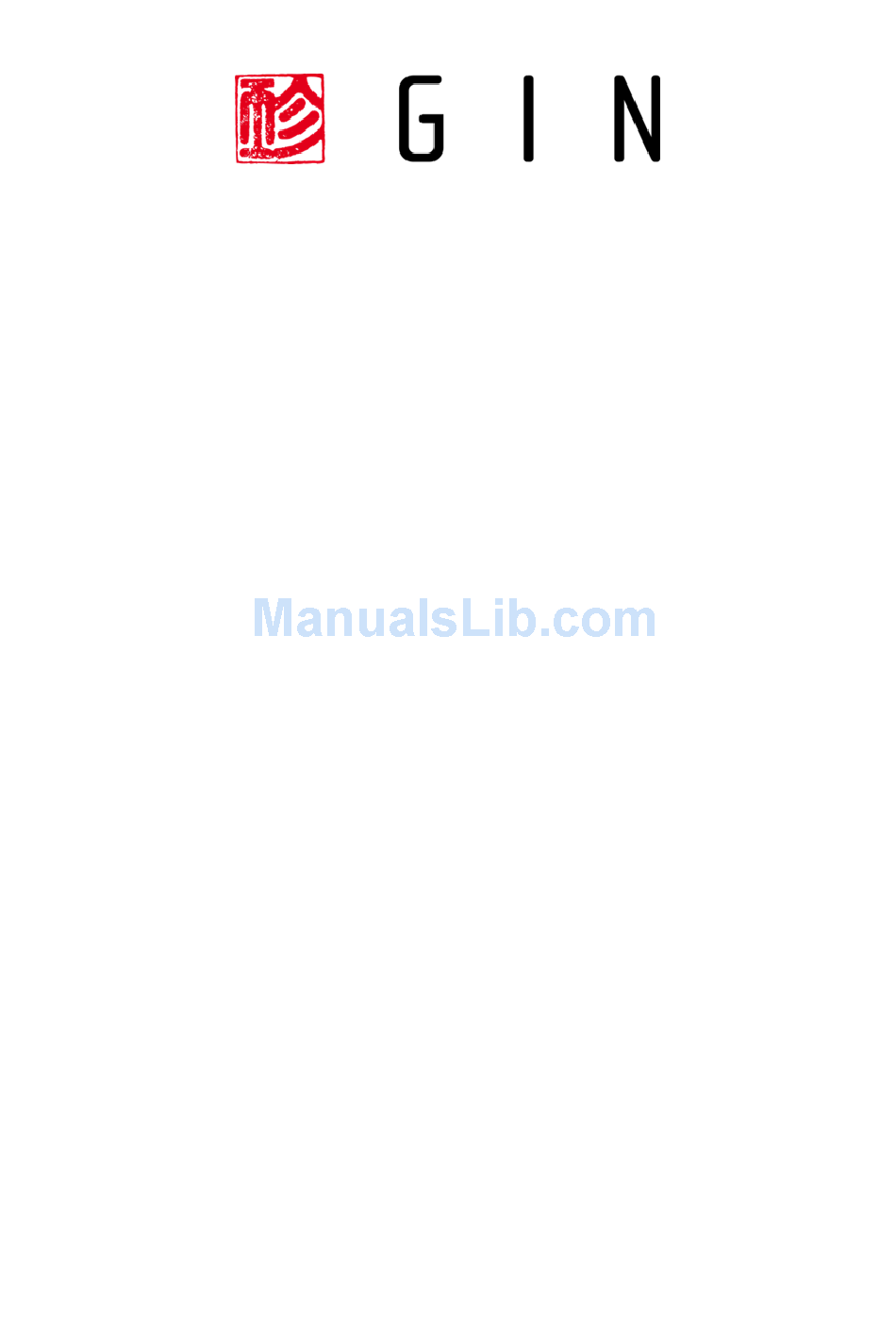

  • Page 1 Boomerang 10 Owner’s Manual Rev.:1.0 Date: 01/11/2014...
  • Page 2 Boomerang 10 manual © Gin Gliders Inc. Gin Gliders reserves the right to alter or add to the contents of this Manual at any time. News and the most up to date information will be posted on the Gin Gliders website: www.gingliders.com...
  • Page 3 Landings,
 The GIN team are very proud of the Boomerang 10, if you have any questions about it that are not answered in this manual, or if you have any hints or tips for getting the most out of the Boomerang 10, please do not hesitate to contact us.
  • Page 4: Table Of Contents

    Suitability for training ........................12 Description ........................... 12     Cutting-edge Design ......................... 12 Manufacturing ..........................13   3. Setting up the Boomerang 10 and test-flying ..............14   Before the first flight ......................14     Brake line adjustment ........................14  ...
  • Page 5 Storing the paraglider ......................29   Packing the paraglider ........................29     Rucksack............................30 Storing and transporting the glider ....................30   Care ............................31     Ground handling ..........................31   Fabric ............................... 31 5 /48 Boomerang 10...
  • Page 6 Validity of inspection ........................33   Line trimming ........................... 34 Repairs ..........................34     Gin Gliders workshops ........................34   Small repairs to the glider ....................... 35 7. Dimensions, illustrations, technical and CCC data ............... 36   Overall illustration ....................... 36  ...
  • Page 7: Introduction

    1. Introduction About Gin Gliders Dream In forming Gin Gliders, designer and competition pilot Gin Seok Song had one simple dream: to make the best possible paragliding equipment that pilots all over the world would love to fly— whatever their ambitions.
  • Page 8: Manual

    CIVL measurement file for CCC gliders (October 2014) Glider details Pilot details , proof of ownership and inspections and repairs overview This Manual was current at the time of going to print. This Manual can be downloaded from GIN’s website prior to print. Gin Gliders Homepage Gin Gliders has a comprehensive website, which provides additional information about the Boomerang 10, any updates to the Manual and many other issues related to paragliding.
  • Page 9: Gin Gliders And The Environment

    Paragliding is, of course, an outdoor sport – protect and preserve our planet’s resources. Environmentally-friendly recycling Gin Gliders gives consideration to the entire life cycle of its paragliders, the last stage of which is recycling in an environmentally-friendly manner. The synthetic materials used in a paraglider must be disposed of properly.
  • Page 10: Safety

    Gin Gliders publishes on its website any technical safety notices and airworthiness instructions which are issued in respect of GIN products. The paraglider owner is responsible for carrying out the action required by the safety notice.
  • Page 11: Liability And Warranty Exclusion

    The complexity of the paraglider system means that it is not possible to give any more than a partial description of the glider’s flight behaviour and reactions to disturbances. Even a small alteration in individual parameters can result in flight behaviour which is markedly modified and different from the description given. 11 /48 Boomerang 10...
  • Page 12: Ccc Certification

    The Boomerang 10 is designed from the outset as a CCC competition glider, and has the highest performance of any GIN glider. It is suitable for the very experienced pilot who flies frequently...
  • Page 13: Manufacturing

    These and other innovations make the Boomerang 10 the best glider available within the CIVL Competition Class.
  • Page 14: Setting Up The Boomerang 10 And Test-Flying

    Brake line adjustment Factory setting The brake lines of the Boomerang 10 are set to the length that was used for the CCC certification test flights. These line lengths have been finely tuned by the GIN test pilots, and it should not be necessary to adjust them.
  • Page 15: Speed System

    If in doubt about this procedure, consult your instructor or dealer. Certified Harnesses The Boomerang 10 is certified for use with all harnesses with variable cross-bracing (GH type), such as the Gin Genie Race 3. Practically all modern harnesses are GH type harnesses. Older harnesses with fixed cross- bracing (GX type) are not certified and should not be used.
  • Page 16: Reclined Harnesses

    Gin Gliders calculates and draws the plan of the glider with a distance between the carabiners of 44cm. CCC certification test flights are also carried out with this setting. We recommend setting a distance of 42cm to 50cm between the carabiners, depending on the size and design of the harness.
  • Page 17: Flying The Boomerang 10

    4. Flying the Boomerang 10 The Boomerang 10 was developed for performance and competition pilots with extensive flying experience. The basic types of flying described below should be second nature for such pilots, but have been included in this Manual for the sake of completeness.
  • Page 18: Launch

    Level flight and best glide When the brakes are open, the Boomerang 10’s flight is stable and level. The brake lines can be used to adjust the speed according to the flight situation, to ensure the optimum level of performance and safety.
  • Page 19: Accelerated Flight

    Boomerang 10 pilot a very satisfying feeling of being connected to the air movements. A pilot fully in tune with the Boomerang 10 can use these B-riser inputs to follow the lifty lines that lead to the cores of thermals.
  • Page 20: Losing Altitude

    Big ears It is possible to do big ears on the Boomerang 10, but it takes great arm strength to hold in the ears and the glider loses structure when the ears are in. Therefore the maneuver is not recommended.
  • Page 21: Landing

    The minimum flying speed and big flaring reserve of the Boomerang 10 will help you to make a soft landing in all conditions. Approach the landing with sufficient airspeed and don't leave your last turn too late or too steep.
  • Page 22: Tandem Paragliding

    The Boomerang 10 has not been developed for use in tandem paragliding. Aerobatics The Boomerang 10 is not designed for aerobatics and in many countries acro flying is forbidden. Besides the inherent risks, extreme manoeuvres of any kind place unnecessary stress on the glider and effectively shorten its lifespan.
  • Page 23: Dangerous Situations And Extreme Flying

    The Boomerang 10 is under no circumstances suitable for a pilot’s first experience with safety training. Special folding lines were used for certification of the Boomerang 10 (refer here also to the section “Folding lines”). Without these folding lines, tucks and front stalls may vary from the CCC guidelines.
  • Page 24: Canopy Collapses

    It can occur on the Boomerang 10, usually after big deflations or in cascading situations. The pilot should be familiar with the procedure for correcting it. On the Boomerang 10, there is a separate stabilizer/winglet main line that goes down to the A2 riser. This line usually becomes slack in the event of a cravat.
  • Page 25: Symmetric Front Collapse

    These manoeuvres should therefore be avoided. However, it is important to learn how to recognise the indications that a glider is about to stall so that you can take immediate action to prevent it. There are three different types of stall in paragliding. 25 /48 Boomerang 10...
  • Page 26: Deep Stall (Parachuting, Stable Stall)

    Deep stall (parachuting, stable stall) The Boomerang 10 has no tendency to get into in a deep stall. Should this nevertheless occur, make sure your brakes are fully released, the glider will then normally recover on its own immediately. If the glider still doesn’t recover either put your hands on the A risers and push forward or use the speed bar to accelerate the wing.
  • Page 27: Other Tips For Dangerous Situations

    Emergency steering If a brake is not operational for some reason, you can steer the Boomerang 10 with the B- risers. Add steering input by weight-shifting in your harness. Be careful not to pull the riser too much, to avoid any possibility of a spin.
  • Page 28: Temperature Range

    Temperature range Temperatures under -10 °C and over +50°C can make the paraglider unfit to fly. The manufacturer’s warranty will lapse if the glider is used outside of this temperature range. Boomerang 10 28 / 48...
  • Page 29: Storing, Care, Maintenance And Repairs

    It is very important to pack the glider carefully in order to ensure the longevity of the leading edge reinforcements. Fold up the Boomerang 10 as shown in the diagrams below. The leading edge reinforcements (Mylar and Rigid-System) on the front edge are placed on top of each other to avoid bending or misshaping them.
  • Page 30: Rucksack

    The Boomerang 10 should not be exposed to extreme heat (e.g. in the boot of the car during summer). The heat may cause any moisture present to be pressed through the fabric, thereby damaging the coating.
  • Page 31: Care

    Care The materials used in the Boomerang 10 have been carefully selected for maximum durability and performance. Nevertheless, following the guidelines below will keep your paraglider airworthy and will ensure a long period of continuous safe operation. Excessive wear is caused by careless ground handling and packing, unnecessary exposure to UV light, chemicals, heat and moisture.
  • Page 32: Lines

    “Packing the paraglider”. The plastic rods on the Boomerang 10 can all be replaced through small pockets. If you notice that a plastic rod has been damaged or misshapen because of incorrect use, this can be replaced by Gin Gliders or a Gin Gliders authorised workshop.
  • Page 33: Maintenance

    The Boomerang 10 has to be inspected for a trim check by an authorized GIN agent during the first 12 months. The Boomerang 10 should be regularly inspected by a qualified professional every 100 hours (including ground handling), or every 12 months, whichever comes sooner.
  • Page 34: Line Trimming

    Line trimming The Boomerang 10 is trimmed to give the highest possible level of performance and safety. The aramid lines may shrink or stretch in normal use and particularly after hard shock-reinflations. Pilots should check that the lines remain within tolerance. The Boomerang 10 is certified with the lines trimmed so that the total line length from tab to riser is within 2cm of the values stated in the line-plan.
  • Page 35: Small Repairs To The Glider

    Major repairs at the Boomerang 10, such as replacing panels, should only be carried out by the distributor or manufacturer. Small repairs to the glider Very small holes in the sail can be repaired with the sticky back tape provided with your glider.
  • Page 36: Dimensions, Illustrations, Technical And Ccc Data

    Overall illustration Technical data SIZE AREA 21.7 23.6 25.5 [m²] SPAN 12.9 13.5 14.0 AREA 18.6 20.2 21.9 [m²] SPAN 10.5 10.9 11.4 CELL NUMBER GLIDER WEIGHT [kg] WEIGHT IN FLIGHT 85-100 100~115 110-125 [kg] Certification Boomerang 10 36 / 48...
  • Page 37: Line Plan, Line System And Risers

    Line plan, line system and risers Line plan 37 /48 Boomerang 10...
  • Page 38: Line System

    Line system The Boomerang 10 has A and B line levels, which fork two or three times from the bottom (riser) to the top (canopy) and which are divided into "Main", "Lower-Middle", "Higher-Middle" und "Top" lines. The individual line levels are connected with one another using the “handshake knot”...
  • Page 39: Material List

    Material list 39 /48 Boomerang 10...
  • Page 40: Ccc Test-Lab-Template

    The following CCC-Test-Template is published for anyone to check the wings. We recommend to download the official file from the link above to make the template easier to understand. Boomerang 10 40 / 48...
  • Page 41: Size S

    Size S 41 /48 Boomerang 10...
  • Page 42 Boomerang 10 42 / 48...
  • Page 43 43 /48 Boomerang 10...
  • Page 44 Boomerang 10 44 / 48...
  • Page 45 45 /48 Boomerang 10...
  • Page 46: Size M

    Size M Boomerang 10 46 / 48...
  • Page 47 47 /48 Boomerang 10...
  • Page 48 Boomerang 10 48 / 48...
  • Page 49 49 /48 Boomerang 10...
  • Page 50 Boomerang 10 50 / 48...
  • Page 51: Size L

    Size L 51 /48 Boomerang 10...
  • Page 52 Boomerang 10 52 / 48...
  • Page 53 53 /48 Boomerang 10...
  • Page 54 Boomerang 10 54 / 48...
  • Page 55 55 /48 Boomerang 10...
  • Page 56: Appendix

    Appendix Addresses EAPR Gin Gliders Inc. European Academy of Parachute Rigging 285-1 GalDam-Ri, Mohyun-Myun Marktstr. 11 Yongin City, Kyunggi-Do 87730 Bad Grönenbach 449-851 Korea Germany Fon: +82-31-333-1241 Fon: +49 (0) 8334 - 534470 Fax: +82-31-334-6788 Fax: +49 (0) 8334 - 534469 www.
  • Page 57: Glider Details

    Size: Colour: Serial number: Check flight (date): __________________________________ Mark and signature: __________________________________ Pilot details / Proof of ownership 1. Owner Name: Address: Phone: Email: 2. Owner Name: Address: Phone: Email: 3. Owner Name: Address: Phone: Email: 57 /48 Boomerang 10...
  • Page 58: Inspections And Repairs Overview

    Inspections and repairs overview General condition on Date Work carried out Completed by (Name) Stamp and signature delivery Boomerang 10 58 / 48...
  • Page 59: Notes

    Notes __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ 59 /48 Boomerang 10...
  • Page 60 More about Gin Gliders Inc. gingliders.com Gin Gliders Inc. 285-1 Galdam-Ri, Mohyun-Myun, Yongin-City, Kyunggi-Do, Korea www.gingliders.com, gin@gingliders.com...
