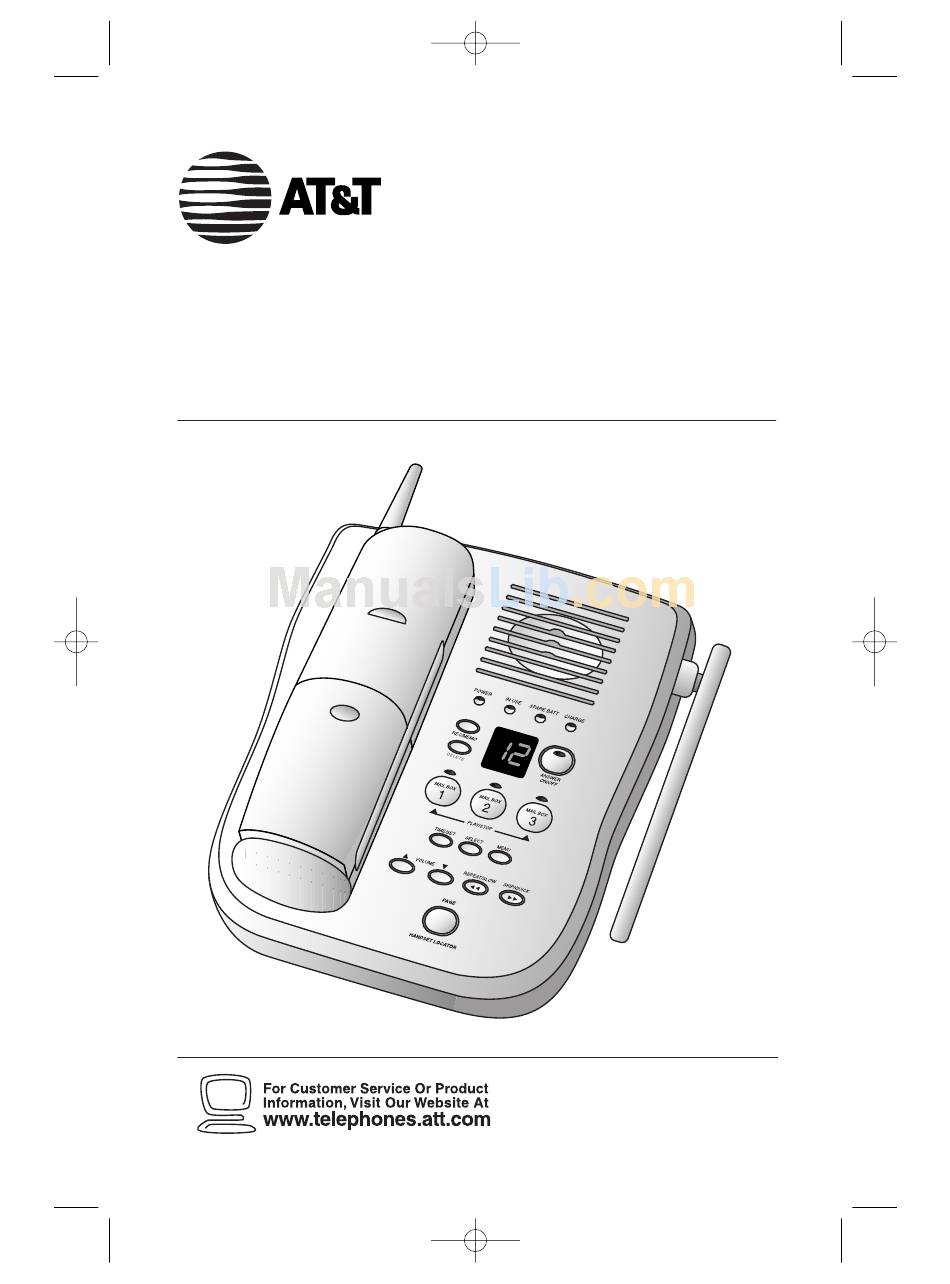

Page 1: Answering System
1/1/01 3:33 PM Page ii USER’S MANUAL Part 2 900 MHz Cordless Telephone/ Answering System 9351 REVISED 1/1/01 Please also read Part 1 — Important Product Information AT&T and the globe symbol are registered trademarks of AT&T Corp. licensed to Advanced American Telephones. - Page 2 9351_book_2ATT 1/1/01 3:33 PM Page iii © 2000 Advanced American Telephones. All rights reserved. Printed in China. 850004375 Issue 2AT&T 12/00...
-
Page 3: Table Of Contents
9351_book_2ATT 1/1/01 3:33 PM INSTALLATION ......2 Before You Install ... 2 Table/Desk Installation ... 4 Wall Installation ... -
Page 4: Installation
9351_book_2ATT 1/1/01 3:33 PM INSTALLATION Before You Install Choose a location for the base near an electrical outlet and a telephone jack. This phone requires a modular telephone jack and a standard electrical outlet (110v AC) not controlled by a wall switch. Install the handset battery. - Page 5 9351_book_2ATT 1/1/01 3:33 PM Page 3 INSTALLATION Attach the belt clip to the cordless handset (optional). To attach To remove...
-
Page 6: Table/Desk Installation
9351_book_2ATT 1/1/01 3:33 PM INSTALLATION Table/Desk Installation Standard electrical outlet Use only the power cord supplied with this product. If you need a replacement, call 1 800 222-3111. Charge the handset battery. Place the handset in the base. Charge the battery for at least 24 hours the first time. -
Page 7: Wall Installation
9351_book_2ATT 1/1/01 3:33 PM Wall Installation Position the wall mount adapter on the base. Connect the telephone line cord. Connect the power cord. The ANSWER ON/OFF light goes on, and Message Window. Use only the power cord supplied with this product. If you need a replacement, call 1 800 222-3111. - Page 8 9351_book_2ATT 1/1/01 3:33 PM INSTALLATION Mount the base on the wall. b) Place power cord as shown, so it hangs straight down between base and wall. Follow Steps 3–5 in “Table/Desk Installation.” Page 6 Align holes on base with mounting studs on wall jack.
-
Page 9: Telephone Operation
9351_book_2ATT 1/1/01 3:33 PM TELEPHONE OPERATION Handset Volume Adjust volume of what you hear through the handset. Make or Answer a Call Lift handset from base — OR — Press P and wait for light to go on steadily. Flash/ Call Waiting Access special telephone company... -
Page 10: Page/Handset Locator
9351_book_2ATT 1/1/01 3:33 PM TELEPHONE OPERATION Flashes when a call is coming Indicates base in; on steadily when any is connected to phone on this line is in use AC power Spare battery compartment Page 8 Indicates spare battery is installed Page/Handset Locator Press once to page the handset for up to one minute;... -
Page 11: Temporary Tone Dialing
9351_book_2ATT 1/1/01 3:33 PM TELEPHONE OPERATION Temporary Tone Dialing If you have dial pulse (rotary) service, you can change from dial pulse to touch tone dialing during a call by pressing *. This is useful if you need to send touch tone signals for access to telephone banking or long-distance services. -
Page 12: Headset Jack
9351_book_2ATT 1/1/01 3:33 PM Page 10 TELEPHONE OPERATION Headset Jack You can use this telephone hands-free when you install a 2.5 mm headset (AT&T SKU# 24099), purchased separately. Plug the headset into the jack located on the right side of the handset (under the small rubber flap). -
Page 13: Telephone Memory
9351_book_2ATT 1/1/01 3:33 PM This cordless phone can store 10 telephone numbers, each up to 16 digits long. You can dial numbers stored in memory just by pressing M and a number button. Store Memory Numbers 1 Make sure the handset is off. -
Page 14: Answering System Operation At The Base
9351_book_2ATT 1/1/01 3:33 PM ANSWERING SYSTEM OPERATION AT THE BASE Audible Indicators This system gives you voice prompts for feature operations and voice confirmations when you press a button or complete an operation. About Mailboxes This answering system has three voice mailboxes. Callers using a touch tone phone can select the mailbox in which their messages will be recorded by pressing # 1, # 2, or # 3 after the system answers the call. -
Page 15: Record Your Announcement
9351_book_2ATT 1/1/01 3:33 PM ANSWERING SYSTEM OPERATION Record outgoing announcement Delete outgoing announcement, messages Confirm/review feature setting Select a feature setting Record Your Announcement NOTE: If you have assigned different mailboxes to different people, be sure to tell callers in your announcement to press # 1, # 2, or # 3 to leave a message in the appropriate mailbox. -
Page 16: Answering System Feature Setup
9351_book_2ATT 1/1/01 3:33 PM ANSWERING SYSTEM OPERATION AT THE BASE Answering System Feature Setup You can set up one feature at a time, or you can set up a feature and then move on to set up another feature. Make sure the answering system is on. Press and release U until you hear the system announce the feature you want to set. -
Page 17: Listen To, Save & Delete Messages
9351_book_2ATT 1/1/01 3:33 PM ANSWERING SYSTEM OPERATION Listen To, Save & Delete Messages The system automatically saves your messages until you delete them, and can store approximately 15 minutes of messages, memos, and announcements (up to a maximum of 99 messages). After playing a message, the system announces the day and time it was received. -
Page 18: Answering System Operation
9351_book_2ATT 1/1/01 3:33 PM ANSWERING SYSTEM OPERATION AT THE BASE Call Screening/Intercept Make sure the answering system is on, and set the message playback volume control above level 1 so you can hear the caller’s message. If you decide to take the call, press P on the handset. If you pick up an extension phone during the announcement and the announcement does not stop right away, press and release the telephone switchhook. -
Page 19: At Touch Tone Phone
9351_book_2ATT 1/1/01 3:33 PM ANSWERING SYSTEM OPERATION Connect with the Answering System You can access many features of this system remotely from a touch tone phone. Dial your telephone number. When the system answers, press #, then enter your Remote Access Code (preset to 19). The system beeps twice. Within two seconds, enter a remote command (see “Remote Access Commands”... -
Page 20: Answering System Operation At Touch Tone Phone
9351_book_2ATT 1/1/01 3:33 PM ANSWERING SYSTEM OPERATION AT TOUCH TONE PHONE Remote Access Commands Function: Play messages in a mailbox Repeat a message Skip a message Stop Save messages Delete message Review announcement Record announcement Record memo End remote access call Turn system off Turn system on NOTE: The remote access call will automatically end if 20 seconds go by... -
Page 21: Batteries
9351_book_2ATT 1/1/01 3:33 PM Charging the Handset Battery Pack This battery should remain charged up to six days with the ringer turned on and up to twelve days with the ringer off. A fully charged battery provides an average talk time of about six hours. The battery pack needs charging when: •... -
Page 22: Replacing The Handset Battery Pack
9351_book_2ATT 1/1/01 3:33 PM BATTERIES Replacing the Handset Battery Pack Remove the battery compartment cover on the handset by pressing on the indentation and sliding the cover downward. Lift out the old battery pack and disconnect. Align the two holes in the new battery pack’s plug with the socket pins, and snap the plug into place. -
Page 23: Spare Battery Charger
9351_book_2ATT 1/1/01 3:33 PM Spare Battery Charger This phone is equipped with a built-in spare battery charger in the base unit. The spare battery charger allows you to always have a charged battery available should the handset battery charge become low. To install the spare battery pack (purchased separately, Replacement Battery #3301, AT&T SKU# 91076): Open the base unit spare battery compartment. -
Page 24: In Case Of Difficulty
9351_book_2ATT 1/1/01 3:33 PM IN CASE OF DIFFICULTY If you have difficulty operating this phone, try the suggestions below. For Customer Service, visit our website at www.telephones.att.com or call 1 800 222–3111. Please retain your receipt as your proof of purchase. If the phone doesn’t work at all, check these items first: •... - Page 25 9351_book_2ATT 1/1/01 3:33 PM IN CASE OF DIFFICULTY If you hear noise or interference when using the phone: • Make sure the base antenna is fully upright. • You may be out of range. Move closer to the base. Press and release C to change to another of the 30 channels •...
- Page 26 9351_book_2ATT 1/1/01 3:33 PM IN CASE OF DIFFICULTY If you have difficulty hearing messages: Check the volume setting. If the system does not answer after the correct number of rings: • Make sure that the ANSWER ON/OFF light on the base is on. If it is off, press o.
