Icidu NI-707534 Full Manual

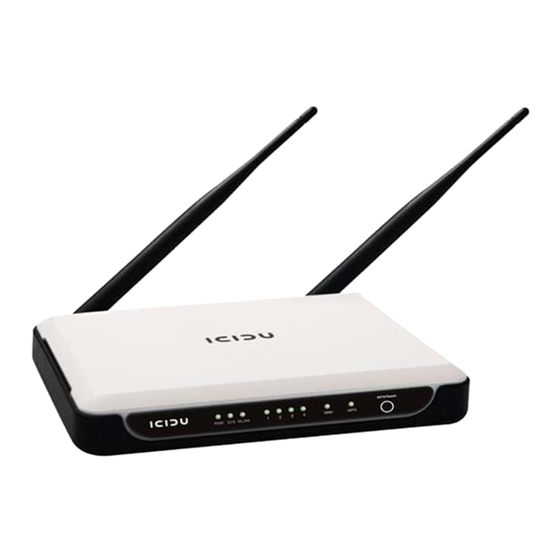

Broadband router wireless 300n 300 mbps
Hide thumbs Also See for NI-707534:
Table of Contents

Advertisement

Quick Links

See also: User Manual

Advertisement

Table of Contents
loading

Related Manuals for Icidu NI-707534

Summary of Contents for Icidu NI-707534

  • Page 3: Fcc Statement

    FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

  • Page 4: Ce Mark Warning

    FCC RF Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. “To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations.

  • Page 5: Table Of Contents

    CONTENTS Package Contents ..................... 1 Chapter 1. Introduction ..................2 1.1 Overview of the Router ....................2 1.2 Conventions ........................3 1.3 Main Features ....................... 3 1.4 Panel Layout ......................... 4 1.4.1 The Front Panel ....................4 1.4.2 The Rear Panel ....................5 Chapter 2.
  • Page 6 4.7.2 DHCP Clients List ................... 49 4.7.3 Address Reservation ..................50 4.8 Forwarding ........................51 4.8.1 Virtual Servers ....................51 4.8.2 Port Triggering ....................53 4.8.3 DMZ ........................ 55 4.8.4 UPnP ....................... 55 4.9 Security ........................56 4.9.1 Basic Security ....................56 4.9.2 Advanced Security ..................
  • Page 7 4.16.5 Backup & Restore ................... 87 4.16.6 Reboot ......................88 4.16.7 Password ......................88 4.16.8 System Log ..................... 89 4.16.9 Statistics ......................91 Appendix A: FAQ ....................93 Appendix B: Configuring the PC ................98 Appendix C: Specifications ................. 102 Appendix D: Glossary ..................

  • Page 8: Package Contents

    NI-707534 Wireless Router 300N Package Contents The following items should be found in your package: NI-707534 Wireless Router 300N  Power adapter 9V 0.6A  CD with manuals  Manual   Note: Make sure that the package contains the above items. If any of the listed items are damaged or missing, please contact with your distributor.

  • Page 9: Chapter 1. Introduction

    Flexible Access Control The NI-707534 Wireless 300N Router provides flexible access control, so that parents or network administrators can establish restricted access policies for children or staff. It also supports Virtual Server and DMZ host for Port Triggering, and then the network administrators can manage and monitor the network in real time with the remote management function.

  • Page 10: Conventions

    NI-707534 Wireless Router 300N 1.2 Conventions The Router or NI-707534 mentioned in this guide stands for NI-707534 Wireless 300N Router without any explanation. 1.3 Main Features Complies with IEEE 802.11n to provide a wireless data rate of up to 300Mbps.

  • Page 11: Panel Layout

    NI-707534 Wireless Router 300N 1.4 Panel Layout 1.4.1 The Front Panel Figure 1-1 Front Panel sketch The Router’s LEDs and the WPS/Reset button are located on the front panel (View from left to right). Name Status Indication Power is off.

  • Page 12: The Rear Panel

    The following parts are located on the rear panel (View from left to right). POWER: The Power socket is where you will connect the power adapter. Please use the  power adapter provided with this NI-707534 Wireless 300N Router. ON/OFF: The switch for the power. ...

  • Page 13: Chapter 2. Connecting The Router

    NI-707534 Wireless Router 300N Chapter 2. Connecting the Router 2.1 System Requirements Broadband Internet Access Service (DSL/Cable/Ethernet)  One DSL/Cable Modem that has an RJ45 connector (which is not necessary if the Router is  connected directly to the Ethernet.) PCs with a working Ethernet Adapter and an Ethernet cable with RJ45 connectors ...
  • Page 14 Connect the power adapter to the power socket on the Router, and the other end into an electrical outlet. Press the power switch, then the Router will start to work automatically. Power on your PC and Cable/DSL Modem. Figure 2-1 Hardware Installation of the NI-707534 Wireless 300N Router - 7 -...

  • Page 15: Chapter 3. Quick Installation Guide

    NI-707534 Wireless Router 300N Chapter 3. Quick Installation Guide This chapter will show you how to configure the basic functions of your NI-707534 Wireless 300N Router using Quick Setup Wizard within minutes. 3.1 TCP/IP Configuration The default IP address of the NI-707534 Wireless 300N Router is 192.168.1.1. And the default Subnet Mask is 255.255.255.0.
  • Page 16 NI-707534 Wireless Router 300N Figure 3-1 Success result of Ping command If the result displayed is similar to the Figure 3-2, it means the connection between your PC  and the Router is failed. Figure 3-2 Failure result of Ping command...

  • Page 17: Quick Installation Guide

    192.168.1.2 ~ 192.168.1.254. 3.2 Quick Installation Guide With a Web-based utility, it is easy to configure and manage the NI-707534 Wireless 300N Router. The Web-based utility can be used on any Windows, Macintosh or UNIX OS with a Web browser, such as Microsoft Internet Explorer, Mozilla Firefox or Apple Safari.
  • Page 18 NI-707534 Wireless Router 300N  Note: If the above screen does not pop-up, it means that your Web-browser has been set to a proxy. Go to Tools menu>Internet Options>Connections>LAN Settings, in the screen that appears, cancel the Using Proxy checkbox, and click OK to finish it.
  • Page 19 NI-707534 Wireless Router 300N 1) If the connection type detected is PPPoE, the next screen will appear as shown in Figure 3-7. Figure 3-7 Quick Setup - PPPoE User Name/Password - Enter the User Name and Password provided by your ISP.
  • Page 20  Identification) must be assigned to all wireless devices in your network. Considering your wireless network security, the default SSID is set to be ICIDU. This value is case-sensitive. For example, TEST is NOT the same as test. Region - Select your region from the drop-down list. This field specifies the region ...
  • Page 21 NI-707534 Wireless Router 300N necessary to change the wireless channel unless you notice interference problems with another nearby access point. Mode - This field determines the wireless mode which the Router works on.  Channel Width - Select any channel width from the drop-down list. The default setting ...
  • Page 22 NI-707534 Wireless Router 300N Figure 3-11 Quick Setup – Finish - 15 -...

  • Page 23: Chapter 4. Configuring The Router

    NI-707534 Wireless Router 300N Chapter 4. Configuring the Router This chapter will show each Web page's key functions and the configuration way. 4.1 Login After your successful login, you will see the fifteen main menus on the left of the Web-based utility.
  • Page 24 NI-707534 Wireless Router 300N Figure 4-1 Router Status - 17 -...

  • Page 25: Quick Setup

    NI-707534 Wireless Router 300N 4.3 Quick Setup Please refer to Section 3.2: "Quick Installation Guide”. 4.4 WPS This section will guide you to add a new wireless device to an existing network quickly by WPS (Wi-Fi Protected Setup) function. Choose menu “WPS”, and you will see the next screen (shown in Figure 4-2 ).
  • Page 26 NI-707534 Wireless Router 300N By PBC If the wireless adapter supports Wi-Fi Protected Setup and the Push Button Configuration (PBC) method, you can add it to the network by PBC with the following two methods. Method One: Step 1: Press the WPS/Reset button on the front panel of the Router.
  • Page 27 NI-707534 Wireless Router 300N  Note: When press and hold the WPS/Reset button for more than 5 seconds, you will reset the router. Step 2: For the configuration of the wireless adapter, please choose “Push the button on my access point” in the configuration utility of the WPS as below, and click Next.
  • Page 28 NI-707534 Wireless Router 300N The WPS Configuration Screen of Wireless Adapter Method Three: Step 1: Keep the default WPS Status as Enabled and click the Add device button in Figure 4-2, then the following screen will appear. Figure 4-3 Add A New Device Step 2: Choose “Press the button of the new device in two minutes”...
  • Page 29 NI-707534 Wireless Router 300N The WPS Configuration Screen of Wireless Adapter Step 4: Wait for a while until the next screen appears. Click Finish to complete the WPS configuration. The WPS Configuration Screen of Wireless Adapter II. By PIN If the new device supports Wi-Fi Protected Setup and the PIN method, you can add it to the network by PIN with the following two methods.
  • Page 30 NI-707534 Wireless Router 300N Step 2: Choose “Enter the new device's PIN” and enter the PIN code of the wireless adapter in the field after PIN as shown in the figure above. Then click Connect.  Note: The PIN code of the adapter is always displayed on the WPS configuration screen.
  • Page 31 NI-707534 Wireless Router 300N Step 2: For the configuration of the wireless adapter, please choose “Enter a PIN from my access point” in the configuration utility of the WPS as below, and enter the PIN code of the Router into the field after “Access Point PIN”. Then click Next.

  • Page 32: Network

    NI-707534 Wireless Router 300N The WPS function cannot be configured if the Wireless Function of the Router is disabled. Please make sure the Wireless Function is enabled before configuring the WPS. 4.5 Network Figure 4-4 The Network menu There are three submenus under the Network menu (shown in Figure 4-4): LAN, WAN and MAC Clone.

  • Page 33: Wan

    NI-707534 Wireless Router 300N 4.5.2 WAN Choose menu “Network → WAN”, you can configure the IP parameters of the WAN on the screen below. If your ISP provides the DHCP service, please choose Dynamic IP type, and the Router will automatically get IP parameters from your ISP.
  • Page 34 NI-707534 Wireless Router 300N  Note: If you find error when you go to a website after entering the DNS addresses, it is likely that your DNS servers are set up improperly. You should contact your ISP to get DNS server addresses.
  • Page 35 NI-707534 Wireless Router 300N Primary/Secondary DNS - (Optional) Enter one or two DNS addresses in dotted-decimal  notation provided by your ISP. Click the Save button to save your settings. If your ISP provides a PPPoE connection, select PPPoE/Russia PPPoE option. And you...
  • Page 36 NI-707534 Wireless Router 300N Connect on Demand - In this mode, the Internet connection can be terminated automatically  after a specified inactivity period (Max Idle Time) and be re-established when you attempt to access the Internet again. If you want your Internet connection keeps active all the time, please enter “0”...
  • Page 37 NI-707534 Wireless Router 300N Figure 4-9 PPPoE Advanced Settings MTU Size - The default MTU size is “1480” bytes, which is usually fine. It is not  recommended that you change the default MTU Size unless required by your ISP.
  • Page 38 NI-707534 Wireless Router 300N Figure 4-10 User Name/Password - Enter the User Name and Password provided by your ISP. These  fields are case-sensitive. Auth Server - Enter the authenticating server IP address or host name.  Auth Domain - Type in the domain suffix server name based on your location.
  • Page 39 NI-707534 Wireless Router 300N Connect Automatically - The connection can be re-established automatically when it was  down. Connect Manually - You can click the Connect/Disconnect button to connect/disconnect  immediately. This mode also supports the Max Idle Time function as Connect on Demand mode.
  • Page 40 NI-707534 Wireless Router 300N Figure 4-11 User Name/Password - Enter the User Name and Password provided by your ISP. These  fields are case-sensitive. Dynamic IP/ Static IP - Choose either as you are given by your ISP. Click the Connect ...
  • Page 41 NI-707534 Wireless Router 300N enter the number of minutes you want to have elapsed before your Internet connection terminates. Connect Automatically - Connect automatically after the Router is disconnected. To use this  option, check the radio button. Connect Manually - You can configure the Router to make it connect or disconnect manually.
  • Page 42 NI-707534 Wireless Router 300N Figure 4-12 PPTP Settings User Name/Password - Enter the User Name and Password provided by your ISP. These  fields are case-sensitive. Dynamic IP/ Static IP - Choose either as you are given by your ISP and enter the ISP’s IP ...

  • Page 43: Mac Clone

    NI-707534 Wireless Router 300N has been terminated due to inactivity, Connect on Demand enables the Router to automatically re-establish your connection as soon as you attempt to access the Internet again. If you wish to activate Connect on Demand, check the radio button. If you want your Internet connection to remain active at all times, enter “0”...

  • Page 44: Wireless

    NI-707534 Wireless Router 300N Figure 4-13 MAC Address Clone Some ISPs require that you register the MAC Address of your adapter. Changes are rarely needed here. WAN MAC Address - This field displays the current MAC address of the WAN port. If your ...

  • Page 45: Wireless Settings

     Identification) must be assigned to all wireless devices in your network. Considering your wireless network security, the default SSID is set to be ICIDU. This value is case-sensitive. For example, TEST is NOT the same as test. Region - Select your region from the drop-down list. This field specifies the region where the ...
  • Page 46 NI-707534 Wireless Router 300N Note Dialog  Note: Limited by local law regulations, version for North America does not have region selection option. Channel - This field determines which operating frequency will be used. The default channel  is set to Auto, so the AP will choose the best channel automatically. It is not necessary to change the wireless channel unless you notice interference problems with another nearby access point.

  • Page 47: Wireless Security

    NI-707534 Wireless Router 300N Enable WDS - Check this box to enable WDS. With this function, the Router can bridge two  or more Wlans. If this checkbox is selected, you will have to set the following parameters as shown in Figure 4-16. Make sure the following settings are correct.
  • Page 48 NI-707534 Wireless Router 300N Figure 4-17 Wireless Security Disable Security - If you do not want to use wireless security, check this radio button. But it’s  strongly recommended to choose one of the following modes to enable security. WEP - It is based on the IEEE 802.11 standard. If you check this radio button, you will find a ...
  • Page 49 NI-707534 Wireless Router 300N Type - you can choose the type for the WEP security on the drop-down list. The default • setting is Automatic, which can select Shared Key or Open System authentication type automatically based on the wireless station's capability and request.

  • Page 50: Wireless Mac Filtering

    NI-707534 Wireless Router 300N Radius Server IP - Enter the IP address of the Radius server. • Radius Port - Enter the port number of the Radius server. • Radius Password - Enter the password for the Radius server. •...
  • Page 51 NI-707534 Wireless Router 300N Figure 4-21 Wireless MAC Filtering To filter wireless users by MAC Address, click Enable. The default setting is Disable. MAC Address - The wireless station's MAC address that you want to filter.  Status - The status of this entry, either Enabled or Disabled.
  • Page 52 NI-707534 Wireless Router 300N Select Enabled or Disabled for this entry on the Status drop-down list. Click the Save button to save this entry. To modify or delete an existing entry: Click the Modify in the entry you want to modify. If you want to delete the entry, click the Delete.

  • Page 53: Wireless Advanced

    NI-707534 Wireless Router 300N 4.6.4 Wireless Advanced Choose menu “Wireless → Wireless Advanced”, you can configure the advanced settings of your wireless network. Figure 4-23 Wireless Advanced Transmit Power - Here you can specify the transmit power of Router. You can select High, ...

  • Page 54: Wireless Statistics

    NI-707534 Wireless Router 300N Enable WMM - WMM function can guarantee the packets with high-priority messages being  transmitted preferentially. It is strongly recommended. Enable Short GI - This function is recommended for it will increase the data capacity by ...

  • Page 55: Dhcp

    NI-707534 Wireless Router 300N 4.7 DHCP Figure 4-25 The DHCP menu There are three submenus under the DHCP menu (shown in Figure 4-25), DHCP Settings, DHCP Clients List and Address Reservation. Click any of them, and you will be able to configure the corresponding function.

  • Page 56: Dhcp Clients List

    NI-707534 Wireless Router 300N Address Lease Time - The Address Lease Time is the amount of time a network user will  be allowed connection to the Router with their current dynamic IP Address. Enter the amount of time in minutes and the user will be "leased" this dynamic IP Address. After the time is up, the user will be automatically assigned a new dynamic IP address.

  • Page 57: Address Reservation

    NI-707534 Wireless Router 300N 4.7.3 Address Reservation Choose menu “DHCP → Address Reservation”, you can view and add a reserved address for clients via the next screen (shown in Figure 4-28).When you specify a reserved IP address for a PC on the LAN, that PC will always receive the same IP address each time when it accesses the DHCP server.

  • Page 58: Forwarding

    NI-707534 Wireless Router 300N Modify the information. Click the Save button. Click the Enable/Disabled All button to make all entries enabled/disabled Click the Delete All button to delete all entries. Click the Next button to go to the next page and Click the Previous button to return the previous page.
  • Page 59 NI-707534 Wireless Router 300N Protocol - The protocol used for this application, either TCP, UDP, or All (all protocols  supported by the Router). Status - The status of this entry, either Enabled or Disabled.  To setup a virtual server entry: Click the Add New…...

  • Page 60: Port Triggering

    NI-707534 Wireless Router 300N Click the Next button to go to the next page and click the Previous button to return the previous page.  Note: If you set the service port of the virtual server as 80, you must set the Web management port on “Security →...
  • Page 61 NI-707534 Wireless Router 300N Status - The status of this entry, either Enabled or Disabled.  To add a new rule, follow the steps below. Click the Add New… button, the next screen will pop-up as shown in Figure 4-34.

  • Page 62: Dmz

    NI-707534 Wireless Router 300N Each rule is allowed to be used only by one host on LAN synchronously. The trigger connection of other hosts on LAN will be refused. Incoming Port Range cannot overlap each other. 4.8.3 DMZ Choose menu “Forwarding → DMZ”, you can view and configure DMZ host in the screen as shown in Figure 4-35.

  • Page 63: Security

    NI-707534 Wireless Router 300N Figure 4-36 UPnP Current UPnP Status - UPnP can be enabled or disabled by clicking the Enable or Disable  button. Current UPnP Settings List - This table displays the current UPnP information.  App Description - The description provided by the application in the UPnP request.
  • Page 64 NI-707534 Wireless Router 300N Figure 4-38 Basic Security Firewall - A firewall protects your network from the outside world. Here you can enable or  disable the Router’s firewall. SPI Firewall - SPI (Stateful Packet Inspection, also known as dynamic packet filtering) ...

  • Page 65: Advanced Security

    NI-707534 Wireless Router 300N ALG - It is recommended to enable Application Layer Gateway (ALG) because ALG allows  customized Network Address Translation (NAT) traversal filters to be plugged into the gateway to support address and port translation for certain application layer "control/data"...

  • Page 66: Local Management

    NI-707534 Wireless Router 300N section of the packets statistics. The result of the statistics is used for analysis by SYN Flood, UDP Flood and ICMP-Flood. DoS Protection - Denial of Service protection. Check the Enable or Disable button to ...

  • Page 67: Remote Management

    NI-707534 Wireless Router 300N Figure 4-40 Local Management By default, the radio button “All the PCs on the LAN are allowed to access the Router's Web-Based Utility” is checked. If you want to allow PCs with specific MAC Addresses to access the Setup page of the Router's Web-Based Utility locally from inside the network, check the radio button “Only the PCs listed can browse the built-in web pages to perform Administrator...

  • Page 68: Parental Control

    NI-707534 Wireless Router 300N Figure 4-41 Remote Management Web Management Port - Web browser access normally uses the standard HTTP service  port 80. This Router's default remote management web port number is 80. For greater security, you can change the remote management web port to a custom port by entering that number in the box provided.
  • Page 69 NI-707534 Wireless Router 300N Figure 4-42 Parental Control Settings Parental Control - Check Enable if you want this function to take effect, otherwise check  Disable. MAC Address of Parental PC - In this field, enter the MAC address of the controlling PC, or ...
  • Page 70 NI-707534 Wireless Router 300N Click the Save button. Click the Enable All button to enable all the rules in the list. Click the Disable All button to disable all the rules in the list. Click the Delete All button to delete all the entries in the table.

  • Page 71: Access Control

    NI-707534 Wireless Router 300N 3. Click “Parental Control” menu on the left to go back to the Add or Modify Parental Control Entry page: Click Add New... button.  Enter 00-11-22-33-44-AA in the MAC Address of Child PC field. ...
  • Page 72 NI-707534 Wireless Router 300N Figure 4-46 Access Control Rule Management Enable Internet Access Control - Select the check box to enable the Internet Access  Control function, so the Default Filter Policy can take effect. Rule Name - Here displays the name of the rule and this name is unique.
  • Page 73 NI-707534 Wireless Router 300N Click the Save button. Click the Enable All button to enable all the rules in the list. Click the Disable All button to disable all the rules in the list. Click the Delete All button to delete all the entries in the table.

  • Page 74: Host

    NI-707534 Wireless Router 300N 4. Click “Access Control → Rule” in the left to return to the Access Control Rule Management page. Select “Enable Internet Access Control” and choose "Deny the packets not specified by any access control policy to pass through the Router".
  • Page 75 NI-707534 Wireless Router 300N If you select IP Address, the screen shown is Figure 4-49.  1) In Host Description field, create a unique description for the host (e.g. Host_1). 2) In LAN IP Address field, enter the IP address.

  • Page 76: Target

    NI-707534 Wireless Router 300N 5. Click Save to complete the settings. Then you will go back to the Host Settings page and see the following list. 4.11.3 Target Choose menu “Access Control → Target”, you can view and set a Target list in the screen as shown in Figure 4-51.
  • Page 77 NI-707534 Wireless Router 300N 1) In Target Description field, create a unique description for the target (e.g. Target_1). 2) In Domain Name field, enter the domain name, either the full name or the keywords (for example google) in the blank. Any domain name with keywords in it (e.g.www.google.com) will be blocked or allowed.

  • Page 78: Schedule

    NI-707534 Wireless Router 300N For example: If you desire to restrict the internet activities of host with MAC address 00-11-22-33-44-AA in the LAN to access www.google.com only, you should first follow the settings below: 1. Click Add New… button in Figure 4-51 to enter the Add or Modify an Access Target Entry page.
  • Page 79 NI-707534 Wireless Router 300N 4. In Time field, you can select all day-24 hours or you may enter the Start Time and Stop Time in the corresponding field. 5. Click Save to complete the settings. Click the Delete All button to delete all the entries in the table.

  • Page 80: Advanced Routing

    NI-707534 Wireless Router 300N 4.12 Advanced Routing Figure 4-56 The Advanced Routing Menu There are two submenus under the Network menu (shown in Figure 4-56): Static Routing List and System Routing Table. Click any of them, and you will be able to configure the corresponding function.

  • Page 81: System Routing Table

    NI-707534 Wireless Router 300N  Destination IP Address - The Destination IP Address is the address of the network or host that you want to assign to a static route. Subnet Mask - The Subnet Mask determines which portion of an IP Address is the ...

  • Page 82: Bandwidth Control

    NI-707534 Wireless Router 300N 4.13 Bandwidth Control Figure 4-59 The Bandwidth Control menu There are two submenus under the Bandwidth Control menu as shown in Figure 4-59. Click any of them, and you will be able to configure the corresponding function. The detailed explanations for each submenu are provided below.
  • Page 83 NI-707534 Wireless Router 300N Figure 4-61 Bandwidth Control Rules List Description - This is the information about the rules such as address range.  Egress bandwidth - This field displays the max and mix upload bandwidth through the WAN ...

  • Page 84: Ip & Mac Binding Setting

    NI-707534 Wireless Router 300N 4.14 IP & MAC Binding Setting Figure 4-63 The IP & MAC Binding menu There are two submenus under the IP &MAC Binding menu (shown in Figure 4-63): Binding Settings and ARP List. Click any of them, and you will be able to scan or configure the corresponding function.
  • Page 85 NI-707534 Wireless Router 300N Figure 4-65 IP & MAC Binding Settings To add IP & MAC Binding entries, follow the steps below. Click the Add New... button as shown in Figure 4-64. Enter the MAC Address and IP Address. Select the Bind checkbox.

  • Page 86: Arp List

    NI-707534 Wireless Router 300N 4.14.2 ARP List To manage the computer, you could observe the computers in the LAN by checking the relationship of MAC address and IP address on the ARP list, and you could configure the items on the ARP list also.

  • Page 87: Comexe.cn Ddns

    NI-707534 Wireless Router 300N name no matter what your IP address is. Before using this feature, you need to sign up for DDNS service providers such as www.comexe.cn, www.dyndns.org, or www.no-ip.com. The Dynamic DNS client service provider will give you a password or key.

  • Page 88: Dyndns.org Ddns

    NI-707534 Wireless Router 300N 4.15.2 Dyndns.org DDNS If the dynamic DNS Service Provider you select is www.dyndns.org, the page will appear as shown in Figure 4-69. Figure 4-69 Dyndns.org DDNS Settings To set up for DDNS, follow these instructions: Type the User Name for your DDNS account.

  • Page 89: System Tools

    NI-707534 Wireless Router 300N Figure 4-70 No-ip.com DDNS Settings To set up for DDNS, follow these instructions: Type the User Name for your DDNS account. Type the Password for your DDNS account. Type the Domain Name you received from dynamic DNS service provider.

  • Page 90: Time Settings

    NI-707534 Wireless Router 300N Choose menu “System Tools”, and you can see the submenus under the main menu: Time Settings, Diagnostic, Firmware Upgrade, Factory Defaults, Backup & Restore, Reboot, Password, System Log and Statistics. Click any of them, and you will be able to configure the corresponding function.

  • Page 91: Diagnostic

    NI-707534 Wireless Router 300N  Note: 1. This setting will be used for some time-based functions such as firewall. You must specify your time zone once you log in to the Router successfully, otherwise, these functions will not take effect.

  • Page 92: Firmware Upgrade

    NI-707534 Wireless Router 300N  Note: You can use ping/traceroute to test both numeric IP address or domain name. If pinging/tracerouting the IP address is successful, but pinging/tracerouting the domain name is not, you might have a name resolution problem. In this case, ensure that the domain name you are specifying can be resolved by using Domain Name System (DNS) queries.

  • Page 93: Factory Defaults

    NI-707534 Wireless Router 300N Figure 4-75 Firmware Upgrade Firmware Version - This displays the current firmware version.  Hardware Version - This displays the current hardware version. The hardware version of the  upgrade file must accord with the Router’s current hardware version.

  • Page 94: Backup & Restore

    NI-707534 Wireless Router 300N Figure 4-76 Restore Factory Default Click the Restore button to reset all configuration settings to their default values. The default User Name: admin • The default Password: admin • The default IP Address: 192.168.1.1 • The default Subnet Mask: 255.255.255.0 •...

  • Page 95: Reboot

    NI-707534 Wireless Router 300N 4.16.6 Reboot Choose menu “System Tools → Reboot”, you can click the Reboot button to reboot the Router via the next screen. Figure 4-78 Reboot the Router Some settings of the Router will take effect only after rebooting, which include •...

  • Page 96: System Log

    NI-707534 Wireless Router 300N It is strongly recommended that you should change the factory default user name and password of the Router, because all users who try to access the Router's Web-based utility or Quick Setup will be prompted for the Router's default user name and password.
  • Page 97 NI-707534 Wireless Router 300N Figure 4-81 Mail Account Settings From - Your mail box address. The Router would connect it to send logs.  To - Recipient’s address. The destination mailbox where the logs would be received.  SMTP Server - Your smtp server. It corresponds with the mailbox filled in the From ...

  • Page 98: Statistics

    NI-707534 Wireless Router 300N Click Back to return to the previous page. Log Type - By selecting the log type, only logs of this type will be shown.  Log Level - By selecting the log level, only logs of this level will be shown.
  • Page 99 NI-707534 Wireless Router 300N Statistics Table: The IP and MAC address are displayed with related statistics. IP/MAC Address The total number of packets received and transmitted by the Router. Packets Total The total number of bytes received and transmitted by the Router.

  • Page 100: Appendix A: Faq

    NI-707534 Wireless Router 300N Appendix A: FAQ How do I configure the Router to access Internet by ADSL users? First, configure the ADSL Modem configured in RFC1483 bridge model. Connect the Ethernet cable from your ADSL Modem to the WAN port on the Router. The telephone cord plugs into the Line port of the ADSL Modem.
  • Page 101 NI-707534 Wireless Router 300N How do I configure the Router to access Internet by Ethernet users? Log in to the Router, click the “Network” menu on the left of your browser, and click "WAN" submenu. On the WAN page, select “Dynamic IP” for "WAN Connection Type", finish by clicking Save.
  • Page 102 NI-707534 Wireless Router 300N Figure A-5 Add or Modify a Virtual server Entry  Note: Your opposite side should call your WAN IP, which is displayed on the “Status” page. How to enable DMZ Host: Log in to the Router, click the “Forwarding” menu on the left of your browser, and click "DMZ"...
  • Page 103 NI-707534 Wireless Router 300N Figure A-7 Basic Security I want to build a WEB Server on the LAN, what should I do? Because the WEB Server port 80 will interfere with the WEB management port 80 on the Router, you must change the WEB management port number to avoid interference.
  • Page 104 NI-707534 Wireless Router 300N Log in to the Router, click the “Forwarding” menu on the left of your browser, and click the "Virtual Servers" submenu. On the "Virtual Servers" page, click Add New…, then on the “Add or Modify a Virtual Server” page, enter “80” into the blank next to the “Service Port”, and your IP address next to the “IP Address”, assuming 192.168.1.188...

  • Page 105: Appendix B: Configuring The Pc

    NI-707534 Wireless Router 300N Appendix B: Configuring the PC In this section, we’ll introduce how to install and configure the TCP/IP correctly in Windows XP. First make sure your Ethernet Adapter is working, refer to the adapter’s manual if necessary.
  • Page 106 NI-707534 Wireless Router 300N Figure B-2 The following TCP/IP Properties window will display and the IP Address tab is open on this window by default. Now you have two ways to configure the TCP/IP protocol below:  Setting IP address automatically...
  • Page 107 NI-707534 Wireless Router 300N Figure B-3  Note: For Windows 98 OS or before, the PC and Router may need to be restarted.  Setting IP address manually Select Use the following IP address radio button. And the following items available If the Router's LAN IP address is 192.168.1.1, specify the IP address as 192.168.1.x (x is...
  • Page 108 NI-707534 Wireless Router 300N Now click OK to keep your settings. - 101 -...

  • Page 109: Appendix C: Specifications

    NI-707534 Wireless Router 300N Appendix C: Specifications General IEEE 802.3, IEEE 802.3u, IEEE 802.11b, IEEE 802.11g and IEEE Standards 802.11n Protocols TCP/IP, PPPoE, DHCP, ICMP, NAT, SNTP One 10/100M Auto-Negotiation WAN RJ45 port, Four 10/100M Ports Auto-Negotiation LAN RJ45 ports supporting Auto MDI/MDIX 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω...

  • Page 110: Appendix D: Glossary

    NI-707534 Wireless Router 300N Appendix D: Glossary 802.11n - 802.11n builds upon previous 802.11 standards by adding MIMO (multiple-input  multiple-output). MIMO uses multiple transmitter and receiver antennas to allow for increased data throughput via spatial multiplexing and increased range by exploiting the spatial diversity, perhaps through coding schemes like Alamouti coding.
  • Page 111 ICIDU is a registered trademark. All other brand names and rights in connection with them are and remain the property of the rightful owner. © Copyright 2011 ICIDU...
