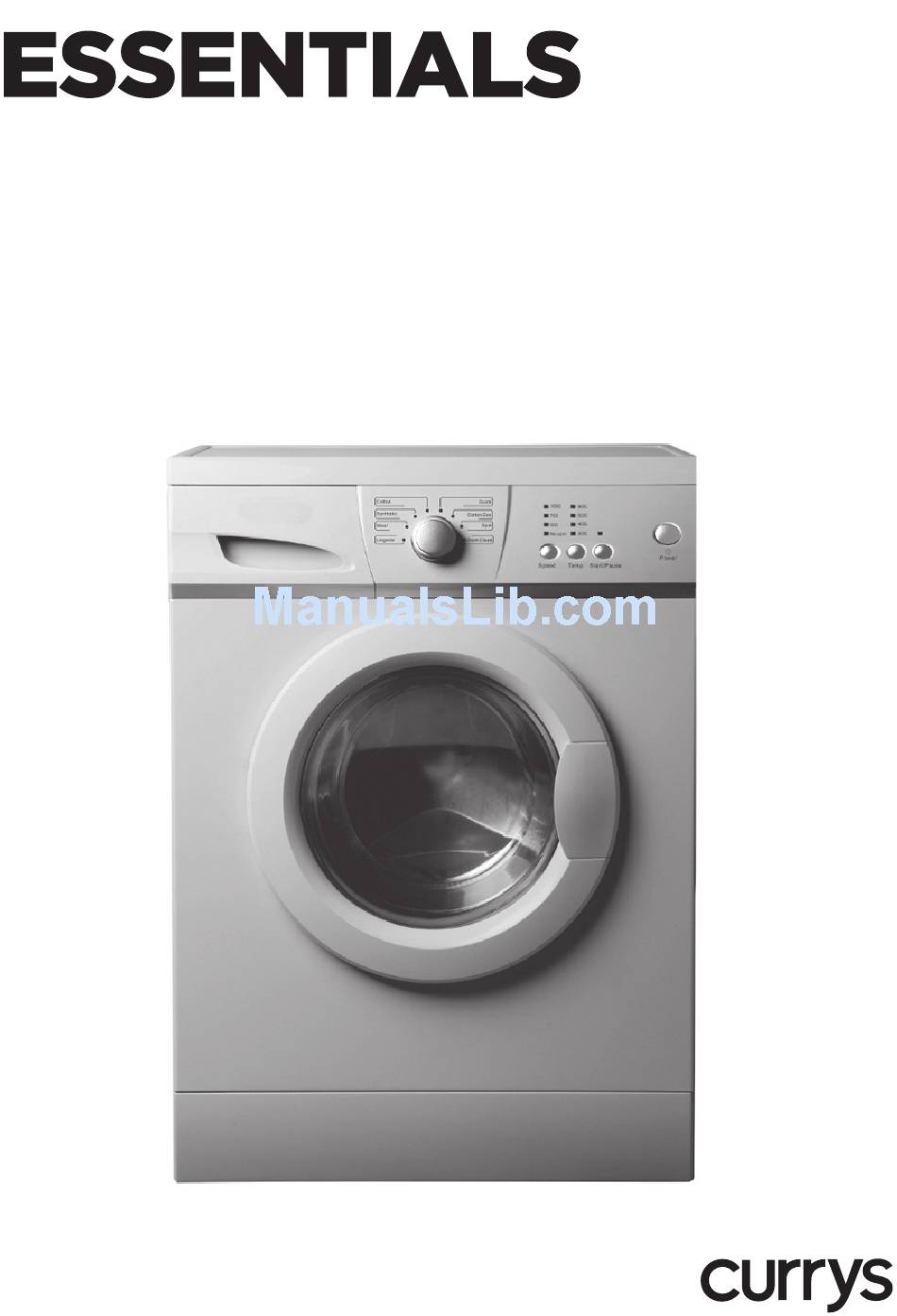

Page 1: Instruction Manual

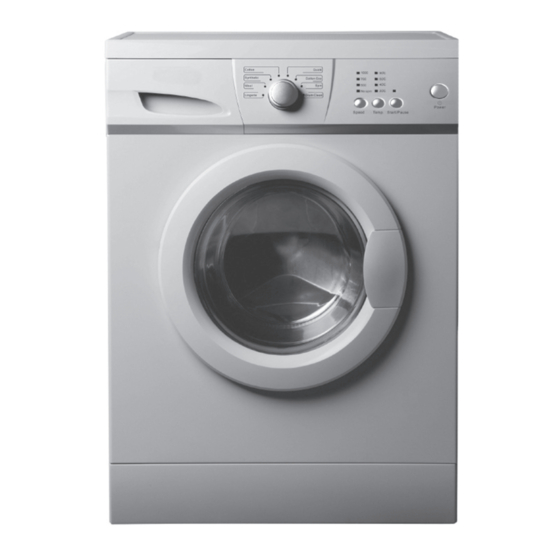

INSTRUCTION MANUAL 5kg Silver Washing Machine C510WMS13... -
Page 3: Table Of Contents
Contents Safety Warning .............................. 4 Unpacking ..............................7 Installing Your Washing Machine ......................... 8 Choosing the Right Location for Your Washing Machine ....................8 Moving and Installing ........................... 9 Removing the Anchor Bolts ..............................9 Moving the Washing Machine from One Location to Another ..................9 Hose and Cable Lengths ................................10 Levelling the Washing Machine.............................10 Water Supply Hose ..................................10... -
Page 4: Safety Warning
Safety Warning For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below. WARNING! • If you will not be using the washing machine for a while such as when you go on holiday, disconnect the plug from the mains supply and turn off the water supply to the washing machine. - Page 5 Power Source and Cable • Use an independent household dedicated mains socket, rated at 10 Amp 220V to 240V AC. If the washing machine is plugged in with other appliances, it may overheat and cause a fire. • Make sure the mains plug is pushed firmly into the socket. A loose connection may overheat and cause electrical shock or a fire.
- Page 6 • Be careful when draining hot water or any detergent from the drum. • Do not dismantle, repair or modify the washing machine. The washing machine could malfunction and cause a fire or injury. • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and...
-
Page 7: Unpacking
Unpacking Remove all items from the packaging. Retain the packaging. If you dispose of it please do so according to local regulations. The following items are included: ˚C ˚C ˚C ˚C Water Supply Hose x 1 U - shape Holder x 1 For fixing the water drain hose. -
Page 8: Installing Your Washing Machine
INSTALLATION Installing Your Washing Machine Please read and follow the instructions carefully. • In addition to the instructions mentioned here, special regulations of the relevant water and power supply companies may apply. If in doubt, have the washing machine connected by a qualified technician. •... -
Page 9: Moving And Installing
INSTALLATION Moving and Installing Removing the Anchor Bolts Four anchor bolts keep the interior of the washing machine in place while it’s being moved. They need to be removed before installation. Use a spanner (not supplied) and follow the instructions detailed below. Don’t run the washing machine without removing the bolts, as this can cause excessive vibrations. -
Page 10: Hose And Cable Lengths
INSTALLATION Hose and Cable Lengths How to connect from the left side How to connect from the right side ~80cm ~130cm ~90cm ~40cm ˚C ˚C ˚C ˚C Lingerie 110 - 135cm Levelling the Washing Machine There are 4 levelling feet on the underside. They must be adjusted to make sure the washing machine is level. -
Page 11: Water Drain Hose
INSTALLATION This system is designed to prevent water leaks from the washing machine. If water collects in the washing machine above a certain level, this function prevents the washing machine overflowing by stopping the water supply and activating the drain pump. Water Drain Hose Points to remember: •... -
Page 12: Product Overview
Product Overview The unit The Control ˚C The Detergent ˚C ˚C Panel ˚C Compartment Window Service Panel Drain Hose... -
Page 13: Control Panel
Control Panel Power Press to turn on the machine. Press again to turn off the machine. Cotton Quick 1000 Synthetic Cotton Intensive Wool Spin No spin Lingerie Drum Clean Power Speed Temp. Start/Pause Programme Selection Dial Start / Pause Spin Speed Temperature Different wash programmes Press to start your... -
Page 14: Preparation
Preparation Read the following to understand how best to prepare your laundry for washing. Organising Laundry • Read the washing label on each garment to help you sort your washing into different loads. • Sort the laundry by colour, type of fabric and by how soiled it is. This will help you choose the correct programme and temperature for each wash. -
Page 15: Selecting The Programme
Selecting the Programme Here are the available programmes, additional functions and option settings. Temperature can be selected separately for certain programmes. Preset Setting Selectable Max/ Programme Description Default Load Temp. range Default Spin Approximate Temp.˚C (kg) (rpm) Time (Min) (˚C) For heavily soiled Cotton cottons, household... -
Page 16: Before First Use
Before First Use Before washing your clothes for the first time, run a full wash programme first: 1. Connect the machine to the mains power supply and the water supply. 2. Put a small amount of detergent in the detergent drawer. Close the drawer. 3. -
Page 17: Removing Washing (Once Programme Is Finished)
Removing Washing (once programme is finished) Door remains locked for 1 minute after wash stopped. 1. Switch off the washing machine. 2. Open the washing machine door and remove your washing. 3. Remove any foreign objects to avoid risk of rusting. 4. -
Page 18: Maintenance - Cleaning The Washing Machine
Maintenance - Cleaning the Washing Machine Cleaning the Drum If you keep using cold water in your washing machine, this may cause a build-up of bacteria inside the drum, which can give off an odour. You can avoid this by running the “drum clean” programme once a month. -
Page 19: Cleaning The Door Seal And Window
Cleaning the Door Seal and Window • Wipe the window and seal after each wash to remove lint and stains. If lint builds up, it can cause leaks. • Remove any coins, buttons and other objects from the door seal after each wash. Cleaning the Water Inlet Filter If the machine is not filling up with water properly when the tap is open, you need to clean the Water Inlet Filter:... -
Page 20: Cleaning The Drain Filter
Cleaning the Drain Filter Be careful not to burn yourself while handling your clothes or touching the inside of the drum after a high temperature wash. Before cleaning the drain filter, first start the spin programme, then switch off and unplug the washing machine. -
Page 21: Hints And Tips
Hints and Tips Problems Solutions • Key lock is activated. Deactivate the key lock function. Buttons don’t work • The washing machine is operating a programme. The Programme Dial was turned to a different programme. • • Door lock may be active. Door doesn’t open If you start a wrong •... - Page 22 There’s not much foam • This can happen if you’ve put powder detergent directly into the drum – you must put it in the detergent drawer. • The amount of foam can vary, depending on the temperature, level and softness of your water. •...
-
Page 23: Questions And Answers
Questions and Answers Issues Reasons /Descriptions Solutions • Check that the door is closed tightly. • Check that the power is on. Washing machine cannot start up • Check that the water supply tap is open. • Check that the Start/Pause button is pressed. •... - Page 24 • Check the water outlet hose is not blocked or kinked; clean and straighten if necessary. • Drainage of water takes over 9 • Check the filter(s) is not blocked; clean if 40°C Flashing minutes. necessary. • Check the drain pump filer is not blocked; clean if necessary.
-
Page 25: Specifications
Specifications Model C510WMS13 Rated Voltage 220 - 240V Rated Frequency 50 Hz Maximum Energy Rated Power Input 2100 W Heating Energy Rated Power Input 1800W Dimensions of the Product 595mm (W) x 470mm (D) x 850mm (H) Weight of the Product 50 kg Maximum Mass of Dry Cloth 5 kg... -
Page 26: Product Fiche
Product Fiche Brand: Currys Essentials Model: C510WMS13 Rated capacity: 5 kg Energy efficiency class: A+ EU Ecolabel: N/A Energy consumption is 169 kwh per year based on 220 standard washing cycles for cotton programmes set at 60° C and 40° C, with full and partial loads, and set at low-power modes. - Page 28 For general information about this appliance and handy hints and tips, please visit www.knowhow.com/knowledgebank or call 0844 5611234. Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can deliver direct to your door the very next day.
