Summary of Contents for Pro-Elec HG00875

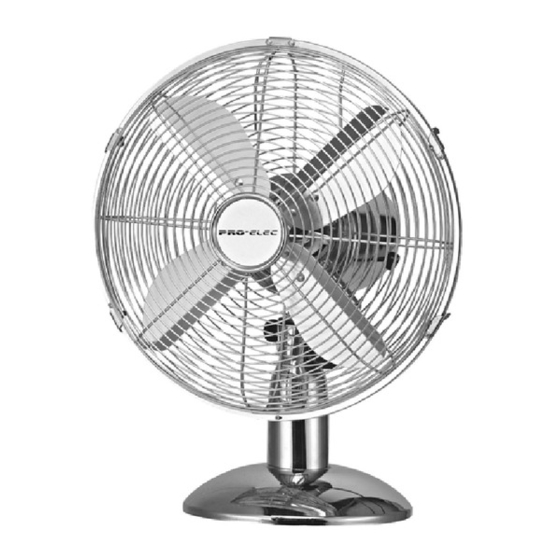

- Page 1 INSTRUCTION MANUAL Model HG00875 12” METAL DESK FAN...
- Page 2 CAUTION ● When using electrical appliances basic safety precautions should always be followed. ● Check that the voltage indicated on the rating plate corresponds with that of the local network before connecting the appliance to the mains power supply. ● This appliance is intended for domestic use only.
- Page 3 Store the fan in the original packing in a ventilated dry area. The motor bearings are permanently sealed and do not require additional lubrication. TECHNICAL DETAILS Model No: HG00875 Power consumption: Main Voltage: 220-240V ~50Hz Dimensions:...
- Page 4 INSTRUCTION MANUAL Model HG00876 16” METAL DESK FAN...
- Page 5 CAUTION ● When using electrical appliances basic safety precautions should always be followed. ● Check that the voltage indicated on the rating plate corresponds with that of the local network before connecting the appliance to the mains power supply. ● This appliance is intended for domestic use only.
- Page 6 4. Remove the bolt and nut from the bottom of the front guard and rotate all clips to an open position. 5. Attach the front fan guard, lining up the top notch with the rear guard and ensuring the bolt hole is aligned for the two halves.
- Page 7 INSTRUCTION MANUAL Model HG00877 16” METAL PEDESTAL FAN...
- Page 8 CAUTION ● When using electrical appliances basic safety precautions should always be followed. ● Check that the voltage indicated on the rating plate corresponds with that of the local network before connecting the appliance to the mains power supply. ● This appliance is intended for domestic use only.
- Page 9 ASSEMBLY Assemble the base. 2. Insert the outer tube into the base, slide on the weight and secure using the locking screw. Place the assembly upright. 3. Secure the fan motor to the inner tube using the screws provided. 4. Attach the rear guard to the fan motor, securing it in place with the cover fixing screws. 5.
