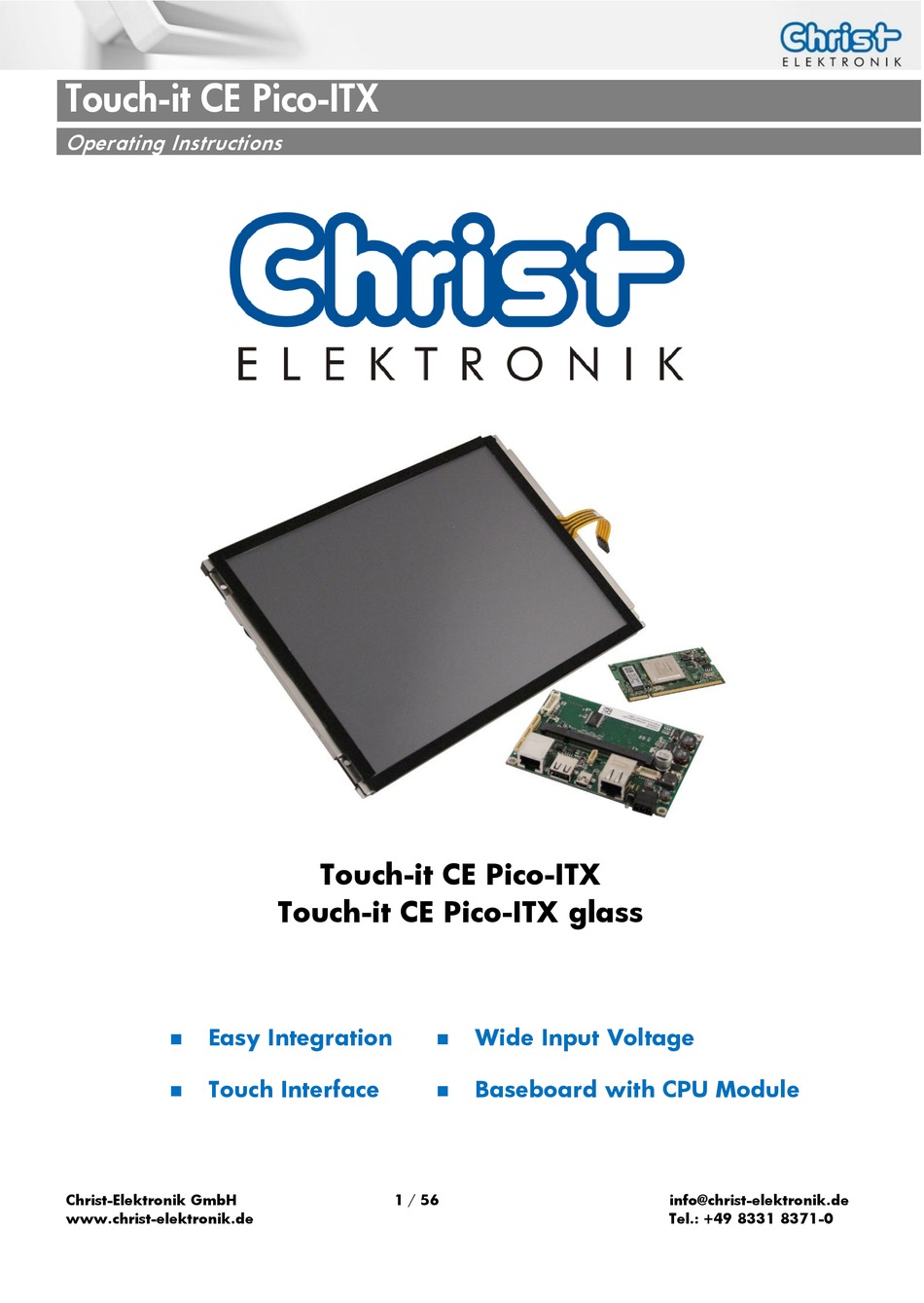

Touch-it CE Pico-ITX
Operating Instructions
Easy Integration
Touch Interface
Christ-Elektronik GmbH
www.christ-elektronik.de
Touch-it CE Pico-ITX
Touch-it CE Pico-ITX glass
1 / 56
Wide Input Voltage
Baseboard with CPU Module
info@christ-elektronik.de
Tel.: +49 8331 8371-0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Touch-it CE Pico-ITX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Christ Elektronik Touch-it CE Pico-ITX

  • Page 1 Touch-it CE Pico-ITX Operating Instructions Touch-it CE Pico-ITX Touch-it CE Pico-ITX glass Easy Integration Wide Input Voltage   Touch Interface Baseboard with CPU Module   Christ-Elektronik GmbH 1 / 56 info@christ-elektronik.de www.christ-elektronik.de Tel.: +49 8331 8371-0...
  • Page 2 Touch-it CE Pico-ITX Operating Instructions Document No. E461133 Revision Date 19 May. 15 Address Christ-Elektronik GmbH Alpenstraße 34 DE-87700 Memmingen Telephone +49 (0)8331 8371 – 0 +49 (0)8331 8371 – 99 E-Mail info@christ-elektronik.de Internet http://www.christ-elektronik.de Copyright No part of this documentation may in any form be reproduced, copied or distributed by means of electronic systems without previous written permis- sion by Christ-Elektronik GmbH.
  • Page 3: Table Of Contents

    Touch-it CE Remote Control ........................26 Embedded Kits..........................28 Dimensions Pico-ITX ..........................28 Touch-it CE Pico-ITX 7 ..........................29 Touch-it CE Pico-ITX glass 7 ........................31 Touch-it CE Pico-ITX 10,4 ........................33 Touch-it CE Pico-ITX glass 10,4 ....................... 35 Touch-it CE Pico-ITX 15 ..........................37 Touch-it CE Pico-ITX glass 15 ........................
  • Page 4 Touch-it CE Pico-ITX Operating Instructions 5.3.6 Ethernet Connector (X6) ....................... 45 5.3.7 RS-232 Connector (X7) ......................46 5.3.8 RS-232/RS-485 Connector (X8) .................... 46 5.3.9 MircoSD (X9) ........................47 5.3.10 LVDS Connector (X10) ......................47 5.3.11 Touch Connector1 (X11) ...................... 48 5.3.12...
  • Page 5: General

    Touch-it CE Pico-ITX Operating Instructions General OVERVIEW Touch-it CE Pico-ITX Touch-it CE Pico-ITX glass Series Touch Foil Touch, analog resistive Projected Capacitive Touch 7” (17.8 cm) Sizes 10.4” (26.4 cm) 15” (38.1 cm) SYSTEM NVIDIA® Tegra™ 2 Dual Core 1.0 GHz Cortex-A9...
  • Page 6 Touch-it CE Pico-ITX Operating Instructions MECHANICAL & ENVIRONMENTAL Dimensions Board 100 mm x 72 mm (Pico-ITX) Maximum Height Top 14 mm Maximum Height Bottom 3.2 mm Height Platine 1.6 mm Dimensions LCD and Touch 7 inch, 166 mm x 106.5 mm x 11.6 mm 10.4 inch, 236 mm x 176.9 mm x 7.9 mm...
  • Page 7: Commissioning

    Touch-it CE Pico-ITX Operating Instructions 2 Commissioning 2.1 Content Display & Touch Pico-ITX Board & CPU Module Visualized your system with an industrial Pico-ITX and its interfaces LCD. A Projected Capacitive Touch / Foil with the suitable CPU Module Touch is mounted...
  • Page 8: Interfaces Connector Side

    1 x RS-232 and 1 x RS-485 (one connector) Mass Storage 1x microSD up to 32GB Power Connector Phoenix Picture 1: connector side Touch-it CE Pico-ITX 2.3 Interfaces On Board Video 1 x 18bit LVDS single channel 1 x LED Backlight Connector Audio...
  • Page 9: Quick Start Guide

    Touch-it CE Pico-ITX Operating Instructions 2.4 Quick Start Guide The following table and pictures give you an overview how to configure the Touch-it CE Pico-ITX components. 2.4.1 Cables and thermal pad LVDS Cable Backlight Cable (only 7” and 10.4”) Inverter Cable (only 15”) Backlight Cable (only 15”)
  • Page 10: Touch-It Ce Pico-Itx 10,4

    Touch-it CE Pico-ITX Operating Instructions 2.4.2 Touch-it CE Pico-ITX glass Follow the instructions below except of the touch cable. Hereto connect the touch cable (glass) to X3 and the touch port of the display. Touch Connector 7“ Touch Connector 10,4“ and 15“...
  • Page 11: Touch-It Ce Pico-Itx 15

    3. Connect the backlight cable into X13 and the backlight port of the Display 4. Insert the CPU module in X2 and connect the power plug Now your Touch-it CE Pico-ITX is ready to run Christ-Elektronik GmbH 11 / 56 info@christ-elektronik.de...
  • Page 12 3. Connect the backlight cable into X13 and the backlight port of the Display 4. Insert the CPU module in X2 and connect the power plug Now your Touch-it CE Pico-ITX is ready to run Christ-Elektronik GmbH 12 / 56 info@christ-elektronik.de...
  • Page 13 5. Place the thermal pad at the inverter and connect the thermal pad to a thermally conductive material, like a metal plate (See Chapter Embedded Kits-> Touch-it CE Pico-ITX 15 for more Details) 6. Insert the CPU module in X2 and connect the power plug...
  • Page 14: Software

    USB Cable (Type A – Type mini-B) between your PC USB port and the USB on the Touch-it CE. Be sure that only the mini USB port is connected and not the shared one. If you use the Touch-it CE Pico-ITX glass, be sure that the touchscreen is not connected to the inter- nal USB port.
  • Page 15 Touch-it CE Pico-ITX Operating Instructions You can easily drag and drop files to/from your Touch-it CE Panel now. Also, Windows Mobile Device Center can be used to install applications. Most of the Windows CE applications you can find on the WEB have an installer that expects Windows Mobile Device Center to be present on your system, and will use it to install the software on the CE Device.
  • Page 16: General Information

    Touch-it CE Pico-ITX Operating Instructions 3.2 General Information Microsoft® Windows® CE is an open, scalable, 32-bit operating system that integrates reliable, real time capabilities with advanced Windows technologies. Windows CE allows you to build a wide range of innovative, small footprint devices.
  • Page 17: Pc Connectivity Over Ethernet

    Touch-it CE Pico-ITX Operating Instructions Like the RAM file system, the Windows CE registry is only stored to RAM every setting you change will be lost after a power cycle, but there is a small utility to save the registry persistently.
  • Page 18: Compilation / Debugging

    Touch-it CE Pico-ITX Operating Instructions 3.2.3 Compilation / Debugging There is a C/C++ compiler available from Microsoft© (“Visual Studio 2008”, higher Versions aren´t supported) To start with Microsoft offers a free 90 days trial version of Visual Studio 2008. English: http://download.microsoft.com/download/8/1/d/81d3f35e-fa03-485b-953b-...
  • Page 19 Touch-it CE Pico-ITX Operating Instructions Make sure that “.NET Framework 3.5” is selected. Accept with “OK” Select destination platform ->”SDK2wince7” Select template: “console application” Accept with “OK” Christ-Elektronik GmbH 19 / 56 info@christ-elektronik.de www.christ-elektronik.de Tel.: +49 8331 8371-0...
  • Page 20: Flash Memory Layout

    Touch-it CE Pico-ITX Operating Instructions 5. Write your example code: using System; using System.Linq; using System.Collections.Generic; using System.Text; namespace SmartDeviceProject1 class Program static void Main(string[] args) Console.WriteLine("Hello, here is Touch-it CE\n"); Console.WriteLine("from Christ-Elektronik GmbH"); Console.ReadLine(); 6. Debug your code and select the destination “SDK2wince7 ARMV7 Device”.
  • Page 21: Permanent Storage

    Touch-it CE Pico-ITX Operating Instructions 3.4 Permanent Storage Permanent data can be stored in the Touch-it CE in three different areas:  Flash Disk  SD Card  USB HD My Device You can find these 3 storage areas in...
  • Page 22: Flash Disk

    Touch-it CE Pico-ITX Operating Instructions 3.4.1 Flash Disk The Touch-it CE comes with an on board Flash for permanent storage. You can find it in My De- vice under FlashDisk. Any permanent data the user wishes to store on Flash memory must be lo- cated in the FlashDisk folder.
  • Page 23: Registry

    Touch-it CE Pico-ITX Operating Instructions 3.5 Registry Just like the RAM File System, the Windows CE registry is only stored to RAM: every setting you change will be lost after a power cycle (these include settings such as touch calibration, taskbar settings and display settings.
  • Page 24: Windows Ce 6.0/ Ec 7 Bootloader & Image Update

    Touch-it CE Pico-ITX Operating Instructions 3.6 Windows CE 6.0/ EC 7 Bootloader & Image Update The Windows CE 6.0 operating system is located in one single image file with .bin extension. The Windows EC 7 operating system is located in one single image file with .nb0 extension. This file is located inside the flash memory of the Touch-it CE.
  • Page 25: Running Applications At Startup (Autorun)

    Touch-it CE Pico-ITX Operating Instructions 3.7 Running Applications at Startup (Autorun) There is a special Launcher.exe tool that automatically starts any .exe or .lnk file found in a \AutoRun folder on each storage medium. This can be used to autorun your application. Just make a \AutoRun folder inside the \FlashDisk memory, put your application in it and it will run at each start-up.
  • Page 26: Touch-It Ce Remote Control

    Touch-it CE Pico-ITX Operating Instructions 3.9 Touch-it CE Remote Control You are able to connect your Touch-it CE Device with your Desktop PC via LAN. 1) Your Touch-it CE Device and Desktop PC have to be connected in the same network...
  • Page 27 Touch-it CE Pico-ITX Operating Instructions 7) Start the remote display tool on your Touch-it CE Device over Telnet type “start cerdisp2 –c –h IP address of your Desktop PC” Now you can remote control your Touch-it CE Device with the remote display tool (CeR- Host.exe)
  • Page 28: Embedded Kits

    Touch-it CE Pico-ITX Operating Instructions Embedded Kits 4.1 Dimensions Pico-ITX Christ-Elektronik GmbH 28 / 56 info@christ-elektronik.de www.christ-elektronik.de Tel.: +49 8331 8371-0...
  • Page 29 Touch-it CE Pico-ITX Operating Instructions 4.2 Touch-it CE Pico-ITX 7 LCD Size 7 inch (17.8 cm) Resolution 800 x 480 Aspect Ratio 16:9 Technology Colours 262K Backlight Luminance 800 cd/m² Contrast Ratio 250 : 1 Display OSD070T0816-29TS Touch Foil Touch, analog resistive...
  • Page 30 Touch-it CE Pico-ITX Operating Instructions Christ-Elektronik GmbH 30 / 56 info@christ-elektronik.de www.christ-elektronik.de Tel.: +49 8331 8371-0...
  • Page 31: Touch-It Ce Pico-Itx Glass 7

    Touch-it CE Pico-ITX Operating Instructions 4.3 Touch-it CE Pico-ITX glass 7 LCD Size 7 inch (17.8 cm) Resolution 800 x 480 Aspect Ratio 16:9 Technology Colours 262K Backlight Luminance 260 cd/m² Contrast Ratio 400 : 1 Display SCF0700720GGU12 Touch Projected Capacitive Touch, Anti-Glare...
  • Page 32 Touch-it CE Pico-ITX Operating Instructions Christ-Elektronik GmbH 32 / 56 info@christ-elektronik.de www.christ-elektronik.de Tel.: +49 8331 8371-0...
  • Page 33 Touch-it CE Pico-ITX Operating Instructions 4.4 Touch-it CE Pico-ITX 10,4 LCD Size 10.4 inch (26.4 cm) Resolution 800 x 600 Aspect Ratio Technology Colours 262K Backlight Luminance 400 cd/m² Contrast Ratio 400 : 1 Display OSD1040T0350-19 Touch Foil Touch, analog resistive...
  • Page 34 Touch-it CE Pico-ITX Operating Instructions Christ-Elektronik GmbH 34 / 56 info@christ-elektronik.de www.christ-elektronik.de Tel.: +49 8331 8371-0...
  • Page 35: Touch-It Ce Pico-Itx Glass 10,4

    Touch-it CE Pico-ITX Operating Instructions 4.5 Touch-it CE Pico-ITX glass 10,4 LCD Size 10.4 inch (26.4 cm) Resolution 800 x 600 Aspect Ratio Technology Colours 262K Backlight Luminance 400 cd/m² Contrast Ratio 400 : 1 Display OSD1040T0350-19 Touch Projected Capacitive Touch, Anti-Glare...
  • Page 36 Touch-it CE Pico-ITX Operating Instructions Christ-Elektronik GmbH 36 / 56 info@christ-elektronik.de www.christ-elektronik.de Tel.: +49 8331 8371-0...
  • Page 37 Touch-it CE Pico-ITX Operating Instructions 4.6 Touch-it CE Pico-ITX 15 The Touch-it CE Pico-ITX Package 15 comes with an external LED Driver. The LED Driver has a maximum head dissipation of 2.25 W. CAUTION! To ensure safe operation, the LED Driver should be thermally connected to a metal plate.
  • Page 38 Touch-it CE Pico-ITX Operating Instructions Christ-Elektronik GmbH 38 / 56 info@christ-elektronik.de www.christ-elektronik.de Tel.: +49 8331 8371-0...
  • Page 39: Touch-It Ce Pico-Itx Glass 15

    Touch-it CE Pico-ITX Operating Instructions 4.7 Touch-it CE Pico-ITX glass 15 The Touch-it CE Pico-ITX glass Package 15 comes with an external LED Driver. The LED Driver has a maximum head dissipation of 2.25 W. CAUTION! To ensure safe operation, the LED Driver should be thermally connected to a metal plate.
  • Page 40 Touch-it CE Pico-ITX Operating Instructions Christ-Elektronik GmbH 40 / 56 info@christ-elektronik.de www.christ-elektronik.de Tel.: +49 8331 8371-0...
  • Page 41: Interfaces

    Touch-it CE Pico-ITX Operating Instructions Interfaces 5.1 Interfaces Top View Description Description Power Supply Connector RS-232 Connector SODIM Connector RS-232/RS-485 Connector USB Intern LVDS Connector USB Type A Extern Touch connector USB Mini Type B Extern Backlight Connector Ethernet Connector...
  • Page 42: Interfaces Bottom View

    Touch-it CE Pico-ITX Operating Instructions 5.2 Interfaces Bottom View Description Description µSD Touch Connector2 LED Backlight Connector RTC Battery SPI Connector Beeper I/O Connector Christ-Elektronik GmbH 42 / 56 info@christ-elektronik.de www.christ-elektronik.de Tel.: +49 8331 8371-0...
  • Page 43: Interface Listing

    Touch-it CE Pico-ITX Operating Instructions 5.3 Interface Listing 5.3.1 Power Supply Connector (X1) Mating Phoenix Connector MC 1.5/3-ST-3,5 Connector Function Description Power Supply GND Power Supply VCC 5.3.2 Colibri Sodimm Connector (X2) Type SODIMM 200 Socket Christ-Elektronik GmbH 43 / 56 info@christ-elektronik.de...
  • Page 44: Usb Intern (X3)

    Touch-it CE Pico-ITX Operating Instructions 5.3.3 USB Intern (X3) Mating JST SHR-07V-S-B Connector Function Description USB GND N.C. USBH_P USB Data + USBH_N USB Data + USB VCC N.C. N.C. CAUTION! USB intern (X3) is internal shared with USB mini Type B extern(X5). Only use one connector at the same time.
  • Page 45: Usb Mini Type B Extern (X5)

    Touch-it CE Pico-ITX Operating Instructions 5.3.5 USB Mini Type B Extern (X5) Type MINI USB SMT TYPE AB 5 CONTACTS Function Description VBUS USB VCC USB Data+ USB Data- USB GND CAUTION! USB intern (X3) is shared with external mini USB OTG (Type B) (X5). Only use one connector at the same time.
  • Page 46: Rs-232 Connector (X7)

    Touch-it CE Pico-ITX Operating Instructions 5.3.7 RS-232 Connector (X7) Mating JST SHR-07V-S-B Connector Function Description Transmit Data Receive Data N.C. N.C. N.C. 5.3.8 RS-232/RS-485 Connector (X8) Type MOD JACK – RJ45 8P8C Cat.5 203489 Function Description RS-485_P RS-485 A RS-232_TX...
  • Page 47: Mircosd (X9)

    Touch-it CE Pico-ITX Operating Instructions 5.3.9 MircoSD (X9) Type DM3AT-SF-PEJ Function Description SD/MMC Data 2 D3/CD SD/MMC Data 3 SD/MMC Command +3.3V SD/MMC Clock SD/MMC Data 0 SD/MMC Data 1 5.3.10 LVDS Connector (X10) Mating Hirose DF13-20DS-1.25C Connector Function Description...
  • Page 48: Touch Connector1 (X11)

    Touch-it CE Pico-ITX Operating Instructions 5.3.11 Touch Connector1 (X11) Mating JST SHR-09V-S-B Connector Function Description N.C. T_X- Touch X- T_X+ Touch X+ T_Y- Touch Y- T_Y+ Touch Y+ WIPER Only 5 Wire Touch N.C. N.C. N.C. 5.3.12 Backlight Connector (X12) Mating Molex 8 Pin 1.25 51021-0800...
  • Page 49: Led Backlight Connector (X13)

    Touch-it CE Pico-ITX Operating Instructions 5.3.13 LED Backlight Connector (X13) Mating BHS BHSR-02VS-1(N) Connector Function Description LEDA LED Anode LEDK LED Kathode 5.3.14 SPI Connector (X14) Mating JST SHR-07V-S-B Connector Function Description SPI_CS0 SPI Chip Select 0 SPI_CLK SPI Clock...
  • Page 50: Audio Connector (X15)

    Touch-it CE Pico-ITX Operating Instructions 5.3.15 Audio Connector (X15) Mating JST SHR-09V-S-B Connector Function Description MIC_IN Microphone In LINEIN_L Line In Left LINEIN_R Line In Right ANALOG_VCC Analog Supply HEADPH_L Headphone Left HEADPH_R Headphone Right Analog Input INFORMATION! For more ADC information, please consult the Wolfson WM9715 documentation.
  • Page 51: Touch Connector2 (X17)

    Touch-it CE Pico-ITX Operating Instructions 5.3.17 Touch Connector2 (X17) Type WR-FPC 1.00m 68610414422 WE Function Description T_X+ Touch X+ T_X- Touch X- T_Y+ Touch Y+ T_Y- Touch Y- 5.3.18 RTC Battery (BAT) Type Keystone 3008 Supported batteries: BR1216, CR1216, BR1220, CL1220, CR1220, BR122...
  • Page 52: Pointers

    Touch-it CE Pico-ITX Operating Instructions 6 Pointers 6.1 Used symbols Symbols The following symbols are used in this instruction manual: DANGER! Denotes a direct threat of danger. Not observing this pointer may be life threatening or lead to serious injuries.
  • Page 53: Safety Pointers

    If the device is used for other purposes or incorrectly operated, Christ-Elektronik GmbH will not hold damages liable. Do not operate the touch-sensitive surface of the screen with any abrasive or sharp-edged objects. Protect the Touch-it CE Pico-ITX against caustic chemicals and long solar radiation. Christ-Elektronik GmbH 53 / 56 info@christ-elektronik.de...
  • Page 54 Touch-it CE Pico-ITX Operating Instructions CAUTION! This is a Class A product. In a domestic environment this product may cause radio interference, in which case the user may be required to take adequate measures. CAUTION! This is an Embedded System with sensitive electronic products. Please act carfully and ensure that only qualified stuff will handle this device.
  • Page 55: Maintenance Plan

    Only the qualified staffs are allowed to carry out the repairs. The incorrect repair may lead to serious danger for the user. 6.6 Cleaning DANGER! Disconnect the Touch-it CE Pico-ITX from the supply voltage before clean- ing. CAUTION! Do not clean the touch-sensitive surface of the monitor with detergents con- taining solvent or acid.
  • Page 56: Christ-Elektronik Gmbh

    Touch-it CE Pico-ITX Operating Instructions Contact Christ – Elektronik GmbH Alpenstraße 34 D-87700 Memmingen Tel. +49 (0)8331/8371-0 http://www.christ-elektronik.de More Information Copyrights Disclaimer Learn more about All rights reserved, including intel- Technical data are subject to modi- Christ – Elektronik Touch-it lectual property rights.
