Touch-it CE
Operating Instructions
 Low Power Panel PC
 Different Housings
Christ Elektronik GmbH
www.christ-elektronik.de
Touch-it CE
 Sizes From 7" to 15"
 Ready For Use
1 / 37
info@christ-elektronik.de
Tel.: +49 8331 8371-0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Touch-it CE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Christ Elektronik Touch-it CE

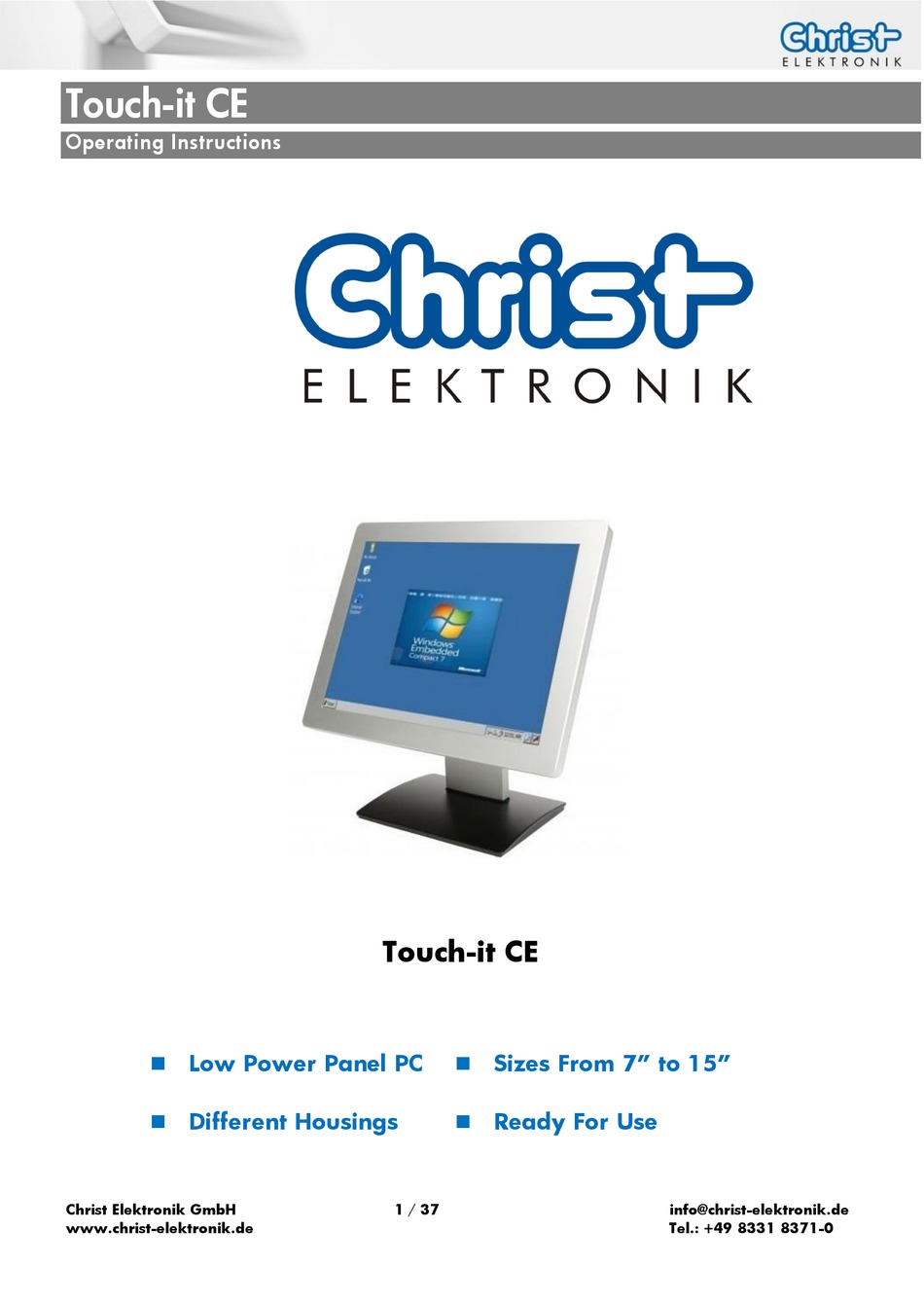

  • Page 1 Touch-it CE Operating Instructions Touch-it CE  Low Power Panel PC  Sizes From 7” to 15”  Different Housings  Ready For Use Christ Elektronik GmbH 1 / 37 info@christ-elektronik.de www.christ-elektronik.de Tel.: +49 8331 8371-0...
  • Page 2 Touch-it CE Operating Instructions Document No. E461131 Revision Date 28 Apr. 15 Address Christ-Elektronik GmbH Alpenstraße 34 DE-87700 Memmingen Telephone +49 (0)8331 8371 – 0 +49 (0)8331 8371 – 99 E-Mail info@christ-elektronik.de Internet http://www.christ-elektronik.de Copyright No part of this documentation may in any form be reproduced, copied or distributed by means of electronic systems without previous written permis- sion by Christ-Elektronik GmbH.
  • Page 3: Table Of Contents

    Power Supply Connector........................26 Ethernet Connector ..........................26 CAN Connector............................ 27 COM1 (RS-232) ............................27 COM1 (RS-232, Touch-it CE Codesys) ....................28 COM2 (RS-485, Touch-it CE Codesys) ....................28 COM2 (RS-232 or RS-485) ........................29 USB Type A ............................. 30 USB Mini Type B Extern .........................
  • Page 4: General

    Touch-it CE Operating Instructions General OVERVIEW Series Touch-it CE Open Frame glass Open Frame Front Panel glass Front Panel Housing VESA VESA glass Touch Foil Touch, analog resistive Projected Capacitive Touch Sizes (Display) 7” – 15” NVIDIA® Tegra™ 2 T20 Dual Core 1.0 GHz Cortex-A9 NVIDIA®...
  • Page 5 Touch-it CE Operating Instructions SYSTEM NVIDIA® Tegra™ 2 T20 Dual Core 1.0 GHz Cortex-A9 Graphic Integrated Ultra-low power NVIDIA GeForce GPU Video Decoder H.264, WMV9 VC-1, MPEG-4, MPEG-2, H.263, DiVX, XviD 256 MB DDR2 RAM Memory 512 MB DDR2 RAM (optional)
  • Page 6 Touch-it CE Operating Instructions MECHANICAL & ENVIRONMENTAL Open Frame Open Frame glass Housing Front Without Frame Without Frame Housing Stainless Steel Stainless Steel Cooling Passive Passive Protection Class IP20 IP20 Operating Temperature 0 ~ 50 °C 0 ~ 50 °C...
  • Page 7: Commissioning

    2 Commissioning 2.1 Mounting 2.1.1 Touch-it CE Open Frame The variant Touch-it CE Open Frame is designed for customer specific mounting. Each Open Frame Panel has its own cut-out drawing. For example: For the appropriated drawing see the specific data sheet.
  • Page 8: Touch-It Ce Front Panel

    Touch-it CE Operating Instructions 2.1.2 Touch-it CE Front Panel The variant Touch-it CE Front Panel is designed for front mounting. Each Front Panel has its own cut-out drawing. For the appropriated drawing see the specific data sheet. To clamp the Front Panel into the cut-out you can use the attached fasting clamps.
  • Page 9: Touch-It Ce Vesa

    Touch-it CE Operating Instructions 2.1.3 Touch-it CE VESA The variant Touch-it CE VESA is designed for VESA MIS-D, 75, C mounts. Some panels can also be mounted with VESA MIS-D, 100, C. Suitable mounting variants are: VESA Desk Stand Arm Mounting System VESA-SA75...
  • Page 10: Interfaces Connector Side

    Phoenix Connector side Touch-it CE completely Connector side Touch-it CE standard Connector side Touch-it CE CODESYS ready These are the standard interface configurations. Others are possible. For the correct interface configuration see the specific data sheet. All interfaces are described in the chapter Interfaces.
  • Page 11: Software

    Once the Windows Mobile Device Center software is properly installed, you can proceed to plug a USB Cable (Type A – Type mini-B) between your PC USB port and the USB on the Touch-it CE. Be sure that only the mini USB port is connected and not the shared one.
  • Page 12 Operating Instructions You can easily drag and drop files to/from your Touch-it CE Panel now. To show the desktop of the Touch-it CE Panel on your development PC you can start the remote display tool CeRHost.exe on your Desktop PC.
  • Page 13: General Information

    Touch-it CE Operating Instructions 3.2 General Information Microsoft® Windows® CE is an open, scalable, 32-bit operating system that integrates reliable, real time capabilities with advanced Windows technologies. Windows CE allows you to build a wide range of innovative, small footprint devices.
  • Page 14: Pc Connectivity Over Ethernet

    Touch-it CE Operating Instructions Like the RAM file system, the Windows CE registry is only stored to RAM every setting you change will be lost after a power cycle, but there is a small utility to save the registry persistently.
  • Page 15: Compilation / Debugging

    2. Before you can write any applications you need to install an SDK. 3. Start the Windows Mobile Device Center and connect your Touch-it CE Panel. (see chapter Software -> Microsoft Windows Mobile Device Center) 4. Start the Visual Studio 2008 and open a new project.
  • Page 16 Touch-it CE Operating Instructions Make sure that “.NET Framework 3.5” is selected. Accept with “OK” Select destination platform ->”SDK2wince7” Select template: “console application” Accept with “OK” Christ Elektronik GmbH 16 / 37 info@christ-elektronik.de www.christ-elektronik.de Tel.: +49 8331 8371-0...
  • Page 17: Flash Memory Layout

    6. Debug your code and select the destination “SDK2wince7 ARMV7 Device”. On the Touch-it CE Panel should appear a console application. 3.3 Flash Memory Layout The Touch-it CE has an on board Flash memory 512 MB (Tegra T20). This Flash memory is divid- ed as follows: Tegra...
  • Page 18: Permanent Storage

    Touch-it CE Operating Instructions 3.4 Permanent Storage Permanent data can be stored in the Touch-it CE in three different areas:  Flash Disk  SD Card  USB HD My Device You can find these 3 storage areas in as seen below:...
  • Page 19: Flash Disk

    Operating Instructions 3.4.1 Flash Disk The Touch-it CE comes with an on board Flash for permanent storage. You can find it in My De- vice under FlashDisk. Any permanent data the user wishes to store on Flash memory must be lo- cated in the FlashDisk folder.
  • Page 20: Registry

    Touch-it CE Operating Instructions 3.5 Registry Just like the RAM File System, the Windows CE registry is only stored to RAM: every setting you change will be lost after a power cycle (these include settings such as touch calibration, taskbar settings and display settings.
  • Page 21: Windows Ce 6.0/ Ec 7 Bootloader & Image Update

    This image file is loaded into RAM memory each time the Touch-it CE is powered up. Since the *.bin / *.nb0 image file is not modified during the use of the Touch-it CE, Windows CE will al- ways boot from the same clean image.
  • Page 22: Image Update Via Terminal Connection

    Run a terminal with 115,2 Kbaud, 8data bits, none parity, 1 stop bit Connect the serial cable at the COM1 port of your Touch-it CE Panel and your PC Connect a mini USB cable to the Touch-it CE Panel and your PC Send continuous blank characters “...
  • Page 23: Running Applications At Startup (Autorun)

    This feature also works on all removable media. You can create a \AutoRun folder on a USB Stick or SD Card, put it in the Touch-it CE and your application will be automatically launched every time you insert that USB Stick or SD Card.
  • Page 24: Touch-It Ce Remote Control

    You are able to connect your Touch-it CE Device with your Desktop PC via LAN. 1) Your Touch-it CE Device and Desktop PC have to be connected in the same network 2) Open a Browser on your Desktop PC and go to...
  • Page 25 7) Start the remote display tool on your Touch-it CE Device over Telnet type “start cerdisp2 –c –h IP address of your Desktop PC” Now you can remote control your Touch-it CE Device with the remote display tool (CeR- Host.exe) You´ve got access to the shared folders of the Touch-it CE Device...
  • Page 26: Interfaces

    Touch-it CE Operating Instructions Interfaces 4.1 Power Supply Connector Mating Phoenix Connector MC 1.5/3-ST-3,5 Connector Function Description Power Supply GND Power Supply VCC 4.2 Ethernet Connector Type 10/100 Base-TX RJ45 Tab-up Function Description ETH_TX_P Transmit Data+ ETH_TX_N Transmit Data -...
  • Page 27: Can Connector

    Touch-it CE Operating Instructions 4.3 CAN Connector Type RJ45 Tab-up Function Description CAN-High Can High Signal CAN-Low Can Low Signal CAN-GND Can Ground Signal n.c. n.c. n.c. n.c. n.c. The switch above the CAN Connector enables the termination resistor (120Ω) between the CAN-High and CAN-Low signals.
  • Page 28: Com1 (Rs-232, Touch-It Ce Codesys)

    Touch-it CE Operating Instructions 4.5 COM1 (RS-232, Touch-it CE Codesys) Type D-SUB ST 09 Function Description n.c. Receive Data Transmit Data n.c. Ground n.c. Request to Send Clear to Send n.c. 4.6 COM2 (RS-485, Touch-it CE Codesys) Type MC 1,5/ 3-G-3,81...
  • Page 29: Com2 (Rs-232 Or Rs-485)

    Touch-it CE Operating Instructions 4.7 COM2 (RS-232 or RS-485) INFORMATION! The interface COM2 can be used as EIA-485 as well as EIA-232 over software settings. The following GPIOs must be set with Tegra 2 CPU: Function GPIO_C6 GPIO_C1 RS-232 Signals...
  • Page 30: Usb Type A

    Touch-it CE Operating Instructions 4.8 USB Type A Type WR-COM USB Type A Function Description VBUS USB VCC USB Data+ USB Data- USB GND INFORMATION! The USB Type A (Port2) and the USB Mini-B are shared ports. It’s only pos- sible to use one of them simultaneously.
  • Page 31: Connector

    Touch-it CE Operating Instructions 4.10 Connector Type Mini Sub-D BU HD15 The VGA interface is equal with the standard VGA pin assignment. 4.11 MircoSD Type DM3AT-SF-PEJ Function Description SD/MMC Data 2 D3/CD SD/MMC Data 3 SD/MMC Command +3.3V SD/MMC Clock...
  • Page 32: I/O Connector

    Touch-it CE Operating Instructions 4.12 I/O Connector The Touch-it CE provides 4 digital outputs and 4 digital inputs with an external power supply as standard. Mating Würth WR-MPC3, 10 pol Connector Function Description +24VDC Ground In_4 Input 4 Out_4V Output 4...
  • Page 33: Pointers

    Touch-it CE Operating Instructions 5 Pointers 5.1 Used symbols Symbols The following symbols are used in this instruction manual: DANGER! Denotes a direct threat of danger. Not observing this pointer may be life threatening or lead to serious injuries. CAUTION! Denotes a possibly dangerous situation.
  • Page 34: Safety Pointers

    Touch-it CE Operating Instructions 5.3 Safety pointers DANGER! In the case of damage of the device, shut it down and disconnect it imme- diately from the supply voltage. Disconnect every connection line and send it back to Christ-Elektronik GmbH. DANGER! Avoid any penetration of liquid or dust.
  • Page 35: Maintenance Plan

    Touch-it CE Operating Instructions CAUTION! Never cover the Touch-it Panel PC completely or build it in a small closed and unvented housing. CAUTION! This is a Class A product. In a domestic environment this product may cause radio interference, in which case the user may be required to take adequate measures.
  • Page 36: Cleaning

    Touch-it CE Operating Instructions 5.6 Cleaning DANGER! Disconnect the Touch-it Panel PC from the supply voltage before cleaning. CAUTION! Do not clean the touch-sensitive surface of the monitor with detergents con- taining solvent or acid. INFORMATION! Use a humid and soft cloth with gentle soapsuds to clean.
  • Page 37 Touch-it CE Operating Instructions Contact Christ – Elektronik GmbH Alpenstraße 34 D-87700 Memmingen Tel. +49 (0)8331/8371-0 http://www.christ-elektronik.de More Information Copyrights Disclaimer Learn more about All rights reserved, including intel- Technical data are subject to modi- Christ – Elektronik Touch-it lectual property rights. Changes to...
