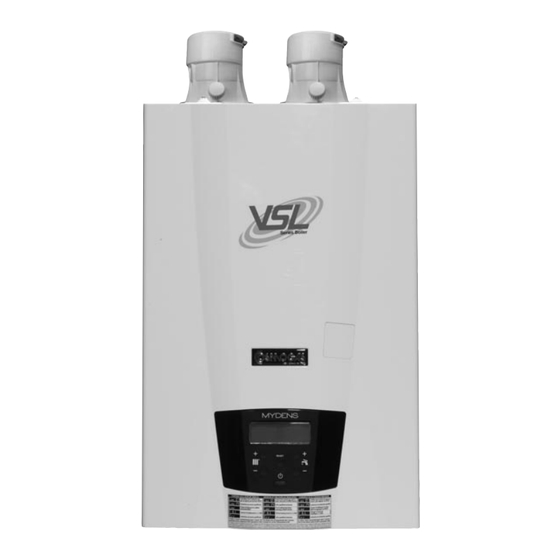

Slant/Fin VSL II series Quick Start Manual

DIRECT-VENT SEALED COMBUSTION CONDENSING BOILER
~ GAS-FIRED BOILER FOR NATURAL AND L.P. PROPANE GASES ~

TABLE OF CONTENTS

CONTENTS............................................................PAGE
CLEARANCES .............................................................2
UNPACKING THE BOILER .......................................... 2
GAS TYPE SELECTION ..............................................3
MOUNTING THE BOILER ............................................3
GAS PIPING .................................................................3
WATER PIPING .........................................................3-4
CONDENSATE DISPOSAL ..........................................4
VENTING .......................................................................5
ELECTRICAL CONNECTIONS ....................................6
BOILER PROGRAMMING ............................................6
BOILER STARTUP & COMBUSTION ANALYSIS ........7
VSL II QUICK START GUIDE
This Quick Start Guide must be left
with owner and should be hung on or
adjacent to the boiler for reference.
IMPORTANT
READ ALL OF THE FOLLOWING WARNINGS AND STATEMENTS
BEFORE READING THE QUICK GUIDE INSTRUCTIONS.
CAUTION
!
This manual is only a quick reference guide and is not meant
to replace or supplement the installation and maintenance
manual supplied with the appliance. Before performing the
installation or any service read the installation and mainte-
nance instructions supplied with this boiler thoroughly!
WARNING
!
This manual must only be used by a licensed plumber, a
licensed gas fitter, the gas supplier, or a qualified service
technician/installer. Failure to comply could result in sub-
stantial property damage, severe personal injury, or loss
of life. Slant/fin is not liable for any damages or defects re-
sulting from improper installation or service of this boiler.
WARNING
!
The installation must comply with the requirements of the
authority having jurisdiction or, in the absence of such re-
quirements, to the latest edition of the National Fuel Gas
Code, ANSI Z223.1/NFPA 54. In Canada, installation must
be in accordance with the requirements of CAN/CSA
B149.1, Natural Gas and Propane Installation Code.
Where required by the authority having jurisdiction, the
installation must comply with the Standard for Controls
and Safety Devices for Automatically Fired Boilers,
ANSI/ASME CSD-1.
NOTICE
In the Commonwealth of Massachusetts this boiler must
be installed by a licensed Plumber or Gas Fitter.
Subject to technical changes
Changes may be made without notice to the illustrations, process steps,
and technical data as a result of our policy of continuous improvement.
