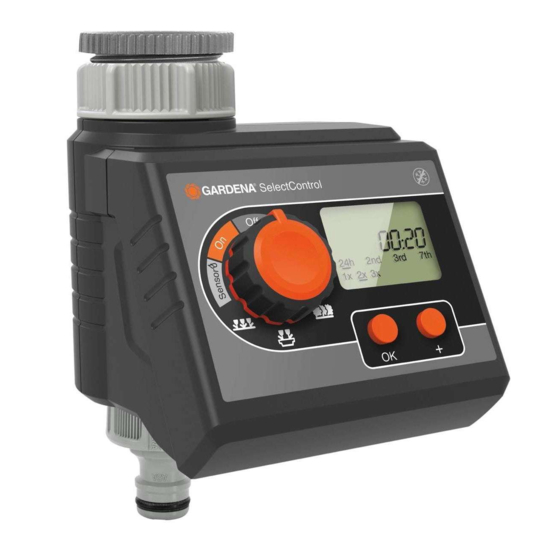

Gardena 1885 Operating Instructions Manual

Water computer selectcontrol
Hide thumbs Also See for 1885:
Table of Contents

Advertisement

Quick Links

See also: Operating Instructions Manual
GARDENA
®
D
F
I
E
P
SelectControl
GB
Art. 1885
NL
Betriebsanleitung
Bewässerungscomputer
Mode d'emploi
Programmateur d'arrosage
Istruzioni per l'uso
Computer per irrigazione
Manual de instrucciones
Programador de riego
Instruções de manejo
Computador de rega
Operating Instructions
Water Computer
Instructies voor gebruik
Besproeiingscomputer

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1885 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gardena 1885

Summary of Contents for Gardena 1885

  • Page 1 GARDENA ® Betriebsanleitung Bewässerungscomputer Mode d’emploi Programmateur d’arrosage Istruzioni per l’uso Computer per irrigazione Manual de instrucciones Programador de riego Instruções de manejo Computador de rega SelectControl Operating Instructions Water Computer Art. 1885 Instructies voor gebruik Besproeiingscomputer...

  • Page 2: Table Of Contents

    Please keep these operating instructions in a safe place. Contents 1. Where to Use Your GARDENA Water Computer ... 2. Safety Instructions ......... .

  • Page 3: Where To Use Your Gardena Water Computer

    ......... . 1. Where to Use Your GARDENA Water Computer Intended use : The GARDENA Water Computer is intended for private use in domestic and hobby gardens, exclusively for outdoor use, to control sprinklers and watering systems.

  • Page 4: Function

    Setting up The max. temperature for the water flow is 40 °C. The Water Computer may only be set up vertically with the sleeve nut to the top to v Only use clear fresh water. prevent water penetrating into the battery The minimum operating pressure is 0.5 bar, compartment.
  • Page 5 The Water Computer carries out watering fully automatically according to the set program and can therefore also be used during holidays. Early in the morning or late in the evening, evaporation and therefore water consumption is lowest. The watering program is easily selected via the rotary knob. A watering program comprises the watering start time, duration and cycle.
  • Page 6 Display Display Description Flash consecutively whilst watering is carried out. Flashes when the battery needs to be replaced. The valve is still opened for 4 weeks. Is continuously displayed when the battery is empty. The valve is not opened any more. 1x 2x 3x Sensor Replace battery (see 4.

  • Page 7: Putting Your Water Computer Into Operation

    4. Putting Your Water Computer into Operation Insert battery: The Water Computer must only be operated with a 9 V alkali- manganese (alkaline) battery type IEC 6LR61. 1. Remove controller from the housing of the Water Computer. 2. Insert battery in the battery compartment .
  • Page 8 v Select the soil with the button and confirm with the OK button. and the time in hours then flash. (see 5. Programming). Connect Water Computer : The Water Computer is fitted with a sleeve nut for taps with (G 1 " ) (33.3 mm) thread. The adaptor supplied allows the Water Computer to be connected to taps with a (G ³⁄₄...
  • Page 9 It can take up to 1 min. until the status of the sensor is shown on the display. An adapter cable may be required to connect older sensors, which can be purchased from GARDENA Service, GARDENA Adapter cable Art. No. 1189-00.600.45.

  • Page 10: Programming

    Fit anti-theft device To secure your Water Computer against theft, you can obtain the (optional) : GARDENA Anti-theft device Art. No. 1815-00.791.00 from GARDENA Service. 1. Screw clamp with screw firmly to the back of the Water Computer. 2. Use clamp e.g.
  • Page 11 Set time : 1. Insert the battery – or – turn the rotary knob to a watering program and press the OK button. and the time in hours flash. 2. Select the time in hours (e.g. 10 hours) with the button and confirm with the OK button.
  • Page 12 Program (rotary knob) Start time Duration Days Frequency Pot plants 5:00 (7:00) 0:10 (0:05) 24h (24h) 1 x (2x) Boundary planting 7:00 (8:00) 0:10 (0:05) 3rd (2nd) 2 x (3x) v Turn the rotary knob to the desired program. The program is activated. Display All program data can be displayed consecutively by pressing watering program :...
  • Page 13 • Pot plants: Watering of 1m flower boxes with Micro-Drip-System. 5 Inline Drip Heads watering at 2 l / h = approx. 2 litres / day per flower box. • Boundary planting: Watering with Micro-Drip-System 4.6 mm Drip Irrigation Line, approx. water distribution quantity of 18 litres / hour / m²...
  • Page 14 Set watering duration 6. Press the button. and the current duration are displayed. 7. Press OK button. and the duration hours flash. 8. Set the duration hours (example: 0 hours) with the button and confirm with the OK button. 9. Set the duration minutes (example: 20 minutes) with button and confirm with the OK button Set watering cycle (day, frequency) The watering cycle can be carried out every day (24h) to...
  • Page 15 13. Press OK button. and the current watering frequency flash. 14. Keep pressing the button until the required watering frequency is set (example: 2x = twice in 24 hours). 15. Press OK button. The watering cycle is stored. If the subsequent day is not a watering day, the watering will Important information : stop at 12:00 a.m.
  • Page 16 Emergency program (sensor flashes) : If no sensor is inserted or the sensor cable is faulty, watering is performed once per day using the set watering duration (max. 30 mins.). Manual watering : The valve can be opened or closed manually at any time. The controller must be fitted.

  • Page 17: Putting Your Water Computer Out Of Operation

    Deactivate The watering program is not executed when the knob is set to watering program : Off. The programs remain stored. A program-controlled open valve can also be closed early without changing the program data (watering start time, watering duration, watering cycle). v Turn the rotary knob to Off.

  • Page 18: Maintenance

    Disposing of flat batteries : v Please return flat batteries to a GARDENA dealer or dispose of them properly at your nearest recycling centre. Only dispose of batteries when they are flat. 7. Maintenance Clean filter : The filter should be checked regularly and cleaned when necessary.

  • Page 19: Troubleshooting

    8. Troubleshooting Fault Possible Cause Remedy No display appears Battery inserted incorrectly. v Check polarity markings match (+ / –). Flat battery. v Insert new (alkaline) battery. Temperature on the display Display appears after is higher than 60 °C. temperature has dropped. Manual watering is not Battery flat ( is continuously...

  • Page 20: Available Accessories

    Connect more drip heads. not close drawn is less than 20 l / h. In the event of other faults please contact GARDENA Service. Repairs should only be carried out by GARDENA service centres or dealers authorised by GARDENA. 9. Available accessories GARDENA Art.

  • Page 21: Technical Data

    GARDENA To connect older GARDENA Art. No. 1189-00.600.45 Adapter cable sensors From GARDENA Service GARDENA For simultaneous connection of Art. No. 1189-00.630.00 Cable Adapter rain and soil moisture sensor From GARDENA Service 10. Technical Data Min. / max. operating pressure : 0.5 bar / 12 bar...
  • Page 22 If you have any problems with your Water Computer, please contact our Customer Service or return the defective unit together with a short description of the problem directly to one of the GARDENA Service Centres listed on the back of this leaflet.
  • Page 23 We expressly point out that, in accordance with the product liability law, we are not liable for any damage caused by our units if it is due to improper repair or if parts exchanged are not original GARDENA parts or parts approved by us, and, if the repairs were not carried out by a GARDENA Service Centre or an authorised specialist.
  • Page 24 EG-Konformitätserklärung Dichiarazione di conformità alle norme UE Der Unterzeichnete Husqvarna AB, 561 82 Huskvarna, Sweden bestätigt, La sottoscritta Husqvarna AB, 561 82 Huskvarna, Sweden, certifica che dass die nachfolgend bezeichneten Geräte in der von uns in Verkehr il prodotto qui di seguito indicato, nei modelli da noi commercializzati, è gebrachten Ausführung die Anforderungen der harmonisierten EU- conforme alle direttive armonizzate UE nonché...
  • Page 25 2011/ 65 / EC Direttive UE : (Vice President) Normativa UE : Directrizes da UE : Hinterlegte Dokumentation: GARDENA Technische Dokumentation M. Kugler 89079 Ulm Deposited Documentation: GARDENA Technical Documentation M. Kugler 89079 Ulm Documentation déposée : Documentation technique GARDENA...
  • Page 26 Deutschland / Germany Belgium China Denmark Georgia GARDENA GmbH GARDENA Belgium NV / SA Husqvarna (China) Machinery GARDENA / Husqvarna ALD Group Central Service Sterrebeekstraat 163 Manufacturing Co., Ltd. Consumer Outdoor Products Beliashvili 8 Hans-Lorenser-Straße 40 1930 Zaventem No. 1355, Jia Xin Rd.,...
  • Page 27 Lithuania Verlengde Hogestraat # 22 Husqvarna Consumer 11273 Belgrade UAB Husqvarna Lietuva Phone : (+ 597) 472426 1885- 20.960.02 / 1113 Outdoor Products Phone: (+381) 1 18 48 88 12 Consumer Outdoor Products © GARDENA Salgskontor Norge agrofix @ sr.net miroslav.jejina @ domel.rs...
