Patio Chef SS73 Owner's Manual

Liquid propane gas grill
Hide thumbs
Table of Contents

Advertisement

Quick Links

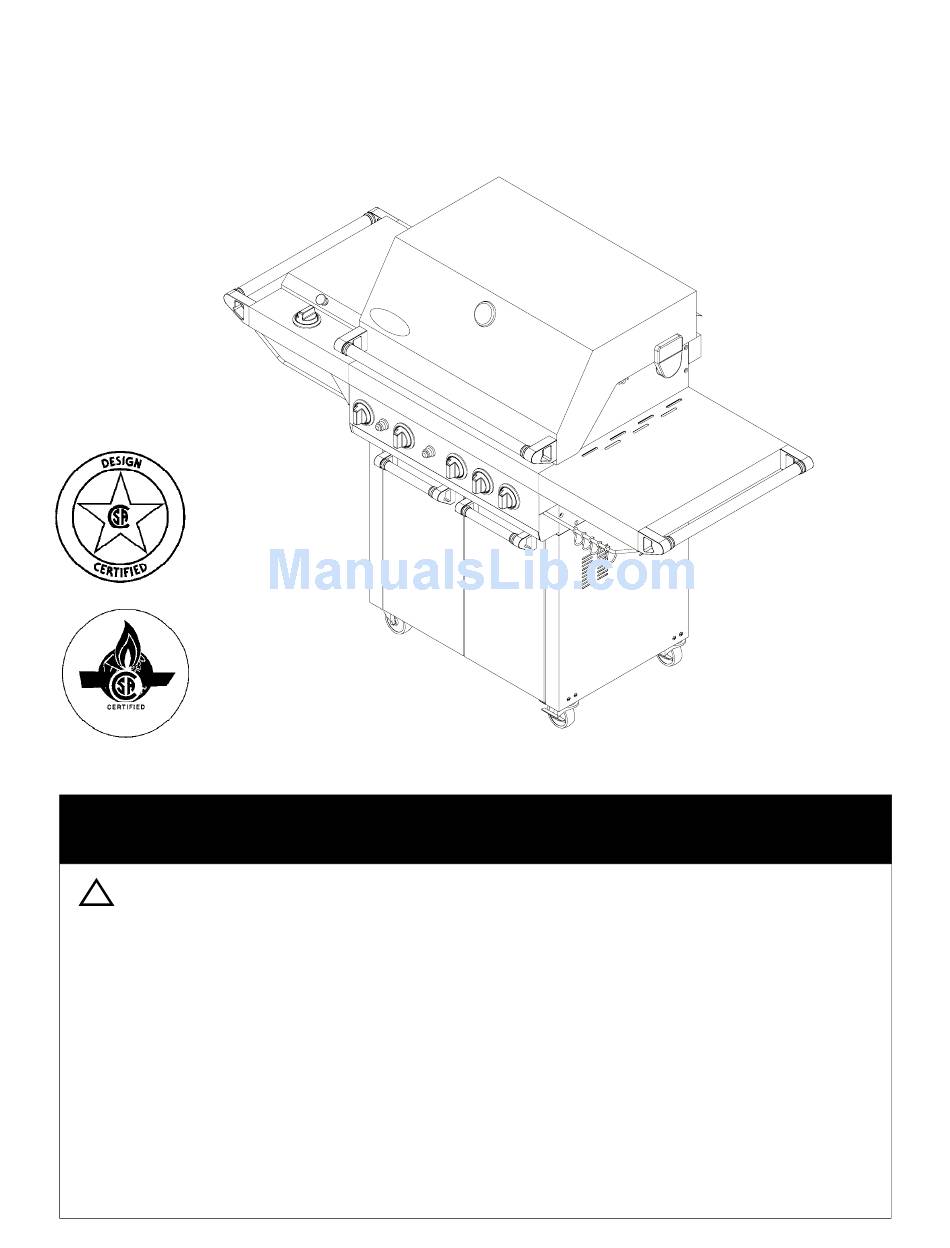

Owner's Manual
Liquid Propane Gas Grill
Model SS73
Customer Service:
or missing parts when you unpack this unit from the shipping boxes, call us 8:00am - 5:00 pm EST,
Monday through Friday at:
!
WARNING:
Read this Owner's Manual carefully and be sure
your gas grill is properly assembled, installed and
maintained. Follow all leak check procedures
carefully in this manual prior to grill operation. Do
this even if the grill was store assembled.
Failure to follow these instructions could result in
serious bodily injury and/or property damage.
This grill is intended for outdoor use only and is
not intended to be installed in or on recreational
vehicles or boats.
Note to Installer:
Leave this Owner's Manual
with the consumer after delivery and/or installation.
Note to Consumer:
Leave this Owner's Manual
in a convenient place for future reference.
If you have questions about assembly or grill operation, or if there are damaged
1- 800-667-7313
Important Note:
This grill is manufactured to
exact specifications. Model SS73 is certified
for use with LP gas. You can not convert this
grill to the Natural Gas. For your safety,
conversion kits are not available. Any attempt
to convert your grill will void your warranty.
Imported by S.R. Potten Ltd/Ltée
1645 – 50
th
AVENUE. LACHINE, QUEBEC,
CANADA H8T 3C8
TEL:514-631-4995
TOLL FREE:1-800-667-7313
FAX:514-636-8185
P80153004F - Date:2004/01/07
