Summary of Contents for Energy Star Xi3 NUC Lear

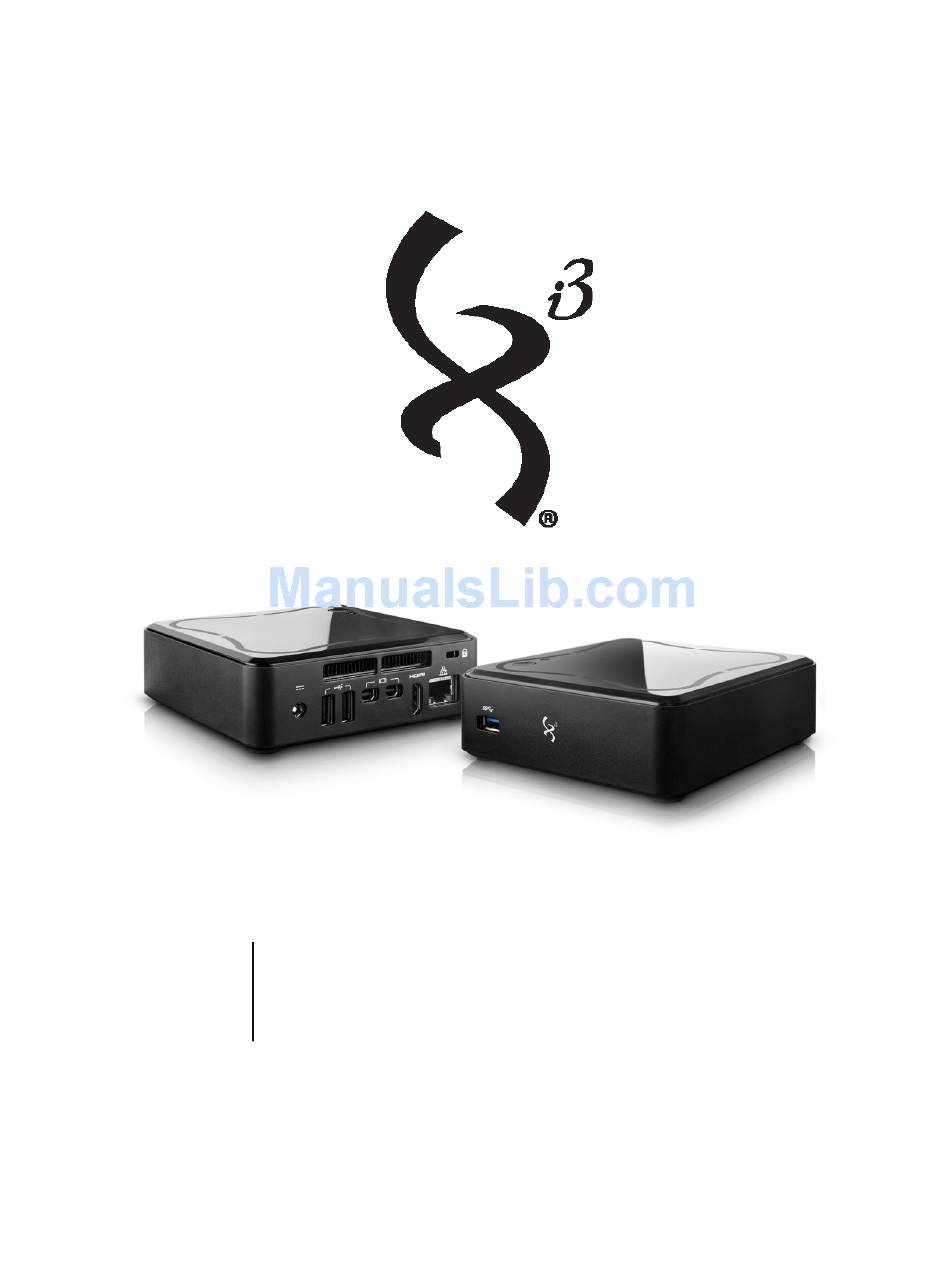

- Page 1 Xi3 NUC Lear Install Everywhere. Manage Anywhere.
-
Page 2: Table Of Contents
Chapter 3 – BIOS Settings ..........10 minimal environmental impact. We’ve designed the Xi3 NUC to meet the latest ENERGY STAR ® guidelines for energy System Management BIOS (SMBIOS) ........ 10 efficiency. ENERGY STAR is a U.S. Environmental Protection Legacy USB Support ............ -
Page 3: Chapter 1 - Getting Started
Chapter 1 - Getting Started Introduction Aside from the stunningly small form factor, the Xi3® NUC Lear features the Intel® Core™ i5 vPro™ processor offering robust computing capabilities and complete remote management capabilities; allowing for remote management and the ability to manage/repair systems anytime from anywhere. -
Page 4: Your Operating System
Step Five - Connect the Power Cord and Power Adaptor First join the Power Cord to the Power Adaptor. Next connect the small round end of the Power Cord to the Power Cord port found on back of the Xi3 NUC. Then insert the three-prong AC plug directly into an electrical wall outlet (or a surge protector/power strip). -
Page 5: Chapter 2 - Get To Know Your Nuc
Downloading/Installing Programs from the Internet To download and install Software Applications from the Internet onto your Xi3 NUC, take the following steps. 1. Make sure you are connected to the Internet. 2. Go to the appropriate page on the web. 3. -
Page 6: Memory Configurations
Memory Configurations The processor supports the following types of memory configurations: • Dual Channel (Interleaved) mode. This mode offers the highest throughput for real world applications. Dual channel mode is enabled when the installed memory capacities of both SO-DIMM channels are equal. Technology and device width can vary from one channel to the other but the installed memory capacity for each channel must be equal. -
Page 7: Lan Subsystem
LAN Subsystem The LAN subsystem consists of the following: • Intel® 82579LM Gigabit Ethernet Controller (10/100/1000 Mb/s) 10/100/1000 BASE-T IEEE 802.3 compliant Energy Efficient Ethernet (EEE) IEEE 802.3az support (Low Power Idle (LPI) mode) Dual interconnect between the Integrated LAN Controller and the Physical Layer (PHY): ... -
Page 8: Energy Saving Settings
Energy Saving Settings The Xi3 NUC is designed to be energy efficient in accordance with ENERGY STAR guidelines. It initially has been configured with default settings intended to provide a good balance between performance and energy consumption. The default settings are as follows:... -
Page 9: Intel® Trusted Execution Technology
Intel® Trusted Execution Technology (Intel® TXT) is a hardware security solution that protects systems against software- based attacks by validating the behavior of key components at startup against a known good source. It requires that Intel® VT be enabled and the presence of a TPM. Intel®... -
Page 10: Chapter 3 - Bios Settings
Chapter 3 – BIOS Settings The board uses an Intel® Visual BIOS that is stored in the serial Peripheral Interface Flash Memory (SPI Flash) and can be updated using a disk-based program. The SPI Flash contains the Visual BIOS Setup program, POST, the PCI auto-configuration utility, LAN EEPROM information, and Plug and Play support. -
Page 11: Bios Recovery
• Intel® Express BIOS Update utility, which enables automated updating while in the Windows environment. Using this utility, the BIOS can be updated from a file on a hard disk, a USB drive (a flash drive or a USB hard drive), or a CD-ROM, or from the file location on the Web. -
Page 12: Bios Security Features
At the point where Setup Entry/Boot would be in the normal boot path, the BIOS will display the following prompt and wait for a keystroke: [ESC] Normal Boot [F2] Intel® visual BIOS [F3] Disable Fast Boot [F4] BIOS Recovery [F7] Update BIOS [F9] Remote Assistance... -
Page 13: Chapter 4 - Troubleshooting
Chapter 4 – Troubleshooting If you want to contact Customer Support at Xi3 Corporation, be sure you have your serial number accessible prior to calling in. Customer Support Web: www.Xi3.com/Support Phone: 1-855-Xi3-HELP (1-855-943-4357) Xi3 Support Technicians answer all Phone Tech Support calls quickly, efficiently and expertly. These are computer professionals who are intimately familiar with all technical aspects of the Xi3 NUC, not individuals reading off a script who don’t really know computers. -
Page 14: Chapter 5 - Legal Stuff
Chapter 5 – Legal Stuff A copy of the official terms and conditions of our Limited Warranty can be found at: http://www.xi3.com/resource/1410984512000/Legal/TandC/Xi3_Limited_Warranty_Policy.pdf This product guide applies to only the standard Xi3-NUC Lear. Xi3 may have patents or pending patent applications, trademarks, copyrights, or other intellectual property rights that relate to the products and/or information contained in this guide. -
Page 15: Important Handling Information
or liquid damage voids the warranty. Important Handling Information WARNING: If you do not follow these handling instructions, you could damage your Xi3 NUC, other property and void the warranty. Transporting or Carrying your Xi3 NUC – If you need to carry your Xi3 NUC from one place to another, we recommend carrying it inside a padded bag or carrying case. - Page 16 This device has been verified to comply with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. The following information is for FCC compliance of Class B devices: This equipment has been tested and verified to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules.
-
Page 17: Glossary
Glossary A complete glossary of names, words and terms associated with the Xi3 NUC can be found at www.Xi3.com/news/glossary. Corporate Information Xi3 Corporation can be reached at our corporate headquarters: 299 South Main Street #1300 Salt Lake City, UT 84111 801-478-3800 www.Xi3.com Customer Service:...
