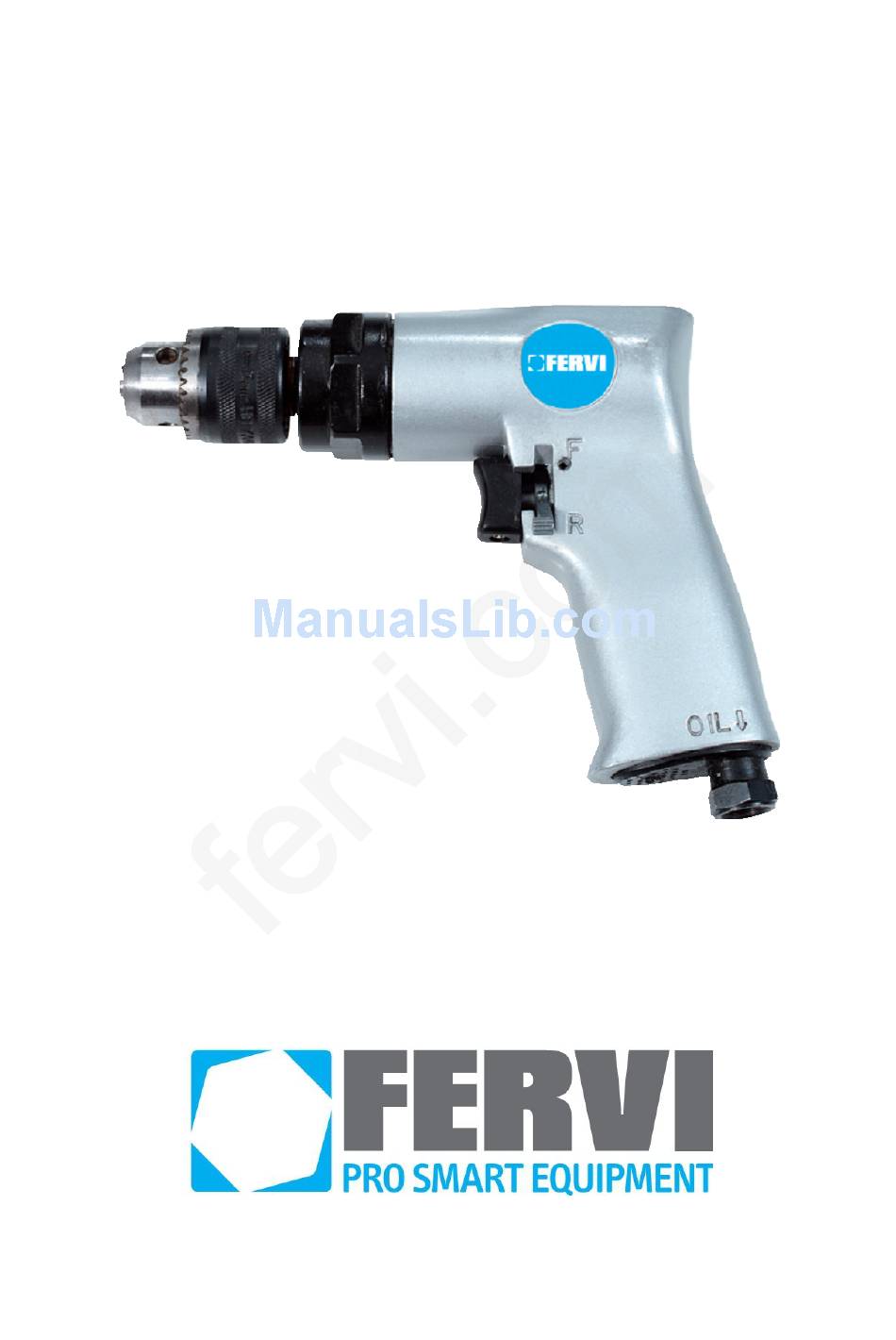

- Page 1 OPERATION AND MAINTENANCE MANUAL Reversible air drill Art. 0339 ORIGINAL INSTRUCTIONS...
- Page 2 Manual on the date of issue, listed on this page; however, the machine may be subject to potentially major technical changes in the future, without the Manual being updated. Therefore, see FERVI for information about modifications that could be implemented. REV. 2 December 2013...
-
Page 3: Table Of Contents
HARDWARE CONTENTS GENERAL SAFETY INSTRUCTIONS............. 4 Risks Associated with the Work Area ................4 Risks Associated with the Presence of Rotating and/or Moving Parts......4 Personal protective equipment ..................5 Technical support......................5 DESCRIPTION OF THE DRILL AND INTENDED USE ........6 Technical specifications ....................7 IMPROPER USE AND CONTRAINDICATIONS.......... -
Page 4: General Safety Instructions
HARDWARE 1 GENERAL SAFETY INSTRUCTIONS 1. During use, maintain control of the tool. 2. The operators represent the most important aspect of safety. To best protect against the risk of injury, work cautiously and carefully. 3. The pneumatic tool should not be used and repaired by someone under the influence of drugs or alcohol. -
Page 5: Personal Protective Equipment
HARDWARE 1.3 Personal protective equipment When using the pneumatic tool, always wear the following: Hearing protection Safety shoes Work gloves Protective goggles (cap, earplugs, etc.) Figure 1 - Personal protective equipment. 1.4 Technical support For any problem or request for clarification, please do not hesitate to contact the support service of the retailer from whom you purchased the product. -
Page 6: Description Of The Drill And Intended Use
HARDWARE 2 DESCRIPTION OF THE DRILL AND INTENDED USE The Reversible air drill (Art. 0339) is a portable pneumatic tool, to be used for drilling holes in various kinds of material such as wood, metal, plastic, etc. The drill is made up of the following parts (see Figure 1): 1) the typical "gun"... -
Page 7: Technical Specifications
HARDWARE 2.1 Technical specifications Reference Value Spindle (mm) Bit diameter (mm) 1.5 ÷ 10 Rotation speed (rpm) 1800 Operating pressure (bar/psi) 6 / 90 Air consumption (CFM / l/min.) 5 / 150 Empty weight (kg) Sound pressure level emitted into the environment (dB (A)) 82.8 Page 7 of 14... -
Page 8: Improper Use And Contraindications
HARDWARE 3 IMPROPER USE AND CONTRAINDICATIONS IT IS STRICTLY FORBIDDEN TO: Allow the tool to be used by untrained personnel and those who have not read the instruction manual; Use the tool for different purposes and uses other than those for which it was designed, i.e. -
Page 9: Commissioning
HARDWARE 4 COMMISSIONING 1. Remove the air inlet cap, then screw the nozzle into hole: 1/4" NPT Male Quick-Release Coupling 2. Put a few drops of lubricating oil (without resin acid) in the air inlet nozzle. 3. Check the flexible air supply hose. If it is damaged, broken, torn or deformed it must not be connected to the tool. -
Page 10: How To Use
HARDWARE 5 HOW TO USE 5.1 Mounting the cutting bits Crushing and Cutting Before mounting and/or removing the cutting bits, always disconnect the air supply hose. Protective gloves Before attaching and/or removing the cutting bits, wear suitable protective gloves. 1. Insert a cutting bit (with a diameter between 1.5 mm and 10 mm) inside the spindle. 2. -
Page 11: Power On / Off
HARDWARE 5.2 Power On / Off (Personal Protective Equipment) PPE Before using the drill, wear suitable work clothing, gloves, shoes and protective goggles. Also wear protective devices for the ears (hearing protectors), such as earmuffs, earplugs, etc.. Workspace Be familiar with the work area. Always check the work area before using the drill. -
Page 12: Maintenance And Cleaning
HARDWARE 6 MAINTENANCE AND CLEANING The purpose of this section is to provide all the information on maintenance procedures and their frequency, as required by the Drill, Art. 0339. Frequency INTERVENTION Daily Weekly 1. General visual inspection 2. General cleaning 3. -
Page 13: Bill Of Materials And Spare Parts
HARDWARE 7 BILL OF MATERIALS AND SPARE PARTS Page 13 of 14... - Page 14 0339/09 Spring 0339/26 Pin 0339/10 Button 0339/27 Shaft 0339/11 Screw 0339/28 Gear box 0339/12 Pin 0339/29 Bearing 0339/13 Air discharge filter 0339/30 Spindle key 0339/14 Screw 0339/31 Spindle screw 0339/15 Air intake cap 0339/32 Nut-jaws 0339/16 Gauge 0339/33 Washer 0339/17 Bearing...
